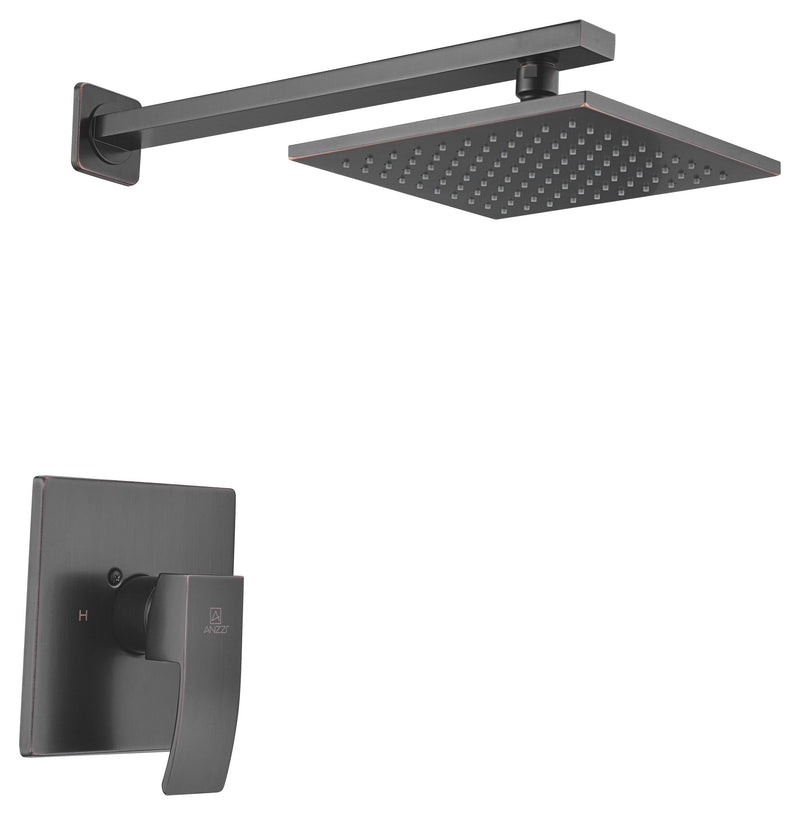

The ANZZI SH-AZ041ORB is a Viace Series single-handle wall-mounted shower faucet set in oil rubbed bronze, with an 8" Heavy Rain showerhead, a one-lever mixing valve and matching trim. It is a shower-only set (no tub spout) with a rain-style head and a single control.
An 8" Rain Head for a Shower Stall
The 8" Heavy Rain head provides a powerful and deeply refreshing full body shower at a flow of 1.8 GPM.
One lever on the round trim plate controls flow and temperature together. The deceptively simple single handle design keeps a fine minimalist aesthetic to match with any modern or contemporary decor style.
Inside the Wall
Inside, the valve is lead-free RHINO ALLOY certified brass under a rust resistant oil rubbed bronze finish, an all-metal combination of high quality materials. The install guide lists the set to ASME A112.18.1/CSA B125.1, and the Viace is cUPC certified and listed for North America. The valve body includes a check valve.
The Viace comes in polished chrome, brushed nickel and oil rubbed bronze. The design is modern European inspired, brought to life through precision German engineering.
ANZZI's install guide takes the job in order. Remove the first protective cover, but leave the last one on until it is flush with the finished wall, then take out the two screws and that cover. Connect the hot and cold supply lines to their own sides of the valve, let the water run for 1 to 2 minutes and confirm there are no leaks. Wrap Teflon tape on the shower arm, place the flange on the shower pipe and screw the arm in, then screw the head on with the O-ring between arm and head. The trim plate fastens over the valve with its screws, the handle goes on with its set screw, and the index fits last. The guide recommends a screwdriver, channel locks, an adjustable wrench, an Allen key, goggles and Teflon tape.
The SH-AZ041ORB comes with its shower arm, flange, showerhead, valve body and cartridge, trim plate and handle, in one finish: polished chrome (SH-AZ041), brushed nickel (SH-AZ041BN) or oil rubbed bronze (SH-AZ041ORB). ANZZI's Thyme (SH-AZ030) is the shower-only set with a larger 11.4" head, and its Spirito (SH-AZ040), Tempo (L-AZ026, L-AZ026BN) and Mezzo (SH-AZ037, SH-AZ037MK, SH-AZ039) sets add a tub spout.
The SH-AZ041ORB is an ANZZI shower-only wall-mounted rain shower set with an 8" Heavy Rain head and a single lever, in oil rubbed bronze.
Features
8" Heavy Rain Showerhead
The 8" Heavy Rain head gives a powerful and deeply refreshing full body shower, controlled by one lever on the round trim plate.
1.8 GPM Flow
The Viace flows at 1.8 GPM, and the valve body includes a check valve.
Single-Lever Control
One lever sets flow and temperature together in a deceptively simple single handle design.
Lead-Free Brass Valve
The lead-free RHINO ALLOY certified brass valve body includes a check valve, the in-wall part of the shower set.
ASME and cUPC Certified
ANZZI lists the set to ASME A112.18.1/CSA B125.1 and as cUPC certified and listed for North America.
Complete Matching Trim
Shower arm, flange, head, trim plate and handle come together in one finish with the valve body and cartridge.
Specifications
-
Model: SH-AZ041ORB
-
Showerhead Diameter: 8"
-
Material: Lead-free RHINO ALLOY certified brass
-
Finish: Oil Rubbed Bronze
-
Installation: Wall mount, shower
-
Handle: Single lever
-
Showerhead: Heavy Rain
-
Flow Rate: 1.8 GPM
-
Certifications: cUPC; ASME A112.18.1/CSA B125.1
-
Series: Viace
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SH-AZ041ORB Heavy Rain showerhead, shower arm and flange
- Valve body with cartridge, check valves and cartridge locknut
- Trim plate, lever handle, trim cap and index
- Allen key, screws, O-rings, washer, end cap and protective covers
Installation & Care
Installation
Wall mounted: plumb the valve body into the wall with the hot and cold supplies on their own sides, and keep the last protective cover on until it is flush with the finished wall. Flush the lines for 1 to 2 minutes and check for leaks. Wrap Teflon tape on the shower arm, fit the flange, screw on the head with its O-ring, then fix the trim plate with its screws and the handle with its set screw.
Care
Clean the oil rubbed bronze finish with regular soap and warm water on a soft, non-abrasive cloth or sponge, then rinse and dry it. Use only a non-abrasive cloth or sponge. Test any stronger cleaner on an inconspicuous area first, and do not let cleaner soak on the surface.
