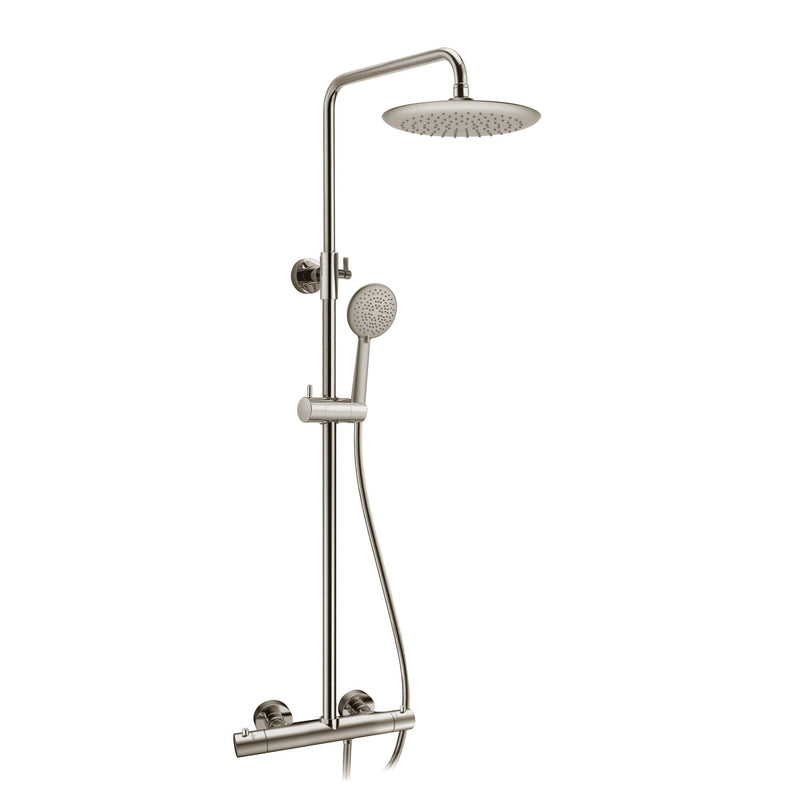

The ANZZI SH-AZ101BN is a Heavy Rainfall stainless steel shower bar with hand sprayer in brushed nickel, an exposed shower system that combines an overhead rain head, a thermostatic mixer and a five-mode handheld sprayer on one riser. It is a bathroom upgrade that installs to your existing water line.
Rain Head, Hand Sprayer and Thermostatic Mixer
The overhead showerhead adjusts in height and angle, and it releases a gentle Heavy Rainfall cascade. The handheld sprayer has five spray modes, from a vigorous morning spray to a soothing massage, and reaches 59" on its hose to put water exactly where you want it.
A thermostatic cartridge and temperature control handle hold the water at the temperature you set, and a diverter handle switches between the rain head and the hand shower. The system flows at 1.8 GPM, a flow rate that is environmentally friendly and helps lower the water bill.
The bar is precision shaped from 304 stainless steel, Rhino Alloy certified by ANZZI, with solid brass valves. The package includes the shower system, head, sprayer and the mounting and installation hardware.
What the Wall Needs

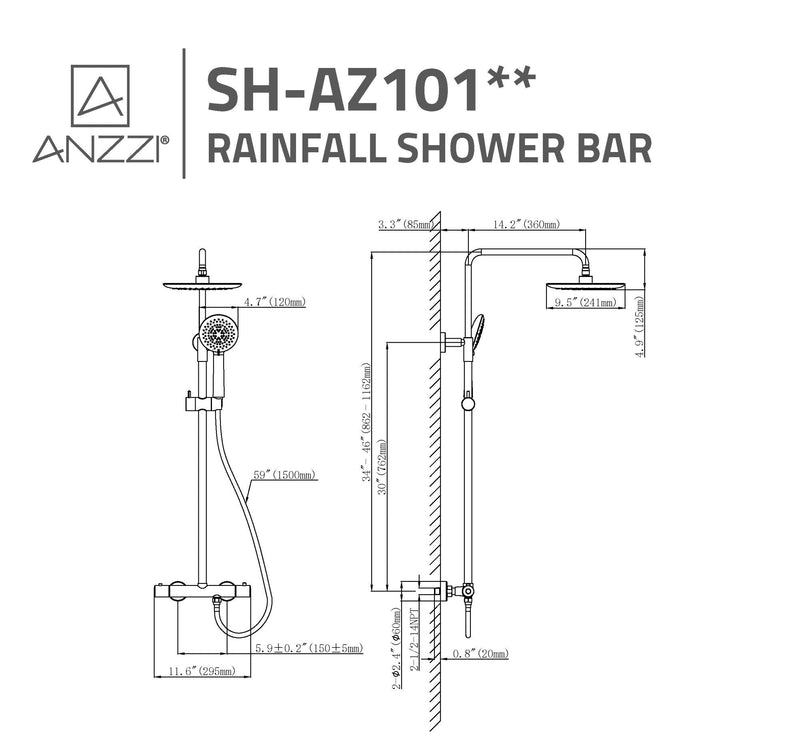

ANZZI's manual sets out the rough-in. The hot and cold outlets in the wall should sit 5.7" to 6.1" apart on center, hot on the left and cold on the right, at the same height, about 35.5" to 39.4" above the floor. The nipples are wrapped with sealing tape and screwed into the outlets, the supplies are flushed for 30 seconds to 1 minute, and the wall around the nipples is sealed with waterproof sealant. The covers are then leveled so the shanks sit 5.9" apart, and the inlets take 1/2"-14NPT threads.
The wall must be strong enough to carry the shower pipe and reinforced at the mounting points, and the spot for the top mounting piece must be flat and free of protruding grout joints. Water pressure should be between 20 and 125 PSI, and ANZZI highly recommends professional installation.
The mixer, riser, rain head and hand sprayer share the same brushed nickel finish.
ANZZI suggests building a bathroom suite around it, with its shower doors, shower bases, shower seats and towel warmers. The ANZZI SH-AZ101BN stainless steel shower bar in brushed nickel puts a rain head, a five-mode hand sprayer and thermostatic control on one riser.
Features
Heavy Rainfall Overhead Head
The Heavy Rainfall downpour system's overhead showerhead releases a gentle, full rainfall from above the riser.
Five-Mode Hand Sprayer
The handheld offers five spray modes, from vigorous to massage, and reaches 59" on its hose.
Thermostatic Mixer
A thermostatic cartridge mixes the water to the temperature you set, and a separate diverter handle picks the rain head or wand.
Diverter Between Head and Wand
A separate diverter handle switches between the rain head and the hand sprayer, so temperature and outlet are set independently.
1.8 GPM Water Saving Flow
The system flows at 1.8 GPM through the rain head or the hand sprayer.
304 Stainless and Solid Brass
The 304 stainless steel bar is Rhino Alloy certified by ANZZI and fitted with solid brass valves.
Brushed Nickel Finish
The brushed nickel finish is on a Rhino Alloy certified 304 stainless steel shower bar with solid brass valves. ANZZI also makes this model in brushed gold, polished chrome and matte black.
Specifications
-
Model: SH-AZ101BN
-
Material: 304 stainless steel, solid brass valves, Rhino Alloy certified
-
Finish: Brushed Nickel
-
Installation: Exposed wall mount on hot and cold outlets
-
Shower Head: Heavy Rainfall overhead, adjustable height and angle
-
Hand Sprayer: 5 spray modes, 59" reach
-
Valve: Thermostatic cartridge with temperature handle
-
Diverter: Separate diverter handle
-
Flow Rate: 1.8 GPM
-
Outlet Spacing: 5.7" to 6.1" on center, hot on the left
-
Outlet Height: About 35.5" to 39.4" from the floor
-
Supply Connection: 1/2"
-
Water Pressure: 20 to 125 PSI
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SH-AZ101BN rainfall shower bar with thermostatic faucet and riser
- Overhead shower head
- Hand shower with shower hose
- Diverter and temperature handles
- Nipples, covers, bracket and mounting kit
Installation & Care
Installation
Exposed wall mount on two 1/2" outlets spaced 5.7" to 6.1" on center, hot on the left and cold on the right, about 35.5" to 39.4" above the floor and at the same height. Seal and fit the nipples, flush both supplies for 30 seconds to 1 minute, seal the wall around them, then level the covers with shanks 5.9" apart before fitting the faucet, riser and mounting kit. The wall must be strong or reinforced at the mounting points. Water pressure must be 20 to 125 PSI; ANZZI highly recommends professional installation. ANZZI's manual asks you to make sure the supply lines are free of debris before you connect the system.
Care
Wipe the bar, head and handles with regular soap and warm water on a non-abrasive cloth or sponge, then dry. Test any stronger cleaner on an inconspicuous area first, rinse every surface with water straight after and do not let cleaner soak. Keep abrasive pads off the brushed nickel finish.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Heavy Rainfall shower bar comes in Brushed Gold (SH-AZ101BG), Brushed Nickel (SH-AZ101BN), Polished Chrome (SH-AZ101CH) and Matte Black (SH-AZ101MB). ANZZI suggests using it with its SD-AZ8077-02MB shower door, SB-AZ101R shower base, AC-AZ8209 shower seat and towel warmers and faucets.
