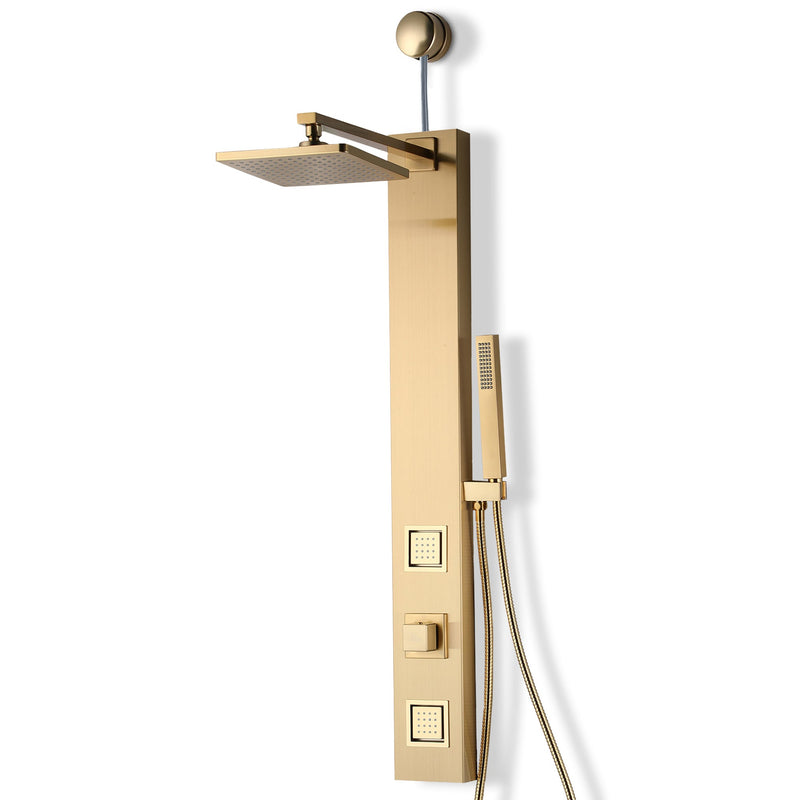

The ANZZI SP-AZ082BG is a Dion Series 39" two-jet shower tower in brushed gold, a compact shower panel that adds a Heavy Rain overhead shower, two Acu-Stream body jets and the Euro-Grip handheld sprayer to an ordinary shower. It is meant as a retrofit: it runs from your existing water line, with no cutting into walls or reworking of the plumbing.
One Diverter, Three Ways to Shower

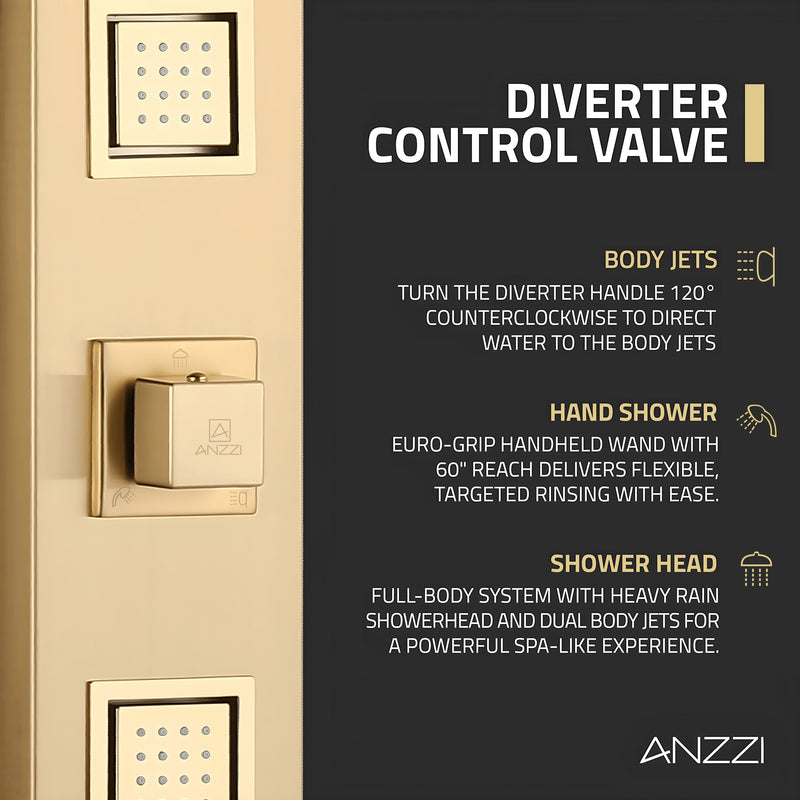

One diverter handle runs the whole panel. Turn it 120° counterclockwise and the water goes to the body jets, 120° clockwise and it goes to the hand shower, with the rain head in between.
The handheld sprayer reaches 60" on its hose, enough to rinse hair, wash a child or pet, or clean the corners of the stall. The panel flows at 1.8 GPM.
The frame is laser cut and precision shaped from brushed stainless steel, and it is Rhino Alloy certified and rust free. The installation manual lists IAPMO IGC 154 and ASME A112.18.1/CSA B125.1, and reinforced stainless steel supply hoses use standard 1/2" connections.
Mounting Height and Fit
Settle the mounting height before drilling: set the panel so it is comfortable for the people who use the shower, allow about 6" of clearance above the showerhead and keep at least 1" from the ceiling. The panel is 39" tall, and the brackets, anchors and screws come in the box.
The manual states that basic plumbing knowledge is needed, and it points you to a licensed professional plumber if you are unsure. The panel is for indoor residential use, it runs on standard household plumbing, and it needs water pressure between 20 and 125 PSI; above that, a pressure-reducing valve must be fitted. A flow restrictor sits in the assembly, and every connection is checked for leaks after hookup.
It comes in brushed gold, brushed nickel and matte black.
The recommended items for the installation are a screwdriver, channel locks, an adjustable wrench, an Allen key, a pencil, an electric drill, a tape measure, a rubber mallet, goggles and Teflon tape. The panel is designed to operate with standard residential plumbing and works from your existing water supply lines at typical household water pressure and flow rates.
For anyone comparing retrofit shower systems, the ANZZI SP-AZ082BG 39" shower tower in brushed gold puts a rain head, two adjustable jets and a 60" hand sprayer on one brushed stainless steel panel, without opening the wall.
Features
Retrofit on Your Existing Water Line
The Dion uses the existing water line, with no cutting into walls or reworking of the plumbing.
Two Adjustable Acu-Stream Jets
Two Acu-Stream body jets sit on the panel face below the Heavy Rain overhead shower.
Heavy Rain Overhead Shower
The Heavy Rain overhead shower head releases a gentle cascade, alongside two Acu-Stream jets for a relaxing massage.
One Diverter, Three Outlets
A single diverter handle turns 120° each way to send water to the body jets or the hand shower, so switching outlets takes one motion with wet hands.
Euro-Grip Hand Sprayer, 60" Reach
The Euro-Grip handheld sprayer has a 60" reach on its hose, alongside the Heavy Rain shower and two body jets.
1.8 GPM Water Saving Flow
The system, with its rainfall head, body jets and hand sprayer, flows at 1.8 GPM.
Brushed Stainless Steel Build
The laser-cut brushed stainless steel frame is rust free and Rhino Alloy certified by ANZZI, and it is listed to ASME A112.18.1/CSA B125.1 and IAPMO IGC 154.
Brushed Gold Finish
The brushed gold finish is on RHINO ALLOY certified premium stainless steel, chosen for superior quality and resilience.
Specifications
-
Model: SP-AZ082BG
-

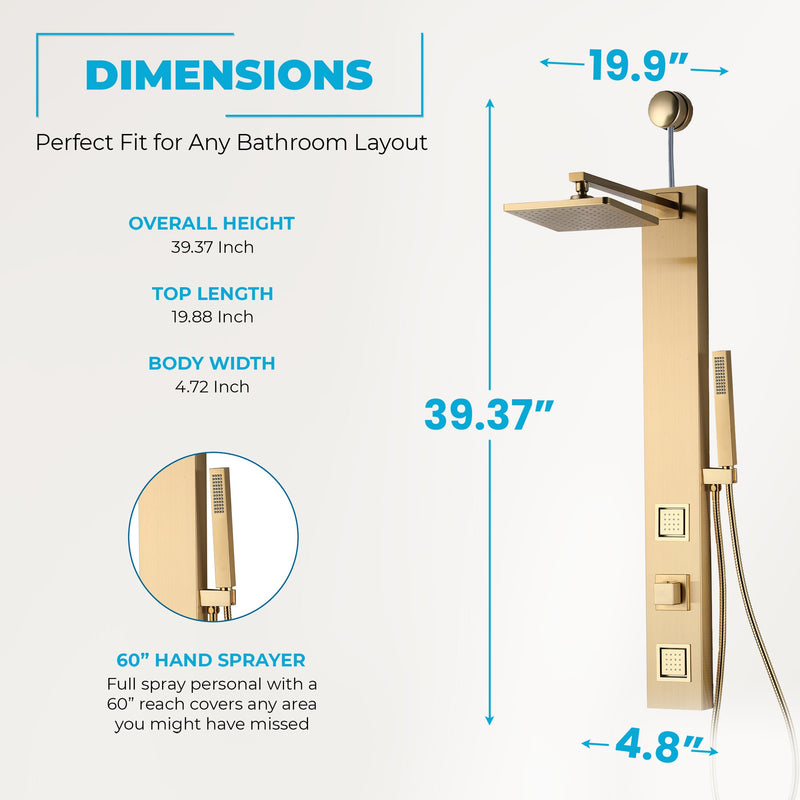

Height: 39"
-
Material: Brushed stainless steel, Rhino Alloy certified
-
Finish: Brushed Gold
-
Installation: Wall mount on brackets, retrofit to existing water line
-
Shower Head: Heavy Rain overhead
-
Body Jets: 2 adjustable Acu-Stream jets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Controls: Single diverter handle, 120° each way
-
Flow Rate: 1.8 GPM
-
Supply Connection: 1/2" connections, stainless steel supply hoses
-
Water Pressure: 20 to 125 PSI
-
Certifications: IAPMO IGC 154, ASME A112.18.1/CSA B125.1
-
Series: Dion
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ082BG Dion shower panel
- Shower arm and Heavy Rain shower head
- Two body jets
- Hand shower with shower hose and holder
- Diverter handle and flange
- Brackets, anchors and screws
Installation & Care
Installation
Wall mount on brackets, indoor residential use only. Plan the height so there is about 6" of clearance above the shower head and at least 1" from the ceiling. The panel connects to your existing water line with 1/2" stainless steel hoses; basic plumbing knowledge is required, and a licensed plumber should be consulted if you are unfamiliar with it. Supply pressure must be 20 to 125 PSI; above that, fit a pressure-reducing valve. Check all connections for leaks after install and do not overtighten.
Care
Clean the panel regularly with regular soap and hot water on a non-abrasive cloth or sponge, which stops mineral and soap build-up before it hardens. If a stronger cleaner is needed, test it on an inconspicuous area first, then wipe and rinse every surface with water straight after and dry any overspray. Do not let cleaner soak on the surface, and keep abrasive pads off the finish and the jet faces.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Dion panel comes in Brushed Gold (SP-AZ082BG), Brushed Nickel (SP-AZ082BN) and Matte Black (SP-AZ082MB). For a taller wall, ANZZI also makes full-length panels such as the Expanse and Field.
