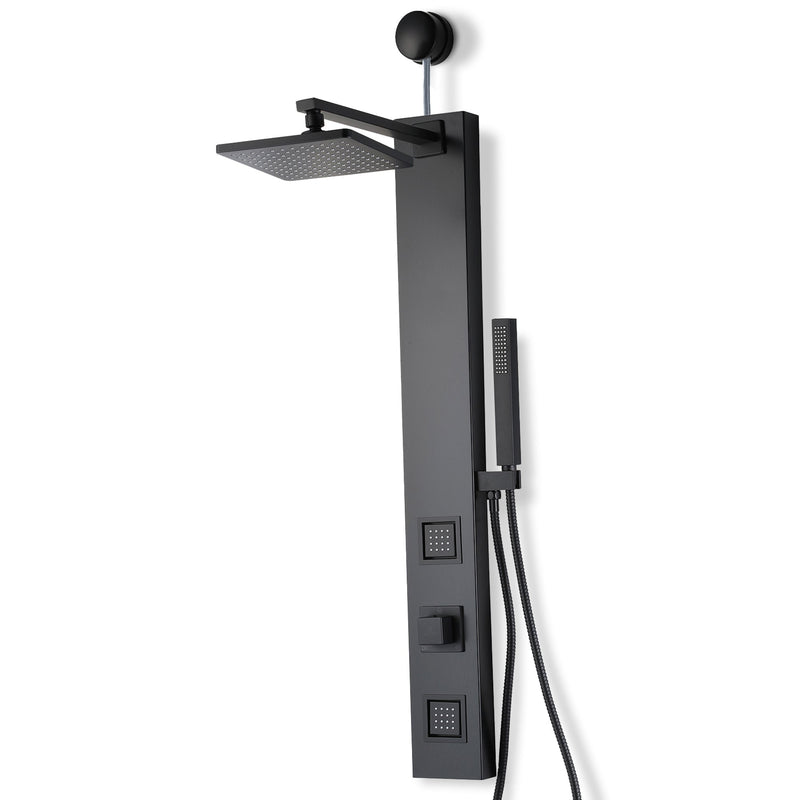

The ANZZI SP-AZ082MB is a Dion Series 39" two-jet shower tower in matte black, a compact shower panel that adds a Heavy Rain overhead shower, two Acu-Stream body jets and the Euro-Grip handheld sprayer to an ordinary shower. It is meant as a retrofit: it runs from your existing water line, with no cutting into walls or reworking of the plumbing.
One Diverter, Three Ways to Shower

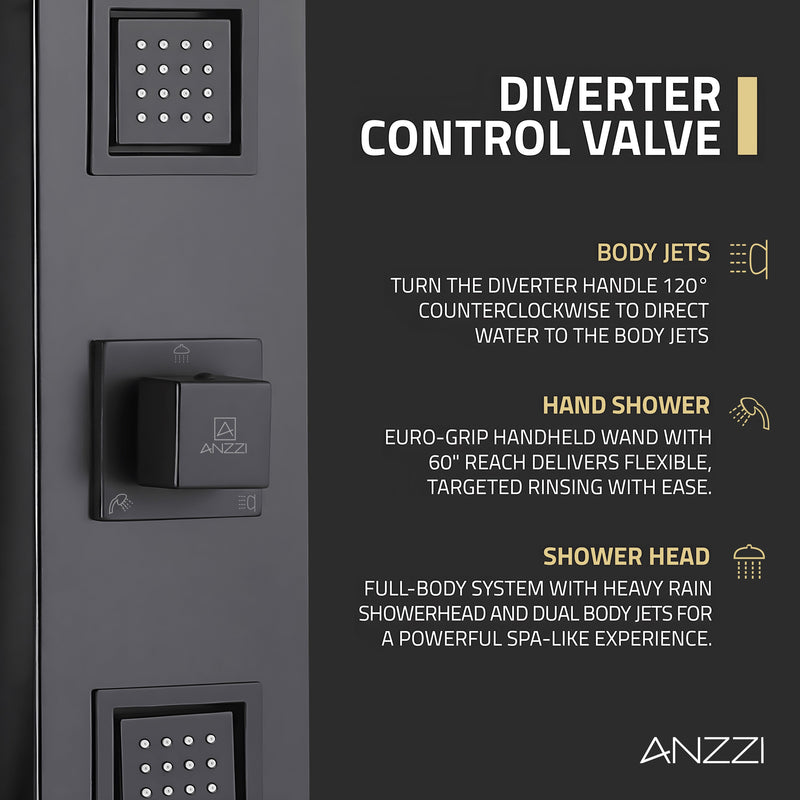

One diverter handle runs the whole panel. Turn it 120° counterclockwise and the water goes to the body jets, 120° clockwise and it goes to the hand shower, with the rain head in between.
The handheld sprayer reaches 60" on its hose, enough to rinse hair, wash a child or pet, or clean the corners of the stall. The panel flows at 1.8 GPM.
The frame is laser cut and precision shaped from brushed stainless steel, and it is Rhino Alloy certified and rust free. The installation manual lists IAPMO IGC 154 and ASME A112.18.1/CSA B125.1, and reinforced stainless steel supply hoses use standard 1/2" connections.
Mounting Height and Fit
Settle the mounting height before drilling: set the panel so it is comfortable for the people who use the shower, allow about 6" of clearance above the showerhead and keep at least 1" from the ceiling. The panel is 39" tall, and the brackets, anchors and screws come in the box.
The manual states that basic plumbing knowledge is needed, and it points you to a licensed professional plumber if you are unsure. The panel is for indoor residential use, it runs on standard household plumbing, and it needs water pressure between 20 and 125 PSI; above that, a pressure-reducing valve must be fitted. A flow restrictor sits in the assembly, and every connection is checked for leaks after hookup.
It comes in brushed gold, brushed nickel and matte black.
The recommended items for the installation are a screwdriver, channel locks, an adjustable wrench, an Allen key, a pencil, an electric drill, a tape measure, a rubber mallet, goggles and Teflon tape. The panel is designed to operate with standard residential plumbing and works from your existing water supply lines at typical household water pressure and flow rates.
For anyone comparing retrofit shower systems, the ANZZI SP-AZ082MB 39" shower tower in matte black puts a rain head, two adjustable jets and a 60" hand sprayer on one brushed stainless steel panel, without opening the wall.
Features
Retrofit on Your Existing Water Line
The Dion uses the existing water line, with no cutting into walls or reworking of the plumbing.
Two Adjustable Acu-Stream Jets
Two Acu-Stream body jets sit on the panel face below the Heavy Rain overhead shower.
Heavy Rain Overhead Shower
The Heavy Rain overhead shower head releases a gentle cascade, alongside two Acu-Stream jets for a relaxing massage.
One Diverter, Three Outlets
A single diverter handle turns 120° each way to send water to the body jets or the hand shower, so switching outlets takes one motion with wet hands.
Euro-Grip Hand Sprayer, 60" Reach
The Euro-Grip handheld sprayer has a 60" reach on its hose, alongside the Heavy Rain shower and two body jets.
1.8 GPM Water Saving Flow
The system, with its rainfall head, body jets and hand sprayer, flows at 1.8 GPM.
Brushed Stainless Steel Build
The laser-cut brushed stainless steel frame is rust free and Rhino Alloy certified by ANZZI, and it is listed to ASME A112.18.1/CSA B125.1 and IAPMO IGC 154.
Matte Black Finish
The matte black finish is on RHINO ALLOY certified premium stainless steel, chosen for superior quality and resilience.
Specifications
-
Model: SP-AZ082MB
-

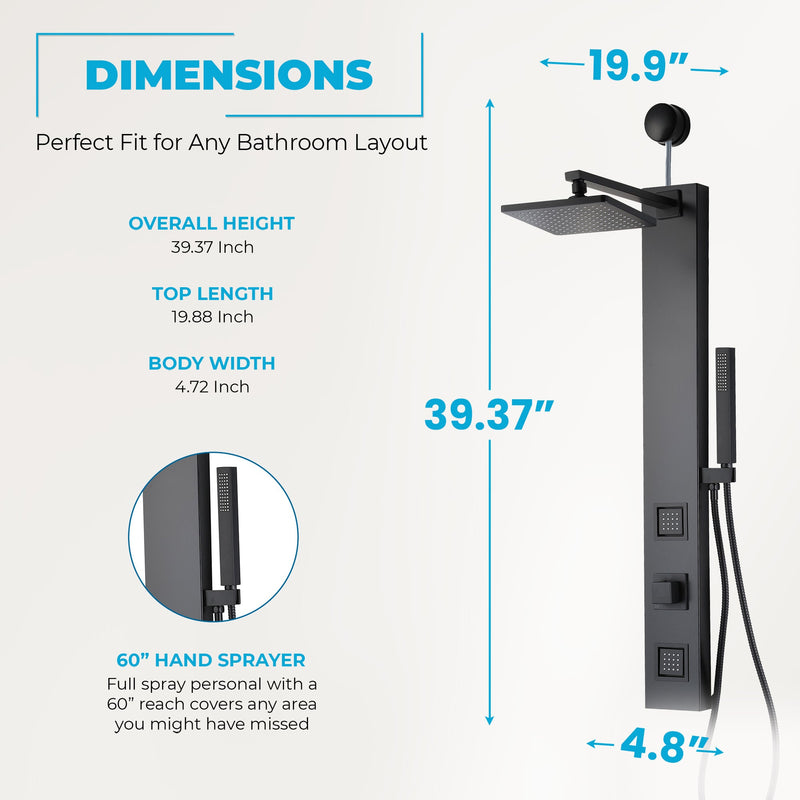

Height: 39"
-
Material: Brushed stainless steel, Rhino Alloy certified
-
Finish: Matte Black
-
Installation: Wall mount on brackets, retrofit to existing water line
-
Shower Head: Heavy Rain overhead
-
Body Jets: 2 adjustable Acu-Stream jets
-
Hand Sprayer: Euro-Grip handheld, 60" reach
-
Controls: Single diverter handle, 120° each way
-
Flow Rate: 1.8 GPM
-
Supply Connection: 1/2" connections, stainless steel supply hoses
-
Water Pressure: 20 to 125 PSI
-
Certifications: IAPMO IGC 154, ASME A112.18.1/CSA B125.1
-
Series: Dion
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- SP-AZ082MB Dion shower panel
- Shower arm and Heavy Rain shower head
- Two body jets
- Hand shower with shower hose and holder
- Diverter handle and flange
- Brackets, anchors and screws
Installation & Care
Installation
Wall mount on brackets, indoor residential use only. Plan the height so there is about 6" of clearance above the shower head and at least 1" from the ceiling. The panel connects to your existing water line with 1/2" stainless steel hoses; basic plumbing knowledge is required, and a licensed plumber should be consulted if you are unfamiliar with it. Supply pressure must be 20 to 125 PSI; above that, fit a pressure-reducing valve. Check all connections for leaks after install and do not overtighten.
Care
Clean the panel regularly with regular soap and hot water on a non-abrasive cloth or sponge, which stops mineral and soap build-up before it hardens. If a stronger cleaner is needed, test it on an inconspicuous area first, then wipe and rinse every surface with water straight after and dry any overspray. Do not let cleaner soak on the surface, and keep abrasive pads off the finish and the jet faces.
