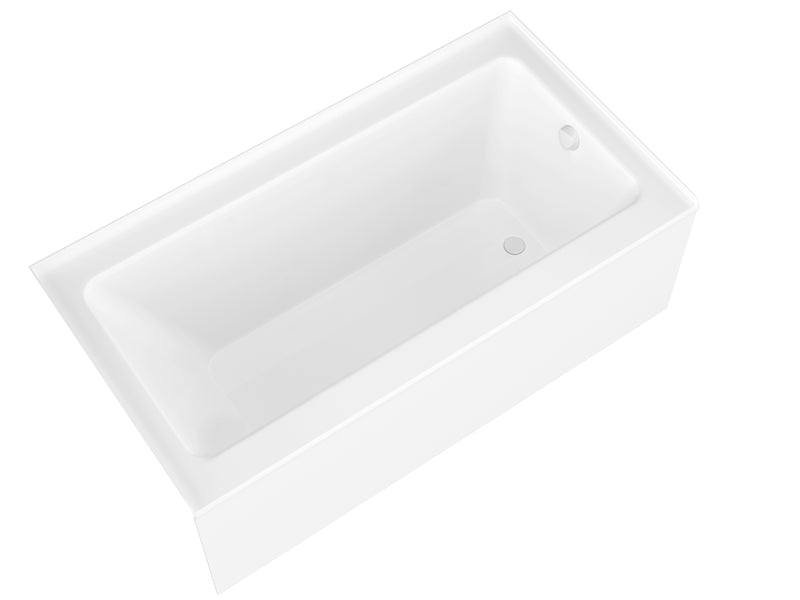

The Atlantis 3060SHR is a 60" x 30" Amber alcove bathtub in white acrylic with a deep, non-jetted soaking basin and a right side drain. It is a one-piece tub with a finished front skirt, so it slides into a three-wall alcove and suits a tub replacement project.
An alcove tub with a molded skirt is the direct replacement for a standard built-in bathtub: the three walls stay where they are, the skirt finishes the open side, and the tile flange sits behind the wall finish to keep water out of the wall. As a soaker it suits a bather who wants a long, quiet bath with nothing to switch on, and a home where running a new circuit to the bathroom is not practical.
A Deep, Quiet Soak With No Wiring
This is a soaking tub with no jets, pump or blower, so there is no electrical wiring to run, nothing to service and nothing to hear but the water.
It measures 60" L x 30" W x 21" H overall, with a 54" L x 22.875" W x 16.5" H interior and a 42.25" L x 16" W flat base to sit or recline on. Water fills to a 13.5" soaking depth, about 50 to 60 gallons with a bather in the tub. Empty, the tub weighs about 100 lbs, worth knowing when you plan the delivery and the carry into the bathroom.
The shell is marine grade acrylic with fiberglass reinforcement, finished in a smooth, glossy ultra white, a surface Atlantis rates for a long lasting shine. It is IAPMO listed and UPC and EGS certified, compliant with the Uniform Plumbing Code and International Plumbing Code, and built to ASME A112.19.15, CSA C22.2 No. 218.2 and UL 1795.
Built for a Three-Wall Alcove
Installing the Atlantis Amber 60" x 30" alcove bathtub: it slides into a three-wall alcove with the finished skirt facing the room and a 1" tile flange behind the wall finish, the usual layout for replacing an old bathtub. The drain center sits 15" from the side wall and 8.125" from the nearest wall. With no jets, pump or blower, the soaking model needs no electrical supply. Set the tub completely level so it drains, test the drain before it is enclosed, and measure the tub on site before building the surround.
The Amber collection is offered as soaker, air and whirlpool versions with left or right drains, so the same look can be matched to the bathroom and the bath you want.
In short, the Atlantis 3060SHR gives you a deep, quiet soak with no wiring in a 60" x 30" Amber alcove bathtub of easy-care, fiberglass-reinforced white acrylic.
Features
One-Piece Skirted Design
The front apron is molded into the tub, so no separate panel or framing is needed on the open side of the alcove.
Deep Non-Jetted Soak
With no jets, pump or blower, the tub needs no electrical wiring and has nothing to service, just a quiet, deep soak.
13.5" Soaking Depth
Water fills to 13.5" in a 54" L x 22.875" W x 16.5" H interior, with room to stretch out and sink in while you recline.
Reinforced Acrylic Shell
Marine grade acrylic with fiberglass reinforcement keeps a smooth, glossy ultra white finish that wipes clean easily and stays strong for years.
Alcove Installation
Built for a three-wall alcove, with a 1" tile flange that tucks behind the wall finish and a finished front skirt, so no separate apron is needed.
Plan Before You Install
Measure the tub on site before building any surround, and test the drain before final installation, so the finished tub drains and sits exactly right.
Specifications
-
Model: 3060SHR
-
Overall Dimensions: 60" L x 30" W x 21" H
-
Interior: 54" L x 22.875" W x 16.5" H
-
Interior Base: 42.25" L x 16" W
-
Soaking Depth: 13.5"
-
Bath Therapy: Non-jetted soaking
-
Drain Placement: Right
-
Color: White
-
Material: Acrylic with fiberglass reinforcement
-
Shape: Rectangular
-
Installation: Alcove (3-wall)
-
Deck Space: 3.125"
-
Tile Flange: 1"
-
Average Fill Capacity: 50-60 gal (estimated with occupant)
-
Standards: ASME A112.19.15, CSA C22.2 No. 218.2, UL 1795, UPC, IPC
-
Weight: 100 lbs
-
Warranty: 10 years shell; 1 year parts; 90 days labor
What's Included
- 3060SHR acrylic alcove bathtub
Installation & Care
Installation
Right side drain; overall 60" L x 30" W x 21" H; the drain center is 15" from the side wall and 8.125" from the nearest wall. A 1" tile flange runs along the wall sides. No electrical supply is needed. Set the tub completely level so it drains properly, test the drain before permanent installation, plan future access to the equipment, and measure the tub on site before building the surround. Atlantis requires a certified installer.
Care
Clean the acrylic with mild soap, warm water and a soft cloth or non-abrasive sponge, then rinse and dry it. Avoid abrasive pads, scouring powders and solvent or acid cleaners, which scratch and dull the gloss; if a stronger cleaner is needed, test it on a hidden spot first and rinse it off promptly.
Resources
Shipping, Returns & Warranty
Atlantis ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Atlantis products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
Atlantis covers the bathtub shell with a limited 10 year warranty against manufacturer defects, with 1 year for replacement parts and 90 days for labor. The tub must be registered at swcorp.com/register to activate the warranty and installed by a certified installer, or the warranty is void. Inspect the tub on delivery and report any damage or missing parts within 5 business days.
Warranty claims. Call SW Corp, the maker of Atlantis, at 866-588-8008 with your proof of purchase, the model number and a description of the problem. Register the product at swcorp.com/register within 90 days of delivery. Contact us with your order number if you would like help with the claim.
About Atlantis
Atlantis makes acrylic bathtubs for drop-in, alcove and freestanding installation, sold as soakers or with air, whirlpool and combined jetting, in collections such as Venetian, Eros, Mirage, Petite and Royale. Atlantis tubs are registered and supported through SW Corp.
The Atlantis Amber Collection is a one-piece skirted alcove tub in 30" and 32" widths, offered as a soaker or with air or whirlpool jets and a left or right drain. Atlantis builds every collection in the same fiberglass-reinforced white acrylic, and most are offered as a soaker or with air, whirlpool, combined whirlpool and air, or deluxe jetting with chromatherapy, touch pad controls and an ozonator.
