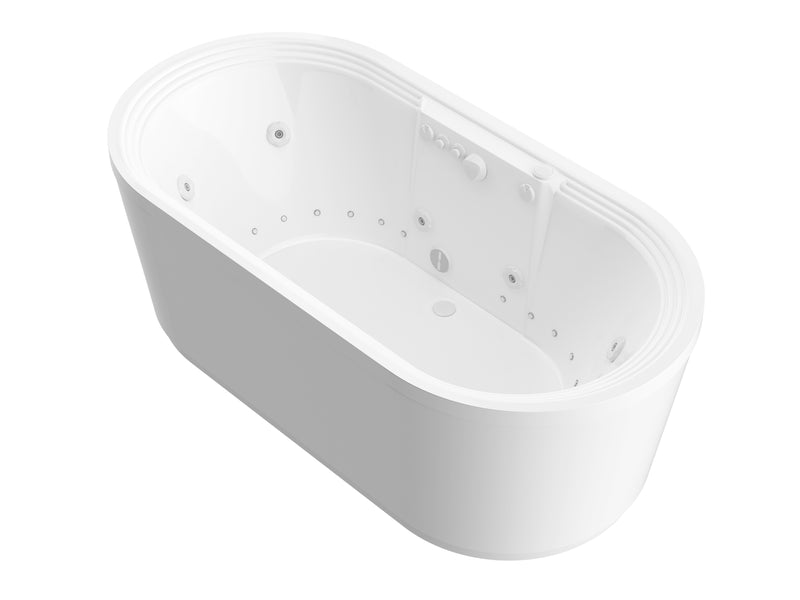

The Atlantis 3467RD is a 67" x 33" Royale freestanding bathtub in white acrylic with a combined whirlpool and air massage system and a center drain. It combines a traditional freestanding form with simple, contemporary lines.
A freestanding tub needs no deck, skirt or alcove, so it can stand in the middle of the room or under a window, wherever the drain and water supply can be brought to it. With both systems you can choose a soft bubble massage, a firmer whirlpool massage or both at once, so one tub suits different bathers in the household.
Whirlpool Plus Air Massage
8 adjustable, directional whirlpool jets and 24 Acu-Stream air jets pair a targeted hydro massage with a soft, total-body bubble massage. The air system carries aromatherapy scent through the massage bubbles. A maintenance heater holds a warm bathing temperature while the jets run; it slows cooling rather than heating a cold fill. Raised easy-push buttons and whirlpool pressure controls sit on the rim within reach.
It measures 67.375" L x 33" W x 24" H overall, with a 63" L x 24" W x 17.75" H interior and a 39.25" L x 20" W flat base to sit or recline on. Water fills to a 13.75" soaking depth, about 50 to 60 gallons with a bather in the tub. The spec sheet describes the shell shape as rounded.
The shell is marine grade acrylic with fiberglass reinforcement, finished in a smooth, glossy ultra white with matching trim, a surface Atlantis rates for a long lasting shine. It is IAPMO listed and UPC and EGS certified, compliant with the Uniform Plumbing Code and International Plumbing Code, and built to ASME A112.19.15, CSA C22.2 No. 218.2 and UL 1795.
A Freestanding Centerpiece
Placing the Atlantis Royale 67" x 33" freestanding bathtub: it stands on the bathroom floor with a center drain, so it needs no deck or alcove, only a drain and supply where the tub will sit. The drain center sits 33.4375" from the side wall and 9.5" from the nearest wall. The jetted system runs on a 110V supply with one 20 A GFCI circuit. Set the tub completely level so it drains, test the drain and jets before it is enclosed, and measure the tub on site before building the surround.
The Royale collection is offered as air, whirlpool, whirlpool and air and deluxe versions, so the same look can be matched to the bathroom and the bath you want.
In short, the Atlantis 3467RD gives you both whirlpool and air massage in a 67" x 33" Royale freestanding bathtub of easy-care, fiberglass-reinforced white acrylic.
Features
Freestanding Two-Piece Design
The tub stands on the floor as a finished centerpiece, with a two-piece shell that hides the jetting equipment.
Whirlpool and Air Massage
8 whirlpool jets and 24 Acu-Stream air jets combine a targeted hydro massage with a soft, total-body bubble massage.
Maintenance Heater
The maintenance heater holds the water at a warm bathing temperature for a longer soak while the jets run; fill with hot water, since it does not heat a cold fill.
Aromatherapy Bubbles
Aroma oils added to the air system scent the massage bubbles, so every bath becomes a fragrant, relaxing soak.
Raised Easy-Push Buttons
Raised easy-push buttons on the rim switch the jets on and off with a light press, and the whirlpool pressure control sets the jet strength.
13.75" Soaking Depth
Water fills to 13.75" in a 63" L x 24" W x 17.75" H interior, with room to stretch out and sink in while you recline.
Reinforced Acrylic Shell
Marine grade acrylic with fiberglass reinforcement keeps a smooth, glossy ultra white finish that wipes clean easily and stays strong for years.
Freestanding Placement
The tub stands on the floor with a center drain and needs no surround, deck or alcove, so it can sit wherever the plumbing reaches.
Specifications
-
Model: 3467RD
-
Overall Dimensions: 67.375" L x 33" W x 24" H
-
Interior: 63" L x 24" W x 17.75" H
-
Interior Base: 39.25" L x 20" W
-
Soaking Depth: 13.75"
-
Bath Therapy: Whirlpool and air jetted
-
Air Jets: 24
-
Water Jets: 8 adjustable
-
Heater: Inline maintenance heater
-
Aromatherapy: Yes (air system)
-
Drain Placement: Center
-
Color: White
-
Material: Acrylic with fiberglass reinforcement
-
Shape: Rounded
-
Installation: Freestanding
-
Deck Space: 3"
-
Average Fill Capacity: 50-60 gal (estimated with occupant)
-
Electrical: 110V, 1 x 20 A GFCI
-
Control: Raised easy-push buttons
-
Standards: ASME A112.19.15, CSA C22.2 No. 218.2, UL 1795, UPC, IPC
-
Warranty: 10 years shell; 1 year parts; 90 days labor
What's Included
- 3467RD acrylic freestanding bathtub
- 24-jet air system with blower
- 8-jet whirlpool system with pump and maintenance heater
Installation & Care
Installation
Center drain; overall 67.375" L x 33" W x 24" H; the drain center is 33.4375" from the side wall and 9.5" from the nearest wall. Electrical: a 110V supply on one 20 A GFCI circuit for the pump and blower and heater. Set the tub completely level so it drains properly, test the drain and jets before permanent installation, plan future access to the equipment, and measure the tub on site before building the surround. Atlantis requires a certified installer.
Care
Clean the acrylic with mild soap, warm water and a soft cloth or non-abrasive sponge, then rinse and dry it. Avoid abrasive pads, scouring powders and solvent or acid cleaners, which scratch and dull the gloss; if a stronger cleaner is needed, test it on a hidden spot first and rinse it off promptly.
Resources
Shipping, Returns & Warranty
Atlantis ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Atlantis products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
Atlantis covers the bathtub shell with a limited 10 year warranty against manufacturer defects, with 1 year for replacement parts and 90 days for labor. The tub must be registered at swcorp.com/register to activate the warranty and installed by a certified installer, or the warranty is void. Inspect the tub on delivery and report any damage or missing parts within 5 business days.
Warranty claims. Call SW Corp, the maker of Atlantis, at 866-588-8008 with your proof of purchase, the model number and a description of the problem. Register the product at swcorp.com/register within 90 days of delivery. Contact us with your order number if you would like help with the claim.
About Atlantis
Atlantis makes acrylic bathtubs for drop-in, alcove and freestanding installation, sold as soakers or with air, whirlpool and combined jetting, in collections such as Venetian, Eros, Mirage, Petite and Royale. Atlantis tubs are registered and supported through SW Corp.
The Atlantis Royale Collection is an oval two-piece freestanding tub, offered with air, whirlpool or whirlpool plus air jetting. Atlantis builds every collection in the same fiberglass-reinforced white acrylic, and most are offered as a soaker or with air, whirlpool, combined whirlpool and air, or deluxe jetting with chromatherapy, touch pad controls and an ozonator.
