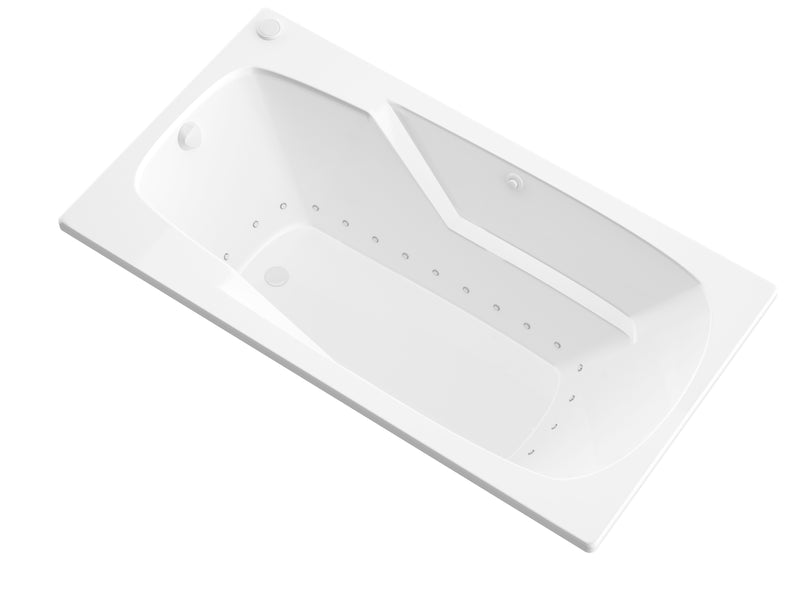

The Atlantis 3660EAR is a 59" x 36" Eros drop-in bathtub in white acrylic with an air bubble massage system and a right side drain with the blower on the left. Inside the rectangular shell sits a traditional oval basin with molded armrests and a patterned floor.
A drop-in tub lets you choose the deck finish, tile, stone or panel, to match the rest of the bathroom, and the deck around the rim gives a place to sit down while you get in and to keep bath products close. The air system suits a bather who wants a gentle, all-over massage rather than strong jets, and the soft bubbles can be scented with aroma oils.
27-Jet Air Bubble Massage
27 Acu-Stream air jets wrap the body in a soft, total-body bubble massage. The air system carries aromatherapy scent through the massage bubbles. Raised easy-push buttons sit on the rim within reach.
It measures 59" L x 35.5" W x 23" H overall, with a 55" L x 29.75" W x 18.625" H interior and a 40" L x 20.5" W flat base to sit or recline on. Water fills to a 14.625" soaking depth, about 50 to 60 gallons with a bather in the tub. Empty, the tub weighs about 165 lbs, worth knowing when you plan the delivery and the carry into the bathroom. Molded armrests measure 31" x 3".
The shell is marine grade acrylic with fiberglass reinforcement, finished in a smooth, glossy ultra white with matching trim, a surface Atlantis rates for a long lasting shine. It is IAPMO listed and UPC and EGS certified, compliant with the Uniform Plumbing Code and International Plumbing Code, and built to ASME A112.19.15, CSA C22.2 No. 218.2 and UL 1795.
Dropping It Into a Tiled Deck
Setting the Atlantis Eros 59" x 36" drop-in bathtub into a deck: the rim rests on a framed platform with 3" of deck space, and the deck face needs a removable access panel for the drain and the blower. The drain center sits 17.75" from the side wall and 9" from the nearest wall. The jetted system runs on a 110V supply with one 15 A GFCI circuit. Set the tub completely level so it drains, test the drain and jets before it is enclosed, and measure the tub on site before building the surround.
The Eros collection is offered as soaker, air, whirlpool, whirlpool and air and deluxe versions with left or right drains, so the same look can be matched to the bathroom and the bath you want.
In short, the Atlantis 3660EAR gives you a gentle air bubble massage in a 59" x 36" Eros drop-in bathtub of easy-care, fiberglass-reinforced white acrylic.
Features
Oval Interior With Armrests
A traditional oval basin inside the rectangular shell has molded interior armrests for a comfortable reclined soak.
Patterned Molded Floor
A molded pattern in the tub floor gives the feet more grip than a smooth base.
27-Jet Air Massage
27 Acu-Stream air jets release a soft bubble massage over the whole body, a gentle way to unwind at the end of the day.
Aromatherapy Bubbles
Aroma oils added to the air system scent the massage bubbles, so every bath becomes a fragrant, relaxing soak.
Raised Easy-Push Buttons
Raised easy-push buttons on the rim switch the jets on and off with a light press, with no small switches to hunt for.
14.625" Soaking Depth
Water fills to 14.625" in a 55" L x 29.75" W x 18.625" H interior, with room to stretch out and sink in while you recline.
Reinforced Acrylic Shell
Marine grade acrylic with fiberglass reinforcement keeps a smooth, glossy ultra white finish that wipes clean easily and stays strong for years.
Drop-In Installation
The rim drops into a tiled deck or platform with 3" of deck space; plan an access panel in the deck face for the drain and the jet motors.
Specifications
-
Model: 3660EAR
-
Overall Dimensions: 59" L x 35.5" W x 23" H
-
Interior: 55" L x 29.75" W x 18.625" H
-
Interior Base: 40" L x 20.5" W
-
Soaking Depth: 14.625"
-
Bath Therapy: Air jetted
-
Air Jets: 27
-
Aromatherapy: Yes (air system)
-
Drain Placement: Right (blower on the left)
-
Color: White
-
Material: Acrylic with fiberglass reinforcement
-
Shape: Rectangular
-
Installation: Drop-in
-
Deck Space: 3"
-
Average Fill Capacity: 50-60 gal (estimated with occupant)
-
Electrical: 110V, 1 x 15 A GFCI
-
Control: Raised easy-push buttons
-
Standards: ASME A112.19.15, CSA C22.2 No. 218.2, UL 1795, UPC, IPC
-
Weight: 165 lbs
-
Warranty: 10 years shell; 1 year parts; 90 days labor
What's Included
- 3660EAR acrylic drop-in bathtub
- 27-jet air system with blower
Installation & Care
Installation
Right side drain with the blower on the left; overall 59" L x 35.5" W x 23" H; the drain center is 17.75" from the side wall and 9" from the nearest wall. Frame the deck for a 3" rim (1.75" lip) and leave a removable access panel. Electrical: a 110V supply on one 15 A GFCI circuit for the blower. Set the tub completely level so it drains properly, test the drain and jets before permanent installation, plan future access to the equipment, and measure the tub on site before building the surround. Atlantis requires a certified installer.
Care
Clean the acrylic with mild soap, warm water and a soft cloth or non-abrasive sponge, then rinse and dry it. Avoid abrasive pads, scouring powders and solvent or acid cleaners, which scratch and dull the gloss; if a stronger cleaner is needed, test it on a hidden spot first and rinse it off promptly.
Resources
Shipping, Returns & Warranty
Atlantis ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Atlantis products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
Atlantis covers the bathtub shell with a limited 10 year warranty against manufacturer defects, with 1 year for replacement parts and 90 days for labor. The tub must be registered at swcorp.com/register to activate the warranty and installed by a certified installer, or the warranty is void. Inspect the tub on delivery and report any damage or missing parts within 5 business days.
Warranty claims. Call SW Corp, the maker of Atlantis, at 866-588-8008 with your proof of purchase, the model number and a description of the problem. Register the product at swcorp.com/register within 90 days of delivery. Contact us with your order number if you would like help with the claim.
About Atlantis
Atlantis makes acrylic bathtubs for drop-in, alcove and freestanding installation, sold as soakers or with air, whirlpool and combined jetting, in collections such as Venetian, Eros, Mirage, Petite and Royale. Atlantis tubs are registered and supported through SW Corp.
The Atlantis Eros Collection pairs a rectangular drop-in shell with an oval interior, molded armrests and a patterned floor, in 32" and 36" widths. Atlantis builds every collection in the same fiberglass-reinforced white acrylic, and most are offered as a soaker or with air, whirlpool, combined whirlpool and air, or deluxe jetting with chromatherapy, touch pad controls and an ozonator.
