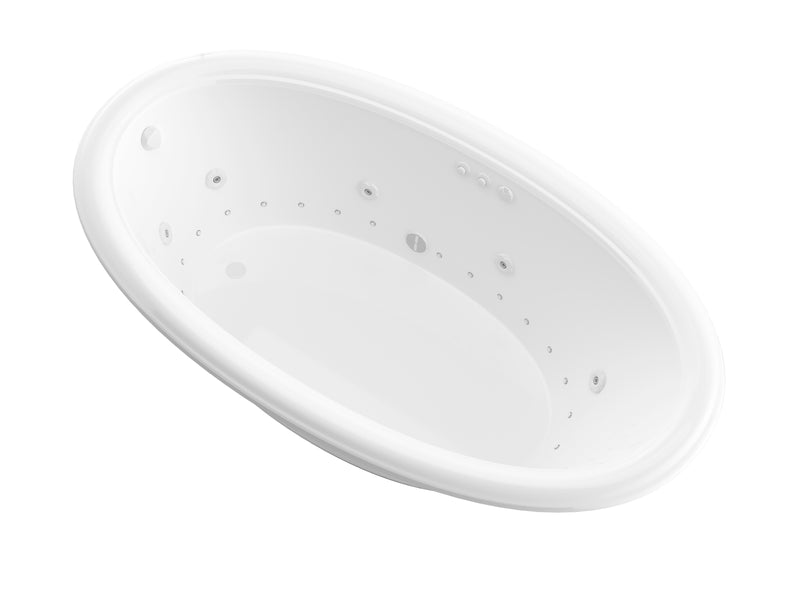

The Atlantis 3660PDL is a 60" x 36" Petite drop-in bathtub in white acrylic with a combined whirlpool and air massage system and a left side drain with the pump and blower on the right. It is a classic oval tub with ridged edges and an oval bathing well.
A drop-in tub lets you choose the deck finish, tile, stone or panel, to match the rest of the bathroom, and the deck around the rim gives a place to sit down while you get in and to keep bath products close. With both systems you can choose a soft bubble massage, a firmer whirlpool massage or both at once, so one tub suits different bathers in the household.
Whirlpool Plus Air Massage
8 adjustable, directional whirlpool jets and 24 Acu-Stream air jets pair a targeted hydro massage with a soft, total-body bubble massage. A maintenance heater holds a warm bathing temperature while the jets run; it slows cooling rather than heating a cold fill. Raised easy-push buttons and whirlpool pressure controls sit on the rim within reach.
It measures 59.75" L x 35.75" W x 23" H overall, with a 52.25" L x 28.5" W x 19.875" H interior and a 42" L x 25.5" W flat base to sit or recline on. Water fills to a 15.875" soaking depth. Empty, the tub weighs about 130 lbs, worth knowing when you plan the delivery and the carry into the bathroom.
The shell is marine grade acrylic with fiberglass reinforcement, finished in a smooth, glossy ultra white with matching trim, a surface Atlantis rates for a long lasting shine. It is IAPMO listed and UPC and EGS certified, compliant with the Uniform Plumbing Code and International Plumbing Code, and built to ASME A112.19.15, CSA C22.2 No. 218.2 and UL 1795.
Dropping It Into a Tiled Deck
Setting the Atlantis Petite 60" x 36" drop-in bathtub into a deck: the rim rests on a framed platform, and the deck face needs a removable access panel for the drain and the pump and blower. The drain center sits 17.875" from the side wall and 9.375" from the nearest wall. The jetted system runs on a 110V supply with one 20 A GFCI circuit. Set the tub completely level so it drains, test the drain and jets before it is enclosed, and measure the tub on site before building the surround.
The Petite collection is offered as soaker, air, whirlpool, whirlpool and air and deluxe versions with left or right drains, so the same look can be matched to the bathroom and the bath you want.
In short, the Atlantis 3660PDL gives you both whirlpool and air massage in a 60" x 36" Petite drop-in bathtub of easy-care, fiberglass-reinforced white acrylic.
Features
Classic Oval Shape
The oval shell and opening, finished with ridged edges, give a traditional look and a roomy bathing well.
Whirlpool and Air Massage
8 whirlpool jets and 24 Acu-Stream air jets combine a targeted hydro massage with a soft, total-body bubble massage.
Maintenance Heater
The maintenance heater holds the water at a warm bathing temperature for a longer soak while the jets run; fill with hot water, since it does not heat a cold fill.
Raised Easy-Push Buttons
Raised easy-push buttons on the rim switch the jets on and off with a light press, and the whirlpool pressure control sets the jet strength.
15.875" Soaking Depth
Water fills to 15.875" in a 52.25" L x 28.5" W x 19.875" H interior, with room to stretch out and sink in while you recline.
Reinforced Acrylic Shell
Marine grade acrylic with fiberglass reinforcement keeps a smooth, glossy ultra white finish that wipes clean easily and stays strong for years.
Drop-In Installation
The rim drops into a tiled deck or platform; plan an access panel in the deck face for the drain and the jet motors.
Specifications
-
Model: 3660PDL
-
Overall Dimensions: 59.75" L x 35.75" W x 23" H
-
Interior: 52.25" L x 28.5" W x 19.875" H
-
Interior Base: 42" L x 25.5" W
-
Soaking Depth: 15.875"
-
Bath Therapy: Whirlpool and air jetted
-
Air Jets: 24
-
Water Jets: 8 adjustable
-
Heater: Inline maintenance heater
-
Drain Placement: Left (pump and blower on the right)
-
Color: White
-
Material: Acrylic with fiberglass reinforcement
-
Shape: Rounded
-
Installation: Drop-in
-
Electrical: 110V, 1 x 20 A GFCI
-
Control: Raised easy-push buttons
-
Standards: ASME A112.19.15, CSA C22.2 No. 218.2, UL 1795, UPC, IPC
-
Weight: 130 lbs
-
Warranty: 10 years shell; 1 year parts; 90 days labor
What's Included
- 3660PDL acrylic drop-in bathtub
- 24-jet air system with blower
- 8-jet whirlpool system with pump and maintenance heater
Installation & Care
Installation
Left side drain with the pump and blower on the right; overall 59.75" L x 35.75" W x 23" H; the drain center is 17.875" from the side wall and 9.375" from the nearest wall. Electrical: a 110V supply on one 20 A GFCI circuit for the pump and blower and heater. Set the tub completely level so it drains properly, test the drain and jets before permanent installation, plan future access to the equipment, and measure the tub on site before building the surround. Atlantis requires a certified installer.
Care
Clean the acrylic with mild soap, warm water and a soft cloth or non-abrasive sponge, then rinse and dry it. Avoid abrasive pads, scouring powders and solvent or acid cleaners, which scratch and dull the gloss; if a stronger cleaner is needed, test it on a hidden spot first and rinse it off promptly.
Resources
Shipping, Returns & Warranty
Atlantis ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Atlantis products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
Atlantis covers the bathtub shell with a limited 10 year warranty against manufacturer defects, with 1 year for replacement parts and 90 days for labor. The tub must be registered at swcorp.com/register to activate the warranty and installed by a certified installer, or the warranty is void. Inspect the tub on delivery and report any damage or missing parts within 5 business days.
Warranty claims. Call SW Corp, the maker of Atlantis, at 866-588-8008 with your proof of purchase, the model number and a description of the problem. Register the product at swcorp.com/register within 90 days of delivery. Contact us with your order number if you would like help with the claim.
About Atlantis
Atlantis makes acrylic bathtubs for drop-in, alcove and freestanding installation, sold as soakers or with air, whirlpool and combined jetting, in collections such as Venetian, Eros, Mirage, Petite and Royale. Atlantis tubs are registered and supported through SW Corp.
The Atlantis Petite Collection is a classic oval drop-in tub with ridged edges, offered as a soaker or with air, whirlpool or combination jetting. Atlantis builds every collection in the same fiberglass-reinforced white acrylic, and most are offered as a soaker or with air, whirlpool, combined whirlpool and air, or deluxe jetting with chromatherapy, touch pad controls and an ozonator.
