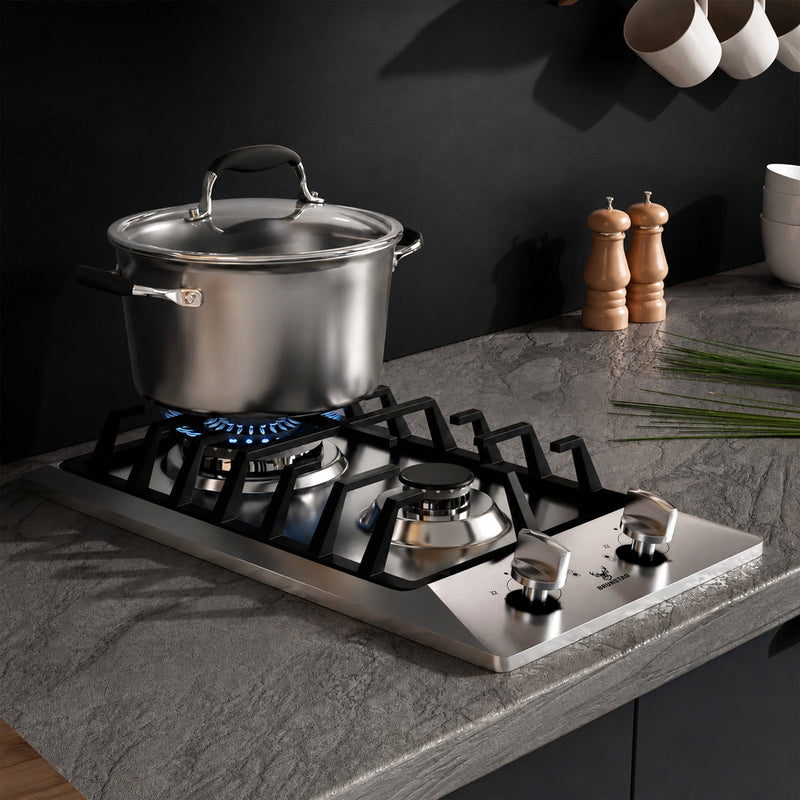

The ANZZI AZ-CKTGS01 is a 12" two-burner recessed gas cooktop in stainless steel with sealed burners and cast iron grates, factory set for natural gas and convertible to propane. It is made for small kitchens, apartments or RVs and for those who enjoy cooking with a real flame.
A 15,000 Btu/h Power Burner
The rear burner is rated 15,000 Btu/h for fast boiling and high-heat searing, and the front burner 5,800 Btu/h for simmering sauces and gentle cooking, a total of 20,800 Btu/h. Push-and-turn knobs light the burners with the built-in electric ignition, with no matches or lighters needed, and give smooth, precise flame adjustment once lit. High-performance flame spreaders distribute the heat evenly under the pan.
The sealed burners keep spills contained and clean-up simple. Heavy-duty cast iron grates hold pans steady and lift off for cleaning. The cooktop is compatible with all types of cookware, and its manual recommends stainless steel at medium heat, cast iron heated slowly for searing and simmering, and medium-weight aluminum for even browning; use enamelware with caution at high heat and only glass labeled for gas cooktops. Do not use a wok with a round metal support ring, which can trap heat and starve the burner of air.
Natural Gas or Propane
The cooktop ships set for natural gas, with a manifold pressure of 5" w.c., and converts to propane at 10" w.c. with the orifices supplied in the box. The conversion must be made by a qualified propane gas technician; keep the natural gas parts in case you switch back. The supplied gas regulator connects with a 1/2" NPT female thread.
The surface is stainless steel. The ignition runs on 120V through a 3-prong grounding plug on a circuit protected by a breaker of 4 A or more, and the cooktop is ETL certified.
Fit and Installation
The cooktop measures 4.13" high, 11.81" wide and 20.08" deep. It drops into a countertop opening of 10.47" x 18.82" minimum to 10.63" x 18.98" maximum, in a countertop 1.1" to 1.7" thick, with a dedicated outlet underneath. The orifice openings are 1.13 mm front and 1.85 mm rear for natural gas, and 0.75 mm front and 1.17 mm rear for propane.
For a small kitchen or RV that calls for gas, the ANZZI AZ-CKTGS01 two-burner gas cooktop pairs a 15,000 Btu/h power burner with sealed burners, cast iron grates and NG/LP flexibility.
Features
15,000 Btu/h Rear Burner
The rear power burner delivers 15,000 Btu/h for rapid boiling and high-heat searing in a compact cooktop.
5,800 Btu/h Front Burner
The 5,800 Btu/h front burner handles simmering and gentle cooking while the rear burner works at full power.
Natural Gas, Propane Convertible
Factory set for natural gas, it converts to propane with the included orifices, done by a qualified propane technician.
Spill-Containing Burners
The sealed burners keep spills contained and make clean-up simple on the stainless surface.
Removable Cast Iron Grates
Heavy-duty cast iron grates keep pots and pans stable over the flame and are removable for easy maintenance.
Push-and-Turn Ignition
Electric ignition lights each burner as you push and turn its knob, with no matches or lighter needed.
Compact 11.81" Width
At 11.81" wide and 20.08" deep, the cooktop is made for small kitchens, apartments or RVs.
Stainless Steel Surface
The stainless surface resists rust, staining and daily wear and is easy to keep clean.
ETL Certified
The cooktop is ETL certified and designed with safety-focused ignition control for gas cooking.
Specifications
-
Model: AZ-CKTGS01
-
Dimensions: 4.13" H x 11.81" W x 20.08" D
-
Cut-Out: Min 10.47" x 18.82", max 10.63" x 18.98"
-
Countertop Thickness: 1.1" to 1.7"
-
Material: Stainless steel surface, cast iron grates
-
Finish: Stainless Steel
-
Burners: 2 sealed: front 5,800 Btu/h, rear 15,000 Btu/h
-
Total Input: 20,800 Btu/h
-
Fuel: Natural gas (default), propane convertible
-
Manifold Pressure: Natural gas 5" w.c.; propane 10" w.c.
-
Inlet Gas Pressure: Natural gas 6" to 13" w.c.; propane 11" to 13" w.c.
-
Gas Connection: Regulator, 1/2" NPT female
-
Ignition: Electric, push-and-turn
-
Electrical: 120V AC, 60 Hz; 3-prong plug; 4 A or higher breaker
-
Installation: Drop-in, recessed
-
Certifications: ETL
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- AZ-CKTGS01 gas cooktop
- Two cast iron grates
- Burner heads and caps
- Gas regulator, elbow and washer
- Propane orifice package
- Mounting brackets, clips, screws and sealing strip
- Manual
Sold separately: Gas supply line and shut-off valve
Installation & Care
Installation
Drop-in installation in a countertop 1.1" to 1.7" thick, through an opening of 10.47" x 18.82" to 10.63" x 18.98", with surrounding surfaces able to withstand 185°F and at least 1.18" of clearance below the unit. Connect gas through the supplied regulator (1/2" NPT female) at an inlet pressure of 6" to 13" w.c. for natural gas or 11" to 13" w.c. for propane, and plug the 3-prong cord into a grounded outlet on a 4 A or higher circuit. Installation must be performed by licensed professionals, the outlet verified by a licensed electrician, and any propane conversion done by a qualified propane gas technician.
Care
Let the cooktop cool, then clean the stainless surface with a mild detergent or a 50/50 vinegar and water solution, rinse with clean water and dry with a soft cloth. Wipe up spills such as tomato sauce or juice quickly. Do not use oven cleaners, harsh abrasives, strong liquid detergents or powdered cleaners. Pull the knobs straight off in the OFF position and wash them in warm soapy water.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this cooktop to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The 12" gas cooktop (AZ-CKTGS01) sits beside ANZZI's Twilight radiant electric (AZ-CKTEL01) and Aurora induction (AZ-CKTID01) cooktops for compact kitchens.
