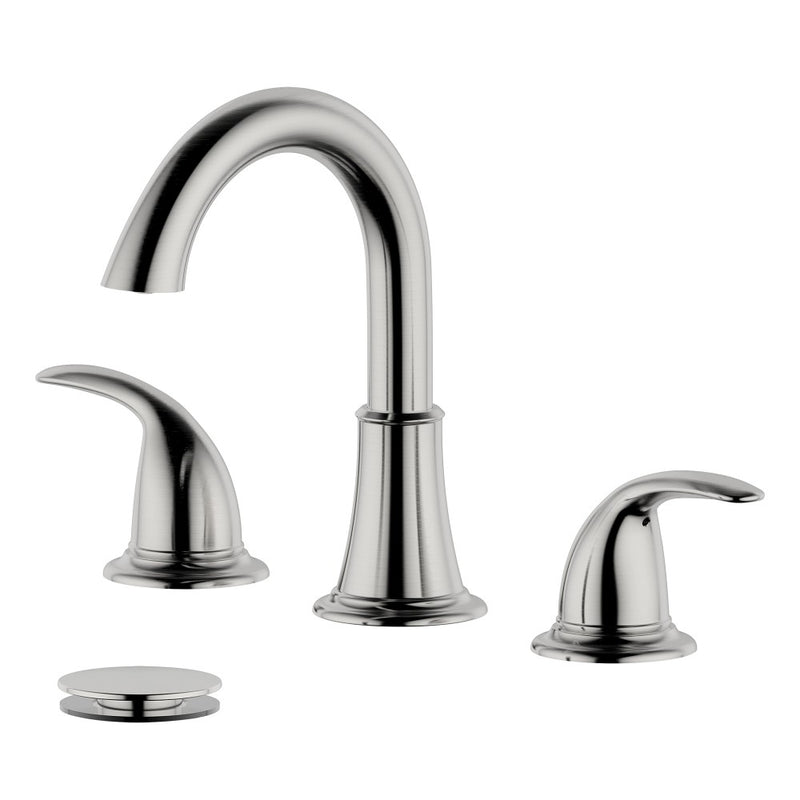

The S8227-8-BN-W is the Bellaterra Home Karmel double handle widespread bathroom faucet in Brushed Nickel, a solid brass faucet for a three hole sink or vanity top that gives you separate hot and cold lever handles and arrives with a matching pop-up drain with overflow. It suits a primary or family bathroom where the sink sees heavy daily use and people want quick, precise control of the water temperature.
Two Lever Handles Around a Center Spout
Bellaterra designs the Karmel with two lever handles set 8" apart from handle to handle, with the spout centered between them. One handle controls the hot supply and the other the cold, so you set the flow and the temperature on their own instead of balancing a single lever. This double handle layout allows precise control over the flow pressure and the temperature, which helps when you want warm water for washing your face and only a gentle stream for brushing teeth. The spout and edges are curved, which gives the faucet a clean modern look over the basin.
Solid Brass Body and Ceramic Disc Cartridges
The faucet body is solid brass, and each handle turns a ceramic disc cartridge valve. The stainless steel and netted soft supply hoses come pre-installed on the faucet, so it is ready to connect to the shutoff valves under the sink without buying separate supply lines first.
Flow is set at 1.2 gallons per minute. Bellaterra fits its faucets with a 1.2 gpm cartridge to comply with the California Title 20 water efficiency standards, and notes that residents of other states may change the water saving cartridge to a standard 2.2 gpm cartridge by contacting Bellaterra customer service. At 1.2 gpm the faucet still fills a basin for shaving or washing, while each use draws less water than a standard 2.2 gpm faucet.
Fit, Mounting and What Comes in the Box
The Karmel is a counter mount faucet that needs three holes in the sink or countertop, the usual drilling for a widespread faucet. The maximum deck thickness is 1.57", so measure the thickness of your counter or sink deck before you order. The faucet measures 13.6" W x 6.5" D x 7.4" H overall, weighs 6 lb and is made in China. Bellaterra packs the mounting tools in the box together with the matching drain, so the faucet and drain arrive as a set and are ready to install right out of the box.
Karmel is offered in 5 finishes: Brushed Nickel, Gold, Matte Black, Oil Rubbed Bronze and Polished Chrome. This model is the Brushed Nickel version, and the drain is supplied to match it. Clean the faucet with mild soap and water.
With two handle control, a three hole widespread mount and a matching drain in the box, the Karmel suits a remodel where the vanity top is already drilled for a widespread faucet, the replacement of an older two handle faucet, or a new vanity with a sink that has three faucet holes.
For a bathroom that needs separate hot and cold control on a three hole sink, the Bellaterra Home Karmel S8227-8-BN-W brings a solid brass body, ceramic disc cartridges, a 1.2 gpm flow and a matching pop-up drain with overflow, all in Brushed Nickel.
Features
Two Lever Handles Set 8" Apart
Separate hot and cold lever handles sit 8" apart from handle to handle, so you adjust the water temperature and the flow on their own with precise control.
Solid Brass Construction
The Karmel faucet body is solid brass, the material Bellaterra chooses for durability and reliability in a fixture that is used many times a day.
Ceramic Disc Cartridge Valves
Each handle turns a ceramic disc cartridge valve, controlling the hot or cold supply on its own side of the spout.
1.2 GPM Water Saving Flow
The faucet is fitted with a 1.2 gallons per minute cartridge to meet the California Title 20 water efficiency standards, and residents of other states may change it to a standard 2.2 gpm cartridge.
Pre-Installed Stainless Steel Supply Hoses
Stainless steel and netted soft supply hoses come pre-installed on the faucet, which makes installation easier and saves buying separate supply lines.
Matching Drain in the Box
Each S8227-8-BN-W comes with a matching pop-up drain with overflow, supplied in Brushed Nickel to match the faucet so the sink hardware looks consistent.
Brushed Nickel Finish with a Curved Spout
This model comes in Brushed Nickel, one of 5 Karmel finishes, with a curved spout and edges for a clean modern look.
Three Hole Counter Mount
The faucet mounts on the counter through three holes, fits a sink deck or countertop up to 1.57" thick and measures 13.6" W x 6.5" D x 7.4" H overall.
Specifications
-
Model: S8227-8-BN-W
-
Collection: Karmel
-
Width: 13.6"
-
Depth: 6.5"
-
Height: 7.4"
-
Weight: 6 lb
-
Finish: Brushed Nickel
-
Spout Type: Wide spread
-
Handles: 2
-
Flow Rate: 1.2 gpm
-
Mounting Holes: 3
-
Valve: Ceramic disc cartridge
-
Max Deck Thickness: 1.57"
-
Assembly: Professional installation recommended
-
Measurement Tolerance: +/- 1/2"
-
Country of Origin: China
-
Warranty: 1-year limited (original purchaser)
What's Included
Installation & Care
Installation
Professional installation is recommended. The Karmel mounts on the counter and needs three holes in the sink or countertop, with the handles 8" apart from handle to handle, on a deck no thicker than 1.57". The stainless steel supply hoses are pre-installed and the mounting tools are included: connect the hoses to the hot and cold shutoff valves under the sink, then fit the included drain into the sink drain opening and connect it to your existing trap.
Care
Clean the faucet with mild soap and water and a soft cloth, dry it after use, and do not use steel wool, abrasive cleaners or plumber's putty on its surface.
Shipping, Returns & Warranty
Bellaterra Home ships this item from its warehouse in the Sacramento, California area by parcel carrier. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused, uninstalled Bellaterra Home products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a $25 repackaging fee applies if the item does not come back in its original packaging; items damaged on the way back because of poor packaging are not credited. Installed, altered or used products can't be returned.
Bellaterra Home LLC warrants this product to the original purchaser and first consumer owner against defects in materials and workmanship for one year from the original date of purchase, and replaces it with a new unit or parts at its discretion. The warranty covers the original installation only and is void if the product is moved from it. It does not cover labor, freight, installation, removal or reinstallation costs, transportation damage, surface scratches, abusive treatment, misuse, neglect, handling damage or faulty installation. Special or living finishes such as Oil Rubbed Bronze, Dark or Old Bronze, Matte Black and Gold change over time, so on those finishes the warranty covers functionality only.
Warranty claims. Contact us with your order number, the model number, a written description and photos of the defect, and we file the claim with Bellaterra Home. Bellaterra Home replaces the product with a new unit or replacement parts at its discretion; labor and freight are not covered, so keep your proof of purchase.
About Bellaterra Home
Bellaterra Home LLC is a bathroom furniture company based in Sacramento, California. It specializes in wood bathroom vanities with distinctive styling, designs its own lines and has them manufactured overseas. Ball bearing, full extension drawer glides and soft closing doors and drawers are standard in most of its collections.
Karmel is a Bellaterra Home double handle widespread bathroom faucet with two lever handles, a solid brass body, ceramic disc cartridges, pre-installed supply hoses and a matching drain, offered in Brushed Nickel, Gold, Matte Black, Oil Rubbed Bronze and Polished Chrome.
