A CoolGuard condensate pump collects the water that drips off an air handler's coil and pumps it to a drain or outside when gravity cannot carry it there. Choose the High Profile pump, a 115V unit with a 0.6 gallon tank rated for 145 GPH and 22' of lift, or the Tranquil T, which reads water level with an optical sensor, reports its mode on 3 LEDs and lifts up to 24'.
Both list 30 dBA and carry UL, ETL and CSA listings. Fit one where the indoor unit sits below its drain outlet, such as a basement or interior closet. That is the CoolGuard condensate pump.
Features
Two Pump Styles

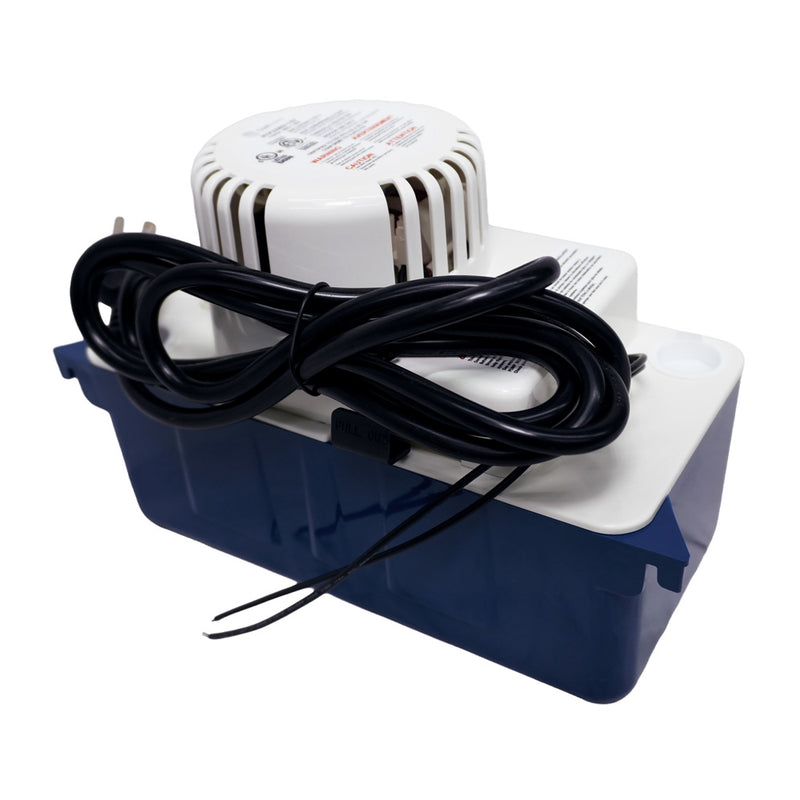

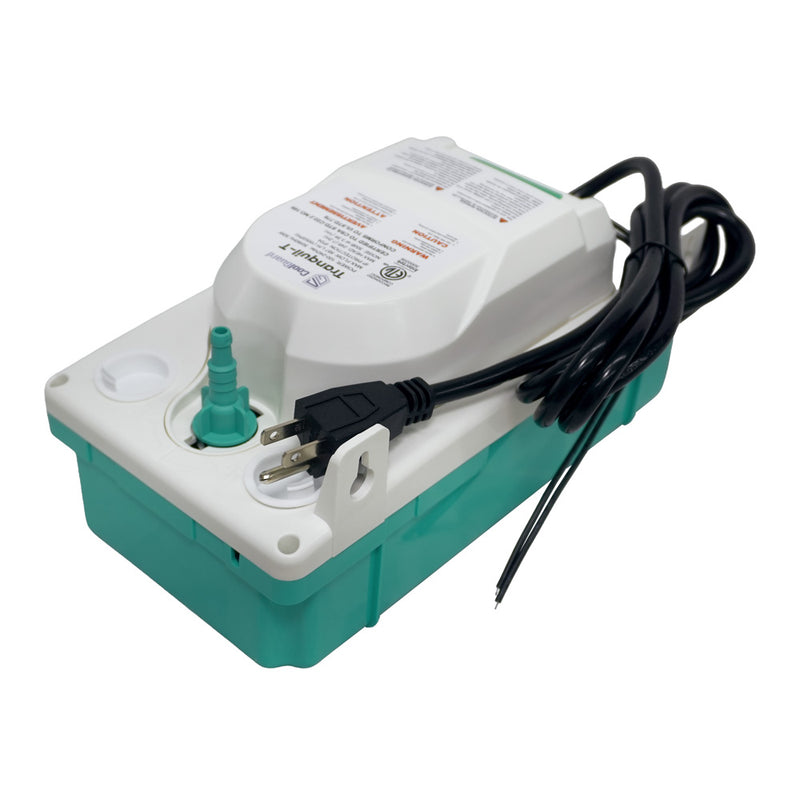

High Profile (RTP22WS115V) for a classic tank pump, or Tranquil T (TMT24WS100) for a low, sensor-driven unit.
Lift and Flow
The High Profile pump moves up to 145 GPH with 22' of lift; the Tranquil T reaches 24' of lift.
0.6 Gallon Reservoir
The High Profile tank holds 0.6 gallon of condensate between pump cycles during long cooling runs.
Optical Level Sensing

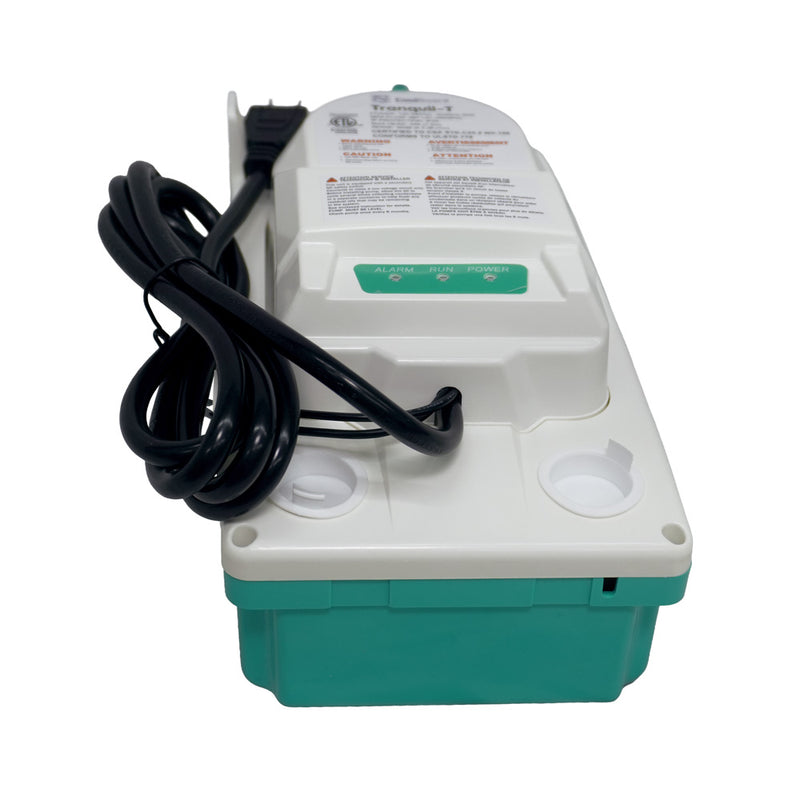

Tranquil T switches on an optical sensor instead of a float, with 3 LEDs for its operating mode and an option for a dual alarm.
Four Inlets and Check Valve

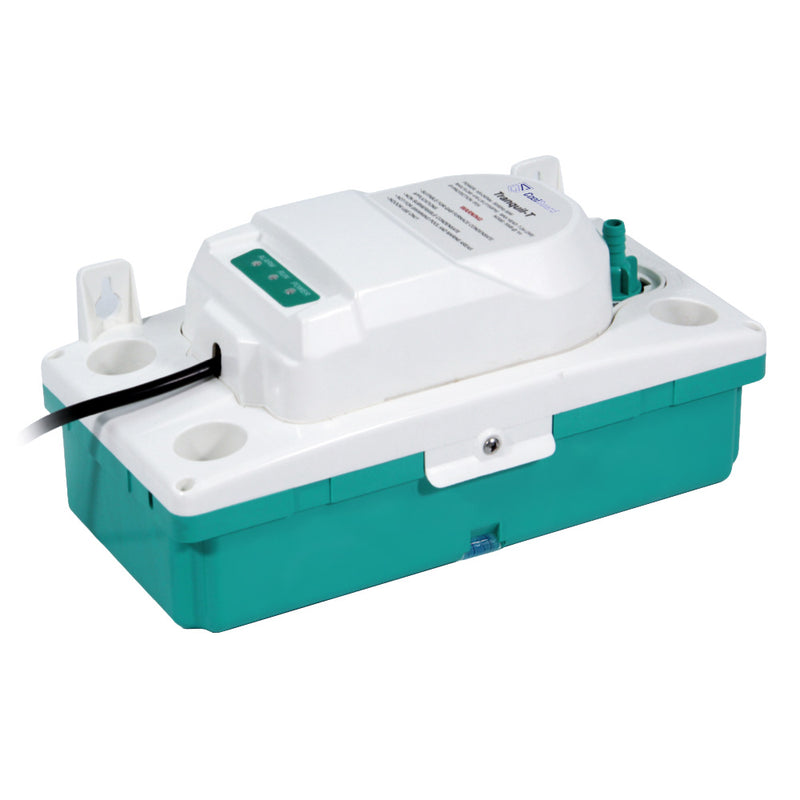

Tranquil T has four 1" inlet ports, a 3/8" barbed check valve you can take off, and a 6' cord.
Quiet and Listed
Both pumps are rated 30 dBA and carry UL, ETL and CSA listings.
Specifications
-
Phase: 1
-
Sound Level: 30 dBA
-
UL Listed: Yes
-
ETL Listed: Yes
-
CSA Listed: Yes
High profile (RTP22WS115V)
-
Model: RTP22WS115V
-
Voltage: 115V
-
Frequency: 60 Hz
-
Color: White/Navy
-
Dimensions: 5"W x 11"D x 7"H
-
Weight: 4.17 lbs
-
Max Lift: 22'
-
Max Flow: 145 GPH
-
Tank Capacity: 0.6 gal
Tranquil T (TMT24WS100)
-
Model: TMT24WS100
-
Voltage: 100-240V
-
Frequency: 50/60 Hz
-
Color: Cyan/White
-
Dimensions: 5.7"W x 11"D x 5"H
-
Weight: 2.93 lbs
-
Max Lift: 24'
-
Power Cord: 6'
What's Included
- CoolGuard High Profile or Tranquil T condensate pump with attached power cord
- Tranquil T only: removable 3/8" barbed check valve
Installation
Homeowner-installable. This accessory is part of MRCOOL's DIY range and is installed following the instructions in MRCOOL's manual, including any wrench, torque or leak-check steps it lists. Check local electrical and building codes for any wiring or wall penetrations.
Set the pump level and below the air handler's drain outlet, run the drain into an inlet, and route discharge tubing from the outlet up and over to a drain or outdoors. The High Profile pump runs on 115V; the Tranquil T accepts 100 to 240V through its 6' cord. Wire the safety switch leads into the thermostat circuit if you want the system to stop on a high-water alarm.
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL does not publish a warranty document for the CoolGuard condensate pumps. Keep your proof of purchase for any claim to MRCOOL.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
