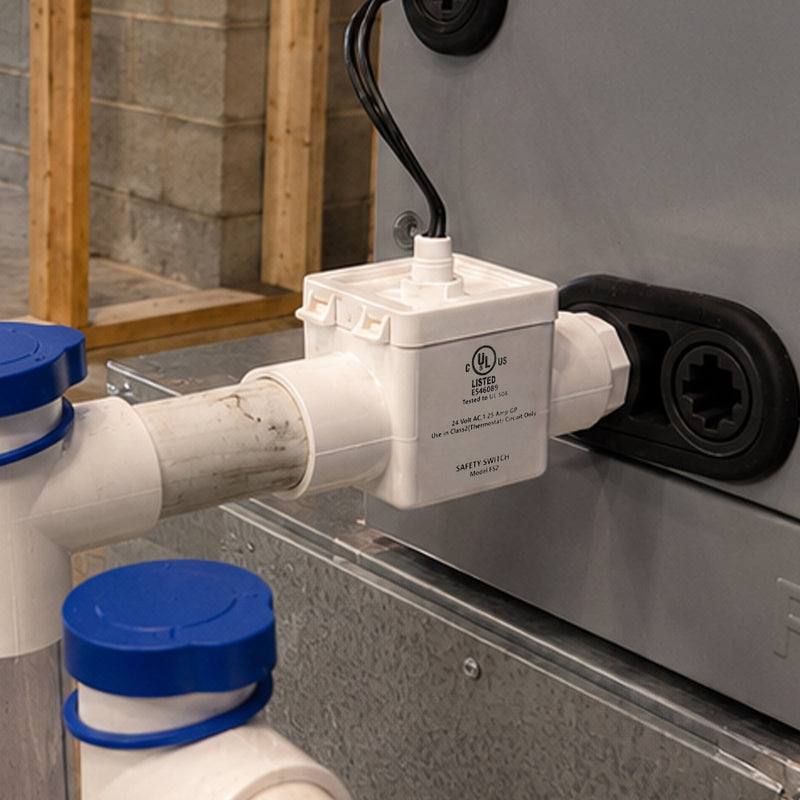

The CoolGuard CTK-2 builds a complete condensate trap at the air handler's 3/4" primary drain outlet, with an overflow float switch built into its water tank. If the drain clogs and water rises, the switch opens the 24VAC thermostat circuit and stops the system. The trap is clear, so you can see buildup, and two capped tees give you access for a cleaning brush.
It handles drain lines sloped up to 45 degrees, and the switch is rated 1.25 amps for Class 2 circuits. That is the CoolGuard Condensate Trap Kit with Overflow Switch.
Features
Trap and Switch in One
A float switch on a water tank sits right in the trap assembly, so one kit handles both the trap and overflow protection.
Clear, Cleanable Trap
The 3/4" clear trap shows sludge before it blocks, and the capped tees take a cleaning brush.
Stops the System on a Clog
Breaks the 24VAC control circuit when water backs up, before the pan overflows.
Handles Sloped Lines
Works on drain installations sloped as steeply as 45 degrees.
Removable Cap
Lift the cap to check the float and its condition during maintenance.
Class 2 Rated
24VAC and 1.25 amps, approved for Class 2 thermostat circuits.
Specifications
-
Model: CTK-2
-
Voltage: 24V
-
Color: White
-
Dimensions: 10"W x 2"D x 14.75"H
-
Weight: 1 lbs
-
Rating: 24VAC, 1.25 A, Class 2
-
Drain Size: 3/4"

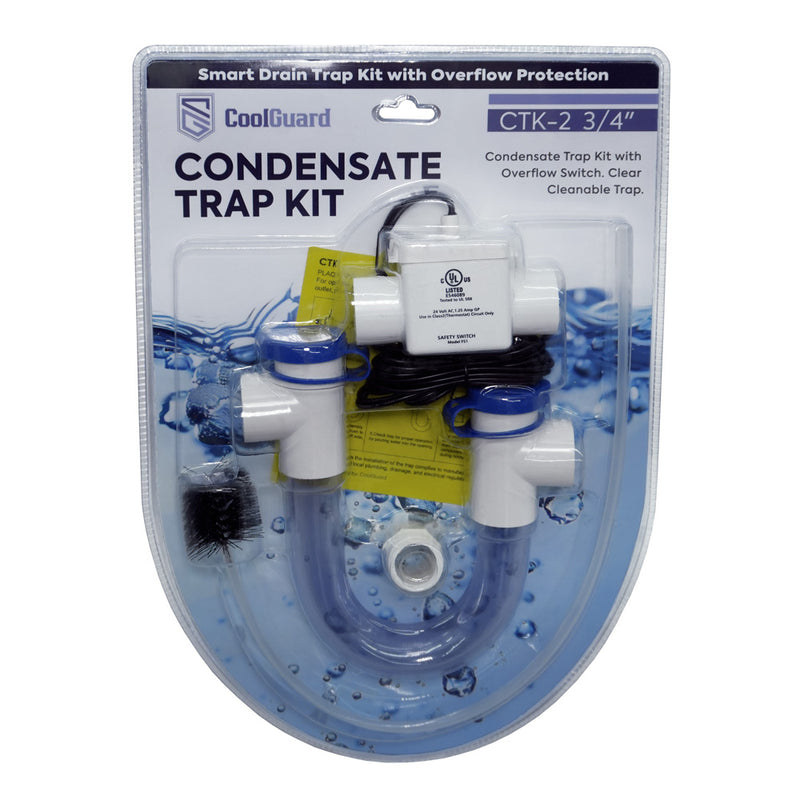

What's Included
- 3/4" threaded connector
- 3/4" float switch water tank
- Float switch assembly (factory-assembled to the tank)
- Two 3/4" tees
- 3/4" clear trap
- Two drain caps
Installation
Homeowner-installable. This accessory is part of MRCOOL's DIY range and is installed following the instructions in MRCOOL's manual, including any wrench, torque or leak-check steps it lists. Check local electrical and building codes for any wiring or wall penetrations.

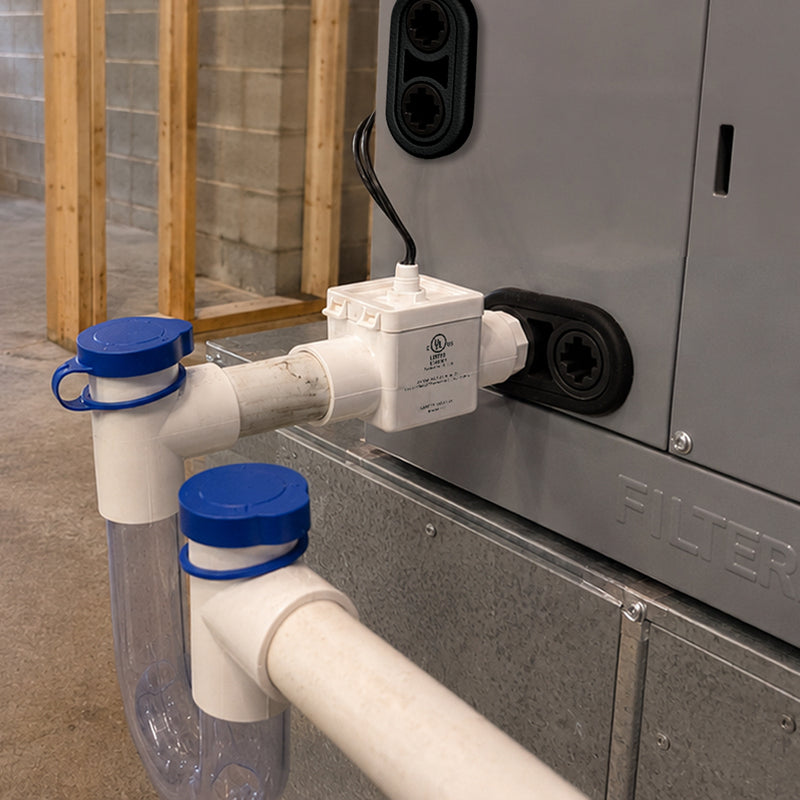

Thread the connector into the 3/4" primary drain pan outlet, dry-fit the tank, trap and tees, mark them, then glue the assembly so it hangs plumb and fit the drain caps. The outgoing drain line needs a downward slope. Turn off power at the panel and wire the switch into the thermostat circuit per the diagram on the package, then lift the float to confirm the system stops.
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL does not publish a warranty document for the CoolGuard condensate trap kit. Keep your proof of purchase for any claim to MRCOOL.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
