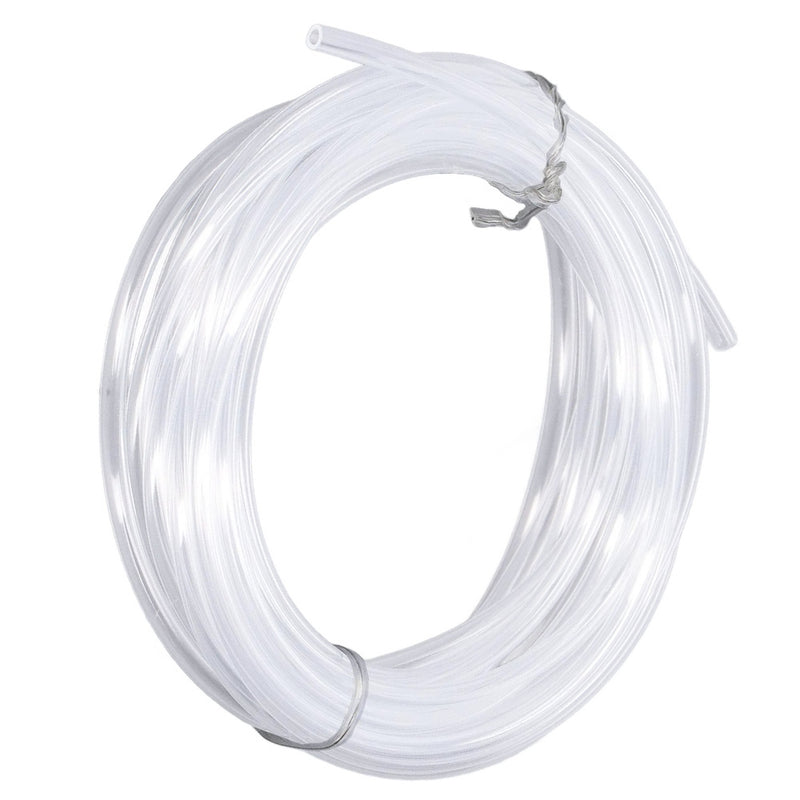

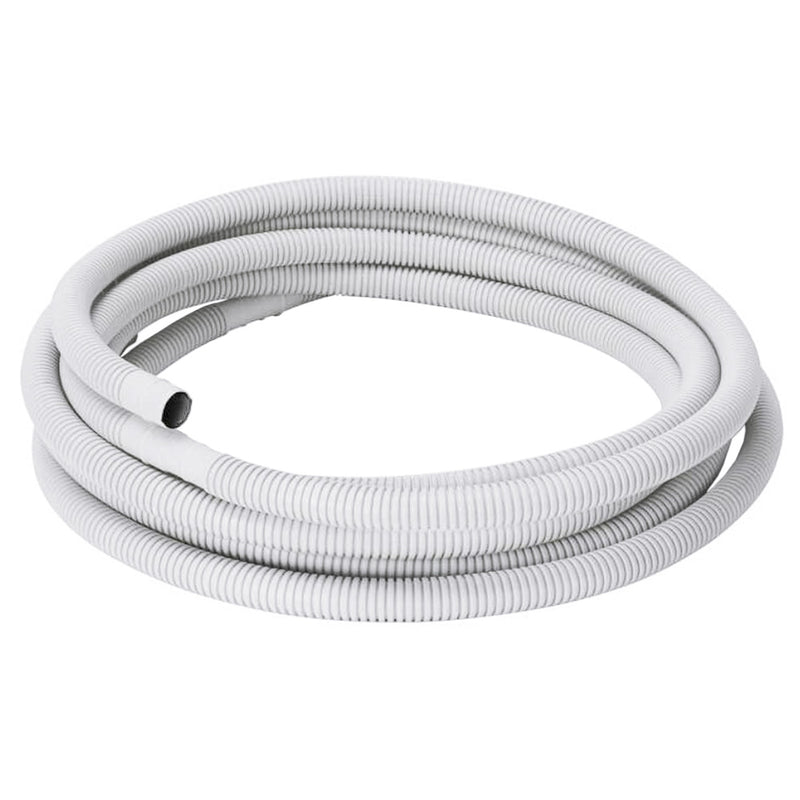

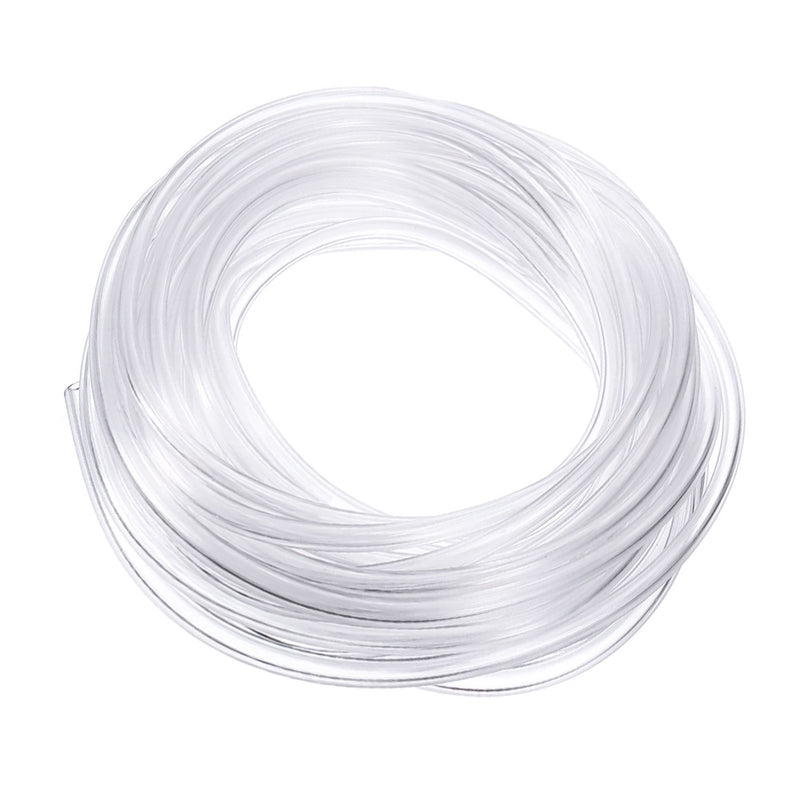

CoolGuard drain line carries condensate away from a ductless mini-split air handler. The clear vinyl version fits the 3/8" drain connection on the head, handles drain water from 50°F to 140°F, and lets you spot a clog during routine checks. The corrugated version is a single-wall polyethylene line in oyster white that stretches and compresses to follow the route you need.
Use it to replace a cracked or short factory drain, or to extend a run to a better outlet. That is CoolGuard mini-split drain line.
Features
Two Line Types
Clear vinyl (35CF102) or corrugated polyethylene (31CF102), selectable on this listing.
Fits the 3/8" Connection
The vinyl line is sized for the 3/8" drain connection on ductless air handlers.
Clear for Inspection
See standing water, slime or a blockage in the vinyl line without taking anything apart.
Temperature Rated
The vinyl line handles drainage between 50°F and 140°F.
Flexible Corrugated Wall
The polyethylene line stretches and contracts to fit the run, and its oyster white color suits a light wall.
Specifications
Vinyl
-
Model: 35CF102
-
Color: Clear
-
Dimensions: 0.38"W x 120"D x 0.38"H
-
Weight: 1 lbs
-
Material: PVC (vinyl)
-
Fits: 3/8" drain connection
Corrugated
-
Model: 31CF102
-
Color: Oyster White
-
Weight: 5.95 lbs
-
Material: Polyethylene, single wall
What's Included
- CoolGuard condensate drain line, clear vinyl or oyster white corrugated, as selected
Installation
Homeowner-installable. This accessory is part of MRCOOL's DIY range and is installed following the instructions in MRCOOL's manual, including any wrench, torque or leak-check steps it lists. Check local electrical and building codes for any wiring or wall penetrations.
Push the line onto the air handler's drain outlet and secure it, then keep a steady downward slope all the way to the outlet with no sags or upward loops. Where the line cannot fall continuously, add a condensate pump.
Shipping, Returns & Warranty
Ships to addresses in the United States only. Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
MRCOOL handles returns through the store you bought from, so your return comes to us. Unopened, unused MRCOOL equipment can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Opened, installed or used equipment and special-order items can't be returned.
MRCOOL does not publish a warranty document for the CoolGuard drain line. Keep your proof of purchase for any claim to MRCOOL.
Warranty claims. MRCOOL handles warranty claims directly through support.mrcool.com or (270) 366-0457. Some MRCOOL warranties cover the original purchaser only. Systems that aren't DIY need a valid installation invoice to open a claim.
