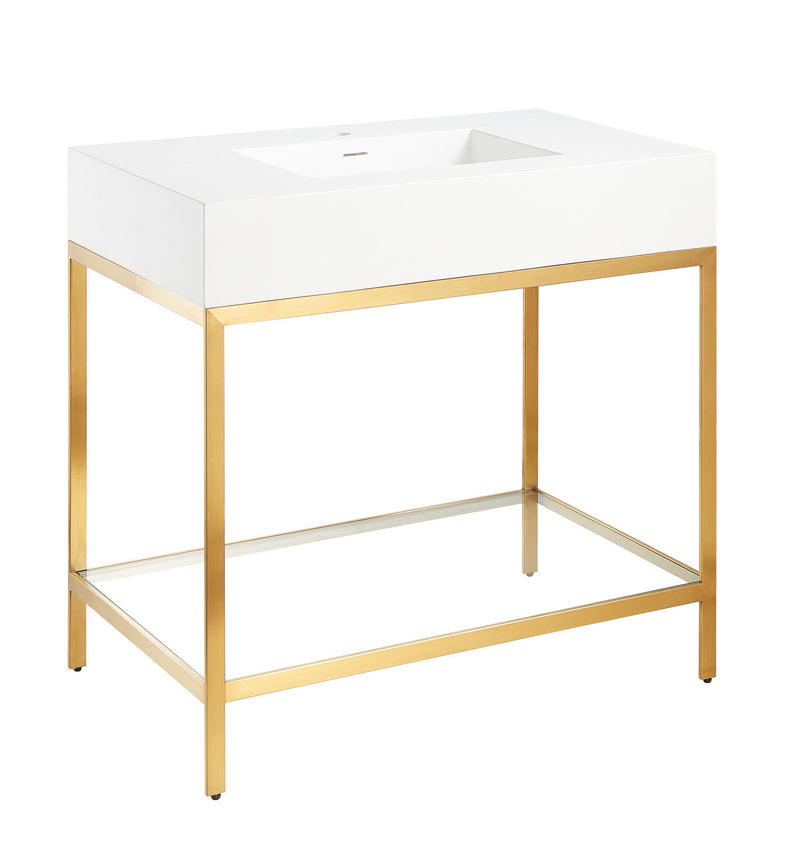

The CS-FGC001-BG Ventura is an ANZZI 36" console sink with a rust-resistant stainless steel frame in Brushed Gold, a matte white gel-coated resin counter top with an integrated sink, and a tempered glass bottom shelf. Its ultramodern design is a style upgrade with a minimalist footprint, and the console includes the counter top sink, the frame and the mounting hardware.
The assembled console stands 34" high from the floor to the countertop surface: the stand is 28" high (the 28" in the product title is the frame height) and the counter top adds 6", per the dimension drawing in ANZZI's console manual (PDF 5f021d32). Overall the console is 36" L x 22" W, the counter top is 36" W x 6" H x 22" D, and the basin is 18 1/8" L x 11 3/4" W with a 4 1/8" water depth, a 1 3/4" drain hole and a 1 3/8" single faucet hole.
The matte white gel-coated resin counter top and sink are sturdy, and the tempered glass bottom panel creates a handy space for accessories. The frame is rust-resistant stainless steel, finished on this model in Brushed Gold.
Assembly and Wall Mounting
ANZZI's console manual (PDF 5f021d32) notes that the silicone adhesive and the tools needed for installation are not included. Place the stand upright in the desired location and level it with the height adjusters built into the bottom of the legs. Use a pencil and the pre-drilled holes in the stand frame to mark the mounting hardware locations on the wall, drill the holes (the manual marks Φ 3/8", 8 mm), insert the anchors and secure the stand to the wall with the screws. Then apply silicone adhesive to the frame of the lower shelf and place the glass plate on it.
For the top, apply a thin coat of silicone adhesive to the back of the sink where it meets the wall and a thin coat to the stand's top frame where the sink will rest, carefully place the sink on the top frame and center it, and allow the silicone adhesive to dry for 24 hours. ANZZI does not include the water supply kit or the drain, so plan both before installation day: the counter's single 1 3/8" faucet hole takes a single hole faucet, and the 1 3/4" drain hole takes the drain you choose.
Caring for the Counter Top
The solid surface stone countertop is solid and non-porous but can still be stained, scratched or cut, and because the material is solid all the way through it can be renewed. Mild soapy water or ammonia-based detergents remove most dirt and stains, and minor damage can be tried with an abrasive cleanser or a common household degreaser. For the matte white finish, the manual has you clean the surface with clear water, polish the damaged area with 600 sandpaper and water at moderate pressure until it is smooth, rinse with clear water and wipe completely dry. It also asks you to wipe up spills immediately, because hard water deposits can ruin the shine, to keep high-temperature objects off the top, since excessive heat can cause a thermal shock that may crack it, and never to stand or sit on the counter.
The Ventura is shown with ANZZI's BA-LMDFV002WH 30" H x 24" W LED mirror with touch dimmer and defogger, sold separately, and the frame alone is sold as CS-FRGLPNL00BN. The console also comes in Brushed Nickel (CS-FGC001-BN), Matte Black (CS-FGC001-MB). As an ANZZI 36" console sink with an integrated sink and a tempered glass shelf, the CS-FGC001-BG sets a matte white counter top on a Brushed Gold stainless steel frame.
Features
Brushed Gold Stainless Steel Frame
ANZZI makes the frame from rust-resistant stainless steel, finished on the CS-FGC001-BG in Brushed Gold.
Matte White Gel-Coated Resin Top
ANZZI crafts the counter top from durable matte white gel-coated resin for long life, and says it keeps its luster.
Integrated 18.1" Sink
The sink measures 18.1" W x 11.8" D, and its manual gives a 4 1/8" water depth with a 1 3/4" drain hole.
Tempered Glass Lower Shelf
A tempered glass bottom panel creates a handy space for your favorite accessories below the counter.
36" Console Footprint
The console is 36" W x 22" D and 34" high overall: a 28" high frame carrying a 36" W x 6" H x 22" D counter top.
Single-Hole Faucet Drilling
The counter is drilled with a single 1 3/8" faucet hole, made for a single hole faucet.
Leveling Legs and Wall Anchoring
Height adjusters built into the bottom of the legs level the stand, and the frame is secured to the wall with anchors and screws.
Mounting Hardware Included
ANZZI includes the counter top sink, the frame and the mounting hardware; silicone adhesive, tools, the water supply kit and the drain are not included.
Specifications
-
Model: CS-FGC001-BG
-
Console Dimensions: Overall 36" L x 22" W x 34" H (floor to countertop); frame height 28"; countertop 6" thick
-
Counter Top Dimensions: 36" W x 6" H x 22" D
-
Sink Dimensions: 18.1" W x 11.8" D
-
Water Depth: 4 1/8"
-
Frame: Rust-resistant stainless steel, Brushed Gold
-
Counter Top and Sink: Matte white gel-coated resin
-
Lower Shelf: Tempered glass
-
Faucet Hole: 1 3/8", single hole
-
Drain Hole: 1 3/4"
-
Series: Ventura
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- CS-FGC001-BG matte white counter top with integrated sink
- Stainless steel frame in Brushed Gold
- Tempered glass bottom panel
- Mounting hardware
Sold separately: Water supply kit, Drain, Faucet, LED mirror (shown: BA-LMDFV002WH), Silicone adhesive and installation tools
Installation & Care
Installation
Floor-standing and secured to the wall. Level the stand with the height adjusters in the legs, mark the wall through the pre-drilled frame holes, drill (Φ 3/8", 8 mm), insert the anchors and screw the stand to the wall; set the glass plate on silicone adhesive on the lower shelf frame. Apply a thin coat of silicone adhesive to the top frame and the back of the sink, center the sink and let it dry for 24 hours. Faucet hole 1 3/8" (single hole), drain hole 1 3/4". Silicone adhesive, tools, the water supply kit and the drain are not included.
Care
Per ANZZI's console manual: mild soapy water or ammonia-based detergents remove most dirt and stains; minor scratches on the matte white finish can be polished wet with 600 sandpaper, then rinsed with clear water and wiped dry. Wipe up spills immediately, as hard water deposits can ruin the shine; never put high-temperature objects on the counter, and never stand or sit on it.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Ventura console comes in brushed gold (CS-FGC001-BG), brushed nickel (CS-FGC001-BN) and matte black (CS-FGC001-MB); ANZZI also sells the Ventura frame alone (CS-FRGLPNL00BN). It is shown with the BA-LMDFV002WH LED mirror, sold separately.
