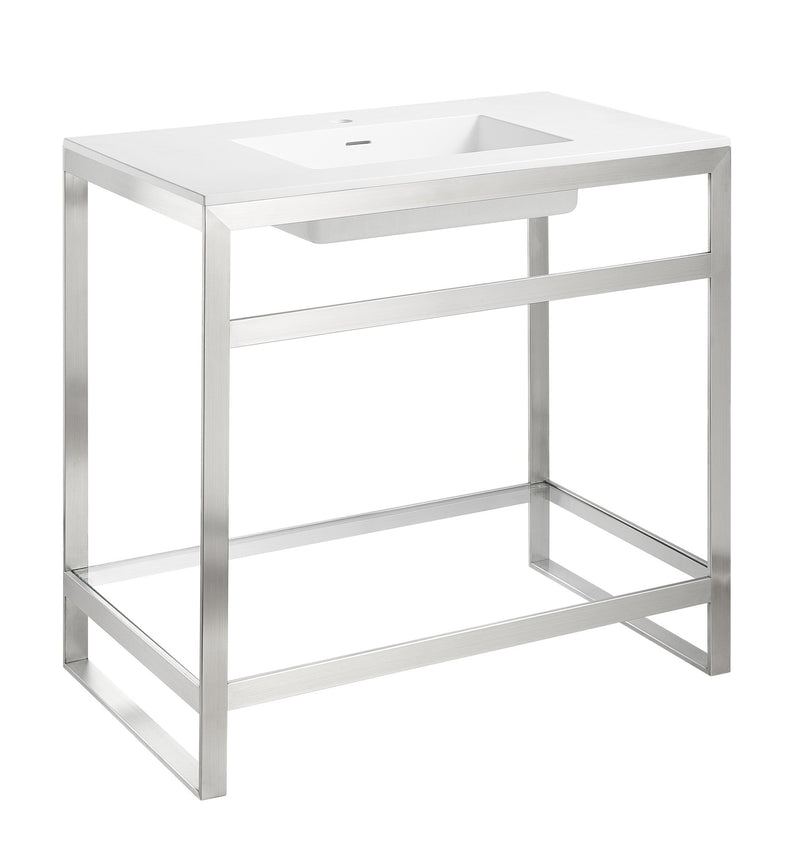

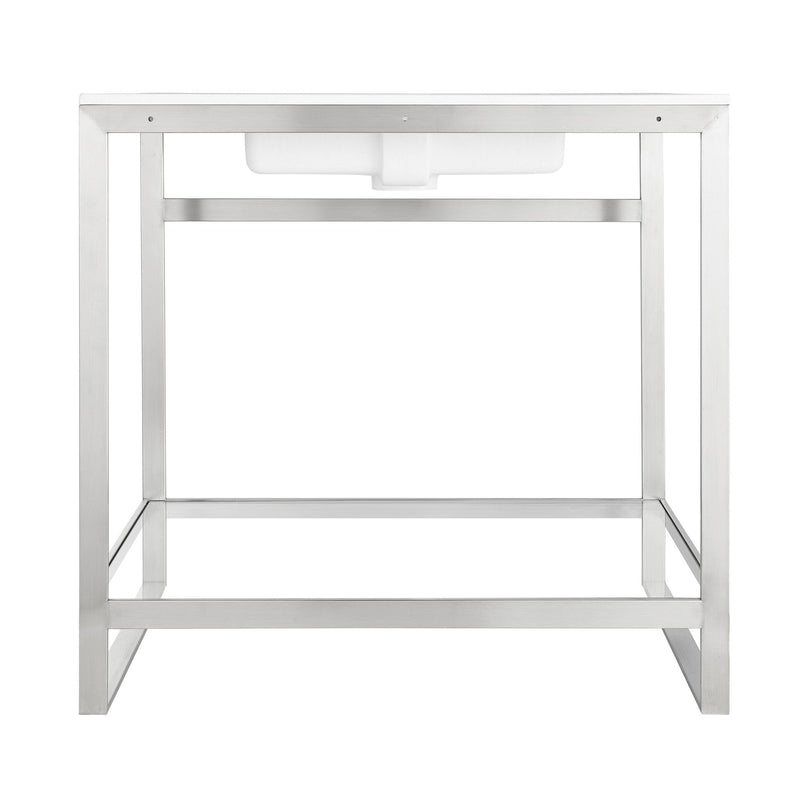

The ANZZI CS-FGC005-BN Orchard is a complete 36" wall-mounted console sink: a brushed nickel stainless steel frame topped with a glossy white solid surface countertop and integrated basin, with a tempered glass shelf below. It is an ultramodern bathroom update with avant-garde styling and angular sensibility.
The console stands 36" W x 34" H x 22" D. The countertop is 36" W x 22" D with an 18.1" x 11.8" basin and a 4.125" water depth. A single faucet hole in the top takes a single-hole bathroom faucet.
The frame is rust-resistant stainless steel in brushed nickel, built with angular, avant-garde lines. The top and sink are man-made solid surface stone, gel-coated in glossy white for added protection, and the solid surface is solid and non-porous.
Below, a tempered glass bottom panel creates an open shelf for accent pieces or accessories. The console mounts to the wall with the included hardware, and height adjusters built into the bottom of the frame level it before it is fixed.
Wall Mounting and Leveling
Stand the frame upright in its spot and level it with the height adjusters built into the bottom of the stand, mark the wall through the pre-drilled holes in the frame, drill the holes (3/8" holes), insert the anchors and screw the stand to the wall. The tempered glass plate is then set on the lower shelf frame with silicone adhesive, which is not included, along with the tools.
Faucet, Drain and Water Supply
The top seats on the frame with silicone adhesive: ANZZI's manual applies a thin coat to the back of the sink where it meets the wall and another to the frame's top rails where the sink rests. The basin measures 18.1" x 11.8" with a 4.125" water depth, the drain hole is 1.75", and the 1.375" single faucet hole takes a single-hole faucet such as ANZZI's Alto (L-AZ012BN). The water supply kit and drain are not included.
Caring for the Top and Frame
Completing the Orchard Setup
ANZZI includes the countertop sink, frame and mounting hardware; the water supply kit, drain and faucet are sold separately. The product photos pair the CS-FGC005-BN with ANZZI's Alto single-hole faucet and a 24" x 30" LED mirror.
The CS-FGC005-BN is an ANZZI 36" wall-mounted console sink with a brushed nickel stainless steel frame, a glossy white solid surface top and an open glass shelf.
Features
Brushed Nickel Stainless Steel Frame
Brushed nickel is a soft, satin silver tone under the glossy white top. The frame is rust-resistant stainless steel.
Integrated Glossy White Basin

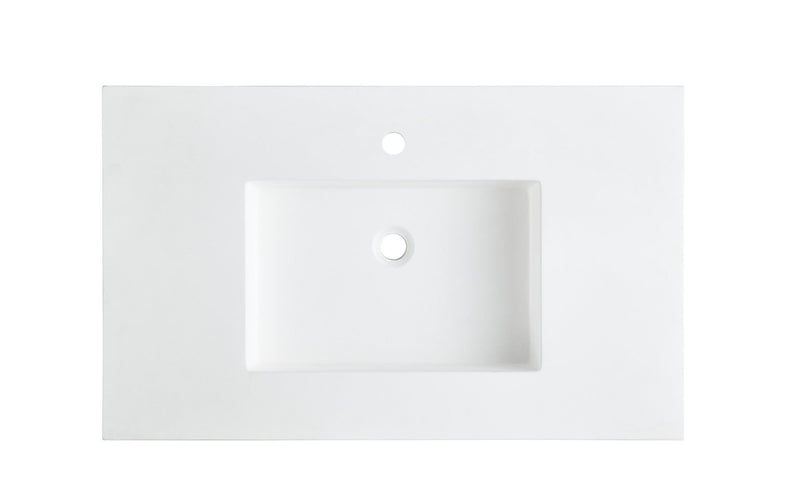

The 18.1" x 11.8" sink is built into the solid surface top, gel-coated glossy white for added protection, with a 4.125" water depth.
Tempered Glass Shelf
A tempered glass bottom panel provides an open shelf for accent pieces or accessories, and ANZZI includes it with the console.
Wall Mount With Leveling Feet
The frame anchors to the wall with the included hardware, and height adjusters in the bottom of the stand level it.
Single-Hole Faucet Deck
The top has one 1.375" faucet hole for a single-hole faucet, such as ANZZI's Alto L-AZ012BN shown with this console.
34" Overall Height
The console stands 34" H overall, with the 6" tall solid surface countertop resting on the frame.
Specifications
-
Model: CS-FGC005-BN
-
Overall Dimensions: 36" W x 34" H x 22" D
-
Countertop: 36" W x 6" H x 22" D
-
Basin: 18.1" W x 11.8" D, 4.125" water depth
-
Frame Material: Rust-resistant stainless steel
-
Frame Finish: Brushed Nickel
-
Top Material: Solid surface man-made stone, gel-coated glossy white
-
Shelf: Tempered glass bottom panel
-
Mounting: Wall mount, adjustable leveling feet
-
Faucet Holes: 1 hole (1.375")
-
Drain Hole: 1.75"
-
Series: Orchard
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- CS-FGC005-BN Orchard console frame in brushed nickel
- Orchard glossy white solid surface countertop with integrated sink
- Tempered glass bottom panel
- Mounting hardware
Sold separately: Water supply kit, Drain, Faucet, LED mirror (BA-LMDFV002WH shown), Silicone adhesive and tools
Installation & Care
Installation
ANZZI's steps: stand the frame upright in place and level it with the height adjusters built into its feet, mark the wall through the frame's pre-drilled holes, drill, insert the anchors and screw the frame to the wall. Set the tempered glass panel on the lower shelf frame with silicone adhesive. Silicone adhesive and tools are not included. Fit the top by running a thin coat of silicone adhesive on the back edge where it meets the wall and on the frame's top rail, set the top on the frame, center it and let the silicone dry for 24 hours. The basin has a 1.75" drain hole and a 1.375" single faucet hole.
Care
Wipe the frame with a soft cloth and mild soapy water and dry it. For the solid surface top, mild soapy water or ammonia-based detergents remove most dirt and stains; wipe up spills straight away, since hard water deposits dull the shine. Do not set hot objects on the top (heat can crack man-made stone) and never stand or sit on it.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Orchard console comes with a brushed gold (CS-FGC005-BG), brushed nickel (CS-FGC005-BN) or matte black (CS-FGC005-MB) frame. ANZZI also sells the frame alone (CS-FRKDGL00BG, CS-FRKDGL00MB) and the top alone (CS-CTRSS00WH), and pictures the console with its Alto L-AZ012BN faucet and BA-LMDFV002WH 24" x 30" LED mirror.
