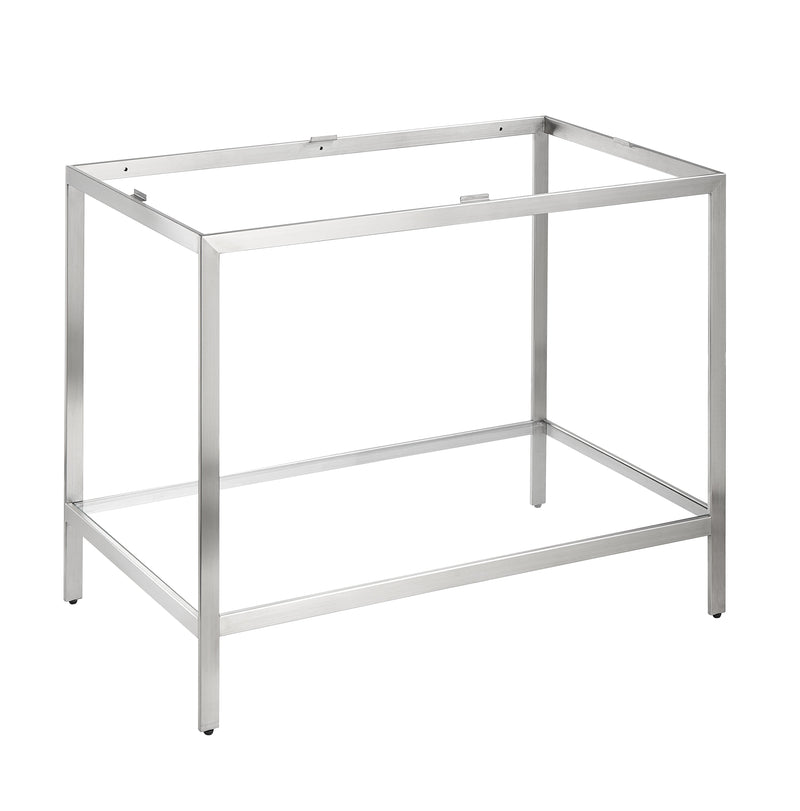

The CS-FRGLPNL00BN Ventura is an ANZZI 36" console sink frame in brushed nickel, the rust-resistant stainless steel base of ANZZI's Ventura console sink sold on its own, with a tempered glass bottom panel. The frame allows the use of your existing console sink, and the counter top is sold separately.
The frame itself stands 28" high and is 36" W x 22" D (the 28" H in ANZZI's listing is this stand). ANZZI's console manual (PDF 5f021d32) shows the assembled Ventura console at 36" L x 22" W x 34" H, with the 6" counter top on the 28" frame and the shelf 6 1/4" above the floor. When pairing the frame with an existing top, compare the top's footprint with the 36" x 22" frame.
The design is ultramodern, delivering a style upgrade with a minimalist footprint. The rust-resistant stainless steel frame is finished in a striking brushed nickel, and the tempered glass bottom panel creates a handy space for your favorite accessories.
Assembling and Mounting the Frame
ANZZI's console manual (PDF 5f021d32) notes that the silicone adhesive and the tools needed for installation are not included. Place the stand upright in the desired location and level it with the height adjusters built into the bottom of the legs. Use a pencil and the pre-drilled holes in the stand frame to mark the mounting hardware locations on the wall, drill the holes (the manual marks Φ 3/8", 8 mm), insert the anchors and secure the stand to the wall with the screws. Then apply silicone adhesive to the frame of the lower shelf and place the glass plate on it.
Once the frame is fixed to the wall, the top goes on with silicone adhesive. Apply a thin coat of silicone adhesive to the back of the sink where it meets the wall and to the stand's top frame where the sink will rest, place the sink on the top frame, center it, and allow the adhesive to dry for 24 hours. The counter top, the water supply kit and the drain are not part of this frame.
Pairing the Frame With a Top
The complete Ventura console with ANZZI's matte white gel-coated resin counter top is sold as CS-FGC001-BN in brushed nickel, with matching versions in brushed gold (CS-FGC001-BG) and matte black (CS-FGC001-MB). That console's top measures 36" W x 6" H x 22" D with an 18.1" W x 11.8" D sink, a 1 3/8" single faucet hole and a 1 3/4" drain hole.
As an ANZZI 36" console sink frame with a tempered glass shelf and wall mounting hardware, the CS-FRGLPNL00BN is the frame of the complete Ventura console CS-FGC001-BN.
Features
Brushed Nickel Stainless Steel
ANZZI makes the frame from rust-resistant stainless steel finished in what it calls a striking brushed nickel.
Tempered Glass Bottom Panel
A tempered glass bottom panel creates a handy space for your favorite accessories below the top.
36" x 22" Frame
The Ventura frame is 36" W x 22" D and 28" high; with ANZZI's 6" counter top the finished console is 34" high.
Use Your Existing Top
The frame allows the use of your existing console sink, with the counter top sold separately.
Leveling Legs
Height adjusters built into the bottom of the legs level the stand let the stand be leveled during installation.
Wall Anchored
The stand is secured to the wall with anchors and screws through the pre-drilled holes in the frame, drilled at Φ 3/8" (8 mm).
Matches the Ventura Console
The same frame carries ANZZI's complete Ventura console, CS-FGC001-BN, with a matte white gel-coated resin top.
Specifications
-
Model: CS-FRGLPNL00BN
-
Dimensions: Frame 36" W x 22" D x 28" H; with 6" counter top 34" overall
-
Material: Rust-resistant stainless steel
-
Finish: Brushed nickel
-
Lower Shelf: Tempered glass bottom panel
-
Counter Top: Sold separately
-
Series: Ventura
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- CS-FRGLPNL00BN Ventura console sink frame in brushed nickel
- Tempered glass bottom panel
- Mounting hardware
Sold separately: Counter top, Silicone adhesive and installation tools
Installation & Care
Installation
Floor-standing and secured to the wall. Level the stand with the height adjusters in the legs, mark the wall through the pre-drilled frame holes, drill (Φ 3/8", 8 mm), insert the anchors and screw the stand to the wall; set the glass plate on silicone adhesive on the lower shelf frame. Fix the top with a thin coat of silicone adhesive on the top frame and the back of the sink, centered, and let it dry for 24 hours. Silicone adhesive and tools are not included.
Care
Clean regularly with regular soap and hot water and a non-abrasive cloth or sponge to avoid build-up. Test any stronger cleaner on an inconspicuous area first, wipe and rinse completely with water immediately after, rinse and dry overspray on nearby surfaces, and do not allow the cleaner to soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Ventura frame is the base of ANZZI's Ventura console sink, sold complete as CS-FGC001-BN (brushed nickel), CS-FGC001-BG (brushed gold) and CS-FGC001-MB (matte black).
