The Empava EMPV-67AIS10 is a 67" boat-shaped freestanding whirlpool, which Empava calls extremely popular for its sleek design and adaptability to any house layout. It measures 67.72" L x 28.74" W x 29.53" H and holds 55 gallons at a 13" soaking depth.
8 Jets and a 55-Gallon Soak
The boat shape is meant for bathing and reading together. Instead of a wide curve at the sides, the rim forms an angle at the approximate elbow position for the average man or woman, which Empava says gives optimal comfort when resting the elbows for extended periods of reading.
Everything is laid out symmetrically: eight hydromassage jets, four evenly spaced along each side, and a waterproof pillow at each end, a symmetrical layout Empava describes for this tub. The jets target the back, waist and legs, and the pump plugs into a grounded 110/120V, 15 amp outlet. The pillows are removable, and if you order a different fixture finish from Empava, its Q&A says you install it yourself.
The acrylic has no pores and absorbs no water, so it resists cracking and mold, and it insulates the water. At 112.44 lbs empty the shell is lightweight, which Empava says makes installation on any floor safe. Empava's Q&A says this model does not come without jets, and points to its custom tub options for a non-jet configuration.
Planning Around a 67.72" x 28.74" Footprint

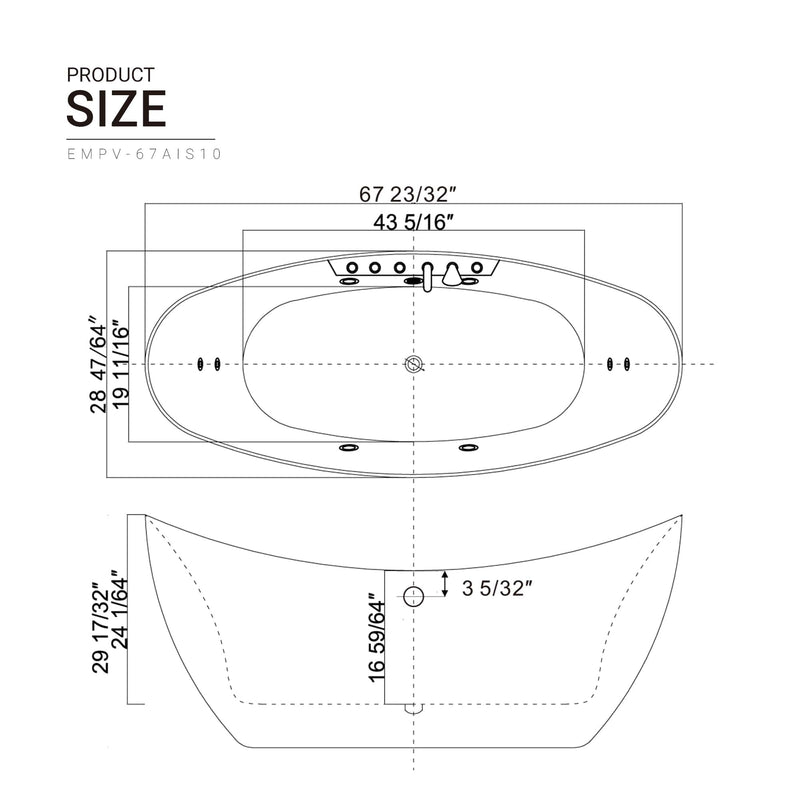

Plan for an overall size of 67.72" L x 28.74" W x 29.53" H; empty, it weighs 112.44 lbs. It holds 55 gallons at a 13" soaking depth. The drain is in the center, with a 1.65" opening. Empava's manual plans for a 31.5" drain pipe with the floor drain 12" from the tub drain, and 1/2" hot and cold supply connectors. For power, Empava lists 110/120V, 15A.
Choosing Within Empava's AIS Whirlpool Range
If you are weighing options within Empava's AIS freestanding whirlpool range, the models closest in nominal size are the EMPV-67AIS17, the EMPV-67AIS38-BN and the EMPV-67AIS01. Each is listed with its own photos, specifications and documents, so you can compare size, capacity, jets and drain position against this model.
Empava designs its jetted tubs for fill-and-drain use: the tub is drained after each bath and refilled with fresh water, and the jets run only when the water covers the highest jet by at least 1" to 2". Its manual recommends flushing the pump and pipes before first use and once a month with hot water and a low-foaming detergent, and cleaning hair and lint from the suction cover, so the jets stay clean. Before installation, Empava asks you to run every function with water in the tub for a few minutes and report any defect.
In short, the EMPV-67AIS10 is an Empava 67" freestanding whirlpool tub with 8 jets and 55 gallons of water.
Features
Elbow-Height Reading Rim
The rim angles in at the approximate elbow position. Empava says this gives optimal comfort when resting your elbows for extended periods of reading.
Four Jets Each Side
Eight jets are spread evenly, four along each side. They target the back, waist and legs.
Pillow at Both Ends

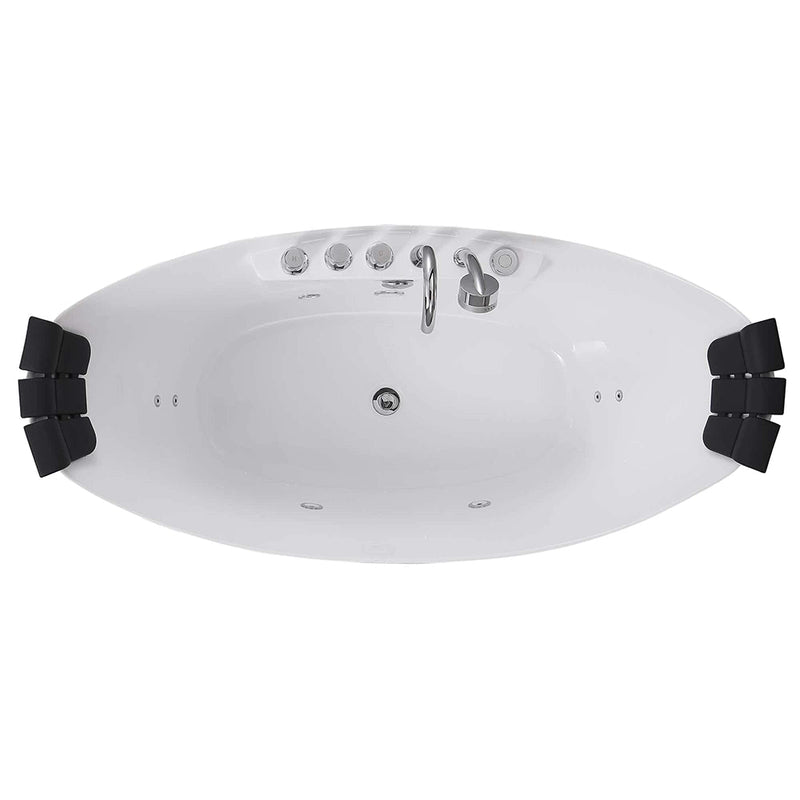

A waterproof pillow sits at each end of the tub. Empava lists both pillows as removable.
67.72" Boat Shell
At 67.72" long and 28.74" wide, the boat shell gives a 13" soaking depth. Empava says the design adapts to any house layout.
110/120V Jet Pump
The pump plugs into a 110/120V, 15 amp outlet, with the grounding and fast-trip leakage protection Empava's manual specifies.
Non-Porous Acrylic
Acrylic does not absorb water, so it resists cracking and mold and needs less scrubbing. It also insulates the 55-gallon fill.
Swap the Finish Yourself

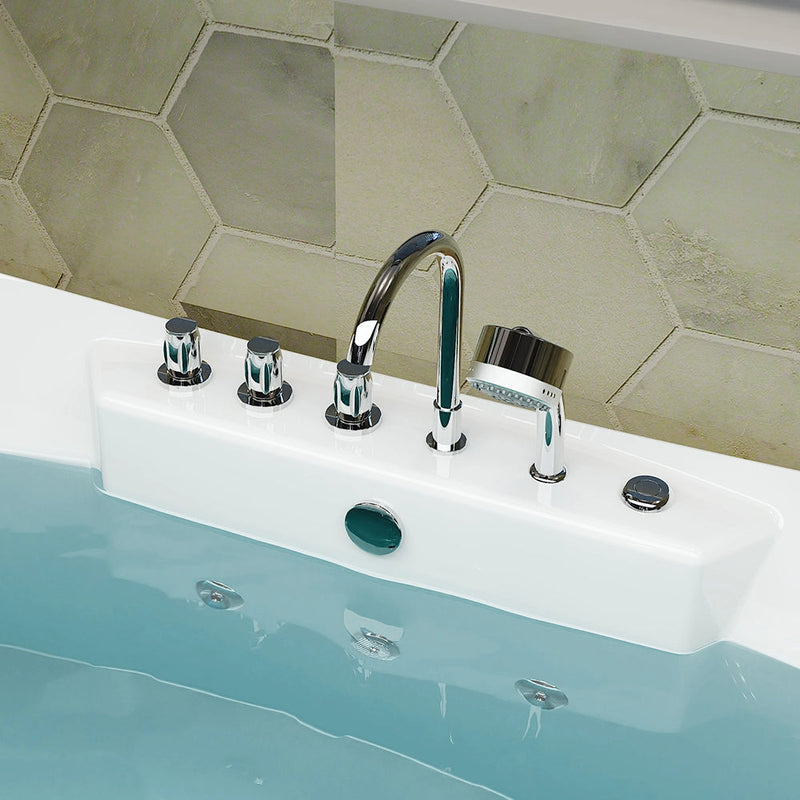

The tub ships with its standard fixtures, and Empava sells other finishes. Empava's Q&A says you install a different finish yourself and calls it a simple process.
Specifications
-
Model: EMPV-67AIS10
-
Overall Dimensions: 67.72" L x 28.74" W x 29.53" H
-
Capacity: 55 gallons
-
Soaking Depth: 13"
-
Installation: Freestanding
-
Shape: Boat-shaped
-
Material: Acrylic
-
Finish: White
-
Bath Therapy: Whirlpool
-
Number of Jets: 8
-
Heater / Thermostatic System: No
-
Drain Placement: Center
-
Drain Size: 1.65"
-
Recommended Users: 1-person
-
Electrical: 110/120V, 15A
-
Weight: 112.44 lbs
-
Warranty: 3-year limited for regular buyers
What's Included
- EMPV-67AIS10 bathtub
- Faucet
- Hand shower
- Headrest
- Drain
- Drain pipe
- Overflow
Installation & Care
Installation
Freestanding, center drain; overall 67.72" L x 28.74" W x 29.53" H, 112.44 lbs empty. The tub's drain pipe is 31.5" long, and Empava's manual places the floor drain 12" from the tub drain so the pipe forms an S-bend odor trap; leave a drain opening of at least 2.0". Rough in 1/2" external-thread hot and cold supply connectors that stand 1.18" out from the wall, with a shutoff valve on each line where you can reach it for service. The pump runs on a grounded 15A outlet, with the external circuit behind a high-sensitivity, fast-trip GFCI (leakage-protection) switch (induced current below 15mA, trip time under 0.1 second, rated current above 30A), installed by a licensed electrician as Empava specifies. Before you set it in place, fill the tub and run every function for a few minutes: Empava asks that any defect is reported before installation.
Care
Flush the jet system before first use and once a month: fill with hot water (about 104°F) 0.9" to 1.2" above the jets, add 2 to 3 teaspoons of low-foaming dishwasher detergent, run the jets for 10 minutes and drain, then refill with cold water, run 15 minutes and drain again. Clear hair and lint from the suction cover regularly and never run the jets dry; the water must cover the highest jet by at least 1" to 2". Clean the acrylic with water or a mild detergent; acids, alkalis and solvent cleaners damage the surface. Light scratches can be wet-sanded with 1200 then 2000 grit paper and polished back to a gloss. In freezing weather, drain the tub and its pipes.
Resources
Shipping, Returns & Warranty
Empava ships this item from its warehouse in City of Industry, California, by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders are processed in 1 to 2 business days and freight transit usually takes 7 to 10 business days; some models are built to order, and we confirm the ship date by email. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Empava products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a tub means freight, and a restocking fee of up to 20% may be deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
Empava's product page gives regular buyers of this bathtub a 3-year warranty. Empava's warranty policy covers the original purchaser, for everyday home use in the continental US, and Empava supplies replacement parts for covered parts free of charge. The policy does not cover commercial use, improper installation, insufficient or excessive electrical supply, misuse, finish wear from corrosive or abrasive cleaners, consumable parts such as light bulbs and filters, freight damage not recorded at delivery, or the cost of removing, servicing or installing the product.
Warranty claims. To claim the warranty, contact Empava's customer service team at service@empava.com or (888) 682-8882, as Empava's warranty policy directs. Contact us with your order number if you would like help with the claim.
About Empava
Empava is a kitchen and bath brand based in City of Industry, California. Alongside its cooking appliances it designs acrylic freestanding, alcove and corner bathtubs, whirlpool and air-massage tubs, walk-in tubs, outdoor hot tubs and cold plunge tubs, built around fixing the small everyday design flaws that other products leave alone.
The AIS series is Empava's freestanding acrylic whirlpool range. The classic models ship with the faucet, hand shower, drain, overflow and headrest, in 59" oval, double-ended, boat and rectangle shells (EMPV-59AIS04 to EMPV-59AIS15), ten 67" designs from oval and double-ended to high-back and boat (EMPV-67AIS01 to EMPV-67AIS17), and two 71" models, the double-ended EMPV-71AIS08 and boat-style EMPV-71AIS14. The newer LED models, such as the EMPV-59AIS36-BN and EMPV-67AIS38-BN, raise the count to 16 or 18 jets and add color lighting.
