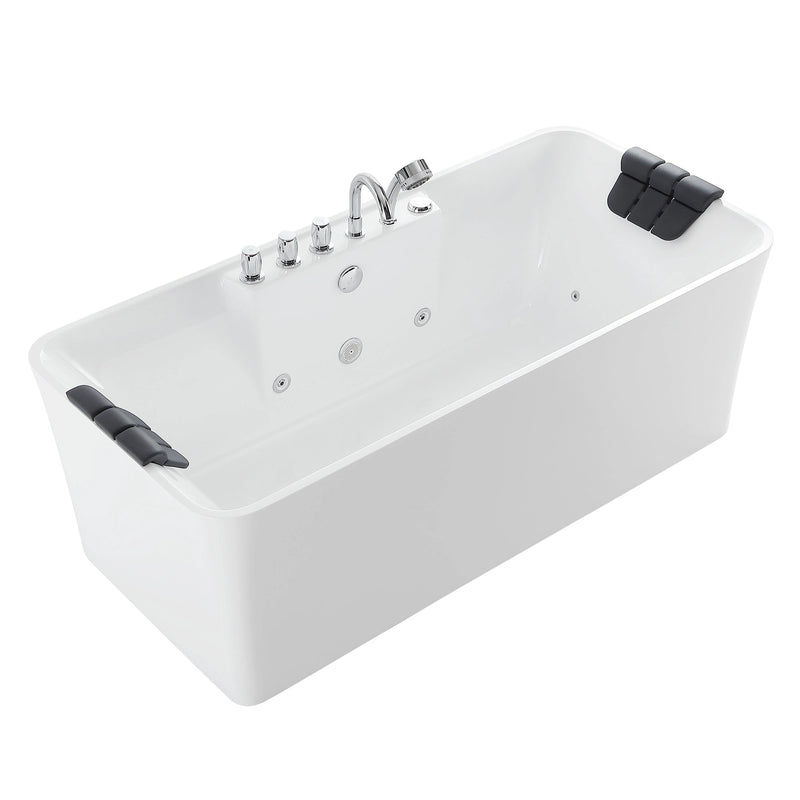

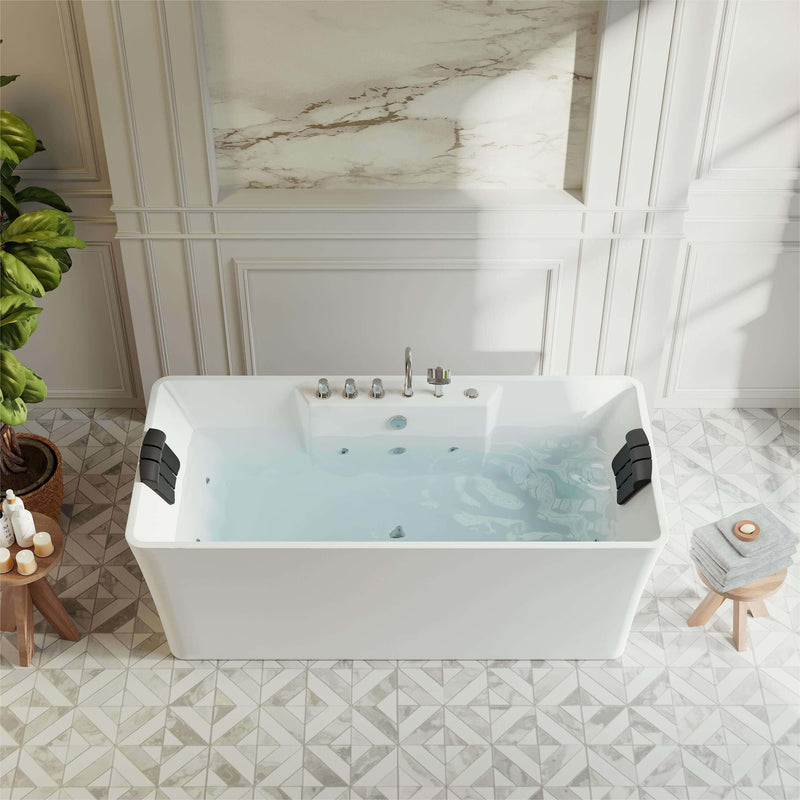

The Empava EMPV-67AIS16 is a 67" rectangular freestanding whirlpool tub with a 70-gallon capacity at a 13" soaking depth, which Empava pitches as a single bathtub for big stature. It measures 66.92" L x 31.50" W x 23.63" H.
8 Jets and a 70-Gallon Soak

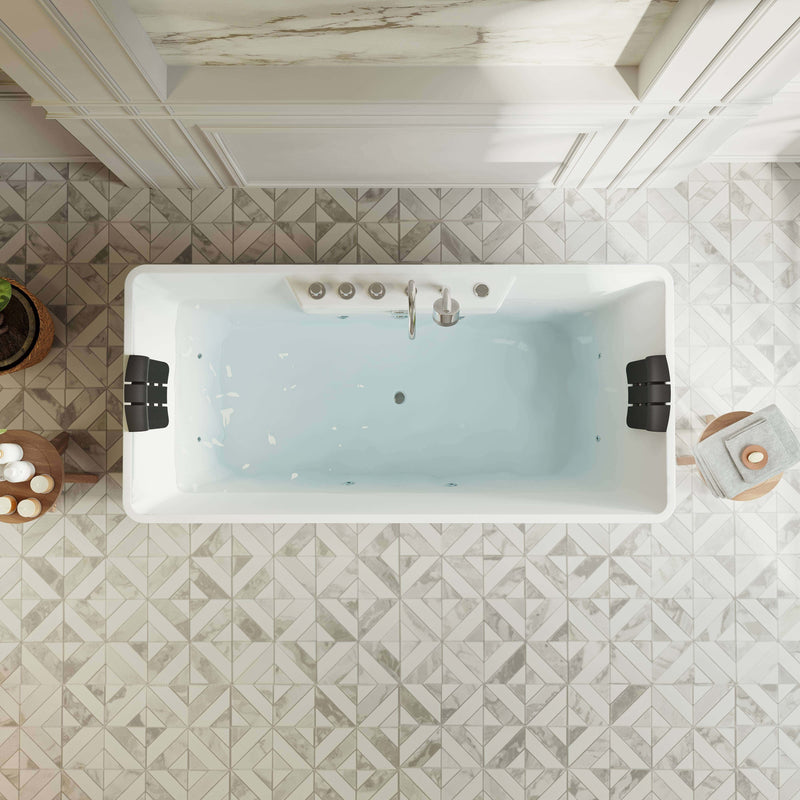

The rectangular interior has no corner cut-outs, so the legs extend fully, and Empava pitches it at bathers searching for a deep soaking tub that fits a big stature. Empava says all it takes is a perpendicular corner for the tub to blend in.

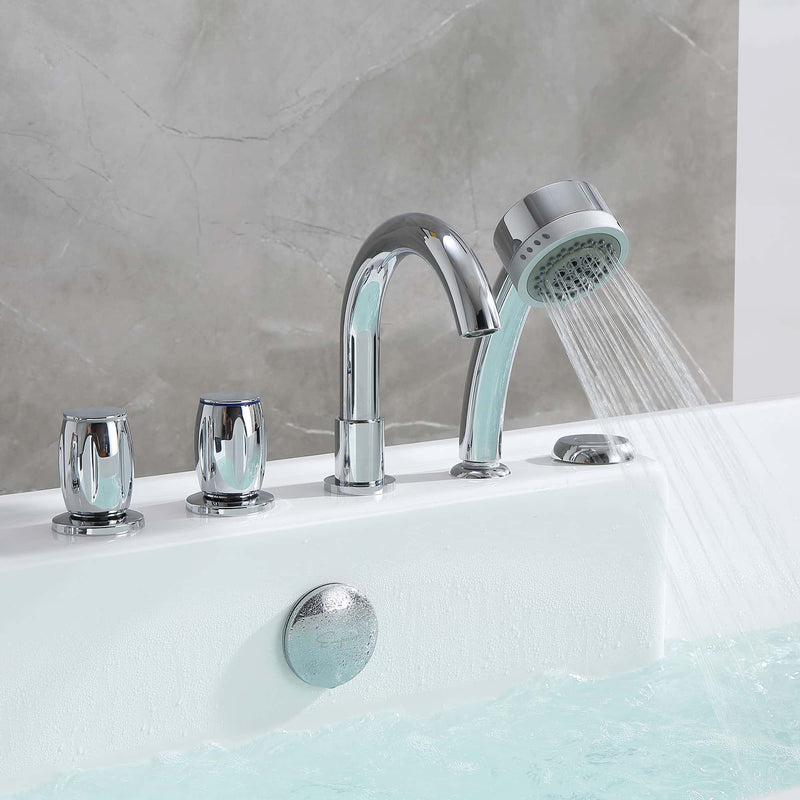

Massage jets are mirrored at both ends, with a dual-end headrest design, so the back, waist and legs get the same massage whichever way you lie. Eight jets run off a pump that plugs into a grounded 110/120V, 15 amp outlet. The faucet and hand shower come with the tub.
The non-porous acrylic gives mildew and mold nowhere to grow and does not absorb water, so it resists cracking over the years. The black headrest is completely removable. Empty, the tub weighs 116.85 lbs.
Planning Around a 66.92" x 31.50" Footprint

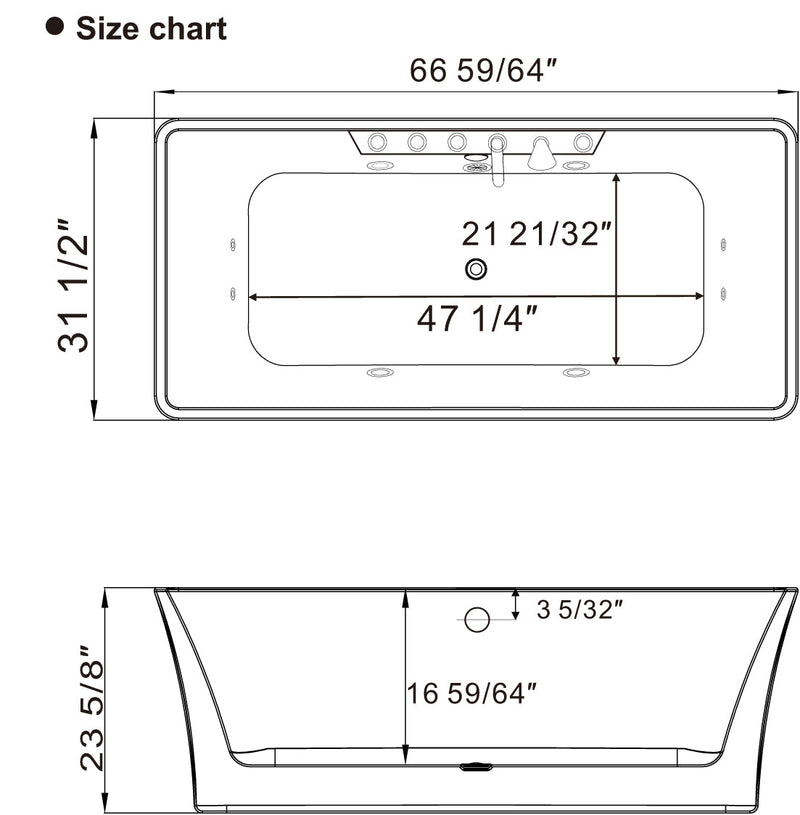

Plan for an overall size of 66.92" L x 31.50" W x 23.63" H; empty, it weighs 116.85 lbs. It holds 70 gallons at a 13" soaking depth. The drain is in the center, with a 1.65" opening. Empava's manual plans for a 31.5" drain pipe with the floor drain 12" from the tub drain, and 1/2" hot and cold supply connectors. For power, Empava lists 110/120V, 15A.
Choosing Within Empava's AIS Whirlpool Range
If you are weighing options within Empava's AIS freestanding whirlpool range, the models closest in nominal size are the EMPV-67AIS01, the EMPV-67AIS02 and the EMPV-67AIS03. Each is listed with its own photos, specifications and documents, so you can compare size, capacity, jets and drain position against this model.
Empava designs its jetted tubs for fill-and-drain use: the tub is drained after each bath and refilled with fresh water, and the jets run only when the water covers the highest jet by at least 1" to 2". Its manual recommends flushing the pump and pipes before first use and once a month with hot water and a low-foaming detergent, and cleaning hair and lint from the suction cover, so the jets stay clean. Before installation, Empava asks you to run every function with water in the tub for a few minutes and report any defect.
In short, the EMPV-67AIS16 is an Empava 67" freestanding whirlpool tub with 8 jets and 70 gallons of water.
Features
70-Gallon Capacity
The basin holds 70 gallons at a 13" soaking depth. Empava calls it a generous capacity.
Full Leg Extension
The rectangular basin has no corner cut-outs. Empava says the shape allows full-leg extension and pitches it as a single tub for big stature.
Fits a Perpendicular Corner
Empava says all it takes is a perpendicular corner. The tub can then blend in without the need for any complex design techniques.

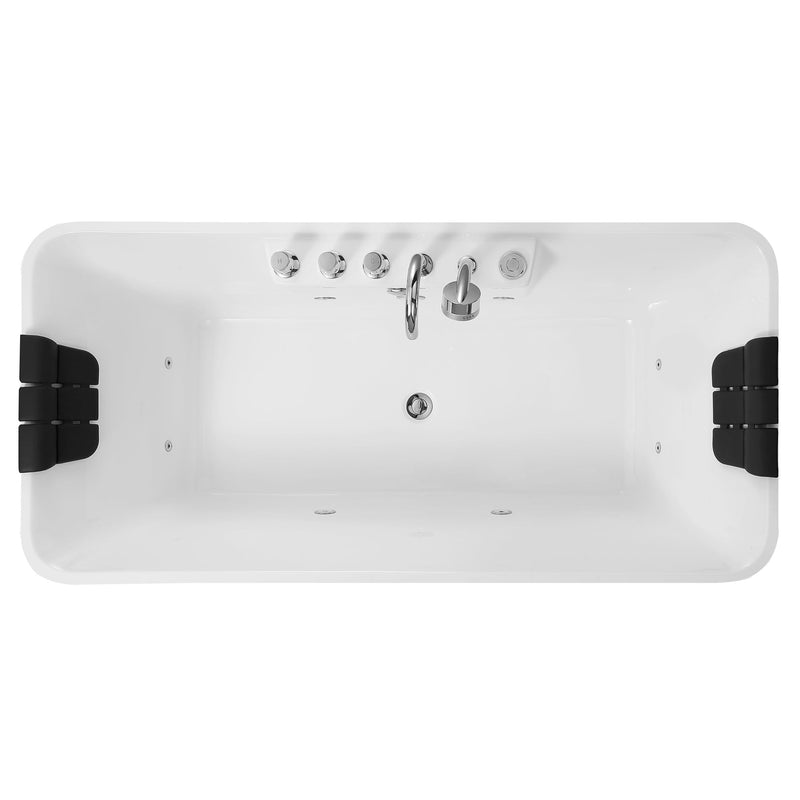

Mirrored Jets, Dual-End Headrest
Jets at both ends and a dual-end headrest design let you face either way. The massage on the back, waist and legs is the same from both ends.
Eight Jets, One Pump
Eight jets run off one pump on a grounded 110/120V, 15 amp outlet. The massage reaches the back, waist and legs from both ends.

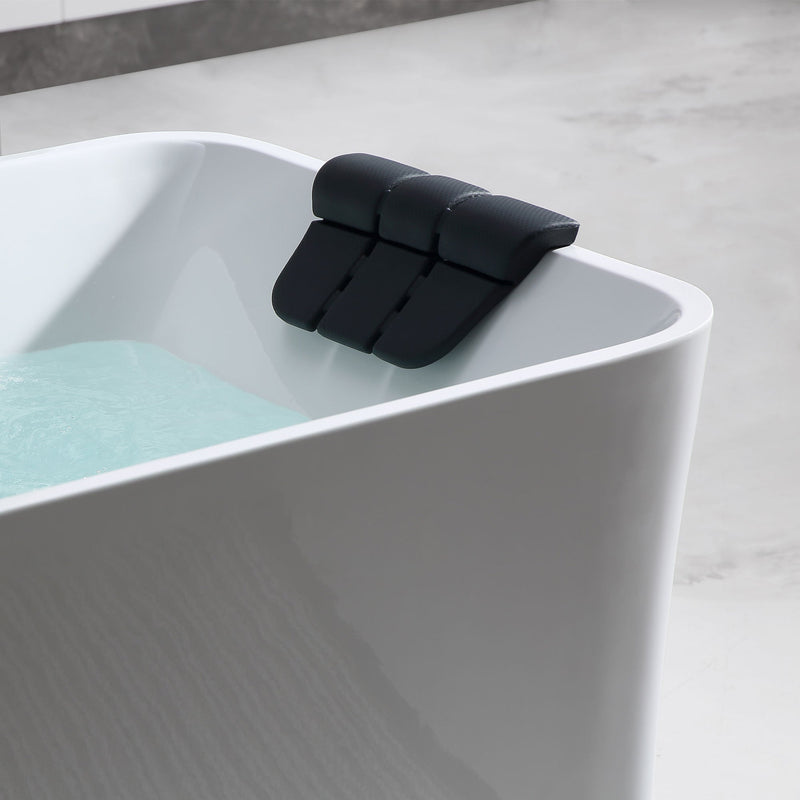

Removable Black Headrest
The black headrest is completely removable, so you can swap it out for a different color or design. Empava does not sell the white headrest separately.
Mildew-Resistant Shell
The non-porous acrylic resists mildew and mold and does not absorb water. Empava says it is crack and mildew resistant.
Specifications
-
Model: EMPV-67AIS16
-
Overall Dimensions: 66.92" L x 31.50" W x 23.63" H
-
Capacity: 70 gallons
-
Soaking Depth: 13"
-
Installation: Freestanding
-
Shape: Rectangle, double-ended
-
Material: Acrylic
-
Finish: White
-
Bath Therapy: Whirlpool
-
Number of Jets: 8
-
Heater / Thermostatic System: No
-
Drain Placement: Center
-
Drain Size: 1.65"
-
Recommended Users: 1-person
-
Electrical: 110/120V, 15A
-
Weight: 116.85 lbs
-
Warranty: 3-year limited for regular buyers
What's Included
- EMPV-67AIS16 bathtub
- Faucet
- Hand shower
- Headrest
- Drain
- Drain pipe
- Overflow
Installation & Care
Installation
Freestanding, center drain; overall 66.92" L x 31.50" W x 23.63" H, 116.85 lbs empty. The tub's drain pipe is 31.5" long, and Empava's manual places the floor drain 12" from the tub drain so the pipe forms an S-bend odor trap; leave a drain opening of at least 2.0". Rough in 1/2" external-thread hot and cold supply connectors that stand 1.18" out from the wall, with a shutoff valve on each line where you can reach it for service. The pump runs on a grounded 15A outlet, with the external circuit behind a high-sensitivity, fast-trip GFCI (leakage-protection) switch (induced current below 15mA, trip time under 0.1 second, rated current above 30A), installed by a licensed electrician as Empava specifies. Before you set it in place, fill the tub and run every function for a few minutes: Empava asks that any defect is reported before installation.
Care
Flush the jet system before first use and once a month: fill with hot water (about 104°F) 0.9" to 1.2" above the jets, add 2 to 3 teaspoons of low-foaming dishwasher detergent, run the jets for 10 minutes and drain, then refill with cold water, run 15 minutes and drain again. Clear hair and lint from the suction cover regularly and never run the jets dry; the water must cover the highest jet by at least 1" to 2". Clean the acrylic with water or a mild detergent; acids, alkalis and solvent cleaners damage the surface. Light scratches can be wet-sanded with 1200 then 2000 grit paper and polished back to a gloss. In freezing weather, drain the tub and its pipes.
Resources
Shipping, Returns & Warranty
Empava ships this item from its warehouse in City of Industry, California, by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders are processed in 1 to 2 business days and freight transit usually takes 7 to 10 business days; some models are built to order, and we confirm the ship date by email. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Empava products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a tub means freight, and a restocking fee of up to 20% may be deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
Empava's product page gives regular buyers of this bathtub a 3-year warranty. Empava's warranty policy covers the original purchaser, for everyday home use in the continental US, and Empava supplies replacement parts for covered parts free of charge. The policy does not cover commercial use, improper installation, insufficient or excessive electrical supply, misuse, finish wear from corrosive or abrasive cleaners, consumable parts such as light bulbs and filters, freight damage not recorded at delivery, or the cost of removing, servicing or installing the product.
Warranty claims. To claim the warranty, contact Empava's customer service team at service@empava.com or (888) 682-8882, as Empava's warranty policy directs. Contact us with your order number if you would like help with the claim.
