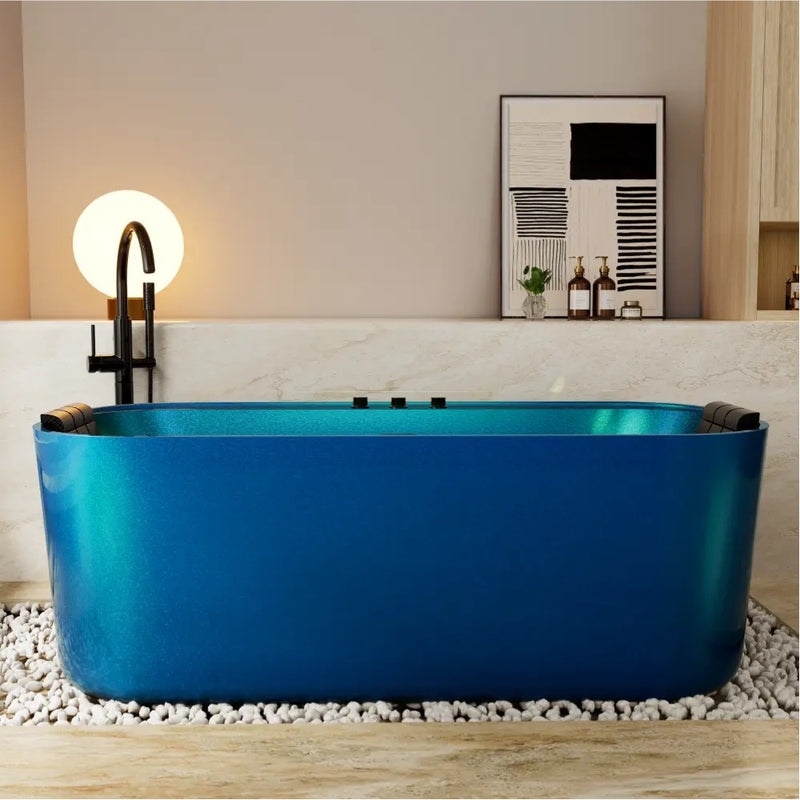

The Empava EMPV-67DM01 is a 66.9" freestanding combination massage tub finished in Blue Diamond, a deep blue with a satin-like surface. It measures 66.9" L x 31.5" W x 23.6" H, holds 86 gallons and gives a 14.55" soaking depth, with a center drain.
16 Water Jets and 12 Air Jets
Inspired by the depth of water, the blue subtly reflects light and shifts gently with the room, adding depth without overwhelming the space, and it pairs with both modern and classic interiors. The double-ended shape has smooth lines and a relaxed, classic profile.
Two massage systems share the tub. Sixteen water jets give a focused massage on the back, waist and legs, and 12 air jets release fine bubbles for a softer soak; you can run either mode or alternate between them. The pump runs on 110/120V, 15 amp, and Empava's manual calls for a grounded outlet with leakage protection.
The tub is sized for one adult, with room to recline and stretch while the footprint stays practical for most homes. Empava calls it an ideal choice for daily relaxation. The faucet, hand shower, headrest, drain and overflow come with it, and it weighs 179 lbs empty. There is no heater.
Planning Around a 66.9" x 31.5" Footprint
Plan for an overall size of 66.9" L x 31.5" W x 23.6" H; empty, it weighs 179 lbs. It holds 86 gallons at a 14.55" soaking depth. The drain is in the center, with a 1.65" opening. Empava's manual plans for a 31.5" drain pipe with the floor drain 12" from the tub drain, and 1/2" hot and cold supply connectors. For power, Empava lists 110/120V, 15A.
Choosing Within Empava's DM Designer-Color Range
If you are weighing options within Empava's DM designer-color range, the models closest in nominal size are the EMPV-68DM03 and the EMPV-75DM02. Each is listed with its own photos, specifications and documents, so you can compare size, capacity, jets and drain position against this model.
Its manual recommends flushing the pump and pipes before first use and once a month with hot water and a low-foaming detergent, and cleaning hair and lint from the suction cover, so the jets stay clean. Before installation, Empava asks you to run every function with water in the tub for a few minutes and report any defect.
In short, the EMPV-67DM01 is an Empava 67" freestanding combination massage tub with 16 water jets, 12 air jets and 86 gallons of water.
Features
Blue Diamond Finish
A deep blue, satin-like finish catches the light and shifts with the room, and Empava says it was inspired by the depth of water.
Water and Air Massage

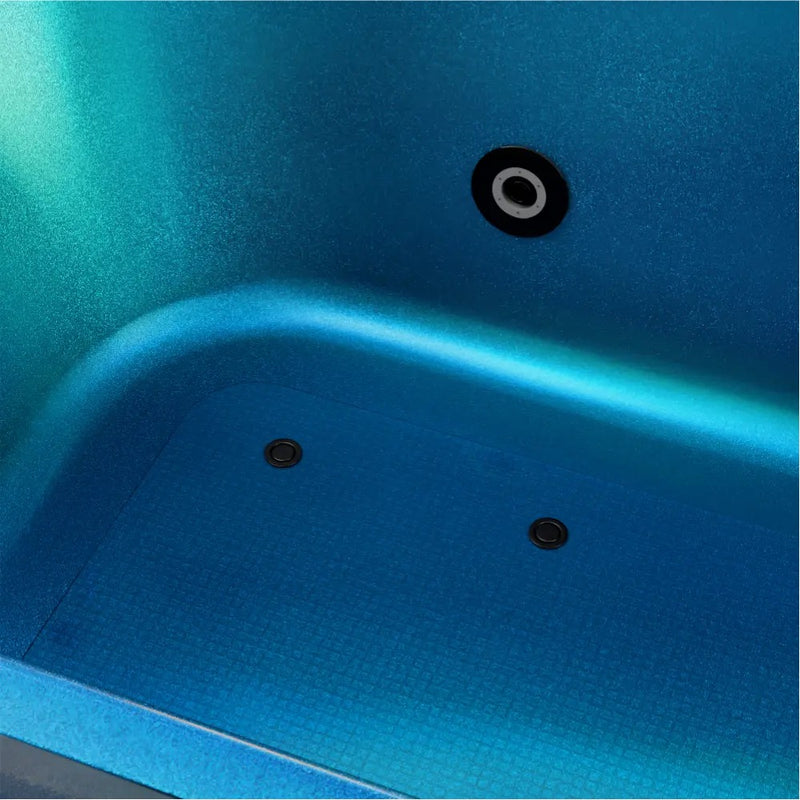

Sixteen water jets work the back, waist and legs while twelve air jets release fine bubbles. Use one mode or alternate.

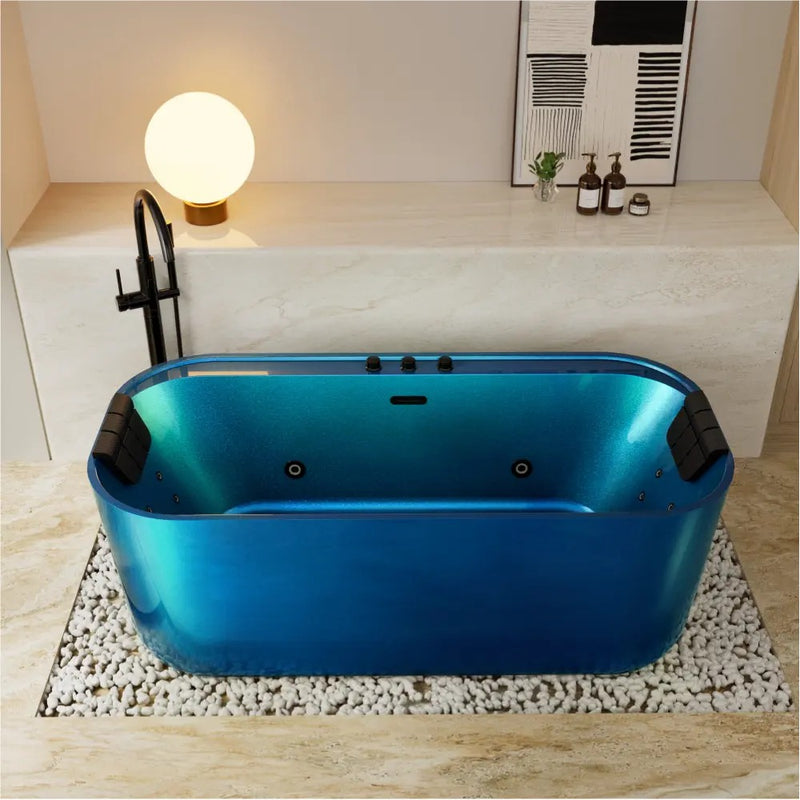

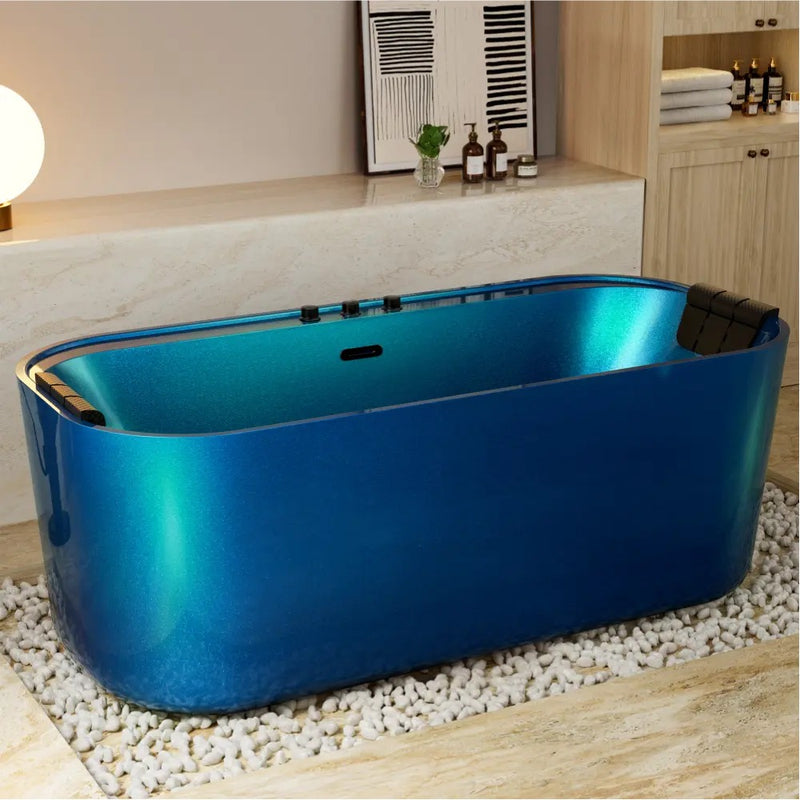

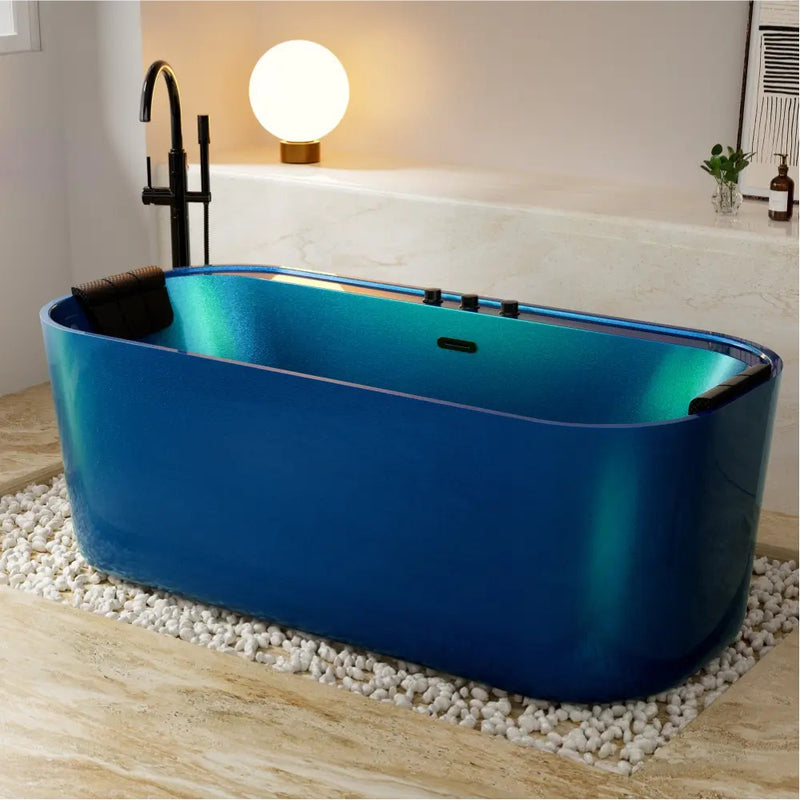

Double-Ended Shape

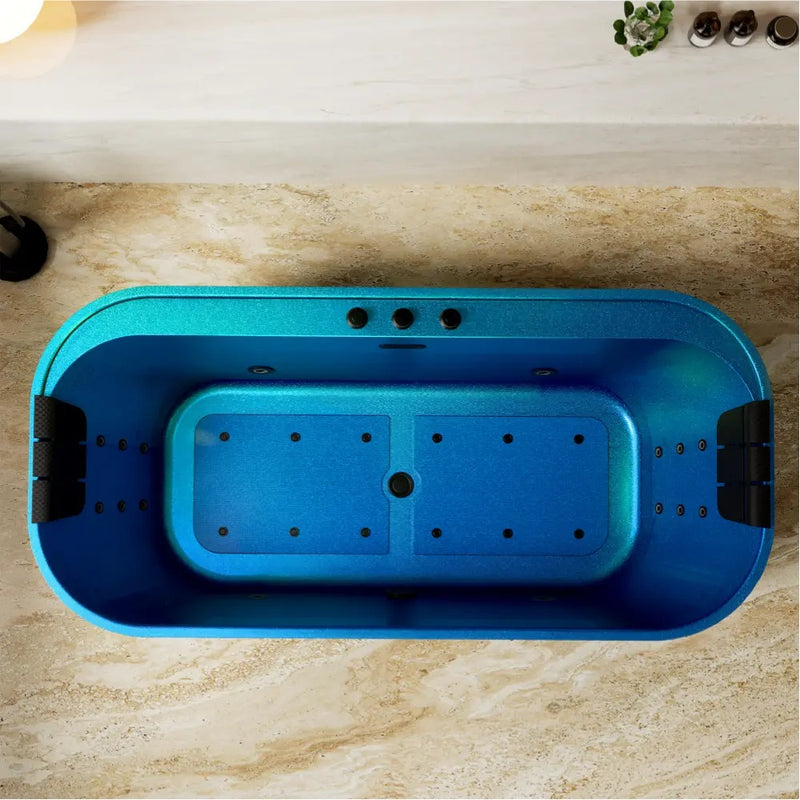

The classic double-ended profile has smooth lines and a center drain, and the tub weighs 179 lbs empty.
86-Gallon Basin
The tub holds 86 gallons at a 14.55" depth. Empava says the interior gives ample room to recline and stretch.
Pairs With Any Style
Empava designed the Blue Diamond color to pair with both modern and classic interiors, adding depth without overwhelming the space.
110/120V Pump
The pump runs on 110/120V, 15 amp. Empava's manual calls for a grounded outlet with fast-trip leakage (GFCI) protection.
Fittings Included
The faucet, hand shower, headrest, drain and overflow come with the tub, per Empava's included list.
Specifications
-
Model: EMPV-67DM01
-
Overall Dimensions: 66.9" L x 31.5" W x 23.6" H
-
Capacity: 86 gallons
-
Soaking Depth: 14.55"
-
Installation: Freestanding
-
Shape: Double-ended
-
Material: Acrylic
-
Finish: Blue Diamond
-
Bath Therapy: Whirlpool (water jets) with air bubble jets
-
Number of Jets: 16 water jets
-
Air Jets: 12
-
Heater / Thermostatic System: No
-
Drain Placement: Center
-
Drain Size: 1.65"
-
Recommended Users: 1-person
-
Electrical: 110/120V, 15A
-
Weight: 179 lbs
-
Warranty: 3-year limited for regular buyers
What's Included
- EMPV-67DM01 bathtub
- Faucet
- Hand shower
- Headrest
- Drain
- Overflow
Installation & Care
Installation
Freestanding, center drain; overall 66.9" L x 31.5" W x 23.6" H, 179 lbs empty. The tub's drain pipe is 31.5" long, and Empava's manual places the floor drain 12" from the tub drain so the pipe forms an S-bend odor trap; leave a drain opening of at least 2.0". Rough in 1/2" external-thread hot and cold supply connectors that stand 1.18" out from the wall, with a shutoff valve on each line where you can reach it for service. The pump runs on a grounded 15A outlet, with the external circuit behind a high-sensitivity, fast-trip GFCI (leakage-protection) switch (induced current below 15mA, trip time under 0.1 second, rated current above 30A), installed by a licensed electrician as Empava specifies. Before you set it in place, fill the tub and run every function for a few minutes: Empava asks that any defect is reported before installation.
Care
Flush the jet system before first use and once a month: fill with hot water (about 104°F) 0.9" to 1.2" above the jets, add 2 to 3 teaspoons of low-foaming dishwasher detergent, run the jets for 10 minutes and drain, then refill with cold water, run 15 minutes and drain again. Clear hair and lint from the suction cover regularly and never run the jets dry. Clean the acrylic with water or a mild detergent; acids, alkalis and solvent cleaners damage the surface. Light scratches can be wet-sanded with 1200 then 2000 grit paper and polished back to a gloss. In freezing weather, drain the tub and its pipes.
Resources
Shipping, Returns & Warranty
Empava ships this item from its warehouse in City of Industry, California, by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders are processed in 1 to 2 business days and freight transit usually takes 7 to 10 business days; some models are built to order, and we confirm the ship date by email. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused Empava products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a tub means freight, and a restocking fee of up to 20% may be deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
Empava's product page gives regular buyers of this bathtub a 3-year warranty. Empava's warranty policy covers the original purchaser, for everyday home use in the continental US, and Empava supplies replacement parts for covered parts free of charge. The policy does not cover commercial use, improper installation, insufficient or excessive electrical supply, misuse, finish wear from corrosive or abrasive cleaners, consumable parts such as light bulbs and filters, freight damage not recorded at delivery, or the cost of removing, servicing or installing the product.
Warranty claims. To claim the warranty, contact Empava's customer service team at service@empava.com or (888) 682-8882, as Empava's warranty policy directs. Contact us with your order number if you would like help with the claim.
About Empava
Empava is a kitchen and bath brand based in City of Industry, California. Alongside its cooking appliances it designs acrylic freestanding, alcove and corner bathtubs, whirlpool and air-massage tubs, walk-in tubs, outdoor hot tubs and cold plunge tubs, built around fixing the small everyday design flaws that other products leave alone.
Empava's DM series is its designer color collection: acrylic tubs finished in deep, light-catching tones instead of plain white. The EMPV-67DM01 in Blue Diamond is a one-person combination massage tub, the EMPV-68DM03 in Pearlescent Jade is a pure soaking tub with no jets, and the 74.8" EMPV-75DM02 in Green Diamond is a two-person combination tub with a 360° waterfall, so the same statement look comes with or without massage.
