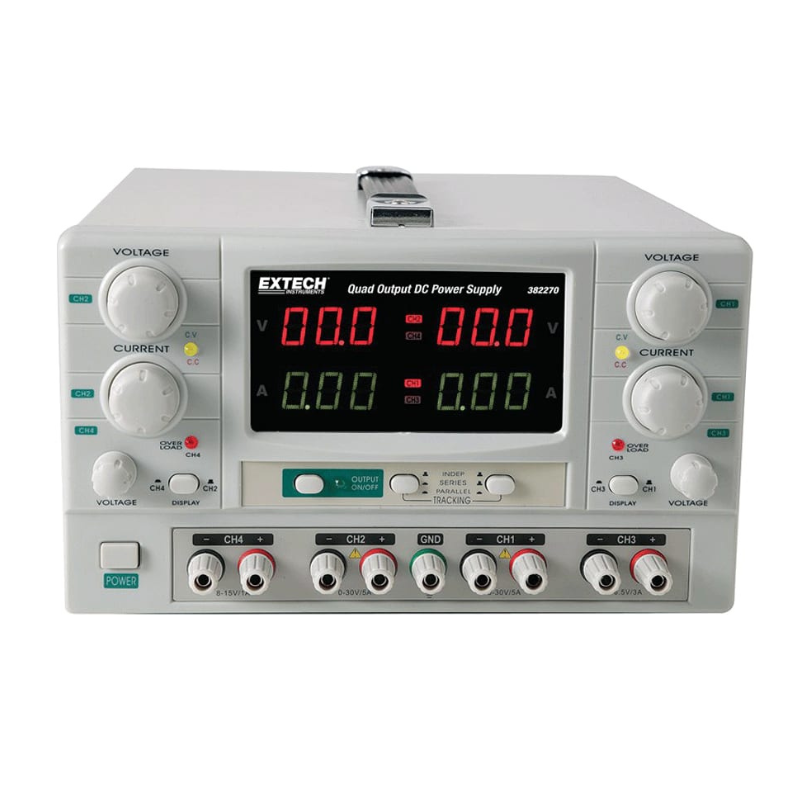

The Extech 382270 Quad Output DC Power Supply is a versatile and robust solution for laboratory, educational, and professional electronic applications. This high-performance unit integrates four power supplies in a single compact housing, ensuring flexibility and precision in delivering various voltage and current levels.
It features two fully adjustable channels, each offering 0 to 30V and 0 to 5A output with selectable Constant Voltage (CV) and Constant Current (CC) modes. These outputs can be operated independently or combined—up to 60V in series or 10A in parallel—for enhanced power delivery. This adaptability makes the 382270 ideal for diverse test environments.
Designed with a user-friendly interface, the Extech 382270 includes intuitive controls and a clear digital display. Built-in protection features guard against overloads and short circuits, ensuring the safety of both the device and your equipment.
What's Included:
- 4 - Pairs Of Test Leads (Banana Plug To Alligator Clip)
- 1 - AC Cord
Features
Integrated Quad Output Design
Combines four power supplies in one unit, offering maximum versatility for testing and development.
Adjustable Dual Outputs
Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes.
Flexible Output Combinations
Outputs can be configured for up to 60V in series or 10A in parallel, expanding its usability.
Convenient Auxiliary Outputs
Includes 3 to 6.5V at 3A and 8 to 15V at 1A fixed outputs for powering peripherals.
Protection Features
Equipped with overload and short circuit protection for safe operation.
User-Friendly Interface
Clear digital display and intuitive controls streamline power configuration and monitoring.
Reliable Construction
Durably built to withstand rigorous use in professional and educational settings.
What's Included
Included with Your Purchase:
- 4 - Pairs Of Test Leads (Banana Plug To Alligator Clip)
- 1 - AC Cord
Specifications
-
Adjustable Outputs: 2 x 0 to 30V, 0 to 5A
-
Output Modes: Constant Voltage (CV), Constant Current (CC)
-
Series Mode Output: Up to 60V
-
Parallel Mode Output: Up to 10A
-
Auxiliary Output 1: 3 to 6.5V, 3A
-
Auxiliary Output 2: 8 to 15V, 1A
-
Brand: Extech
-
Condition: NEW
-
UPC: 793950322703
-
Model Number: 382270
FAQ
Q: Can I use the outputs simultaneously?
A: Yes, all four outputs can be used simultaneously for different devices or test setups.
Q: What is the maximum power this unit can deliver?
A: It can deliver up to 60V in series mode or 10A in parallel mode from the adjustable channels.
Q: Are the auxiliary outputs adjustable?
A: One auxiliary output ranges from 3 to 6.5V, while the other is fixed from 8 to 15V.
Q: Does it have safety protections?
A: Yes, it includes overload and short circuit protection to ensure safe operation.
