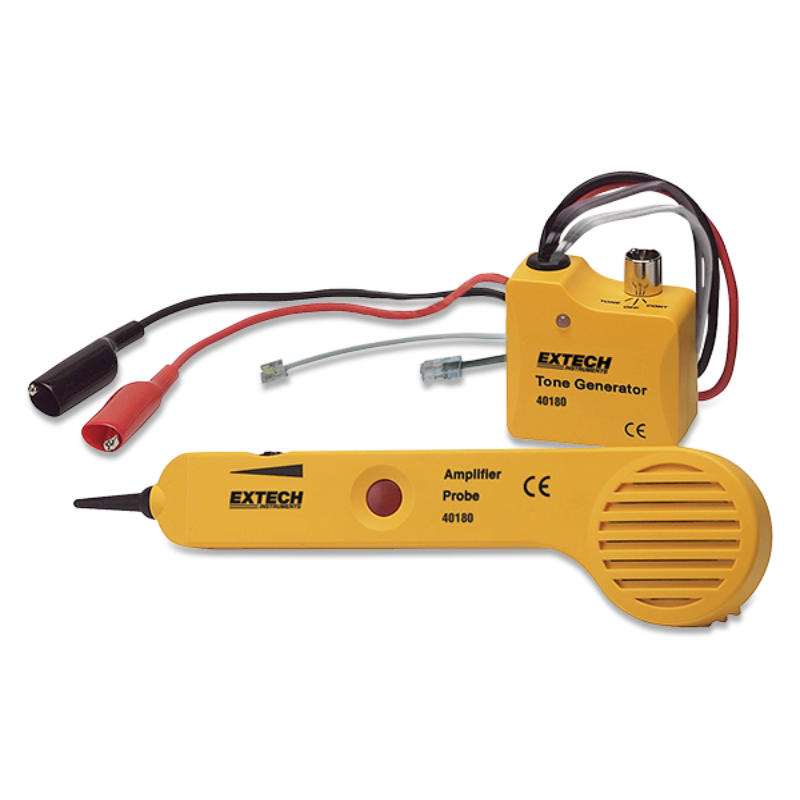

The Extech 40180 Tone Generator and Amplifier Probe Kit is a robust and versatile tool for wire and cable identification. This kit is designed to simplify the process of locating and tracing wires or cables, making it ideal for telecommunications, networking, and electrical installations.
The included tone generator produces a clear audible tone that travels along cables, while the sensitive amplifier probe detects and follows the signal to trace wiring efficiently. An insulated inductive probe tip helps prevent shorting of conductors, ensuring safe and accurate testing.
In addition to tracing wires, the kit offers multiple testing functions such as continuity checks, active phone line (clear/busy/ringing) identification, and tip/ring polarity verification. It supports direct connection to telephone and internet wiring via modular RJ45 and RJ11 connectors, as well as unterminated cables using alligator clips.
Its rugged design supports heavy-duty field use, and the adjustable sensitivity control built into the probe allows precise tracing even in complex wiring environments.
What's Included:
- 1 - Alligator Clips
- 1 - RJ45 and RJ11 Modular Connectors
- 1 - 9V Battery
- 1 - Case
Features
Insulated Inductive Probe Tip
Prevents accidental shorting of conductors during wire identification for safe and reliable operation.
Multiple Testing Functions
Supports wire tracing, continuity checks, phone line testing, and tip/ring identification for comprehensive diagnostics.
Direct and Clip-On Connectivity
Includes modular RJ45/RJ11 connectors and alligator clips for flexible connections to both terminated and unterminated cables.
Adjustable Tone Generation
Selectable continuous or variable tone modes enhance tracing accuracy across different setups.
Built-In Speaker with Sensitivity Control
Amplifier probe includes volume control to fine-tune signal detection in noisy or complex environments.
Heavy-Duty Design
Engineered for durability in field service work with dependable performance and a protective case.
What's Included
Included with Your Purchase:
- 1 - Alligator Clips
- 1 - RJ45 and RJ11 Modular Connectors
- 1 - 9V Battery
- 1 - Case
Specifications
-
Model: 40180
-
UPC: 793950401804
-
Brand: Extech
-
Condition: NEW
FAQ
Q: Can the Extech 40180 trace wires in a bundle?
A: Yes, its sensitive probe and tone generator make it ideal for identifying specific wires within complex bundles.
Q: Does the probe tip pose a risk of shorting wires?
A: No, the inductive probe tip is insulated to prevent shorting conductors during use.
Q: Are modular connectors included for direct wiring access?
A: Yes, the kit includes both RJ45 and RJ11 connectors for connecting to phone and internet wiring.
Q: Is the device suitable for field use?
A: Absolutely, it's built to handle heavy-duty environments and comes with a protective case.
