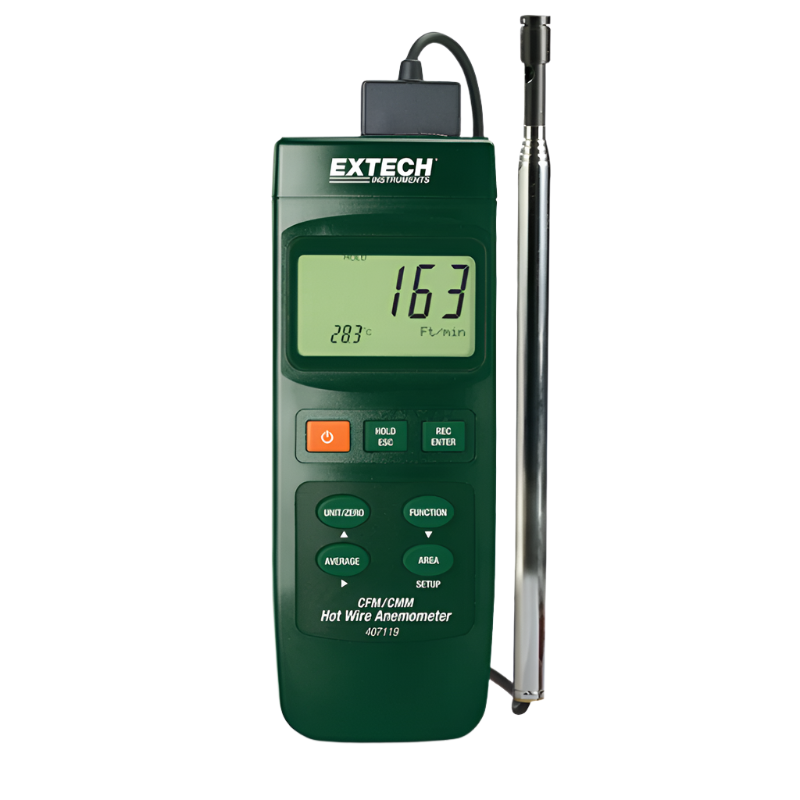

The Extech 407119 Heavy Duty CFM Hot Wire Thermo-Anemometer is an advanced instrument designed to accurately measure air flow, air velocity, and temperature. Ideal for HVAC professionals and industrial technicians, this device offers precise readings across multiple airflow conditions, enhancing diagnostics and system performance.
Its telescoping probe extends up to 3 ft (940 mm), making it perfect for inspecting air ducts and other tight spaces. It delivers fast, reliable measurements of air flow in both CFM (cubic feet per minute) and CMM (cubic meters per minute), with options for instantaneous or averaged readings over 20 points.
This anemometer can detect air velocities as low as 40 ft/min, enabling detailed airflow analysis in low-flow environments. The large 1.4" LCD display ensures easy readability of results, and the simultaneous temperature measurement in °F/°C provides comprehensive data for climate assessments.
What's Included:
- 1 - Telescoping Probe With 5.5Ft Cable
- 4 - AA Batteries
Features
Accurate Air Flow and Velocity Measurement
Measures airflow in CFM/CMM and velocity down to 40 ft/min for precise system diagnostics.
Simultaneous Air and Temperature Readings
Displays both airflow and temperature in real-time for complete environmental monitoring.
Telescoping Probe
Extends up to 3 ft (940 mm), ideal for reaching into ducts and ventilation systems.
Two Display Modes
Air flow can be shown as an instantaneous reading or as an average from 20 points for more accurate assessment.
Data Hold and Min/Max Functions
Retain the current reading or track fluctuations over time using built-in memory features.
Large LCD Display
1.4" screen shows values clearly for fast, easy data interpretation.
PC Connectivity
RS-232 port supports optional software and cable for data capture and extended analysis.
Auto Power Off
Preserves battery life by shutting down after inactivity.
What's Included
Included with Your Purchase:
- 1 - Telescoping Probe With 5.5Ft Cable
- 4 - AA Batteries
Specifications
-
Model: 407119
-
Measurement Parameters: Air Flow (CFM/CMM), Air Velocity, Temperature
-
Minimum Air Velocity: 40 ft/min
-
Probe Length: Up to 3 ft (940 mm)
-
Display: 1.4" LCD (99,999 count)
-
Temperature Units: °F/°C
-
Power Source: 4 x AA Batteries
-
PC Interface: RS-232 with optional software/cable
-
Additional Functions: Data Hold, Min/Max, Auto Power Off
-
UPC: 793950401194
FAQ
Q: What is the minimum air velocity the Extech 407119 can measure?
A: It can measure air velocities as low as 40 ft/min, ideal for low-flow environments.
Q: Can this unit measure both air velocity and temperature at the same time?
A: Yes, it provides simultaneous readings for air velocity and temperature.
Q: Is it possible to log data to a PC?
A: Yes, using the built-in RS-232 port with optional software and cable.
Q: Does the device automatically turn off when not in use?
A: Yes, it features Auto Power Off to save battery life.
