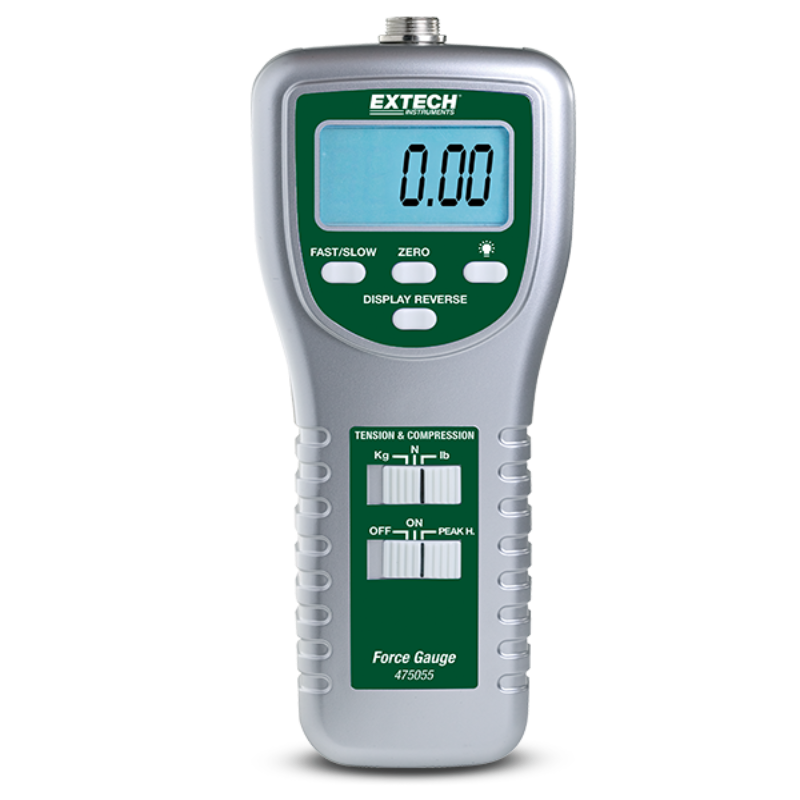

Extech 475055 High Capacity Force Gauge with PC Interface and NIST Calibration

The Extech 475055-NIST High Capacity Force Gauge with PC Interface is a precision instrument engineered for professionals who require dependable and accurate force measurements. Designed to handle tension and compression tests, this versatile gauge delivers consistent performance across a wide range of industrial and laboratory applications.

This model features three selectable measurement ranges—up to 100 kg, 220 lbs, or 980 Newtons—providing flexibility for diverse testing scenarios. A large backlit LCD ensures visibility in varying lighting conditions, while peak hold and zero functions enhance user control during operation. The device also includes a PC interface via RS-232 for easy data acquisition and analysis.

With a basic accuracy of 0.5%, a reversible display for optimized viewing angles, and NIST certification, the Extech 475055-NIST stands out as a dependable, professional-grade force measurement solution.

What's Included:

• 1 - NIST Certificate of Calibration
• 1 - Tension And Compression Adaptors
• 6 - AA Batteries
• 1 - Case

Features

Three Measurement Ranges
Offers flexibility with ranges from 0.05 to 100 kg, 0.05 to 220 lbs, and 0.2 to 980 Newtons for varied testing needs.

High Accuracy Performance
Delivers reliable results with a basic accuracy of 0.5%, ideal for critical testing and quality assurance.

Versatile Testing Functions
Supports tension and compression testing with peak hold and zero functions for precise operation.

Easy-to-Read Display
Features a large, backlit LCD with positive/reverse display for improved readability in different environments.

PC Connectivity
Includes RS-232 PC interface for data export and integration into analysis systems.

NIST Certified
Provides traceable accuracy through an included NIST Calibration Certificate for compliance and auditing purposes.

What's Included

Included with Your Purchase:

• 1 - NIST Certificate of Calibration
• 1 - Tension And Compression Adaptors
• 6 - AA Batteries
• 1 - Case

Specifications

• Measurement Ranges: 0.05 to 100 kg, 0.05 to 220 lbs, 0.2 to 980 Newtons
• Accuracy: ±0.5%
• Display: Large LCD with backlight, reversible orientation
• Functions: Tension, Compression, Peak Hold, Zero
• PC Interface: RS-232
• Power Supply: 6 x AA batteries
• Certifications: NIST Certificate of Calibration
• Model Number: 475055-NIST
• UPC: 793950470565
• Condition: NEW

FAQ

Q: What types of measurements can this gauge perform?
A: It measures both tension and compression forces across three selectable ranges.

Q: Does the device include PC connectivity?
A: Yes, it features an RS-232 PC interface for data output.

Q: Is the device calibrated?
A: Yes, it comes with a NIST Certificate of Calibration for verified accuracy.

Q: How is the display designed for usability?
A: The backlit LCD includes a reversible display for better readability from different angles.
