Extech HDV720 Videoscope Kit with Dual HD Probe 4.9mm x 1m

The Extech HDV720 Videoscope Kit is a compact, professional-grade solution designed for inspecting hard-to-reach or hazardous areas. With a semi-rigid dual HD camera probe measuring just 4.9mm in diameter and 1 meter in length, this kit provides high-resolution visual access in tight spaces without the need to disassemble equipment. It’s an excellent choice for professionals in manufacturing, HVAC/R, automotive, plumbing, and building diagnostics.

The 5-inch color capacitive touchscreen delivers bright, detailed images with a wide field of view, allowing you to view live inspections and saved media side by side. With advanced features like photo notes, voice annotations, and session tagging, the HDV720 supports thorough documentation and efficient data management. Plus, it offers HDMI output for external display and is IP67-rated for wet or dusty environments.

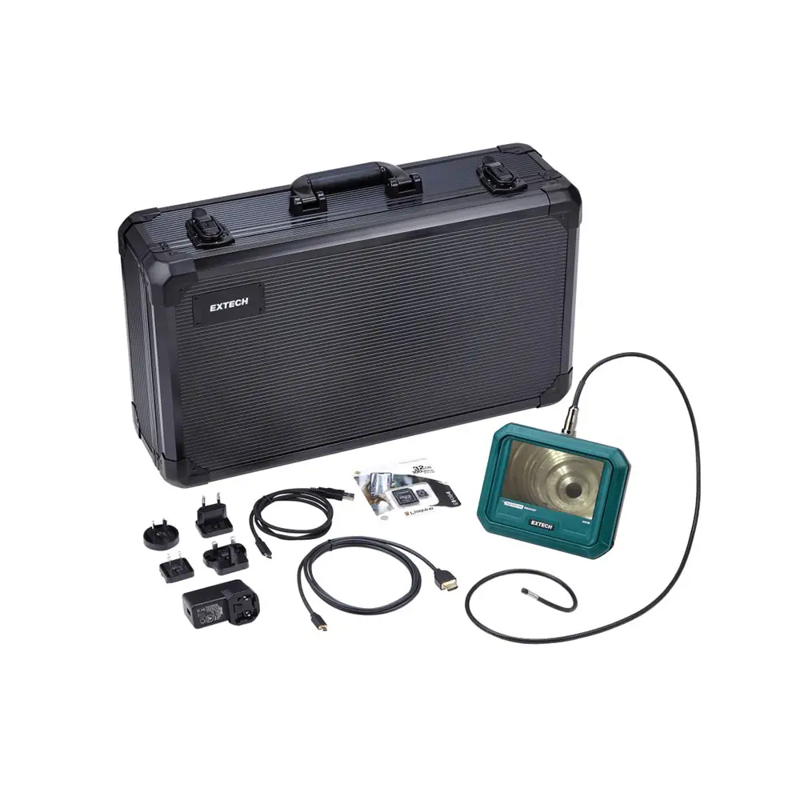

What's Included:

• 1 - Videoscope
• 1 - Carrying Case
• 1 - Semi-Rigid Dual HD Camera Probe (4.9mm x 1m)
• 1 - 32 GB Micro SD Card
• 1 - USB-A to USB-C Cable
• 1 - HDMI Type A to Type D Cable
• Li-ion Rechargeable Battery (built-in)
• 1 - Universal Adapter (with US, UK, EU, and AUS plugs)

Features

5-Inch Capacitive Touchscreen
Provides bright, sharp images and a wide field of view, enhancing inspection clarity.

Still Image and Video Capture
Document findings effectively with both photo and video options.

Non-Invasive Inspection
Easily access tight or hidden areas without disassembling equipment.

Split-Screen Viewing
Simultaneously compare live and saved images side by side for quick evaluations.

Voice and Photo Annotations
Add context and clarity to images with voice memos and visual notes.

Session and Tag Features
Organize and manage inspection data efficiently for better workflow.

HDMI Output
Connect to an external monitor for easier group viewing or presentations.

Stable Viewing Options
Use the display stand and tripod mount for hands-free operation.

IP67-Rated Probe
Waterproof up to 1 meter for 30 minutes, ideal for demanding environments.

Multi-Industry Application
Perfect for condition monitoring across manufacturing and technical fields.

What's Included

Included with Your Purchase:

• 1 - Videoscope
• 1 - Carrying Case
• 1 - Semi-Rigid Dual HD Camera Probe (4.9mm x 1m)
• 1 - 32 GB Micro SD Card
• 1 - USB-A to USB-C Cable
• 1 - HDMI Type A to Type D Cable
• Li-ion Rechargeable Battery (built-in)
• 1 - Universal Adapter (with US, UK, EU, and AUS plugs)

Specifications

• Display: 5-inch color capacitive touchscreen
• Probe Diameter: 4.9mm
• Probe Length: 1 meter
• Camera Type: Dual HD camera
• Water Resistance: IP67-rated (up to 1m for 30 minutes)
• Storage: 32 GB Micro SD Card
• Connectivity: USB-A to USB-C, HDMI Type A to D
• Battery: Built-in Li-ion rechargeable battery
• Output: HDMI video output for external monitor
• Data Management: Session and Tag feature for inspection organization

FAQ

Q: Can I view both live and saved images at the same time?
A: Yes, the Extech HDV720 allows side-by-side viewing of live camera feeds and stored images.

Q: Is the camera probe waterproof?
A: Yes, the camera probe is IP67-rated and can be submerged up to 1 meter for 30 minutes.

Q: Can I connect the display to an external monitor?
A: Yes, the HDV720 includes an HDMI output for connecting to larger screens.

Q: What storage capacity is included?
A: The kit comes with a 32 GB Micro SD Card to store images and videos.

Resources

Documents:

• Extech HDV720 Videoscope Kit Datasheet
• Extech HDV720 Videoscope Kit Manual
