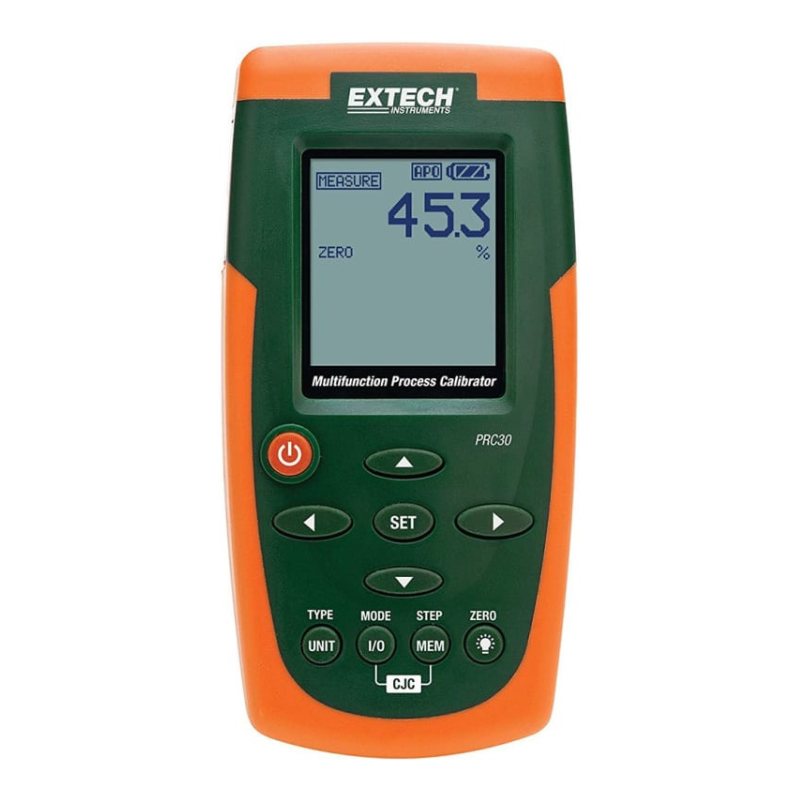

Extech PRC30 Multifunction Process Calibrator with NIST

The Extech PRC30-NIST Multifunction Process Calibrator delivers precise sourcing and measurement capabilities for current, voltage, and thermocouple-based devices. Designed for both sourcing and measuring applications, it supports eight thermocouple types and offers full-loop power for 2-wire transmitters. The unit features five user-adjustable calibration presets, along with temperature outputs available in Fahrenheit, Celsius, and millivolts.

This calibrator includes a 24 V DC power source for loop-powered devices and supports a readout range of 0 to 24 mA (-25 to 125%). Its durable design and intuitive interface make it a reliable tool for field and lab professionals. The PRC30-NIST is delivered with a NIST Certificate of Calibration for traceability and compliance in regulated environments.

What's Included:

• 1 - NIST Certificate of Calibration
• 1 - Set of Test Leads
• 1 - Set of Alligator Clips
• 1 - Thermocouple Calibration Cable
• 1 - Universal Calibration Cable
• 1 - 100-240V AC Universal Adapter With 4 Plugs
• 1 - AA Batteries
• 1 - Hard Case
• 1 - User Manual

Features

Multifunctional Calibration Capability
Supports sourcing and measuring of current (mA), voltage (mV/V), and eight thermocouple types for broad testing needs.

Precision Measurement Range
Offers a 0 to 24 mA range with -25 to 125% readout, ensuring flexibility for various calibration tasks.

Built-in Loop Power Supply
Provides 24 V DC for powering 2-wire transmitters directly during testing.

User Calibration Presets
Includes five user-defined presets to simplify and speed up frequent test setups.

Versatile Temperature Output
Outputs temperature in Fahrenheit, Celsius, or millivolts depending on user needs and test parameters.

Thermocouple Compatibility
Supports eight types of thermocouples including J, K, T, E, C, R, and more, expanding its utility across different industries.

What's Included

Included with Your Purchase:

• 1 - NIST Certificate of Calibration
• 1 - Set of Test Leads
• 1 - Set of Alligator Clips
• 1 - Thermocouple Calibration Cable
• 1 - Universal Calibration Cable
• 1 - 100-240V AC Universal Adapter With 4 Plugs
• 1 - AA Batteries
• 1 - Hard Case
• 1 - User Manual

Specifications

• Measurement Types: Current (mA), Voltage (mV/V), Thermocouple (8 types)
• Current Range: 0 to 24 mA (-25 to 125%)
• Voltage Range: mV and V (specific values not listed)
• Loop Power: 24 V DC
• Calibration Presets: 5 user adjustable
• Temperature Output Units: Fahrenheit, Celsius, millivolts
• Condition: NEW
• UPC: 793950710326
• Model Number: PRC30-NIST
• Part Number: PRC30NIST

FAQ

Q: What types of devices can the Extech PRC30-NIST calibrate?
A: It can calibrate devices using current (mA), voltage (mV/V), and eight types of thermocouples.

Q: Does this calibrator provide loop power?
A: Yes, it includes a 24 V DC power supply for 2-wire loop-powered devices.

Q: What temperature units are supported?
A: The calibrator supports output in Fahrenheit, Celsius, and millivolts.

Q: Is a NIST Certificate included?
A: Yes, it comes with a NIST Certificate of Calibration.

Resources

Documents:

• Extech PRC30-NIST Datasheet
• Extech PRC30-NIST User Manual
