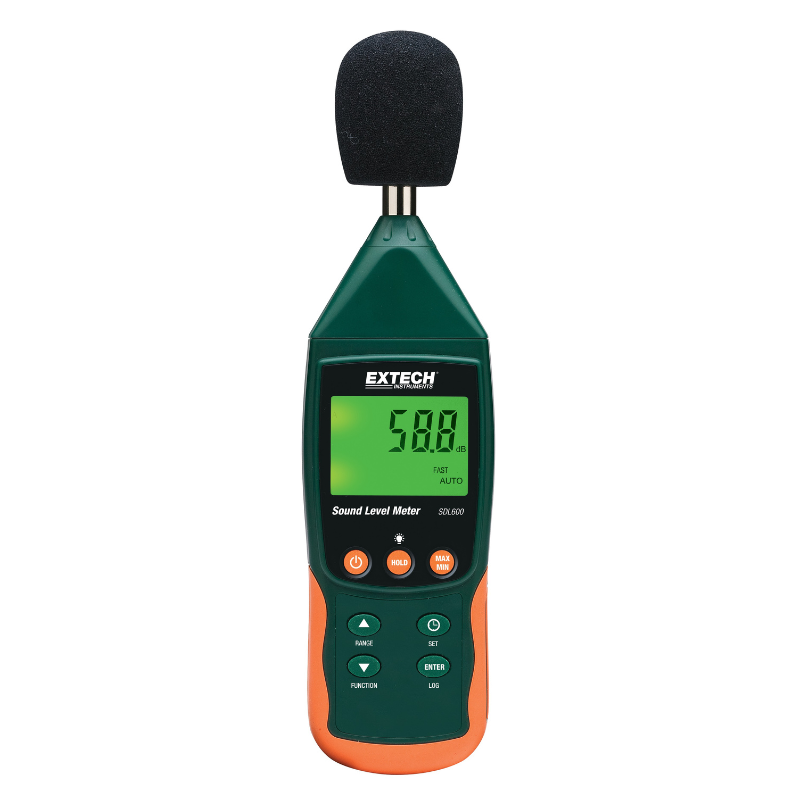

The Extech SDL600-NIST is an advanced sound level datalogger that offers exceptional accuracy and versatility for comprehensive sound level measurement and analysis. Designed to meet the needs of professionals in various industries, this instrument provides reliable data for precise sound monitoring applications.
Equipped with a high-precision condenser microphone, the SDL600 ensures accurate sound level measurements across a wide frequency range. It features an extended dynamic range, enabling it to capture both low-level ambient noise and high-intensity sounds with exceptional clarity and precision.
Featuring a user-friendly interface with a backlit LCD display, the SDL600 provides clear visibility of measurements even in low-light conditions. It offers various measurement modes, including A- and C-weighting, as well as fast and slow response times, enabling users to tailor the settings to meet the specific requirements of their sound monitoring applications.
What's Included:
- 1 - NIST Certificate of Calibration
- 6 - AA Batteries
- 1 - SD Card
- 1 - Wind Screen
- 1 - Hard Carrying Case
Features
High Accuracy
Offers ±1.4dB precision and complies with ANSI and IEC 61672-1 Type 2 standards.
Wide Measurement Range
Measures sound levels from 30 to 130dB, accommodating various noise environments.
Auto or Manual Ranging
Users can select automatic or manual range adjustments for optimal measurement control.
AC Analog Output
Connects to external analyzers or recorders for extended functionality.
Large Backlit LCD
Ensures clear visibility of data, even in low-light conditions.
Comprehensive Data Logging
Stores up to 99 manual readings and up to 20 million readings on a 2GB SD card.
Excel-Compatible Data Format
Logs are time/date stamped and saved in Excel format for easy transfer and analysis.
Certified Accuracy
Includes NIST calibration for trusted and verified performance.
What's Included
Included with Your Purchase:
- 1 - NIST Certificate of Calibration
- 6 - AA Batteries
- 1 - SD Card
- 1 - Wind Screen
- 1 - Hard Carrying Case
Specifications
-
Sound Measurement Range: 30 to 130dB
-
Accuracy: ±1.4dB
-
Standards Compliance: ANSI and IEC 61672-1 Type 2
-
Display: Large backlit LCD
-
Data Storage: 99 manual readings, 20 million readings with 2GB SD card
-
Output: AC analog
-
Weighting Modes: A and C
-
Response Times: Fast and Slow
-
Power Supply: 6 x AA batteries
-
Accessories: NIST Certificate, SD Card, Wind Screen, Carrying Case
FAQ
Q: What is the measurement range of the SDL600?
A: It measures from 30 to 130 decibels.
Q: Can I export the data to a PC?
A: Yes, data is saved in Excel format on the SD card for easy transfer.
Q: Does this model include NIST calibration?
A: Yes, it comes with a NIST Certificate of Calibration.
Q: What kind of batteries does it use?
A: It operates on six AA batteries.
Q: Can it log data over time?
A: Yes, it functions as a datalogger with programmable intervals for long-term monitoring.
