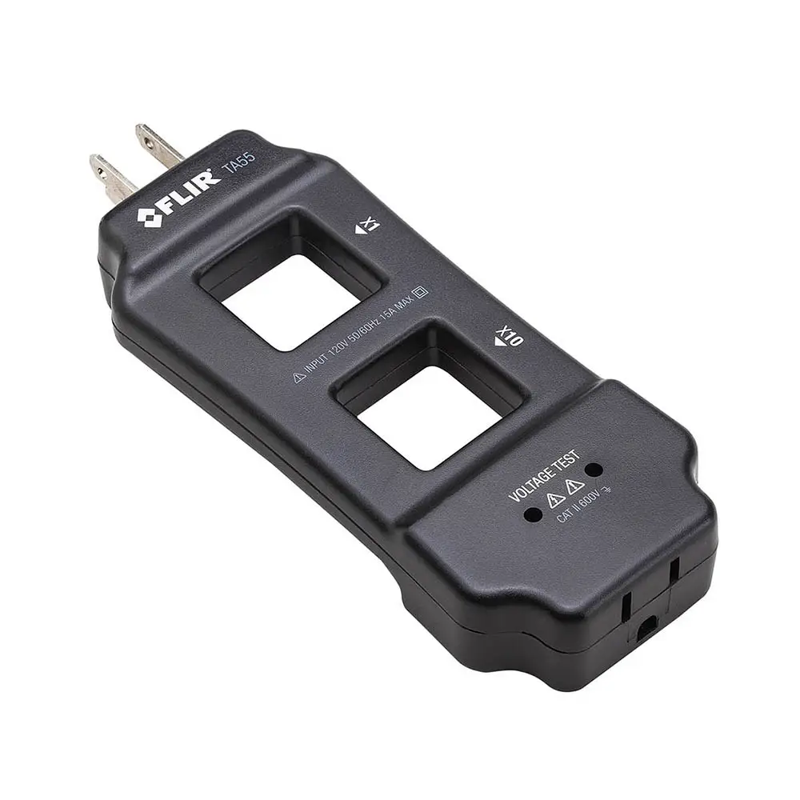

The Teledyne FLIR TA55 AC Current Line Splitter is a compact and essential tool designed for electricians and technicians who need safe and efficient access to current and voltage measurements. Compatible with CM4x, CM5x, CM7x, CM8x, CM174, and VT8-SERIES units, the TA55 allows easy measurement from two- or three-wire outlets. It separates the hot/live wire from the neutral and ground, allowing for precise current readings without the need to disassemble outlets or modify wires.
Offering both 1x and 10x current measurement ranges, the TA55 delivers enhanced sensitivity for low-amperage diagnostics. Built-in recessed voltage test ports improve safety while expanding measurement versatility. This is a simple yet powerful accessory for anyone using FLIR clamp meters or testers.
What's Included:
- 1 - AC Current Line Splitter for CM4x, CM5x, CM7x, CM8x, CM174, and VT8-SERIES Units
Features
Safe and Accessible Current Testing
Allows users to easily and securely test current and voltage from standard two- and three-prong outlets.
Live Wire Separation
Design isolates the hot conductor from the neutral and ground, ensuring accurate current measurements without outlet modifications.
Dual Measurement Ranges
Includes 1x and 10x ranges for both general and low-amp applications, improving resolution for sensitive measurements.
Recessed Voltage Ports
Built-in recessed terminals offer safe and convenient voltage testing access.
Compact and Durable
Lightweight construction with robust housing designed for frequent field use and storage in toolkits.
What's Included
Included with Your Purchase:
- 1 - AC Current Line Splitter for CM4x, CM5x, CM7x, CM8x, CM174, and VT8-SERIES Units
Specifications
-
Max Voltage: 120V
-
Max Current: 15A AC
-
Temperature Range: 41 - 104°F / -4 - 140°F
-
Measurement Ranges: x1 and x10
-
Compatibility: CM4x, CM5x, CM7x, CM8x, CM174, VT8-SERIES
-
Condition: NEW
FAQ
Q: What devices is the TA55 compatible with?
A: It is compatible with FLIR CM4x, CM5x, CM7x, CM8x, CM174, and VT8-SERIES units.
Q: What is the benefit of the x10 range?
A: The x10 range enhances resolution for low-amperage current measurements, making it ideal for sensitive diagnostics.
Q: Can I use the TA55 for voltage measurements as well?
A: Yes, the TA55 includes recessed voltage test inputs for safe and convenient voltage checks.
Q: Do I need to modify the outlet to use this splitter?
A: No, the TA55 plugs directly into outlets and separates the conductors internally, eliminating the need for outlet disassembly.
