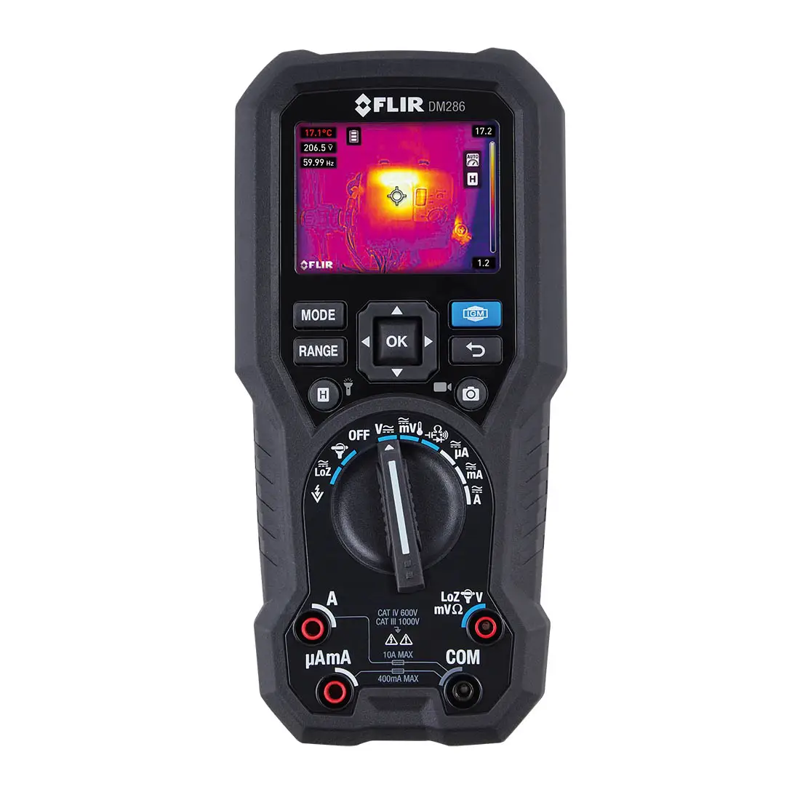

The Teledyne FLIR DM286-NIST True-RMS Industrial Thermal Imaging Multimeter is designed for professionals who demand precision, safety, and convenience in one rugged tool. Equipped with IGM (Infrared Guided Measurement) and MSX (Multi-Spectral Dynamic Imaging), this device enables users to detect potential hazards without direct contact, with enhanced image clarity for faster diagnostics.
Engineered for all-day fieldwork, it features two rechargeable battery packs, a durable housing rated for 2-meter drops, and a bright LED worklight for operation in dark environments. With Bluetooth METERLiNK connectivity, users can seamlessly stream data to mobile devices and share thermal images and videos in real time.
The DM286-NIST model also includes a NIST Certificate of Calibration, ensuring traceable and accurate performance aligned with national standards.
What's Included:
- 1 - Industrial Thermal Imaging Multimeter (DM286)
- 1 - Set of Test Leads, CAT IV 600V
- 1 - Set of Alligator Clips, CAT IV 600V
- 1 - Type-A to Micro-USB Cable
- 1 - Type-K Thermocouple, -30°C to 260°C
- 1 - Soft-Sided Carrying Case
- 1 - Quick-Start Guide
- 1 - FLIR Warranty Card
- 2 - Rechargeable Battery Cells (TA04)
- 1 - NIST Certificate of Calibration
Features
All-in-One Measurement
Measures voltage, current, resistance, capacitance, frequency, temperature, and more in one rugged tool.
IGM and MSX Imaging

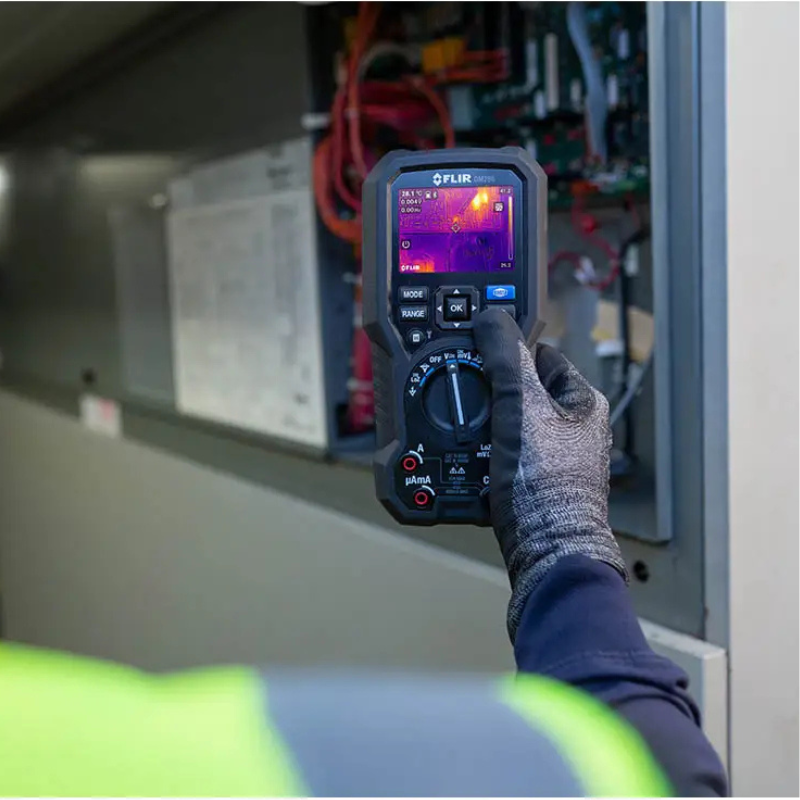

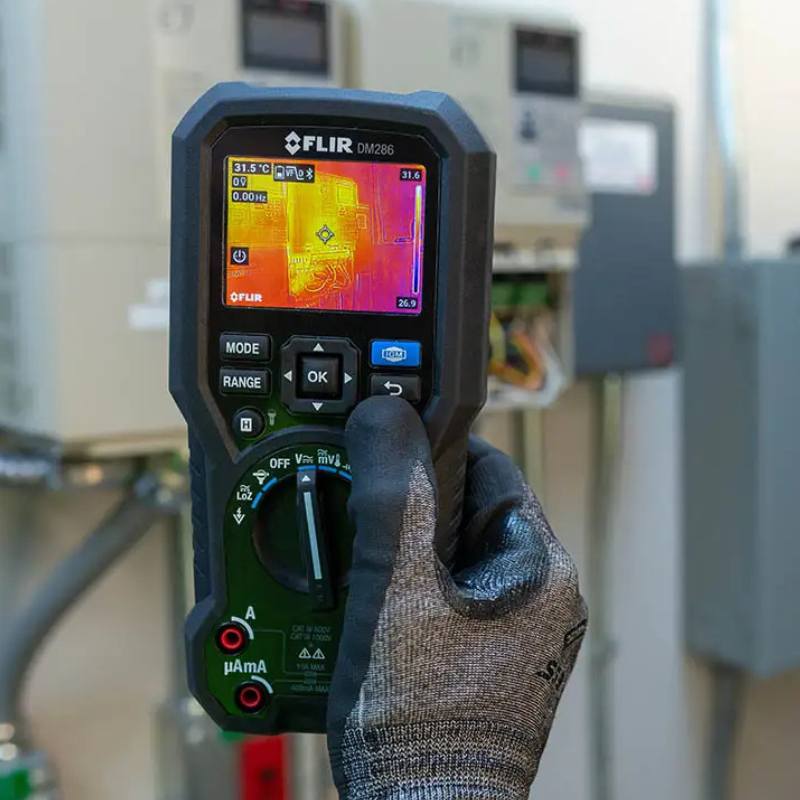

Identifies potential issues without contact using thermal imaging and overlays visual detail for better context.
Advanced Imaging Sensor
Features a 160 x 120 px FLIR Lepton thermal imager with laser-assisted targeting and fully radiometric imaging.
Bluetooth METERLiNK Connectivity
Wirelessly shares data, logs, images, and video clips via mobile devices using the FLIR METERLiNK app.
High-Visibility Display
2.8-inch TFT display with 6000 count resolution ensures measurements are easy to read.
Built-in NCV Detection
Detects voltage without probes to enhance safety during inspections.
Customizable Operation
Easy menu navigation with auto/manual ranging and programmable settings.
Extensive Storage Capabilities
Stores 30,000 thermal images and logs up to 40,000 readings for later review.
NIST-Calibrated Accuracy
Comes standard with a NIST Certificate of Calibration for quality assurance.
Field-Ready Design
Drop-tested at 2 meters and rated IP40, with dual rechargeable batteries for all-day reliability.
What's Included
Included with Your Purchase:
- 1 - Industrial Thermal Imaging Multimeter (DM286)
- 1 - Set of Test Leads, CAT IV 600V
- 1 - Set of Alligator Clips, CAT IV 600V
- 1 - Type-A to Micro-USB Cable
- 1 - Type-K Thermocouple, -30°C to 260°C
- 1 - Soft-Sided Carrying Case
- 1 - Quick-Start Guide
- 1 - FLIR Warranty Card
- 2 - Rechargeable Battery Cells (TA04)
- 1 - NIST Certificate of Calibration
Specifications
-
Thermal Imager: FLIR Lepton microbolometer, 160 x 120 px
-
Thermal Sensitivity: 150 mK (0.15°C)
-
Temperature Range: -5°C to 300°C (23°F to 572°F)
-
Thermal Image Storage: Up to 30,000 images, eMMC 4 GB
-
Video Recording: 50 min. max duration
-
Display: 2.8 in. TFT, 6000 count
-
Electrical Measurement: AC/DC V: 1000V, AC/DC A: 10A, Resistance: 60 MΩ
-
Data Logging: 40,000 readings with 1–99 sec intervals
-
Wireless: Bluetooth BLE, METERLiNK protocol
-
Drop Rating: 2m (6.6 ft.)
-
IP Rating: IP40
-
Safety Ratings: CAT IV 600V, CAT III 1000V
FAQ
Q: What is the imaging resolution of the DM286?
A: The thermal imaging resolution is 160 x 120 pixels using a FLIR Lepton sensor.
Q: Can the DM286 wirelessly transmit data?
A: Yes, it supports Bluetooth BLE and METERLiNK for wireless data sharing and logging.
Q: How much data can it store?
A: It can store up to 30,000 thermal images and 40,000 measurement readings.
Q: Does it come with a calibration certificate?
A: Yes, the DM286-NIST includes a NIST Certificate of Calibration.
Q: What kind of environments is it built for?
A: It has a 2-meter drop rating and is IP40 rated, making it suitable for rugged industrial environments.
