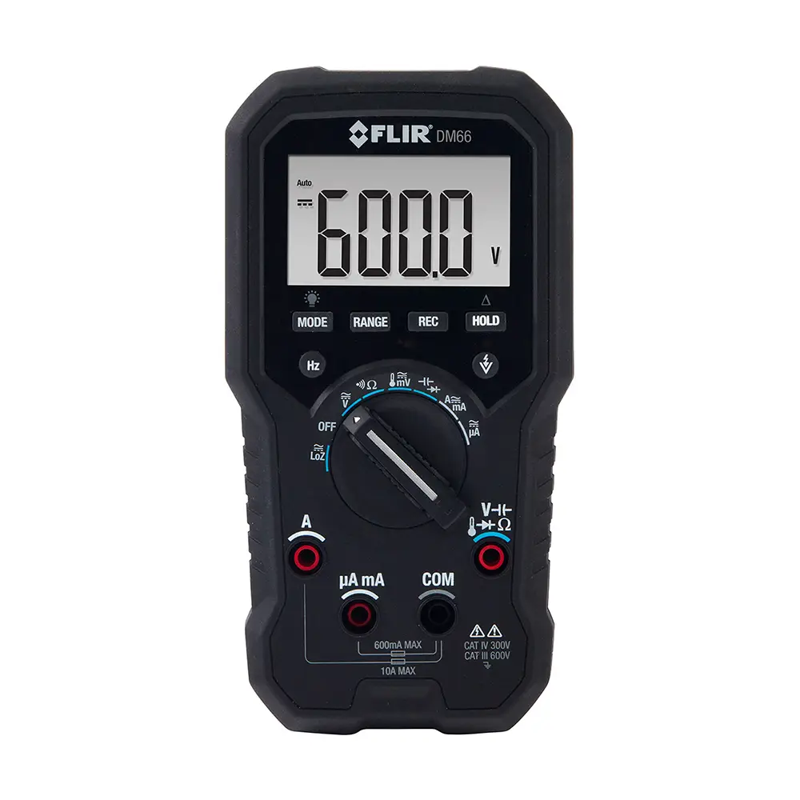

The Teledyne FLIR DM66-NIST True-RMS Electrical and Field Service Multimeter is built for professionals who require reliability, precision, and safety. Designed with VFD mode and NIST calibration, this compact and rugged multimeter delivers stable performance and accurate measurements even in demanding environments. With its user-friendly interface and extensive feature set, it’s ideal for commercial electricians, field service technicians, and electronics repair specialists.
The DM66-NIST features LoZ mode to eliminate ghost voltage, supports measurements for AC/DC voltage, current, frequency, diode, capacitance, and temperature, and is drop-tested to 2 meters. This versatile multimeter simplifies diagnostics with functions like data hold, MIN-MAX-AVG, and relative mode. It’s also equipped with a non-contact voltage detector featuring a backlight and audible alert, making it a go-to device for safety and convenience in the field.

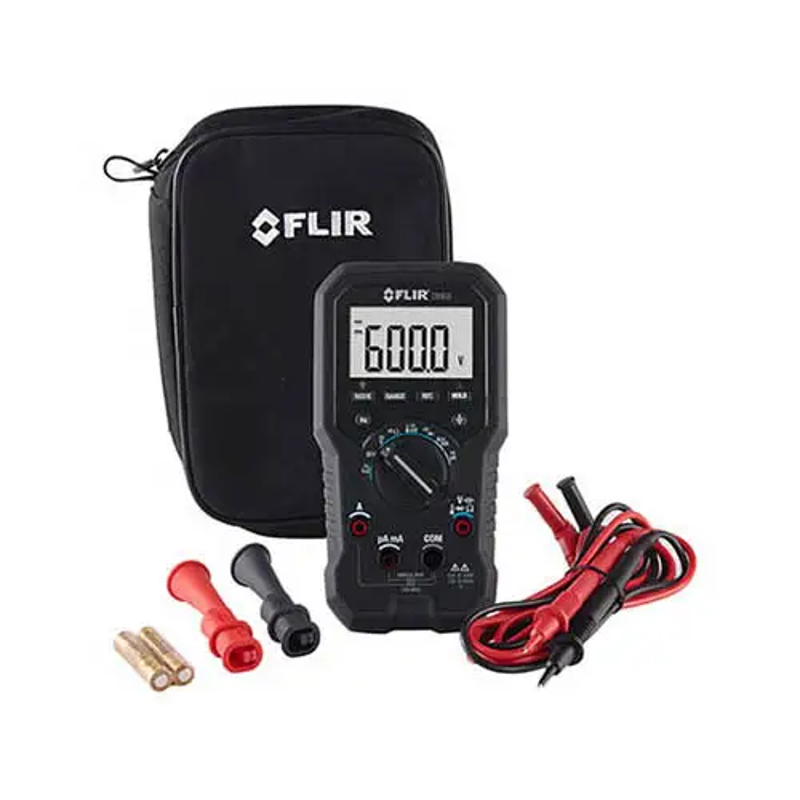

What's Included:
- 1 - True-RMS Electrical and Field Service Multimeter with VFD Mode
- 2 - AAA Batteries
- 1 - Silicone Test Lead Set
- 1 - Alligator Clip Set
- 1 - Soft Carrying Case
- 1 - NIST Certificate of Calibration
Features
True-RMS Accuracy
Provides reliable measurements for both AC and DC voltages and currents, ensuring precise data in variable conditions.
Low Impedance (LoZ) Mode
Prevents false readings caused by ghost voltages, enhancing diagnostic accuracy in sensitive environments.
Variable Frequency Drive (VFD) Mode
Enables accurate voltage readings in noisy, complex environments often associated with VFD-controlled systems.
Integrated Non-Contact Voltage Detection
Helps users quickly identify live circuits using visual and audible indicators.
Compact and Durable Design
Designed for single-hand operation, IP40 rated, and drop-tested to 2 meters for use in rugged conditions.
Multiple Measurement Capabilities
Measures voltage, current (A, mA, μA), frequency, capacitance, diode, and temperature using a type-K thermocouple.
User-Friendly Interface
On-screen menu navigation and intuitive button layout enhance efficiency during operation.
Advanced Functionality
Includes auto power off, MIN-MAX-AVG, relative mode, and data hold for convenience in the field.
High Safety Standards
CAT IV-300V and CAT III-600V ratings ensure protection during high-voltage applications.
Certified Precision
Comes with a NIST Certificate of Calibration, validating its measurement accuracy.
What's Included
Included with Your Purchase:
- 1 - True-RMS Electrical and Field Service Multimeter with VFD Mode
- 2 - AAA Batteries
- 1 - Silicone Test Lead Set
- 1 - Alligator Clip Set
- 1 - Soft Carrying Case
- 1 - NIST Certificate of Calibration
Specifications
-
Max Voltage: 600V
-
Max Current: 10A
-
Frequency Range: Up to 50.00 kHz (±0.1%)
-
Capacitance Range: 200.0 nF (±1.5%); 10.00 mF (±4.5%)
-
Temperature Measurement: -40°F to 752°F (±1.0% + 2.0°F); -40°C to 400°C (±1.0% + 1.0°C)
-
Safety Ratings: CAT IV-300V, CAT III-600V
-
Ingress Protection: IP40
-
Drop Test: 2 meters
-
Power Source: 2 x AAA batteries
-
Additional Functions: Auto power off, MIN-MAX-AVG, relative mode, data hold
FAQ
Q: What is the purpose of the LoZ mode?
A: The LoZ mode helps eliminate false readings caused by ghost voltage, improving measurement accuracy in complex systems.
Q: Can the DM66-NIST measure temperature?
A: Yes, it includes a type-K thermocouple for measuring temperatures from -40°C to 400°C (-40°F to 752°F).
Q: Is this multimeter safe for industrial use?
A: Yes, it meets CAT IV-300V and CAT III-600V safety standards, suitable for a variety of electrical environments.
Q: Does it come with a certificate of calibration?
A: Yes, it includes a NIST Certificate of Calibration to verify measurement precision.
