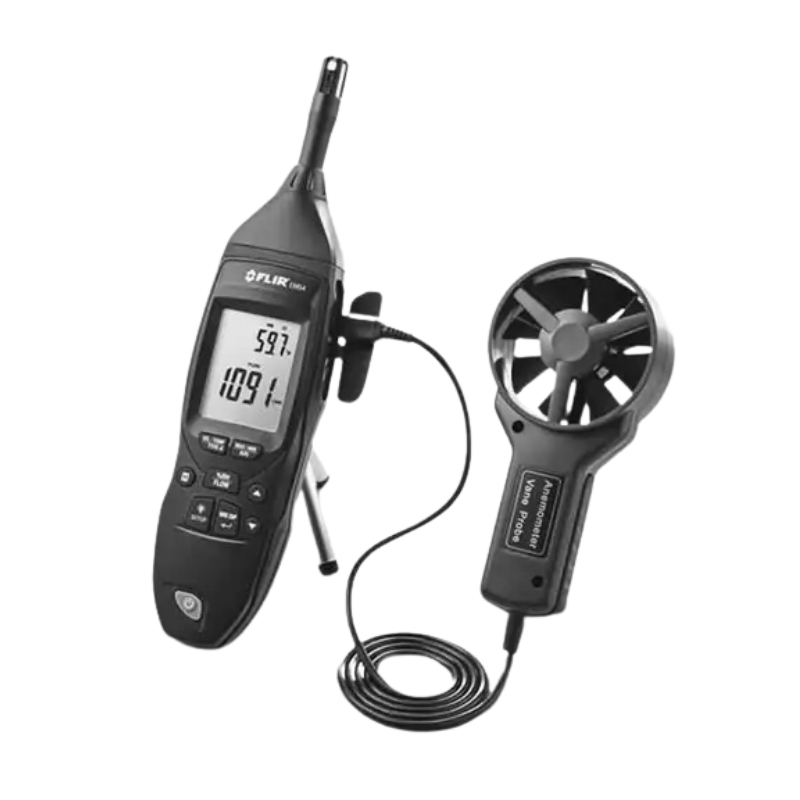

The Teledyne FLIR EM54 HVAC/Environmental Meter with Air Velocity, Air Flow, Temperature, and Humidity Measurements is designed to help professionals inspect and troubleshoot HVAC/R ducting systems across residential, commercial, and industrial environments. This versatile tool ensures duct inlets and outlets meet required volumetric flow specifications, optimizing system efficiency.
With integrated functions for humidity, wet bulb, and dew point, the EM54 is ideal for detecting variations in relative humidity levels. Its Type-K contact temperature probe supports diagnostics of electric motors and other thermal system components. The ergonomic design, backlit display, and intuitive controls make this meter an essential addition for any HVAC technician or environmental engineer.
What's Included:
- 1 - HVAC/Environmental Meter with Air Velocity, Air Flow, Temperature, and Humidity Measurements
- 1 - Vane Anemometer Probe
- 1 - Type-K Thermocouple Probe
- 1 - Soft Carrying Pouch
- 1 - 9 V Battery
- 1 - Tripod Mount
Features
Reliable Performance
Consistently gathers high-quality environmental data for uninterrupted operation and diagnostics.
Optimized RH Accuracy
Use a tripod to position the meter away from heat or moisture influences that might affect humidity readings.
Enhanced Measurement Capabilities
Features dew point, wet bulb, and contact temperature readings to work across a wider range of HVAC/R systems.
User-Friendly Interface
Designed with a backlit multifunction LCD, 'hold' function for freezing data, and clearly labeled keys for intuitive operation.
Energy-Efficient Functionality
Auto power-off feature configurable in 5 to 60-minute increments across 8 settings to preserve battery life.
Durable Design
Built with impact-resistant plastic and drop-tested to 1 meter (excluding probes) for tough jobsite conditions.
Compact and Portable
Weighs just 10 oz with battery and measures 10.8 x 2.6 x 1.8 inches for easy portability.
Extended Anemometer Reach
Includes a 5.9-inch body, 37.4-inch cable, and 2.8-inch vane for versatile air velocity readings.
Battery Efficiency
Delivers up to 120 hours of typical use with a 9 V battery and includes a low battery indicator.
What's Included
Included with Your Purchase:
- 1 - HVAC/Environmental Meter with Air Velocity, Air Flow, Temperature, and Humidity Measurements
- 1 - Vane Anemometer Probe
- 1 - Type-K Thermocouple Probe
- 1 - Soft Carrying Pouch
- 1 - 9 V Battery
- 1 - Tripod Mount
Specifications
-
Dimensions: 275 x 65 x 45 mm (10.8 x 2.6 x 1.8 in)
-
Weight: 283.9 g (10 oz) with battery installed
-
Housing Material: Impact-resistant plastic
-
Drop Test: 1 m (3.3 ft), excluding probes
-
Operating Temperature: 0 to 50°C (32 to 122°F)
-
Storage Temperature: -10 to 60°C (14 to 140°F)
-
Display Type: Backlit multifunction LCD
-
Battery Type: 9 V
-
Battery Life: 120 hours typical
-
Auto Power Off: Configurable from 5 to 60 min in 8 steps
-
Air Temperature Accuracy: 10 to 30°C ±1°C; -30 to 9.9°C and 31 to 60°C ±2°C
-
Dew Point: -30 to 60°C, ±3°C
-
Wet Bulb (Calculated): -30 to 50°C, ±3°C
-
Relative Humidity: 5% to 98%, ±3.5%
-
Air Flow Range: 0 to 999900 CMM or CFM
-
Air Velocity (Vane Probe):
- 0.4 to 30 m/s, ±3% +0.2 m/s
- 79 to 5906 ft/min, ±3% +40 ft/min
- 1.4 to 108 km/h, ±3% +0.8 km/h
- 0.9 to 67.2 mph, ±3% +0.4 mph
- 0.8 to 58.3 knots, ±3% +0.4 knots
-
Contact Temperature (Type K):
- -99.9 to 99.9°C, ±1.5% +1°C
- 100 to 1372°C, ±1.5% +2°C
-
Anemometer Body Length: 150 mm (5.9 in)
-
Anemometer Cable Length: 950 mm (37.4 in)
-
Anemometer Vane Diameter: 70 mm (2.8 in)
-
Battery Status Indicator: Low battery indication
-
Certifications: CE, RCM
-
Warranty: Limited 3 years
FAQ
Q: What kind of battery does the EM54 use?
A: It uses a standard 9 V battery and includes a low battery indicator.
Q: Can the EM54 measure air flow in CFM?
A: Yes, it measures air flow in both CMM and CFM units up to 999900.
Q: What is the typical battery life?
A: The meter typically operates for up to 120 hours on a single 9 V battery.
Q: Is the EM54 suitable for use in harsh environments?
A: Yes, it's constructed from impact-resistant plastic and has been drop tested from 1 meter (excluding probes).
