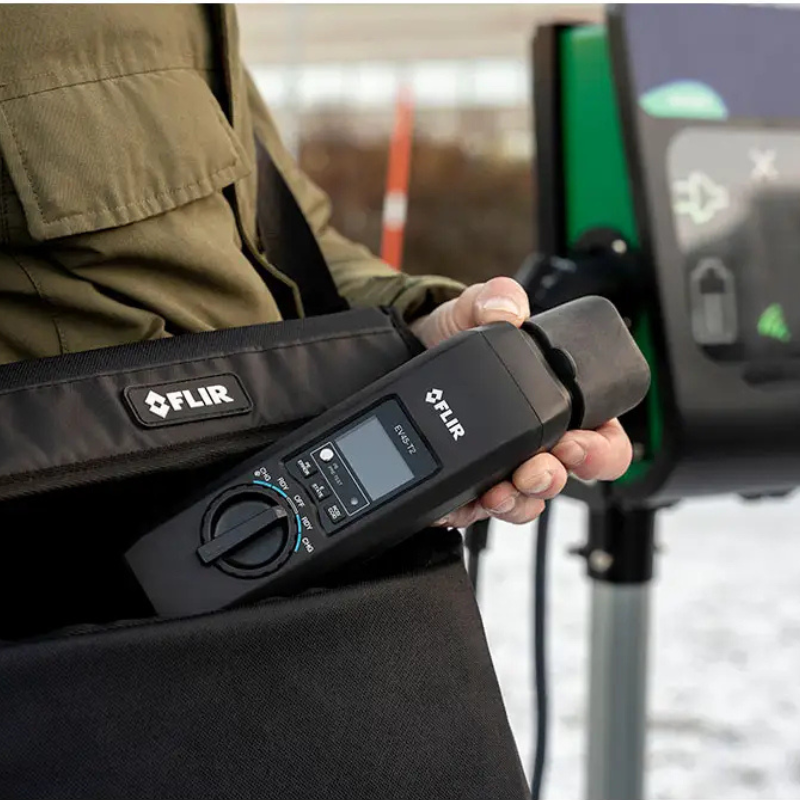

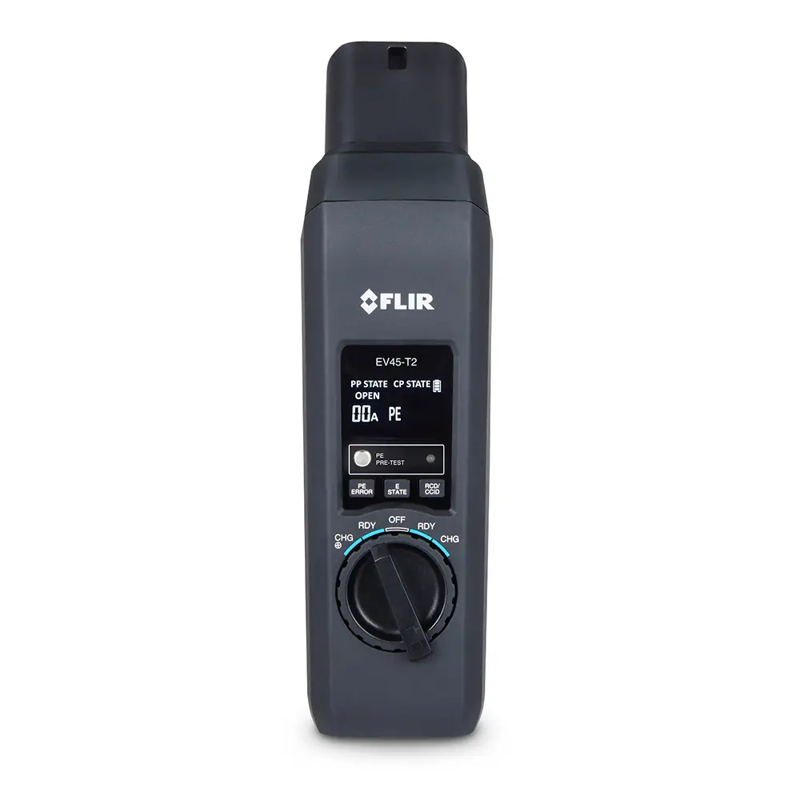

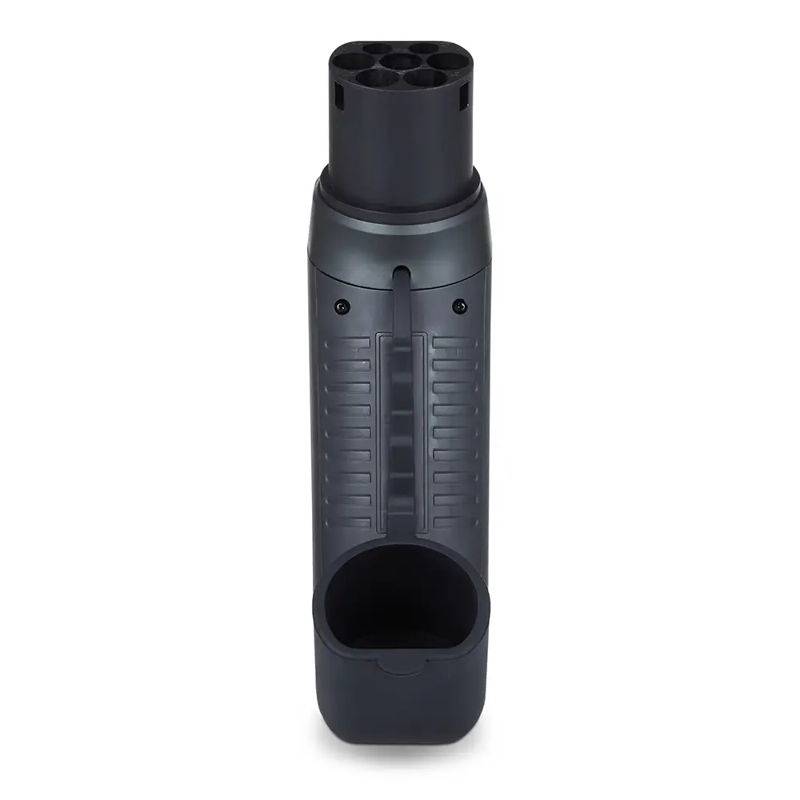

The Teledyne FLIR EV45-NACS EV Charger Test Adapter is engineered for safety and precision when servicing or inspecting electric vehicle (EV) charging stations. Designed for compatibility with NACS plug types, it also supports Type 1 connectors through the included converter. This powerful tool helps ensure the safety of EVSE installations by verifying the integrity of the Protective Earth (PE) connection and overall electrical wiring. It also allows users to test Charge Current Interrupt Devices (CCID), simulate control pilot states, and measure charger current output.
By pairing with FLIR Digital Multimeters (sold separately), the adapter extends its capabilities to measuring voltage and frequency, making it ideal for diagnostics and maintenance of public or private EVSE installations.

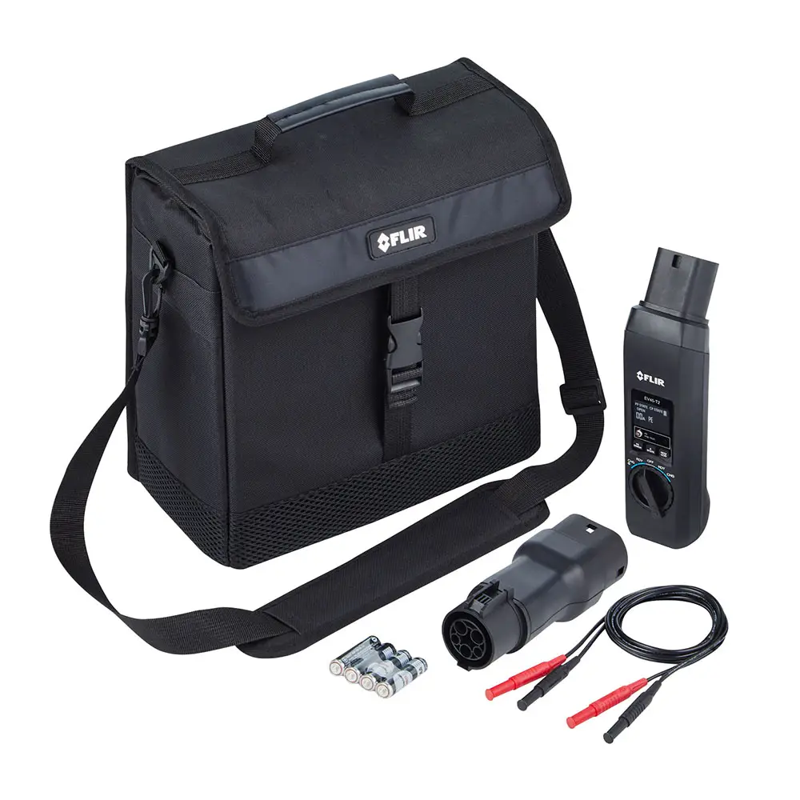

What's Included:
- 1 - EV Charger Test Adapter with NACS Plug (EV45-NACS)
- 1 - Type 1 Converter
- 1 - Test Lead Set
- 4 - AA Batteries
- 1 - Carrying Pouch
- 1 - User Manual
Features
Dual Compatibility
Designed for NACS connectors and includes a converter for use with Type 1 chargers.
Protective Earth and Wiring Verification
Confirms the integrity of PE and wiring to ensure the safety of EV charging stations.
CCID Safety Testing
Enables testing of Charge Current Interrupt Devices to help ensure electrical protection.
Charger Output Indication
Displays maximum current output to evaluate charger performance.
Voltage and Frequency Measurement
Compatible with FLIR Digital Multimeters (sold separately) for additional measurement functions.
Advanced Control Pilot Simulation
Simulates CP states including Disconnected, Connected, Charging, and Error for thorough charger diagnostics.
Standards Compliant
Meets CAT II 300V and IEC 61851-1 safety requirements for EV systems.
Long Battery Life
Operates up to 100 hours on four AA batteries, ensuring extended field use.
Durable and Portable
Includes a rugged carrying pouch for secure storage and transport.
Warranty Coverage
Backed by a 3-year manufacturer warranty for peace of mind.
What's Included
Included with Your Purchase:
- 1 - EV Charger Test Adapter with NACS Plug (EV45-NACS)
- 1 - Type 1 Converter
- 1 - Test Lead Set
- 4 - AA Batteries
- 1 - Carrying Pouch
- 1 - User Manual
Specifications
-
PE Pre-Test: Pass/Fault (>50 VAC/DC between PE and touch sensor)
-
PP State Indication: Open, 13A, 20A, 32A, 63A
-
CP State Simulation: A (Disconnected), B (Connected), C (Charging), D (Charging with Ventilation), E (Error)
-
Voltage Phase Indication: L1, L2
-
CP Error (E State) Simulation: Pass/Fault (CP shorted to PE)
-
PE Error Simulation: Pass/Fault (PE interruption)
-
RCD/CCID Trip Test: Pass/Fault (activation verification)
-
Measuring Terminals Output: L1, PE, N; Max 250V, 50/60 Hz, CAT II 300V, Max 10A
-
Battery: 4x AA alkaline batteries
-
Battery Life: ~100 hours
-
Certifications: ETL, CE
-
Safety Standards: IEC 61010-1 CAT II 300V
-
EMC Standards: EN61326-1
FAQ
Q: Can I test both NACS and Type 1 chargers with this adapter?
A: Yes, the adapter supports NACS plugs and includes a converter for use with Type 1 connectors.
Q: What measurements can be taken with this adapter?
A: It can test PE integrity, simulate CP/PP states, and, with a FLIR Digital Multimeter, measure voltage and frequency.
Q: Is the adapter suitable for public charging stations?
A: Absolutely. It’s designed for both public and private EVSE installations.
Q: Does the adapter include a carrying case?
A: Yes, a durable carrying pouch is included for convenience and protection during transport.
