The Teledyne FLIR EV-KIT-1 EV Charger Test Kit delivers a comprehensive solution for EV charging station inspection and maintenance. The kit includes the EV45-NACS Test Adapter with a Type 1 Converter, the DM286 Industrial Thermal Imaging Multimeter, and a set of test leads. Together, they empower professionals to verify safety, troubleshoot electrical vehicle supply equipment (EVSE), and detect thermal anomalies in high-voltage systems.
Whether you're installing new EV chargers, diagnosing faults, or ensuring system compliance, this kit provides the tools to identify hot spots, log data, and simulate various charging conditions. The DM286’s IGM and MSX technologies enhance thermal visibility, while the EV45-NACS enables accurate CCID and wiring integrity tests. With app integration and extensive storage, it streamlines data collection and reporting.

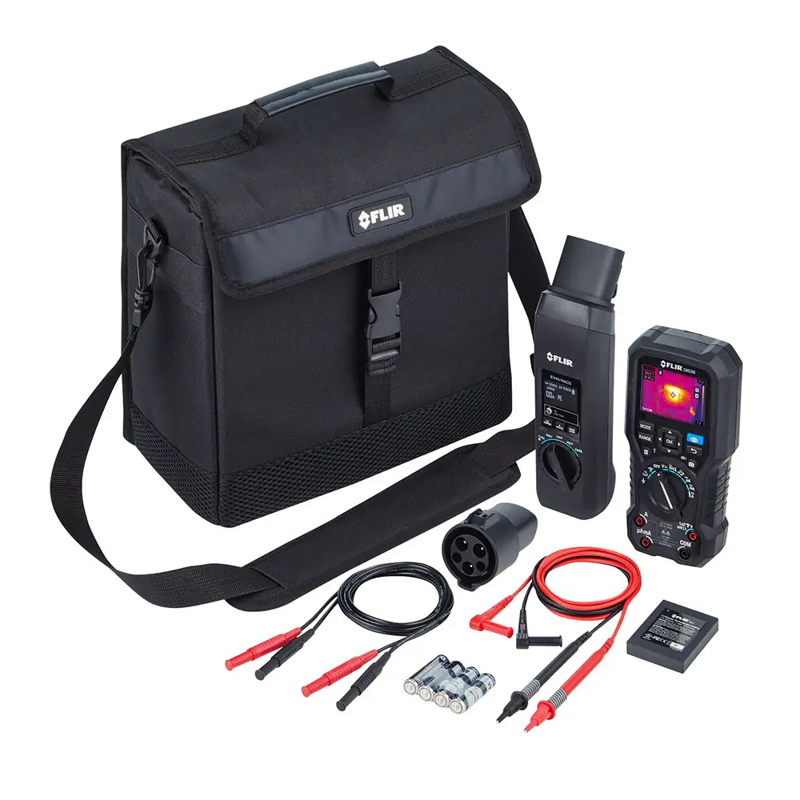

What's Included:
- 1 - EV Charger Test Adapter with NACS Plug (EV45-NACS)
- 1 - Type 1 Converter
- 1 - Industrial Thermal Imaging Multimeter (DM286)
- 1 - Test Lead Set
- 1 - Type A-to-Type C USB Cable
- 4 - AA Batteries
- 1 - Rechargeable Lithium-Polymer Battery, 3V/3050 mAh (TA04)
- 1 - Carrying Pouch
- 1 - User Manual
Features
All-in-One Diagnostic Kit
Combines the EV45-NACS EV Charger Test Adapter, Type 1 Converter, DM286 Imaging Multimeter, and test leads for complete EV charger analysis and electrical diagnostics.
EVSE Testing with NACS Compatibility
Supports NACS and Type 1 connectors, verifies PE and wiring integrity, simulates PP and CP states, and tests CCID functionality.
Advanced Thermal Imaging Multimeter
The DM286 features IGM and MSX technology for enhanced thermal clarity and non-contact inspection of electrical systems.
High-Capacity Storage and Recording
Captures up to 30,000 images and 100 logs, supports thermal and visual video recording for documentation and analysis.
Mobile Connectivity
Compatible with the METERLiNK app for real-time streaming, data logging, sharing, and trend analysis via mobile device.
Multifunctional Electrical Measurements
Measures AC/DC voltage and current, resistance, frequency, continuity, diode, and capacitance with high accuracy.
Built-in LED Worklight
Provides clear visibility in dark or enclosed environments, enhancing safety and usability.
Compact and Portable
Includes a durable carrying pouch for easy field transport and protection.
What's Included
Included with Your Purchase:
- 1 - EV Charger Test Adapter with NACS Plug (EV45-NACS)
- 1 - Type 1 Converter
- 1 - Industrial Thermal Imaging Multimeter (DM286)
- 1 - Test Lead Set
- 1 - Type A-to-Type C USB Cable
- 4 - AA Batteries
- 1 - Rechargeable Lithium-Polymer Battery, 3V/3050 mAh (TA04)
- 1 - Carrying Pouch
- 1 - User Manual
Specifications
-
IR Imaging Resolution: 160 x 120 px (19,200 pixels)
-
Thermal Sensitivity: 150 mK
-
IR Temperature Range: 23°F to 572°F (-5°C to 300°C)
-
Visual Camera: 2 MP, fixed focus
-
Display: 2.8 in.
-
AC/DC Voltage: 1000VAC RMS, 1000VDC
-
AC/DC Current: 10AAC RMS, 10ADC
-
Resistance: 6 MΩ, 60 MΩ
-
Capacitance: 10 mF
-
Battery: 4x AA Alkaline (EV45-NACS), 3V/3050 mAh Lithium-Polymer (DM286)
-
Certifications: ETL, CE, FCC, RCM, UKDA, FDA
-
Safety Standards: IEC 61010-1 CAT II 300V (EV45-NACS), CAT IV 600V, CAT III 1000V (DM286)
FAQ
Q: Is the EV45-NACS adapter compatible with all EV chargers?
A: It supports NACS chargers and includes a Type 1 converter for broader compatibility.
Q: Can the DM286 multimeter store images and videos?
A: Yes, it stores up to 30,000 thermal images and 100 logs and records thermal and visual video clips.
Q: What standards does the kit comply with?
A: The kit meets IEC 61010-1 safety standards and includes multiple certifications such as CE, ETL, and FCC.
Q: Does the kit come with batteries?
A: Yes, it includes 4 AA batteries and one rechargeable lithium-polymer battery.
