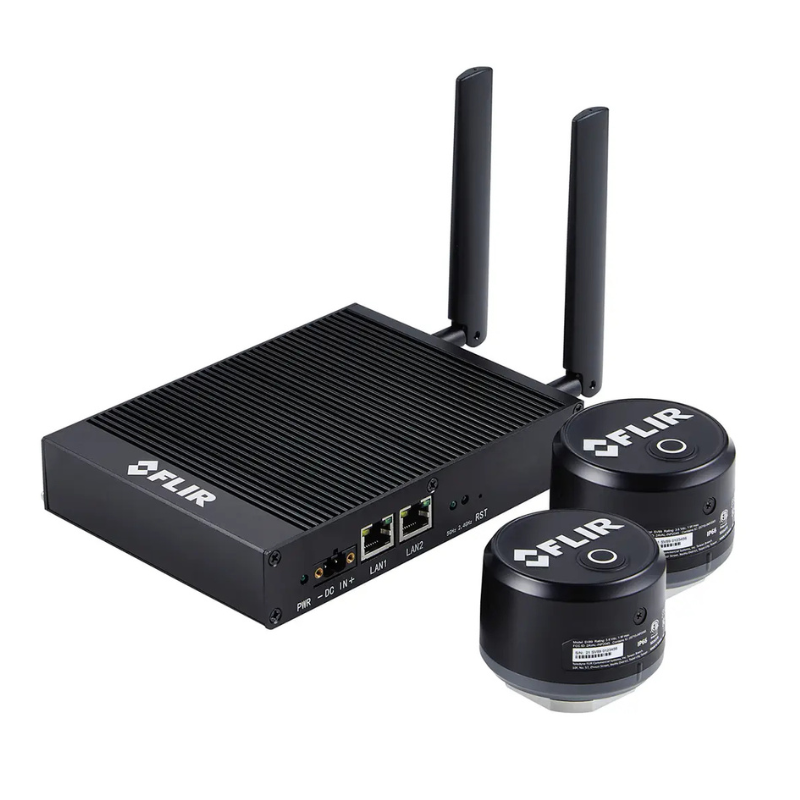

FLIR GW66 Dual-Band Remote Monitoring Gateway with 2.4 GHz and 5 GHz Antennas

The Teledyne FLIR GW66 Remote Monitoring Gateway is purpose-built for use within FLIR's SV88 and SV89 Vibration and Temperature Monitoring Solution Kits (sold separately). This gateway facilitates seamless collection and transfer of vibration and temperature data from connected sensors to its integrated web server and CBM systems. Designed with resilience in mind, the GW66 stores data internally during Wi-Fi outages, ensuring no loss of critical monitoring information.

Through its advanced edge computing capabilities, the GW66 provides on-device vibration analysis, enabling rapid insight without heavy reliance on external resources. Support for widely-used protocols like MQTT, Modbus, and OPC UA enhances its compatibility with various industrial environments. Its dual-band antennas ensure strong and reliable connectivity for uninterrupted monitoring and control from virtually anywhere.

What's Included:

• 1 - Remote Monitoring Gateway (GW66)
• 2 - Dual-Band Antennas, 2.4 GHz/5GHz
• 1 - DC Terminal Block
• 1 - Wall Mounting Kit
• 1 - DIN Mounting Kit

Features

Remote Monitoring Gateway
Provides seamless data collection and transmission for remote vibration and temperature sensors.

Dual-Band Connectivity
Includes two 2.4/5 GHz dual-band antennas for strong and stable wireless communication.

Real-Time Data Access

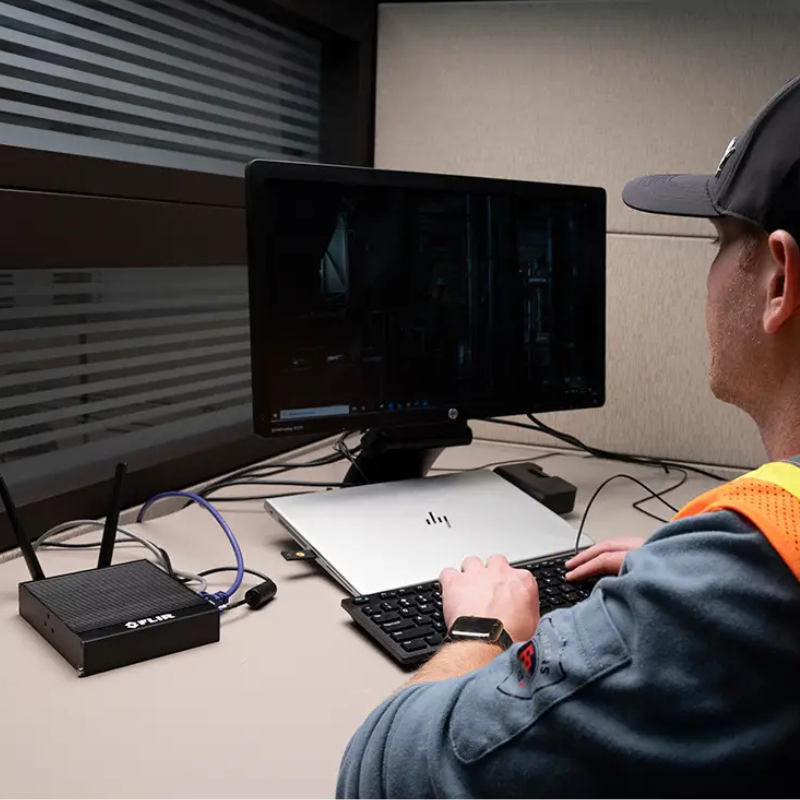

Utilize an intuitive Web GUI for real-time monitoring and control from any Wi-Fi-enabled device.

Advanced Edge Computing
Performs on-device vibration analysis, reducing latency and optimizing overall resource utilization.

Protocol Support
Compatible with MQTT, Modbus, and OPC UA protocols to ensure easy integration with a wide variety of systems.

Data Redundancy
Stores critical data to internal memory during network disruptions, preventing information loss.

Durable Design
Engineered for industrial environments with robust, long-lasting construction.

Warranty Protection
Backed by a limited 3-year warranty for peace of mind.

What's Included

Included with Your Purchase:

• 1 - Remote Monitoring Gateway (GW66)
• 2 - Dual-Band Antennas, 2.4 GHz/5GHz
• 1 - DC Terminal Block
• 1 - Wall Mounting Kit
• 1 - DIN Mounting Kit

Specifications

• Brand: FLIR
• Model: GW66
• Connectivity: Dual-Band Wi-Fi (2.4 GHz and 5 GHz)
• Supported Protocols: MQTT, Modbus, OPC UA
• Data Storage: Internal memory backup during Wi-Fi outage
• Application: Remote vibration and temperature data monitoring
• Condition: New
• Warranty: Limited 3-Year Warranty

FAQ

Q: What devices are compatible with the GW66?
A: The GW66 is designed to work with FLIR SV88 and SV89 Remote Vibration/Temperature Sensors.

Q: Does the GW66 continue collecting data if Wi-Fi is interrupted?
A: Yes, it stores data locally during any Wi-Fi outage to prevent information loss.

Q: How can I access the data collected by the GW66?
A: You can access real-time and stored data through its intuitive built-in Web GUI.

Q: What wireless frequencies does the GW66 support?
A: It supports both 2.4 GHz and 5 GHz Wi-Fi frequencies via its included dual-band antennas.

Q: Can the GW66 integrate into existing industrial systems?
A: Yes, it supports MQTT, Modbus, and OPC UA protocols for flexible integration.

Resources

Documents:

• Teledyne FLIR GW66 Remote Monitoring Gateway with 2.4 Datasheet
• Teledyne FLIR GW66 Remote Monitoring Gateway with 2.4 Manual
• Teledyne FLIR GW66 Remote Monitoring Gateway with 2.4 Quickstart Guide
