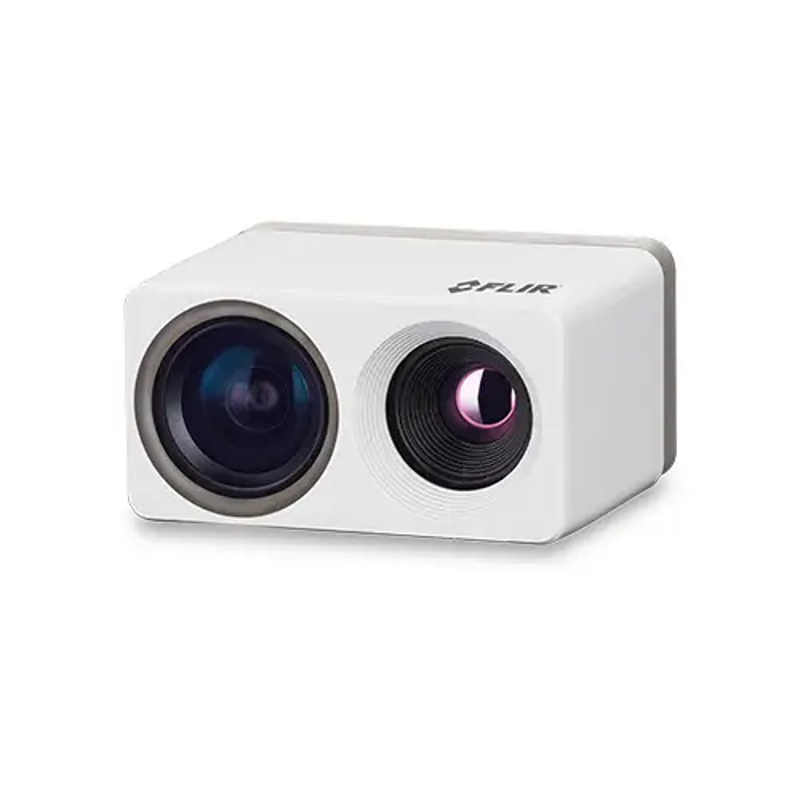

FLIR Hadron 320 6.3mm 30Hz Pre-Integrated RGB Thermal Module Camera EFL 6.3mm Lens 320 x 256

The Teledyne FLIR HADRON-320-6.3MM-30HZ is a pre-integrated RGB and thermal module camera designed for lightweight, low-power applications, especially in compact drone airframes. With its 12MP RGB sensor and Boson thermal camera, this system delivers high-resolution visual and infrared imagery, ideal for day and night operations. The module integrates an IMU and supports video output up to 60 Hz, ensuring precise orientation and fluid imaging.

Optimized for Size, Weight, Power, and Cost (SWaP+C), the HADRON-320-6.3MM-30HZ is ready to deploy out of the box with minimal engineering effort, reducing time and costs for integration. It excels in scenarios requiring accurate detection and identification of targets in low-light environments, and its low-profile form supports flexible mounting options without compromising battery life or flight time.

What's Included:

• 1 - Pre-Integrated RGB/Thermal Module Camera with EFL 6.3mm Lens, 320 x 256, 30 Hz

Features

Dual Thermal and RGB Imaging
View both thermal and HD color images in real time, providing valuable context for inspections, surveillance, and search operations.

Optimized for Small Platforms
High-resolution output in a compact, lightweight package designed to fit on smaller UAV airframes without affecting flight dynamics.

Rugged, Low-Profile Design
The module's streamlined housing enables flexible installation and supports optimal SWaP for extended flight duration.

Plug-and-Play Integration
Reduce development and integration time with a factory-integrated solution including RGB, thermal, and IMU components from a single supplier.

Enhanced Imaging Hardware
Equipped with Sony IMX412 sensor for RGB and Boson sensor for IR, with video capabilities up to 60 Hz and 30 Hz respectively.

Environmental Protection
IP53-rated when sealed, tested for EMI performance, and operates in a wide temperature range from -20°C to +60°C.

What's Included

Included with Your Purchase:

• 1 - Pre-Integrated RGB/Thermal Module Camera with EFL 6.3mm Lens, 320 x 256, 30 Hz

Specifications

• IR Resolution: 320 x 256 pixels
• IR Frame Rate: 30 Hz
• EO Camera Sensor: Sony IMX412, 4056 x 3040 pixels, 1.55mm pitch
• EO Camera Lens: Sunny SYD1201A, EFL 3.7mm, 80° HFOV, F/2.8
• IR Camera Lens: EFL 6.3mm, 34° HFOV, F/1.0
• Video Output: EO at 60 Hz, IR at 30 Hz
• IMU: ICM20602, selectable I2C or SPI interface
• Mechanical Interface: Screw mount to back plate
• Environmental Sealing: IP53 (with sealed rear interfaces)
• Operating/Storage Temperature: -20°C to +60°C
• EMI Compliance: FCC Part 15 Class B
• Power Supply: 5V
• Typical Power Consumption: Less than 1300mW
• Maximum Power Consumption: Less than 2820mW
• Electrical Interface: Hadron connector: Hirose DF40C-50DP-0.4V(51)
• Size: 24 x 45 x 36 mm

FAQ

Q: Can this camera be mounted on small UAVs?
A: Yes, it is specifically designed with a compact footprint and lightweight profile to suit smaller class airframes.

Q: What kind of imagery does this module produce?
A: It delivers both HD RGB and thermal video outputs, allowing for simultaneous dual imaging.

Q: Does the camera support high-speed video output?
A: Yes, the RGB camera supports full resolution video at 60 Hz, while the thermal sensor outputs at 30 Hz.

Q: Is it ready to use out of the box?
A: Yes, the system is pre-integrated and requires minimal additional engineering for deployment.

Q: What environmental protections are included?
A: The unit is IP53 sealed when properly installed and has been tested to meet FCC Part 15 Class B for EMI performance.
