FLIR ONE EDGE PRO Wireless Thermal Camera 160x120 8.7Hz for iOS and Android Smartphones

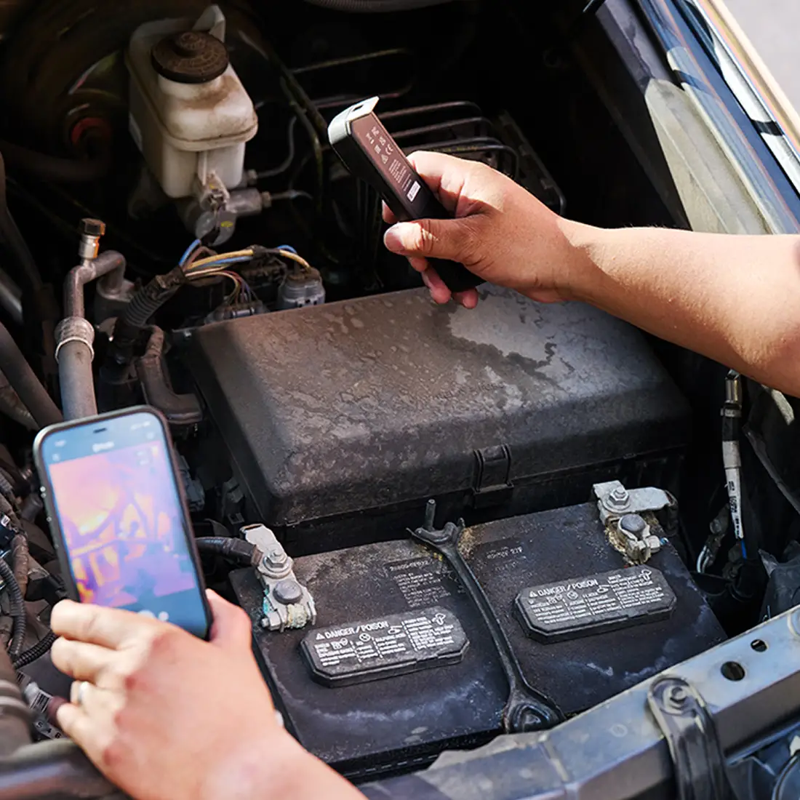

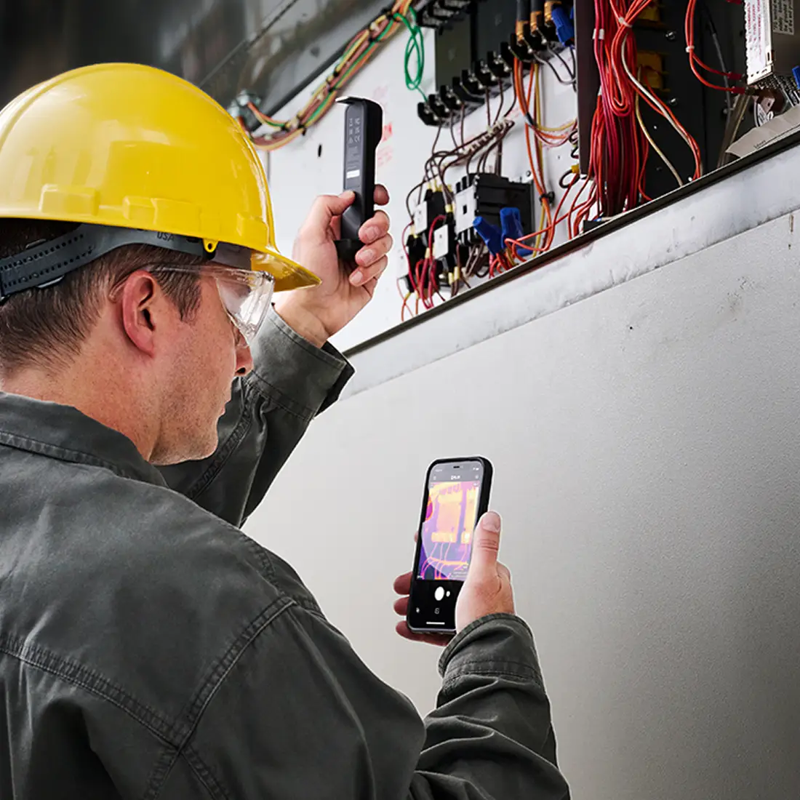

The Teledyne FLIR ONE EDGE PRO Compact Thermal Camera is a powerful tool that brings advanced thermal imaging to your fingertips. Designed for both professionals and DIY users, it enables quick and accurate visualization of temperature differences in various environments, from building inspections to electrical diagnostics.

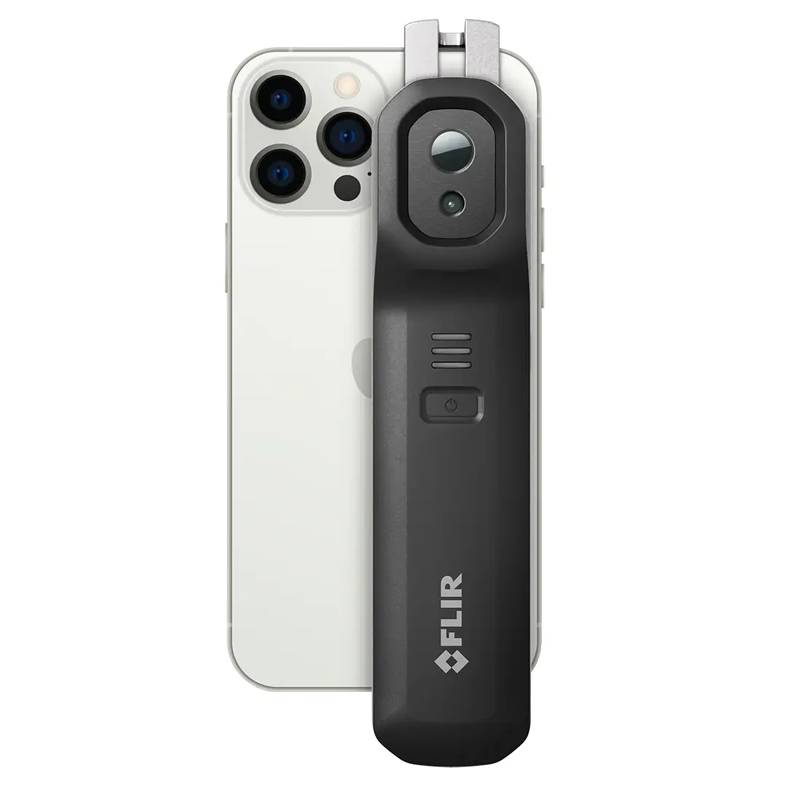

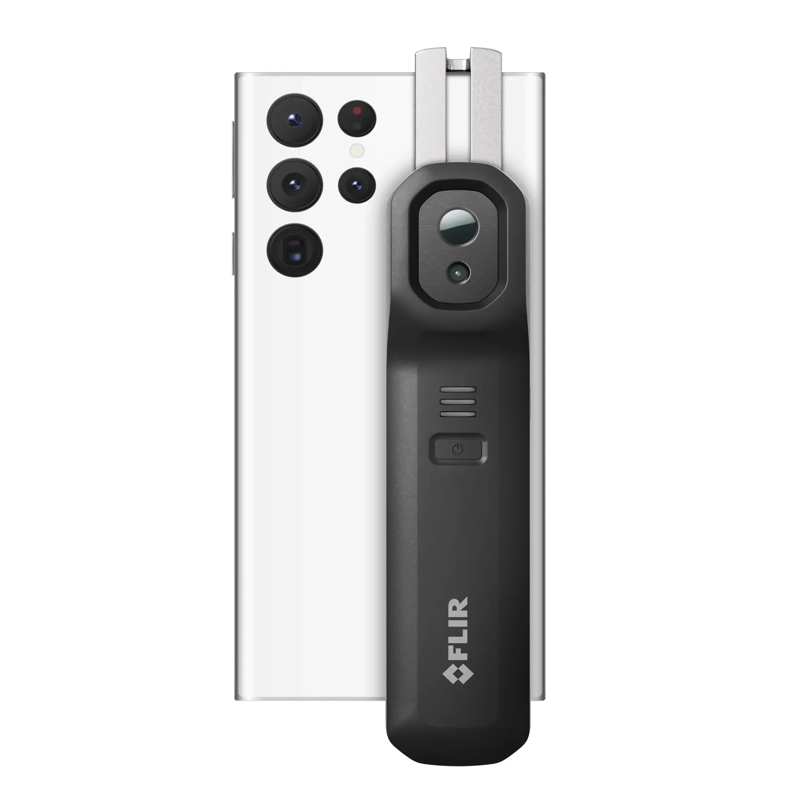

This compact device wirelessly connects to iOS or Android smartphones via Wi-Fi, eliminating the need for a USB-C connection and allowing flexible operation even at a distance. It can also clip directly onto a mobile device for convenient one-handed use. Combining a high-resolution thermal sensor with a visible light camera, the FLIR ONE EDGE PRO delivers superior imaging, including MSX image enhancement for clearer details.

Built for reliability in challenging environments, it features a rugged construction and intuitive user interface that make it easy to operate, even for beginners. With seamless integration into the FLIR ONE app and FLIR Ignite cloud platform, users can perform analysis, generate reports, and share data efficiently.

What's Included:

• 1 - ONE EDGE PRO Thermal Imager
• 1 - USB-C Cable
• 1 - Quickstart Guide

Features

Wireless Connectivity
Connects via Wi-Fi to iOS or Android devices, allowing flexible use and real-time thermal image streaming without USB-C dependency.

Dual Camera Imaging
Includes both a thermal sensor and a visible light camera to overlay images for a comprehensive environmental view.

MSX Image Enhancement
Enhances thermal images with visible light details for clearer, more informative visuals.

Adjustable Emissivity
Optimizes temperature accuracy by tailoring settings to specific materials being scanned.

Rugged and Durable Design
Engineered for indoor and outdoor conditions with an IP54 rating and 2-meter drop resistance.

User-Friendly Interface
Simple controls and app integration make it accessible for users of all experience levels.

Advanced Thermal Analysis
Offers live measurements including hottest and coldest spots with adjustable spot tracking.

App and Cloud Integration
Works with the FLIR ONE app and FLIR Ignite for streamlined data management and sharing.

What's Included

Included with Your Purchase:

• 1 - ONE EDGE PRO Thermal Imager
• 1 - USB-C Cable
• 1 - Quickstart Guide

Specifications

• Thermal Resolution: 160 x 120 (19,200 pixels)
• Dual Object Temperature Ranges: -4°F to 248°F, 32°F to 752°F
• Image Presentation Modes: MSX, infrared image, visual image
• Live Measurement Analysis: Hottest, coldest, 3x adjustable spots
• Thermal Sensitivity: 70 mK
• Spectral Range: 8 µm to 14 µm
• Visual Resolution: 640 x 480
• HFOV/VFOV: 54° ±1° / 42° ±1°
• Frame Rate: 8.7 Hz
• Battery Life: 2 hours, 30 min.
• IP Rating: IP54
• Drop Test: 6.56 ft. (2 m)
• Size (W x H x D): 1.4 in. x 1.5 in. x 5.9 in. (35 mm x 37.5 mm x 149 mm)

FAQ

Q: Can this camera be used with both iOS and Android devices?
A: Yes, it connects wirelessly to both iOS and Android smart devices.

Q: Does it require a USB connection to operate?
A: No, it connects via Wi-Fi and does not need a USB-C connector.

Q: How durable is the camera for field use?
A: It is IP54-rated and drop-tested from 6.56 ft. for reliable use in various environments.

Q: What is MSX imaging?
A: MSX blends thermal and visual images for enhanced detail and clarity.

Resources

Documents:

• FLIR ONE EDGE PRO Datasheet
