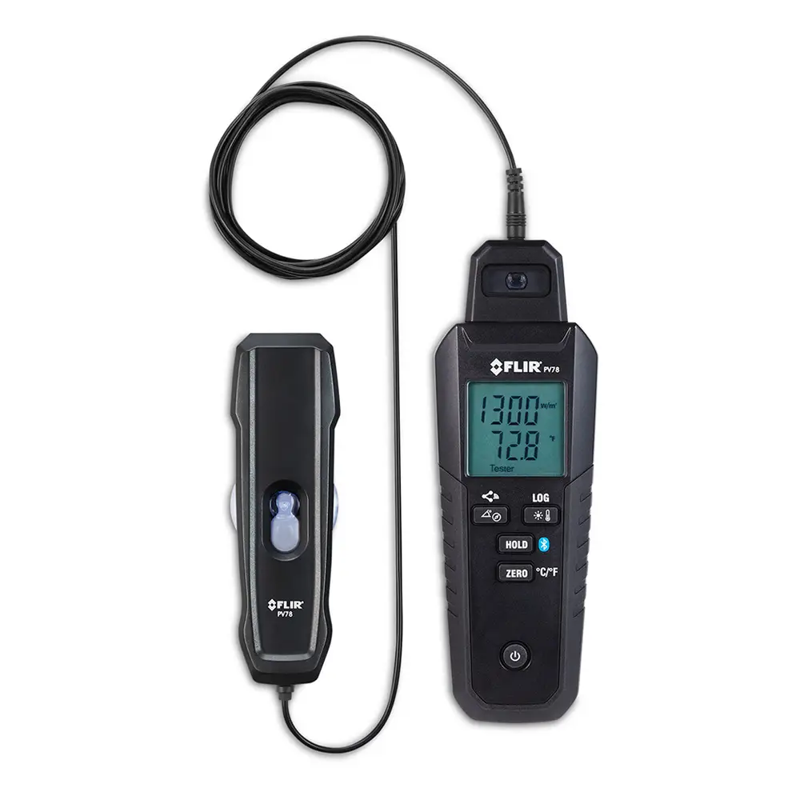

The Teledyne FLIR PV78 Solar Irradiance and Temperature Meter is a compact, high-precision tool designed to support solar energy professionals with real-time performance data. Measuring solar irradiance up to 1400 W/m² in accordance with IEC 62446-1 standards, this device also captures panel temperature, array direction, and inclination using its external probe and built-in tilt sensor. Its large, high-contrast LCD ensures readability even in bright outdoor conditions.

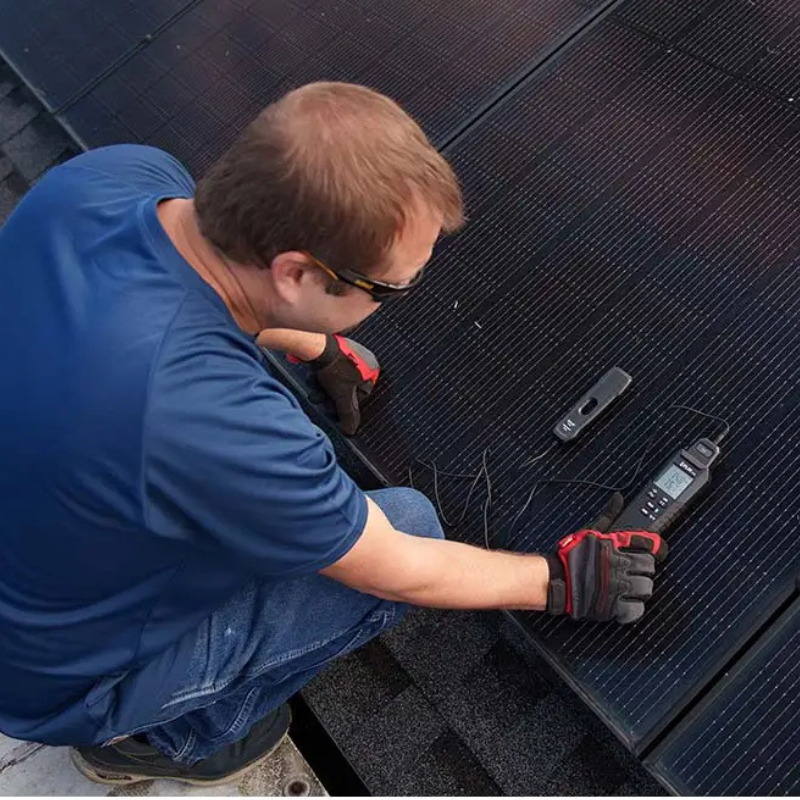

Wireless METERLiNK connectivity enables seamless data sharing and documentation, making the PV78 ideal for installation validation, ongoing solar plant maintenance, and quality assurance during panel production. The included mounting bracket allows for hands-free, continuous measurement.
What's Included:
- 1 - Solar Irradiance/Temperature Meter (PV78)
- 1 - Pouch
- 1 - External Temperature Probe
- 1 - 9V Alkaline Battery
- 1 - User Manual
Features
IEC-Compliant Irradiance Measurement
Accurately measures solar irradiance from 0W to 1400 W/m², fully aligned with IEC 62446-1 requirements.
Multi-Parameter Monitoring
Simultaneously records solar irradiance, panel temperature, inclination angle, and array direction.
Compact and Versatile Design
Comes with an external probe and bracket for continuous, hands-free operation in diverse field conditions.
High-Visibility Display
Equipped with a large LCD screen that remains easily readable even under direct sunlight.

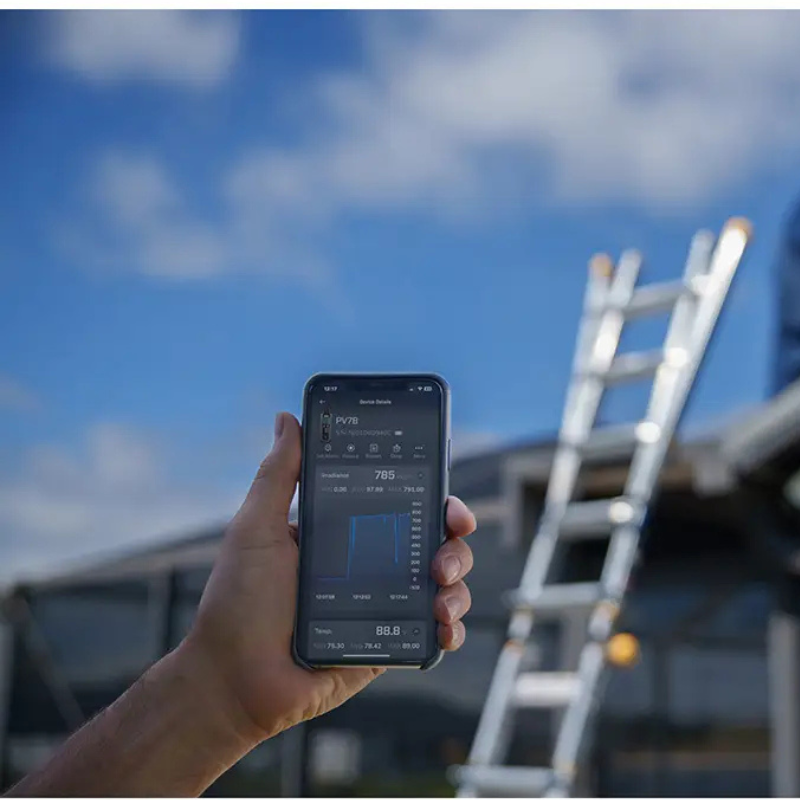

METERLiNK Wireless Integration
Enables fast, wireless data transmission to compatible mobile devices for efficient reporting and analysis.
Durability Backed by Warranty
Protected by a 3-year manufacturer warranty against defects for long-term reliability.
What's Included
Included with Your Purchase:
- 1 - Solar Irradiance/Temperature Meter (PV78)
- 1 - Pouch
- 1 - External Temperature Probe
- 1 - 9V Alkaline Battery
- 1 - User Manual
Specifications
-
Irradiance Range: 0W to 1400 W/m²
-
Inclination Angle Range: -90° to 90°
-
Meter Temperature Range: 14°F to 122°F (-10°C to 50°C)
-
External Probe Temperature Range: -22°F to 212°F (-30°C to 100°C)
-
Compass Range: 0° to 360°
-
Measuring Rate: 3 samples per second
-
Battery: 9V Alkaline battery
-
Battery Life: ~25 hours
-
Certifications: CE, FCC, RCM
-
EMC Standards: EN61326-1, EN300328
FAQ
Q: What is the maximum irradiance this meter can measure?
A: It can measure up to 1400 W/m² in compliance with IEC 62446-1 standards.
Q: Can I use the PV78 for hands-free operation?
A: Yes, it includes a mounting bracket to allow continuous, hands-free measurement.
Q: Does the PV78 support wireless connectivity?
A: Yes, it features METERLiNK wireless technology for seamless data sharing.
Q: Is the display readable in bright sunlight?
A: Absolutely, the large high-contrast LCD screen is designed for optimal visibility outdoors.
