FLIR Remote Vibration and Temperature Monitoring Solution with GW66 Gateway and 2 SV89 Sensors 10 kHz Z-Axis Wi-Fi

The Teledyne FLIR SV89-KIT Remote Vibration/Temperature Monitoring Solution helps users monitor critical equipment by continuously analyzing vibrations from rotating machinery, detecting faults, and alerting technicians to potential issues. Its rugged IP66 rating, wireless capability, and advanced communication protocols ensure reliable monitoring in a wide range of industrial environments.

The SV89-KIT captures in-depth insights, identifying patterns, trends, failure modes, and the severity of issues to help avert costly downtime. It integrates seamlessly with advanced analysis tools and offers remote access via an intuitive web-based GUI, providing full control over current and future vibration monitoring strategies.

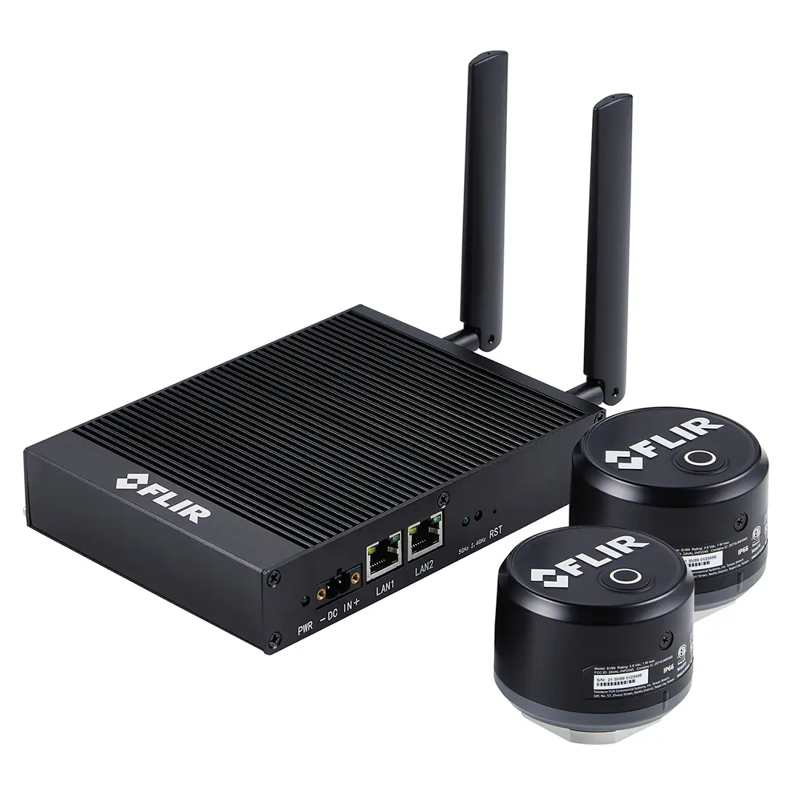

What's Included:

• 1 - Remote Monitoring Gateway (GW66)
• 2 - Remote Vibration/Temp Sensors (SV89)
• 2 - Mounting Studs
• 2 - 3.6 V Batteries (LS17500)

Features

Comprehensive Remote Monitoring
Combines vibration and temperature sensing to deliver detailed insights into equipment health and performance.

Wireless and Flexible Deployment
Battery-powered sensors with Wi-Fi connectivity ensure easy installation across various industrial environments.

High-Precision Vibration Analysis
SV89 sensors monitor up to 10 kHz in the Z-axis, enabling precise detection of subtle machine faults.

Integrated Temperature Sensing
Onboard sensors measure from -20°C to 80°C, complementing vibration monitoring for a holistic view of equipment status.

Advanced Edge Computing
GW66 Gateway performs on-device vibration analysis, reducing latency and optimizing data utilization.

Multi-Protocol Communication
Supports MQTT, Modbus, and OPC UA protocols for seamless integration with existing maintenance and analysis systems.

Real-Time Web-Based Monitoring
Access vibration and temperature data through an intuitive Web GUI, facilitating remote management from anywhere.

What's Included

Included with Your Purchase:

• 1 - Remote Monitoring Gateway (GW66)
• 2 - Remote Vibration/Temp Sensors (SV89)
• 2 - Mounting Studs
• 2 - 3.6 V Batteries (LS17500)

Specifications

• Sensor Type: Remote Vibration/Temperature Sensors (SV89)
• Gateway Model: GW66
• Vibration Monitoring Frequency: 10 kHz (Z-axis)
• Temperature Range: -20°C to 80°C
• Ingress Protection: IP66
• Communication Method: Wi-Fi (2.4/5 GHz)
• Supported Protocols: MQTT, Modbus, OPC UA
• Power Supply: 3.6 V Batteries (LS17500)
• Warranty: Limited 3-Year Warranty
• Condition: NEW
• UPC: 793950438770
• Vendor Alias: SV89-KIT

FAQ

Q: Can the SV89 sensors operate outdoors?
A: Yes, the sensors are IP66 rated, making them highly resistant to dust and water ingress for outdoor use.

Q: What communication protocols are supported?
A: The GW66 Gateway supports MQTT, Modbus, and OPC UA protocols for flexible system integration.

Q: How is the vibration data accessed?
A: Data is accessed remotely through an intuitive web-based GUI.

Q: What is the battery life of the SV89 sensors?
A: Battery life varies depending on usage but is designed for extended operation to minimize maintenance.

Q: Can the sensors measure both vibration and temperature simultaneously?
A: Yes, each SV89 sensor is equipped to monitor both vibration and temperature data concurrently.

Resources

Documents:

• Teledyne FLIR SV89-KIT Remote Vibration Datasheet
• Teledyne FLIR SV89-KIT Remote Vibration Manual
• Teledyne FLIR SV89-KIT Remote Vibration Quickstart
