FLIR SCION OTM260 640x512 Outdoor Thermal Monocular 9Hz 18mm 24° FOV

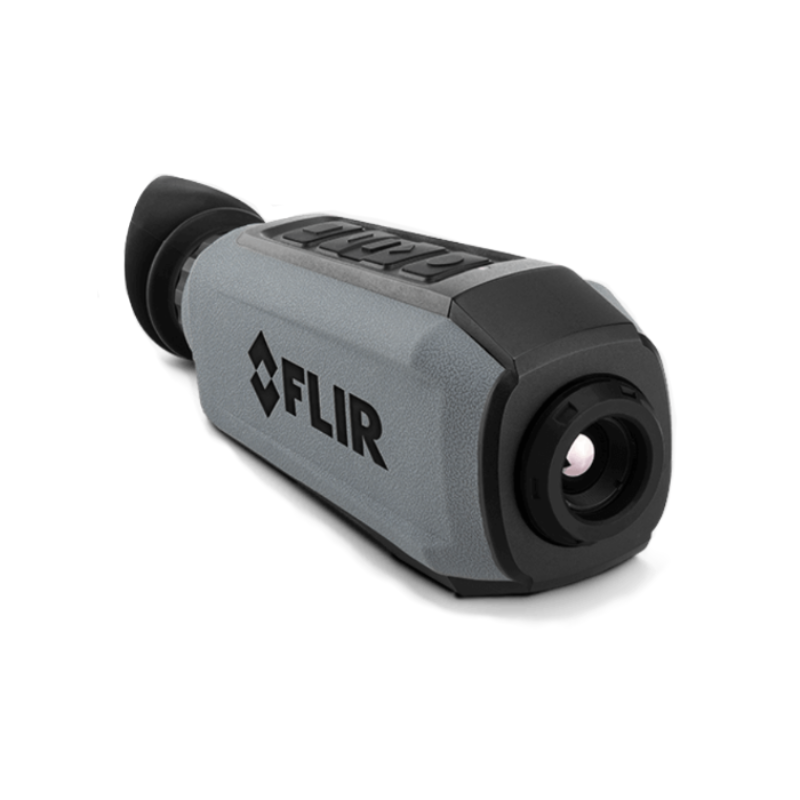

The Teledyne FLIR SCION OTM260 Outdoor Thermal Monocular captures clear thermal imaging and leverages an easy-to-use interface to quickly detect objects of interest in complete darkness and through glaring light or haze. Built around FLIR’s powerful Boson core, the Scion OTM produces 9 Hz thermal imaging and records geotagged video and still images for playback long after the day is done. A rugged, IP67-rated housing and intuitive controls allow single-hand operation in harsh weather conditions, maintaining reliable thermal imaging in the most demanding outdoor environments.

Revisit every wildlife encounter in sharp thermal imaging. The Scion OTM is ready to capture any wildlife encounter with onboard video and image recording. Internal storage and a built-in microSD card slot provide enough memory for the most demanding trips, while Bluetooth and Wi-Fi capability allow simple file transfer between devices.

High-performance 18mm thermal lenses offer a choice between quick, close-proximity detection and fine-tuned, long-range observation. When adventure demands reliable vision from a distance, premium Scion lenses can detect targets up to 1000 m. Able to perform at any time of day, thermal imaging sees through complete darkness, glaring light, and lingering haze to provide superior awareness in difficult conditions. The advanced image processing of the FLIR Boson thermal core and a vivid high definition display offer superb clarity in a 9 Hz thermal image.

What's Included:

• 1 - Outdoor Thermal Monocular (SCION OTM260)
• 1 - Battery Tray
• 6 - CR123 Batteries
• 1 - USB-C Cable
• 1 - Black MOLLE Pouch
• 1 - Quick Start Guide



Features

BOSON VOx Microbolometer Technology
Utilizes FLIR's powerful 12 μm VOx core for accurate thermal detection and processing.

High Resolution Imaging
Delivers a crisp 640 x 512 detector resolution on a Quad-VGA 1280 x 960 display.

Wide Field of View
Provides a 24° x 18° FOV through its 18mm lens for broad area monitoring.

Multi-Level Digital Zoom
Offers zoom options of 1X, 2X, 4X, and 8X for close-up inspection at variable distances.

Rugged Outdoor-Ready Housing
IP67-rated construction ensures reliable use in harsh weather conditions.

Advanced Image Capture
Supports onboard video and still image recording with geotagging for accurate documentation.

Connectivity and Transfer Options
Equipped with Wi-Fi and Bluetooth for seamless sharing and device integration.

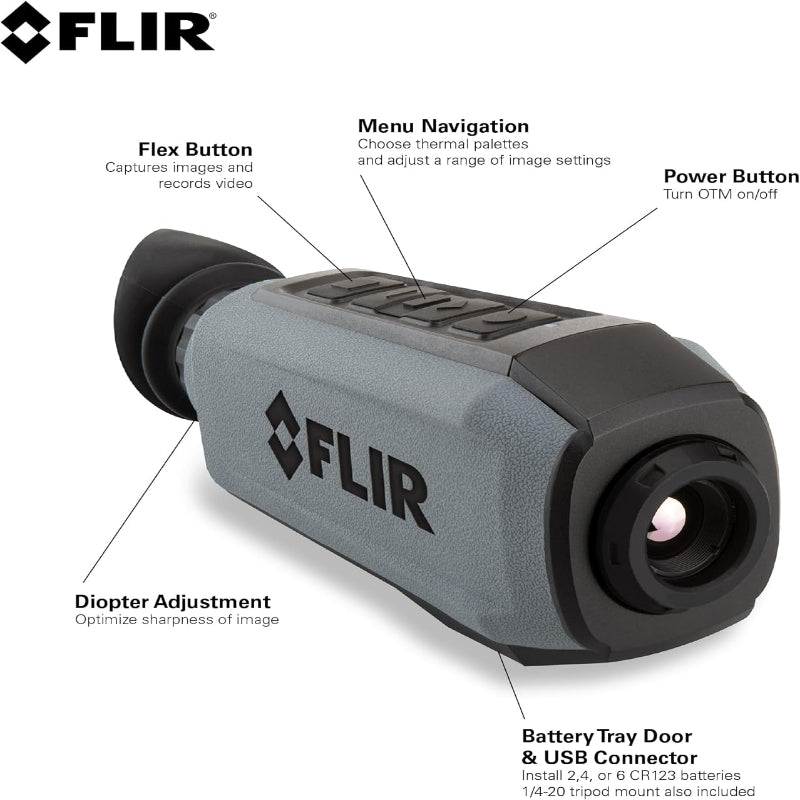

User-Friendly Interface

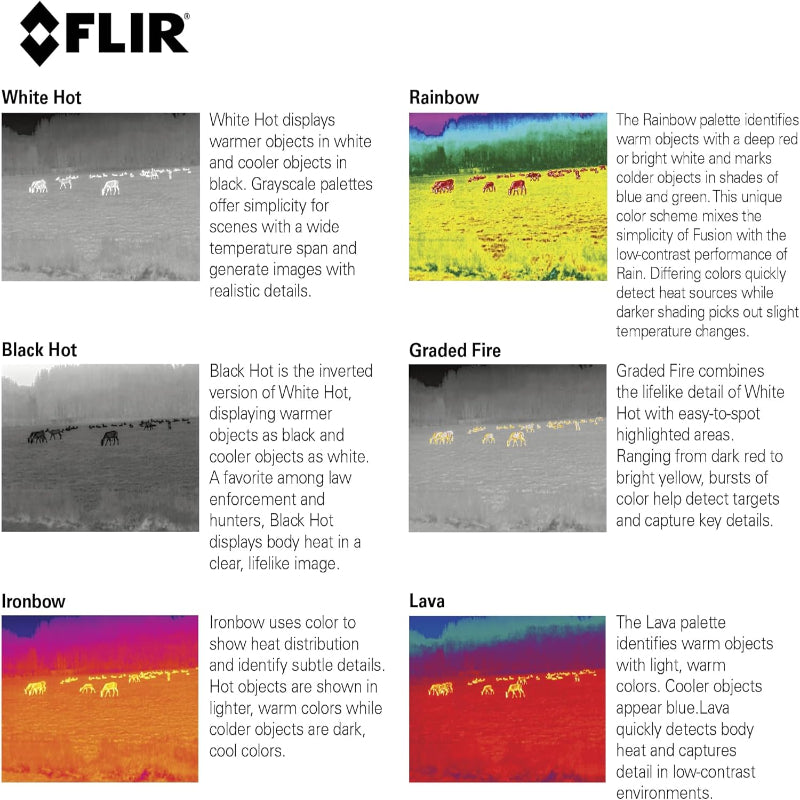

Revamped controls and menus simplify access to thermal palette adjustments and GPS settings.

Ample Storage Capabilities
Comes with 2 GB internal storage and supports microSD cards up to 128 GB.

Reliable Eye Relief
Features a 16 mm eye relief for comfortable long-term viewing.

What's Included

Included with Your Purchase:

• 1 - Outdoor Thermal Monocular (SCION OTM260)
• 1 - Battery Tray
• 6 - CR123 Batteries
• 1 - USB-C Cable
• 1 - Black MOLLE Pouch
• 1 - Quick Start Guide

Specifications

• Core Technology: BOSON 12 μm VOx Microbolometer
• Detector Resolution: 640 x 512
• Lens System: 18 mm
• Field of View: 24° x 18°
• Optical Magnification: 1x
• Digital Zoom: 1X, 2X, 4X, 8X
• Refresh Rate: 9 Hz
• Internal Memory: 2 GB
• Expandable Storage: Supports microSD up to 128 GB
• Eye Relief: 16 mm
• Display: Quad-VGA (1280x960) High Definition
• Display Focus: Manual
• Battery Type: 6 x CR123A 3V Lithium
• Connectivity: Wi-Fi and Bluetooth
• Housing Rating: IP67
• Model Number: SCION OTM260

FAQ

Q: What is the refresh rate of the thermal image?
A: The monocular provides a 9 Hz refresh rate for smooth thermal imaging.

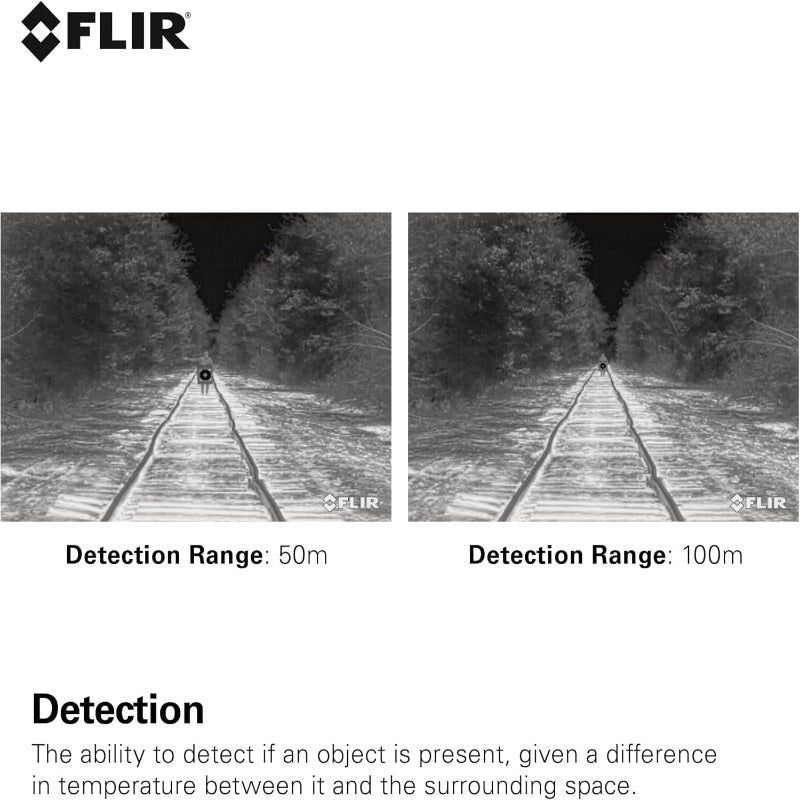

Q: How far can the Scion OTM260 detect?
A: With its 18mm lens, it can detect targets up to 1000 meters away.

Q: What type of storage does the device use?
A: It includes 2 GB of internal memory and supports microSD cards up to 128 GB.

Q: Can I record video and still images?
A: Yes, it supports onboard recording and image capture with geotagging features.

Resources

Documents:

• SCION OTM Series Datasheet
