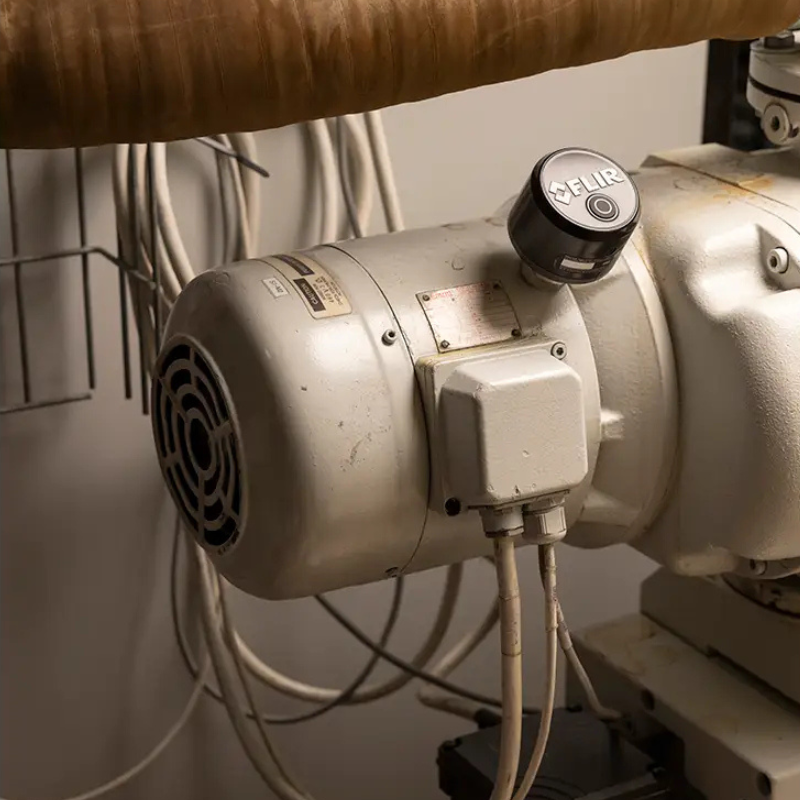

The Teledyne FLIR SV88-KIT Remote Vibration/Temperature Monitoring Solution helps users monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting technicians to potential defects and future problems. With its multi-communication protocols, rugged IP66 rating, and wireless capability, the SV88 monitoring solution kit allows users to make critical, data-driven decisions that help extend the life of valuable assets and equipment.
The SV88-KIT captures comprehensive insights that allow users to identify patterns, trends, potential failure modes, and the severity of detected issues, helping avert costly downtime. Its wireless capability enhances installation flexibility, enabling easy deployment across a range of industrial environments.
This kit seamlessly integrates with advanced analysis tools through protocols like Modbus, MQTT, and OPC UA. The web-based GUI enables users to access vibration data, deploy sensors, and manage integrations via the FLIR GW66 Remote Monitoring Gateway, ensuring full control over vibration monitoring operations.

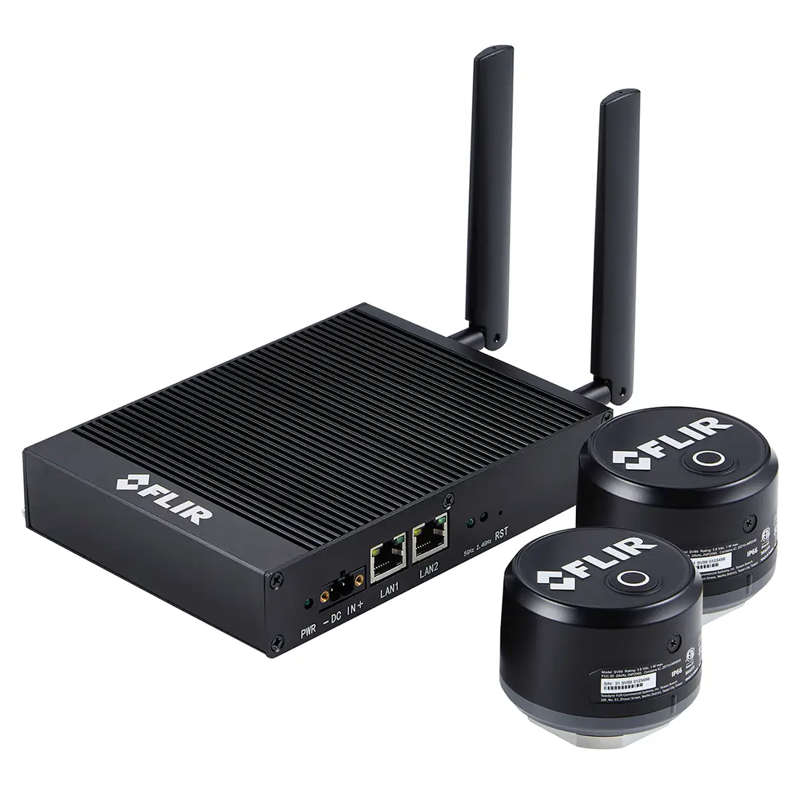

What's Included:
- 1 - Remote Monitoring Gateway (GW66)
- 2 - Remote Vibration/Temp Sensors (SV88)
- 2 - Mounting Studs
- 2 - 3.6 V Batteries (LS17500)
Features
Comprehensive Monitoring Solution
Includes a GW66 Gateway and two SV88 sensors for remote vibration and temperature monitoring.
High-Precision Sensing
Achieve precise vibration analysis with 5 kHz triaxial monitoring and integrated temperature sensors.
Wireless and Rugged
Battery-operated SV88 sensors with Wi-Fi communication and an IP66 rating ensure durable, flexible deployment.
Advanced Edge Computing
GW66 Gateway offers on-device vibration analysis, reducing latency and optimizing system resource use.
Multi-Protocol Communication
Supports MQTT, Modbus, and OPC UA for seamless integration with existing monitoring and analysis systems.
User-Friendly Web GUI
Real-time data access and intuitive control via any Wi-Fi-enabled device for easy remote monitoring.
Reliability-Focused Applications
Designed for condition monitoring, predictive maintenance, and early fault detection to minimize downtime.
Extended Warranty Coverage
Protected with a limited 3-year warranty for long-term reliability and support.
What's Included
Included with Your Purchase:
- 1 - Remote Monitoring Gateway (GW66)
- 2 - Remote Vibration/Temp Sensors (SV88)
- 2 - Mounting Studs
- 2 - 3.6 V Batteries (LS17500)
Specifications
-
Sensor Type: SV88 Tri-Axial Vibration/Temperature Sensors
-
Sensor Communication: Wi-Fi
-
Gateway Model: GW66
-
Gateway Communication: 2.4 GHz/5 GHz dual-band antennas
-
Vibration Frequency Range: Up to 5 kHz
-
Temperature Range: -20°C to 80°C
-
Ingress Protection Rating: IP66
-
Supported Protocols: MQTT, Modbus, OPC UA
-
Warranty: Limited 3-Year
-
Condition: New
-
UPC: 793950438756
-
Vendor Alias: SV88-KIT
FAQ
Q: What types of equipment can the SV88-KIT monitor?
A: It is ideal for monitoring rotating equipment and machinery requiring vibration and temperature analysis.
Q: How is the data accessed remotely?
A: Data can be accessed through a user-friendly web GUI on any device with Wi-Fi connectivity.
Q: Is the SV88-KIT easy to install?
A: Yes, the wireless design and included mounting hardware make installation flexible and straightforward.
Q: What communication protocols are supported?
A: The solution supports MQTT, Modbus, and OPC UA protocols for seamless system integration.
Q: How rugged are the sensors?
A: The SV88 sensors are IP66 rated, making them highly resistant to dust and water ingress.
