Containment that comes down to the floor, for flooring, tile and coring work.
Four push-button actuators lower a foam-sealed aluminum enclosure onto the floor, with a HEPA negative air machine and battery power built in.

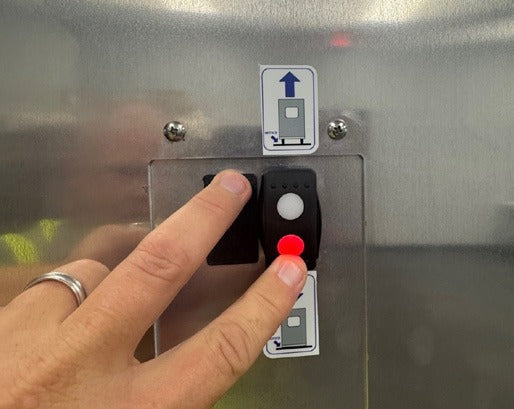

Lowers at the push of a button
Four actuators set the foam-protected base down on the floor and lift it back onto its casters to move.
4 corner actuators
Room for two plus equipment
A 75" x 35" interior is tall enough for an average-size person to stand, with side and end doors.
42" door it fits through
HEPA negative air inside
An embedded variable-speed negative air machine with pre-filter and HEPA filter, tested as an assembled unit.
99.99% at 0.3 µm
Floor-level containment
The FloorZone is HEPACART's mobile containment unit for work at floor level: flooring and tile installation and repair, coring, mold remediation, and polishing and grinding in occupied buildings. It is built like a HEPACART with an internal negative air machine, but instead of extending up to the ceiling, the whole unit lowers onto the floor around the work area and lifts back onto its casters when the job moves. HEPACART publishes the FloorZone for ICRA compliance levels I to V.
Lowering to the floor

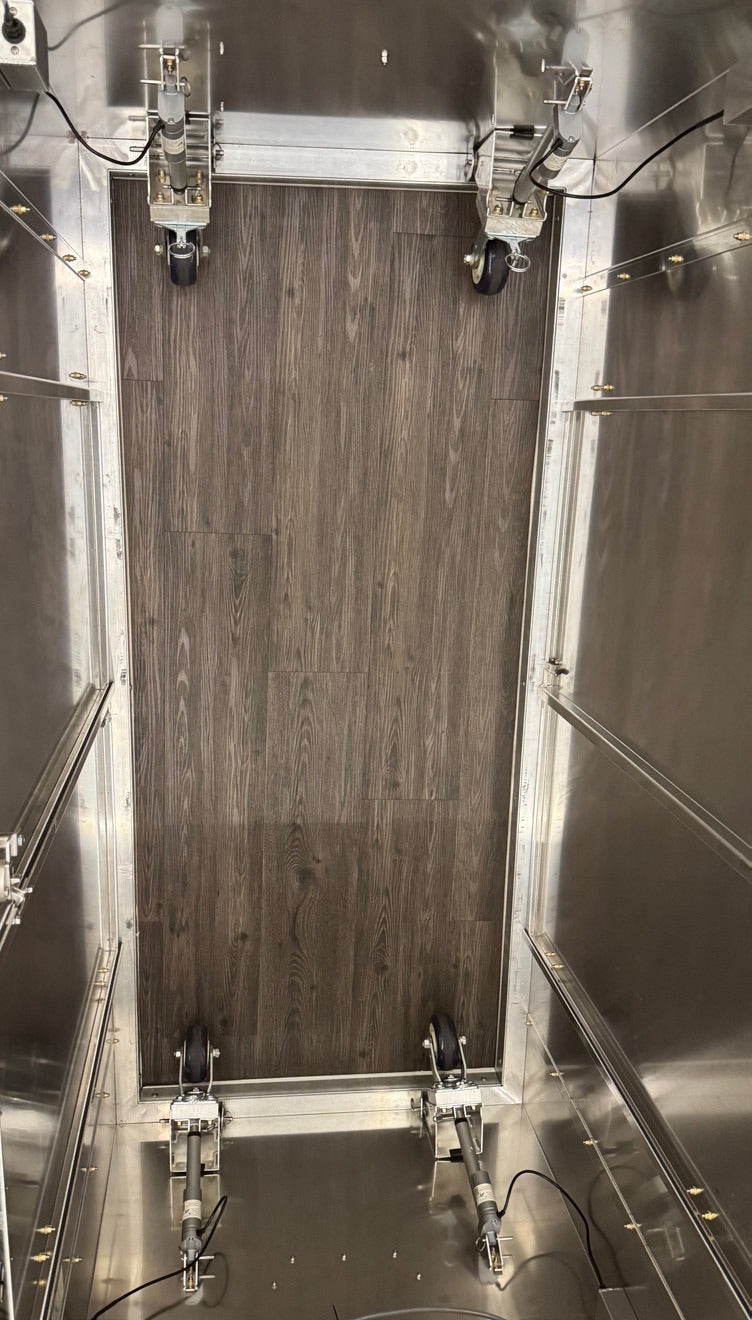

Four actuators, controlled by push buttons, gently lower the base onto the floor. A fully boxed aluminum frame edged with white compression foam meets the floor to protect the finish, and the casters and actuators are removable to open up the corners for work. The working footprint is 80" L x 39" W, the interior is 75" L x 35" W, and at a 300 lbs working weight the unit rolls through any 42" door on 900 lb rated swivel locking casters.
Air and power

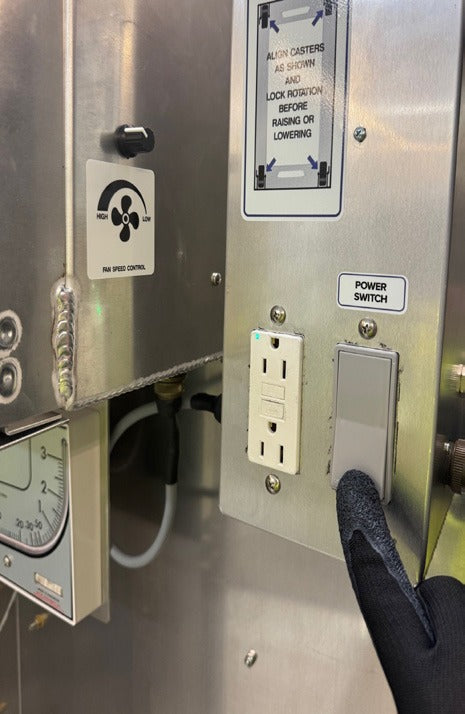

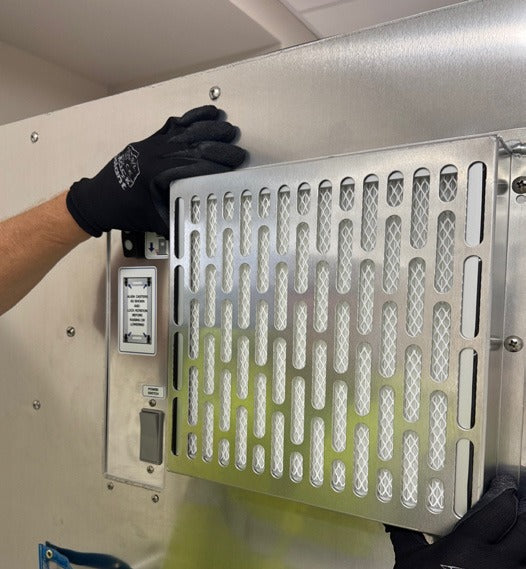

An embedded, variable-speed negative air machine with a pre-filter and HEPA filter rated 99.99% at 0.3 µm runs inside the unit, and each FloorZone is tested as an assembled unit before it is issued a Certificate of Compliance. Power comes from a 20' retractable cord, and an included lithium phosphate battery with charging station runs the unit away from an outlet. Two GFCI-protected outlets and dimmable HALO LED lighting are standard.
Access and visibility

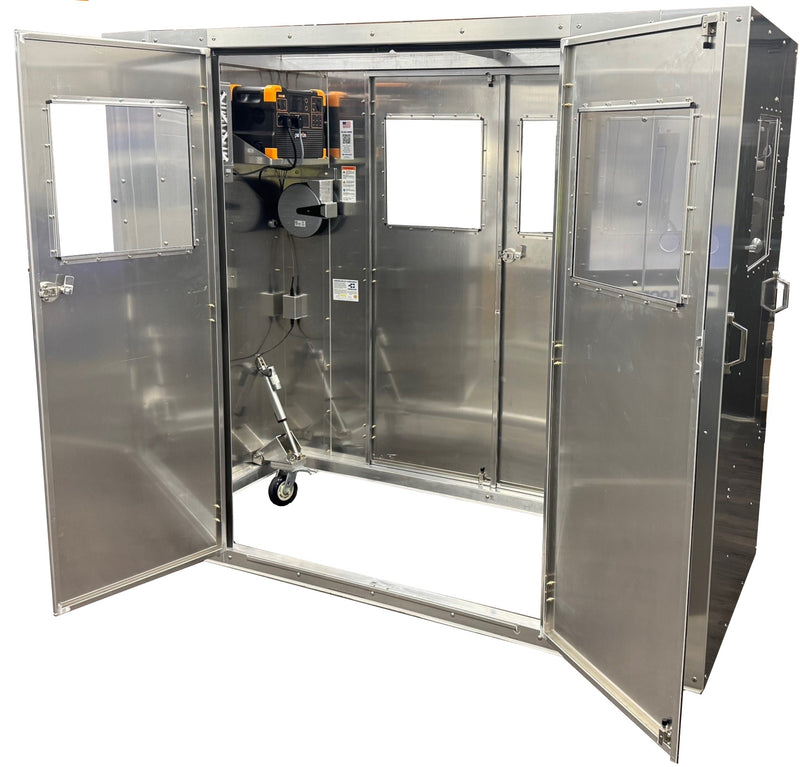

Two locking double doors on each side and an end door give access from three directions, with a window in each door and in the end panel. A transparent top panel lets in ambient light, interior and exterior differential pressure gauges show the pressure from both sides, and the doors carry a lock and key set and a work permit holder.
At a glance
Footprint80" x 39"
Interior75" x 35"
Fits doors42"
Lowering4 push-button actuators
HEPA99.99% at 0.3 µm
ICRA levelsI to V
Features
Push-Button Floor Seal
Four actuators lower the foam-protected base onto the floor and raise it again for moving.
Built-In HEPA Negative Air Machine
Variable-speed machine with pre-filter and HEPA filter rated 99.99% at 0.3 µm, mounted inside the unit.
Battery and Cord Power
Lithium phosphate battery with charging station, plus a 20' retractable cord and two GFCI-protected outlets.
Side and End Doors
Two locking double doors on each side and an end door, each with a window; lock and key set and work permit holder.
Transparent Top Panel
Lets ambient light into the work area alongside the dimmable HALO LED lighting.
Pressure Gauges Inside and Out
Interior and exterior differential pressure gauges.
Foam-Edged Aluminum Frame
Fully boxed aluminum frame with white compression foam, aircraft-grade inserts and truss-head screws.
Removable Casters and Actuators
Take them off to open the corners of the work area.
Specifications
Key specs
Footprint
80" L x 39" W
Interior
75" L x 35" W
Working weight
300 lbs
HEPA filter
99.99% at 0.3 µm
Power
120 V AC + lithium phosphate battery
Fits through
42" door
Dimensions
Footprint80" L x 39" W
Interior working space75" L x 35" W
CapacityTwo people plus equipment
HeadroomTall enough for an average-size person to stand inside
Door clearanceFits through any 42" door
Working weight300 lbs
Mechanism
LoweringFour actuators, push-button raise and lower
Floor sealWhite compression foam on the base
Casters900 lb rated, swivel locking; removable with the actuators
Filtration
Negative air machineEmbedded, variable speed, pre-filter and HEPA filter
HEPA filter99.99% at 0.3 µm
TestingTested as an assembled unit; issued a Certificate of Compliance
Electrical
Power120 V AC (North America)
Cord20' retractable
BatteryLithium phosphate battery with charging station (included)
OutletsTwo GFCI-protected convenience outlets
LightingDimmable HALO LED lighting
Access and monitoring
DoorsTwo locking double doors on each side plus an end door, window in each
TopTransparent panel for visibility and ambient light
PressureInterior and exterior differential pressure gauges
SecurityLock and key set, work permit holder
Compliance
ICRAHEPACART publishes the FloorZone for ICRA compliance levels I to V
Made byHEPACART, Lenexa, Kansas
What's Included
In the box (5)
×1FloorZone mobile containment unit with built-in variable-speed HEPA negative air machine
×1Lithium phosphate battery and charging station
×120' retractable power cord
×1Lock and key set and work permit holder
×1Certificate of Compliance from the assembled-unit test
Orders are processed in 1 to 2 business days, then HEPACART ships in-stock units from Lenexa, Kansas, within 2 to 4 business days, fully assembled on a pallet by LTL freight, and they spend about 1 to 6 business days in transit depending on your region. Custom or out-of-stock items can take 2 to 4 weeks. Shipping is free to a business address in the lower 48 states with a loading dock or forklift; contact us before you order if you need residential, liftgate, inside or appointment delivery, or delivery to Alaska or Hawaii. You'll get tracking by email as soon as it leaves HEPACART.
Damaged in delivery
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Returns
Unused HEPACART products in their original packaging can be returned within 7 days of delivery, if HEPACART approves the return. Ask us for a return authorization before you ship. Returns carry HEPACART's 30% restocking fee, you pay the return freight, and the shipping we paid to deliver it and payment processing fees are not refunded. Custom and special-order items are final sale, and used or contaminated units can't be returned.
Warranty
HEPACART covers the FloorZone under its own manufacturer warranty, on HEPACART's terms; we don't add a separate warranty. Complete the warranty activation when HEPACART's Warranty Activation Email arrives, and keep the model and serial number from the unit's label with your records.
Warranty claims. Contact us with your order number, model and serial number, and report any fault present on arrival within 10 days of delivery. We file the claim with HEPACART, which repairs or replaces equipment that was defective when it shipped.
About HEPACART
HEPACART was founded in 2006 to solve one problem: doing construction and maintenance work in an occupied hospital without letting dust and airborne contaminants spread into the rooms around it. Its product line is assembled at its factory in Lenexa, Kansas, and HEPACART reports that carts it sold in 2006 are still in service.
The FloorZone turns the HEPACART cart idea upside down: where the HEPACART and DUSTBUGGY reach up to the ceiling, the FloorZone lowers to the floor for flooring, coring and remediation work, and it is the line's floor-level unit with a battery included. The AnteRoom and HEPAROOM cover doorways and room isolation, and the Full Body Dust Cover is made in a FloorZone size for storage.
Based in
Lenexa, Kansas
Founded
2006
Builds
Mobile containment carts, anterooms, CAP cable tools and HEPA air machines
Testing
HEPA units individually tested and certified before shipment

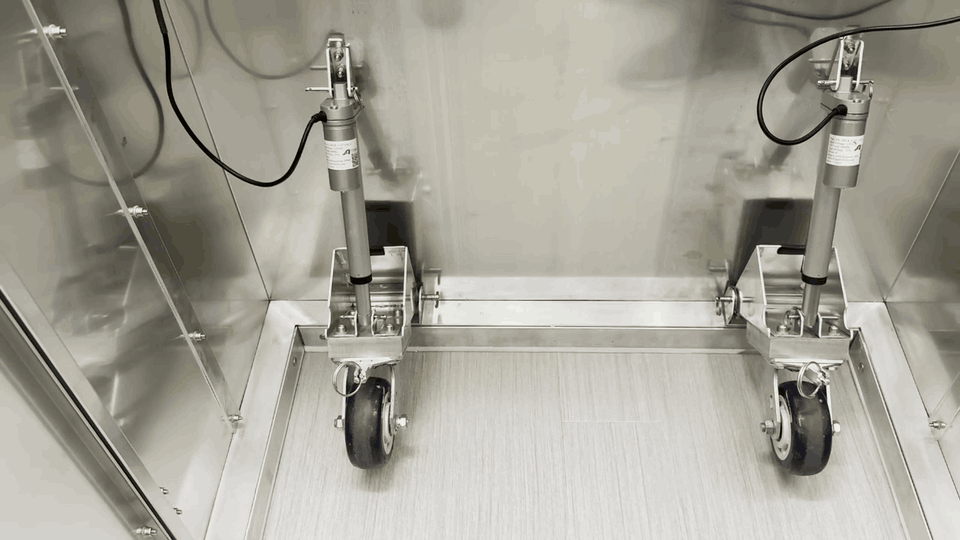

FloorZone Sets Down on Actuators

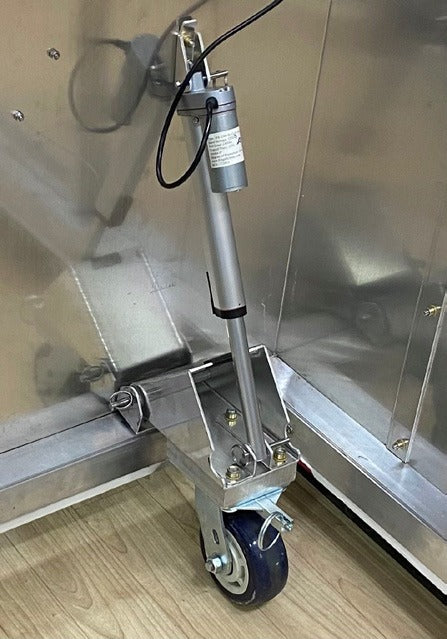

Four push-button actuators carry the FloorZone between its casters and the floor. Lowered, the base rests on white compression foam that meets the floor around the 75" x 35" work area; raised, the unit rolls on 900 lb rated swivel locking casters.
Crews can move from one room or corridor section to the next without building or taking down a tent each time.

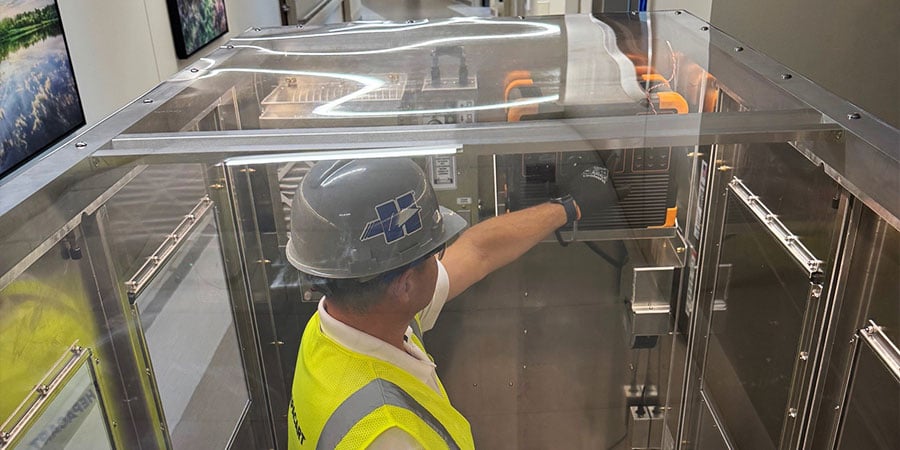

Clear Top Over the Floor Work
A transparent top panel admits ambient light over the whole interior, and dimmable HALO LED lighting adds more. The negative air machine controls and two GFCI-protected outlets sit inside the unit, within reach of the work.
Tools for tile, coring or polishing plug in inside the enclosure, and the crew can stand up and work without opening a door.

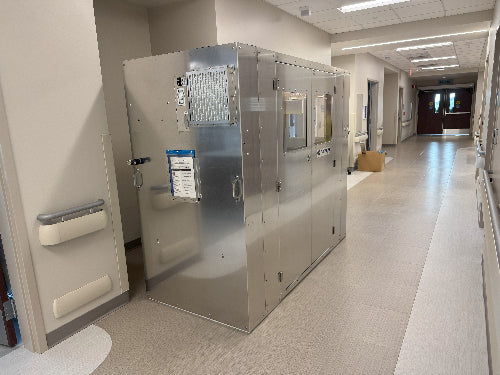

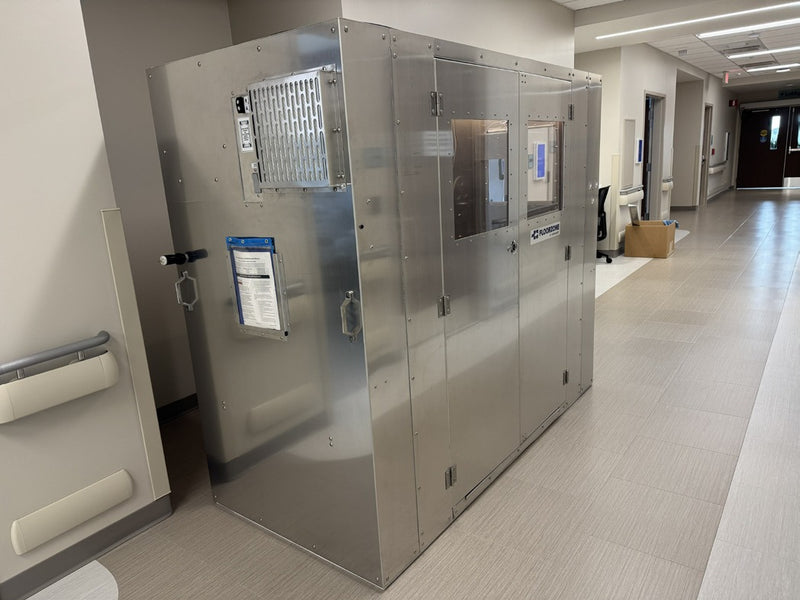

Parked Ready in the Corridor
Closed up, the FloorZone is an 80" x 39" unit that fits through any 42" door at a 300 lbs working weight, with its battery, cord and negative air machine on board and windows in each door.
Measure the doors, elevators and turns on the route before ordering, and plan floor space to open the side doors when the unit is parked at the work area.
Got Questions?
Find answers below or contact our support team.
What kind of work is the FloorZone for?
Flooring and tile installation and repair, coring, mold remediation, and polishing and grinding, anywhere the dust starts at floor level instead of above the ceiling.
Will it fit through our doors?
It is 39" wide and fits through any 42" door. The interior is 75" x 35", large enough for two people plus equipment.
Can it run without a wall outlet?
Yes. It includes a lithium phosphate battery with a charging station, and it also has a 20' retractable cord for 120 V AC.
What ICRA levels is the FloorZone for?
HEPACART publishes the FloorZone for ICRA compliance levels I to V. Your facility's infection control risk assessment decides the precautions for each job.
How is freight handled?
The FloorZone ships fully assembled by LTL freight from Lenexa, Kansas, free to a business address with a loading dock or forklift in the lower 48 states. Contact us before you order if you need residential, liftgate or appointment delivery.
