J&D JD360 Destratification Fan, 18", IP66 Gold Star Motor

What it is

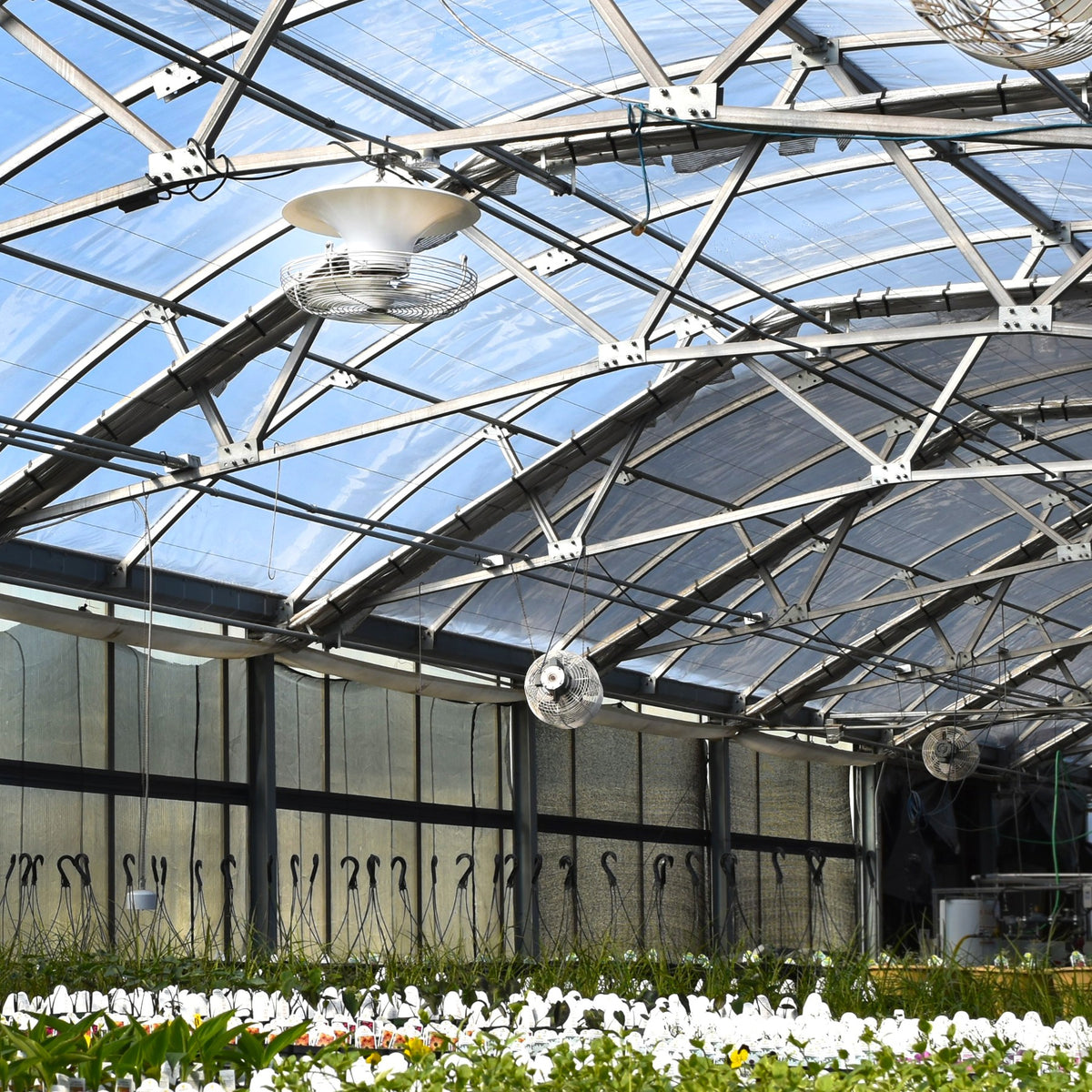

The J&D JD360 Destratification Fan is an 18" vertical, low-airspeed circulator that mixes the warm, light air collecting under a roof with the cool, dense air at floor level. It suits warehouses, shops, greenhouses and barns with high ceilings, where stratified air wastes heat, leaves dead zones and causes condensation. J&D says it can reduce the temperature gradient from floor to ceiling by up to 55%.

How it mixes air

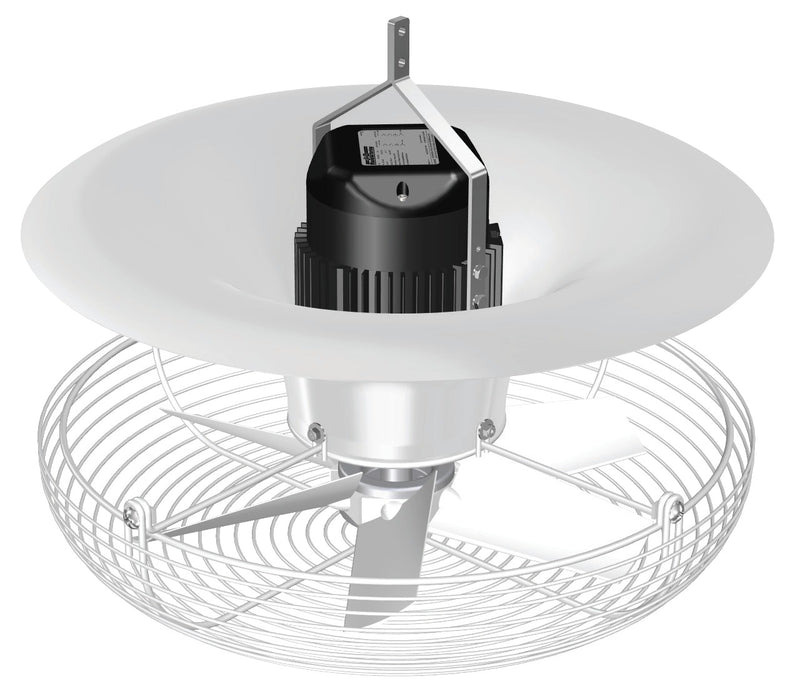

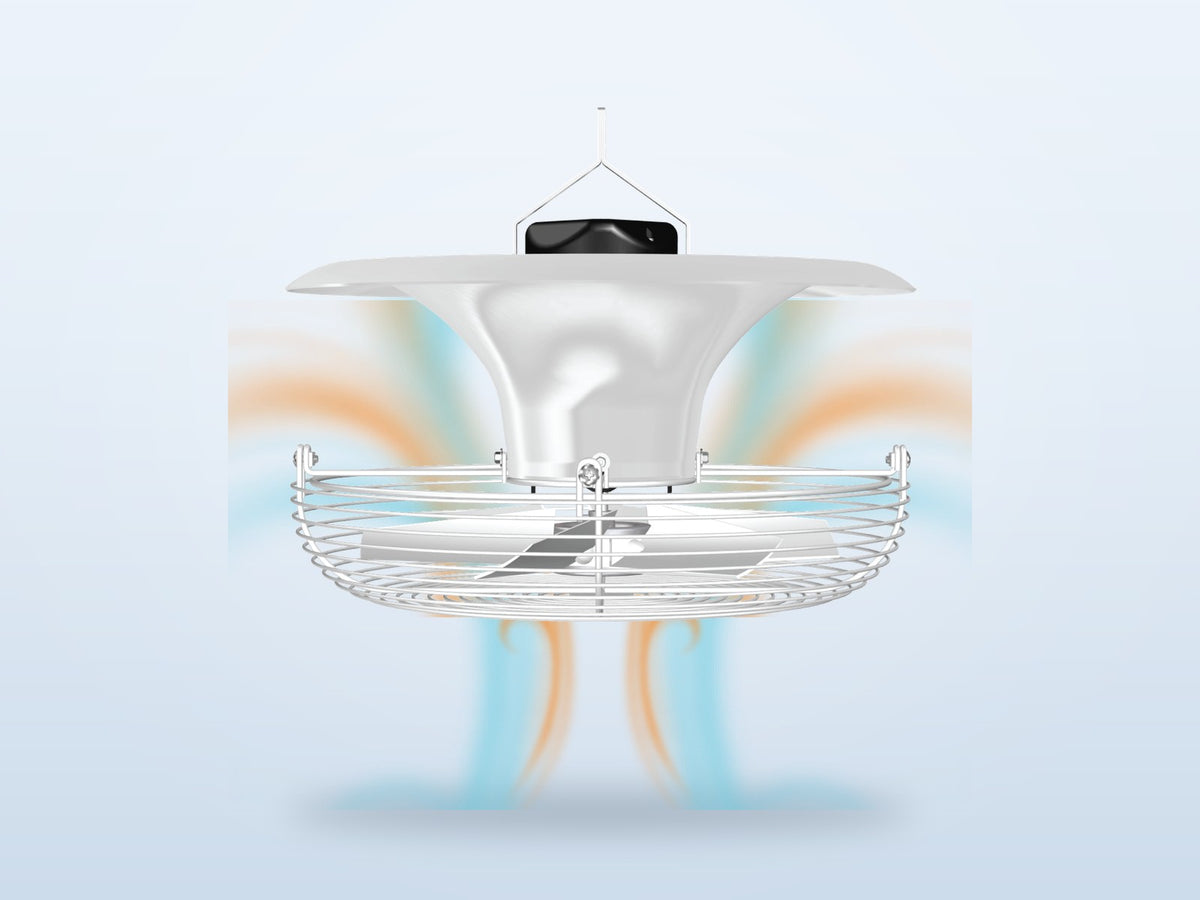

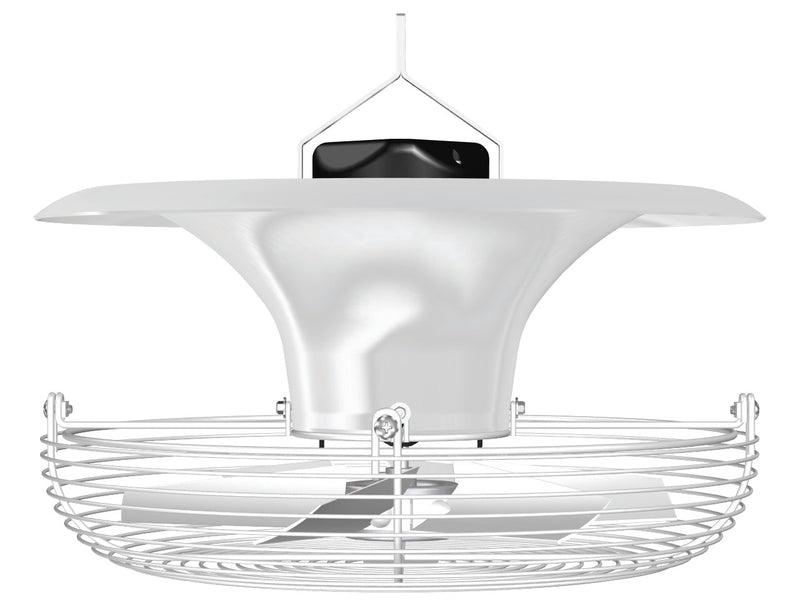

Unlike a ceiling fan, the JD360 blows down into a smooth diverting cone molded from UV-resistant, corrosion-proof high-density poly, which spreads the air outward in all directions. The poly-bladed prop has precisely contoured blades on a corrosion-resistant cast-aluminum hub, and the guards and frame are heavy-gauge powder-coated steel that is easy to clean.

Motor and power

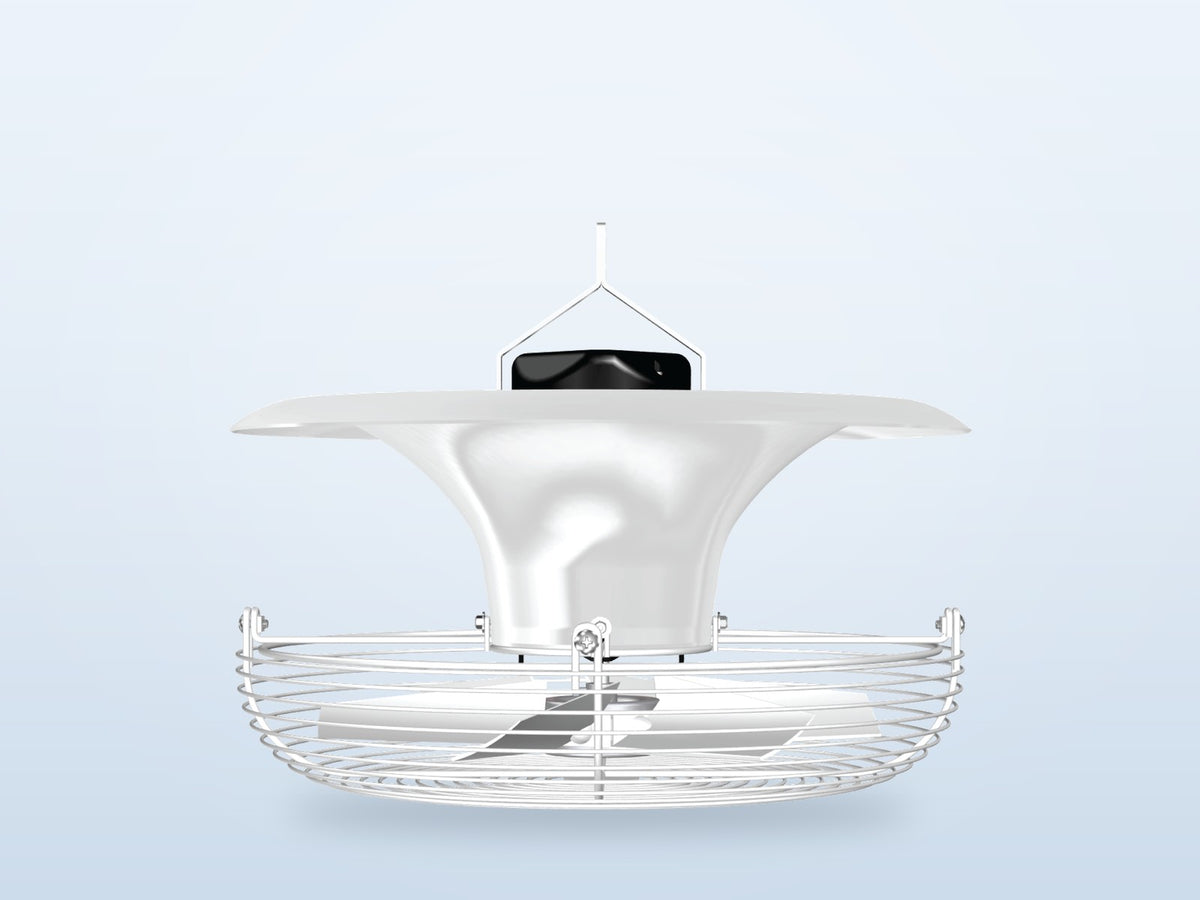

It runs on J&D's Gold Star motor: IP66 rated (dust tight and can be washed down from any angle), CSA recognized, totally enclosed and maintenance-free, with a 2-year motor warranty. The single-phase JD360 is a 1/4 HP fan with a 3-prong cord pre-wired for 115V, ready to hang and plug in; an electrician can rewire it for 230V. The three-phase JD360-3 is 1/2 HP on 230/460V with no cord, and it can run at variable speed with an external VFD.

Placement

For best results J&D recommends hanging it 7' to 16' above the floor (OSHA requires at least 7'), spacing fans no more than 60' apart and about 30' from walls, and keeping a clear zone 7' across and 2' above and below the fan. It can also carry J&D's HPF fog ring kit for added cooling and humidity control. J&D covers the fan for 1 year against defects.

• Size18"
• Gradient cutUp to 55%
• MotorIP66 Gold Star
• Power115V plug or 3 phase
• Mount height7' to 16'
• SpacingUp to 60'

Orders are processed in 1 to 2 business days, then J&D Manufacturing ships them by parcel carrier from Eau Claire, Wisconsin. Ship times vary by model and some are built to order, so we confirm the ship date by email after you order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it leaves J&D.

Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.

Unused J&D equipment in its original packaging can be returned within 14 days of delivery. Ask us for a return authorization before you ship. Returns carry J&D's restocking fee of up to 25%, you pay the return shipping, and the shipping we paid to deliver it and payment processing fees are not refunded. Built-to-order, special-order and non-stock items are final sale, and installed or used equipment can't be returned.

J&D covers the JD360 Destratification Fan for 1 year from the J&D invoice date against defects in materials and workmanship, and its Gold Star motor for 2 years. Misuse, abuse, alterations, improper installation or operation, lack of maintenance and non-J&D parts void the warranty, and normal wear, cosmetic rust or corrosion, freight, removal, installation and labor are not covered.

Warranty claims. Contact us with your order number, model and J&D part number. We file the claim with J&D, which decides whether to repair, replace or credit the product. Keep the product clean, dry and stored until it does, because J&D may ask for it back.

J&D Manufacturing is a family-owned manufacturer in Eau Claire, Wisconsin, that has built ventilation and comfort equipment for more than 45 years. Its range covers circulation and exhaust fans, misting and high-pressure fog cooling, and air inlets for industrial buildings, greenhouses and farms. J&D runs its own accredited AMCA air test chamber, and J&D marks the airflow data that comes from accredited-lab testing to ANSI/AMCA standards on its product sheets.

The JD360 is J&D's destratification fan. For general air movement at working height, the POW indoor/outdoor fans and the Heavy-Duty Industrial basket fans move air horizontally, and the 60" indoor/outdoor ceiling fan reverses for summer cooling and winter mixing.
