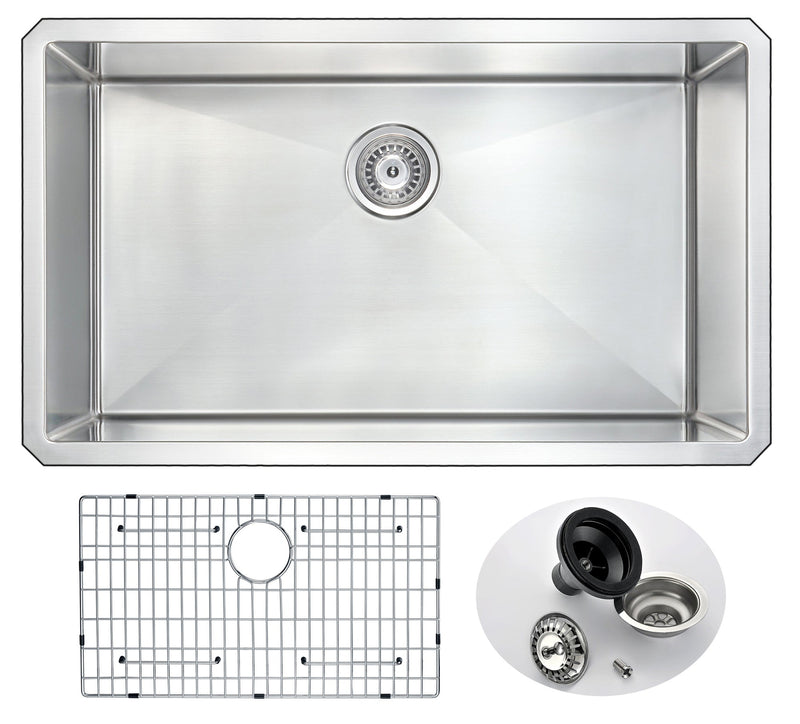

The K-AZ3219-1A Vanguard is an ANZZI 32" undermount stainless steel kitchen sink, a single bowl sink in 16 gauge 304 stainless steel with a lustrous satin finish. The Vanguard is hand crafted and hand shaped using RHINO ALLOY certified 304 stainless steel, in a traditional European crafting technique.
The sink measures 32" L x 19" W x 10" H with a basin depth of 10", and gives a minimum cabinet space of 36". The drain is a standard 3.5" square drain opening, and ANZZI includes a fitting strainer and drain assembly, an insert strainer basket and the mounting hardware.
The cavernous deep soaking basin comfortably accommodates the largest dish loads, including pots and pans. Every ANZZI sink carries its largest Echo-STOP sound dampening pads and a layer of protective composite coating to further quiet noise and prevent condensation, with triple coated underside shielding. Well defined diversion lines ensure quick and total water drainage, and the subtly curved corners allow easier cleaning. The sink is cUPC certified.
Undermount Installation
ANZZI's drop-in or undermount sink installation guide for this sink lists a measuring tape, pencil, silicone sealant, rags, denatured alcohol, a hacksaw or jigsaw, mounting clips, and ear and eye protection. Unpack the sink and check the materials supplied: the sink, mounting brackets and a cutout template. Choose a reveal mount, with the sink rim exposed approximately 1/4" from the edge of the countertop opening, or a recess mount, with the rim recessed approximately 1/8". Place the template with the center of the bowl over the cabinet and faucet holes, trace it and cut the countertop along the inside of the line; the template is a guide only, so use the physical sink to confirm the opening. Drill holes in the underside of the countertop approximately 1" from the edge of the sink, evenly spaced approximately 6" to 8" apart starting from every corner; install the faucet at this point, before the sink. Loosely attach the mounting brackets parallel to the opening, position and align the sink, press it onto the countertop, turn the bent end of each bracket to snug over the sink rim, check the alignment and tighten the fasteners. Wipe away excess silicone with a damp cloth, then connect the drain and water supply according to the manufacturer's instructions.
Faucet and Plumbing
Install the faucet before the sink, once the bracket holes are drilled, so plan the faucet position on the countertop before the sink goes in.
As an ANZZI 32" undermount stainless steel kitchen sink with a 10" deep single bowl, Echo-STOP pads and its strainer, drain assembly and basket in the box, the K-AZ3219-1A fits a kitchen with a 36" or larger sink base.
Features
16 gauge 304 Stainless Steel
ANZZI builds the K-AZ3219-1A from RHINO ALLOY certified 304 stainless steel in 16 gauge, hand shaped with a lustrous satin finish.
36" Minimum Cabinet
The K-AZ3219-1A needs a minimum cabinet space of 36", in a custom order sink base cabinet with a front cutout.
Echo-STOP Sound Dampening
ANZZI fits its largest Echo-STOP sound dampening pads, which it says drastically reduce noise, plus a protective composite coating.
Triple Coated Underside
The triple coated underside shielding prevents condensation, alongside the protective composite coating under the sink.
Diverting Lines and Curved Corners
Laser precise diverting lines give efficient drainage, and subtly curved corners allow easier cleaning.
10" Deep Soak Basin
The basin depth is 10" and says the deep soaking basin comfortably accommodates the largest dish loads, including pots and pans.
Strainer, Drain and Basket Included
ANZZI includes a fitting strainer and drain assembly, an insert strainer basket and mounting hardware for the 3.5" square drain opening.
Specifications
-
Model: K-AZ3219-1A
-
Dimensions: 32" L x 19" W x 10" H
-
Basin Depth: 10"
-
Bowl Configuration: Single bowl
-
Material: 304 stainless steel (ANZZI RHINO ALLOY certified), hand crafted
-
Gauge: 16 gauge
-
Finish: Lustrous satin
-
Mounting: Undermount
-
Minimum Cabinet Space: 36"
-
Drain Opening: 3.5" square
-
Certifications: cUPC
-
Series: Vanguard
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- K-AZ3219-1A Vanguard undermount kitchen sink
- Strainer and drain assembly
- Insert strainer basket
- Mounting hardware
Sold separately: Kitchen faucet
Installation & Care
Installation
Undermount beneath the countertop: reveal mount (rim exposed about 1/4") or recess mount (rim recessed about 1/8"); cut along the inside of the template line, confirming with the sink; drill bracket holes about 1" from the edge, 6" to 8" apart from every corner; install the faucet first; press the sink up into silicone and snug the brackets over the rim. Connect the drain and supply per the manufacturer's instructions. Minimum cabinet space 36".
Care
Clean regularly with soap and hot water and a non-abrasive cloth or sponge. Test any stronger cleaner on an inconspicuous area first, wipe and rinse completely with water immediately after, rinse and dry overspray on nearby surfaces, and do not allow the cleaner to soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this kitchen sink to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
