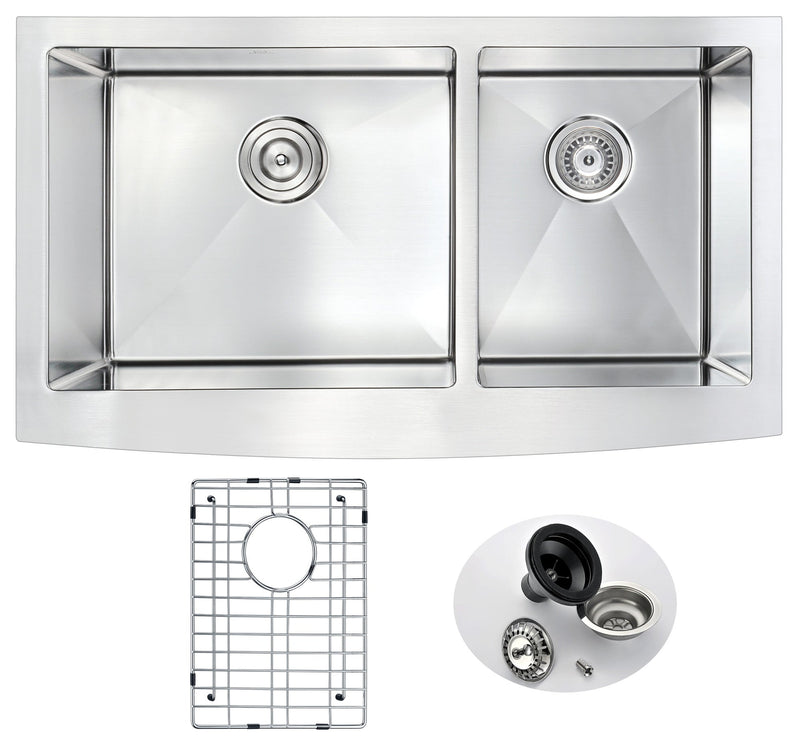

The K-AZ3320-4A Elysian is an ANZZI 32" farmhouse stainless steel kitchen sink, a 60/40 double bowl apron front sink in 18 gauge stainless steel; its product title marks it 0-hole. ANZZI's listing for the 32" Elysian gives the bowl configuration and gauge for each model, and its spec sheet gives the dimensions.
The spec sheet ANZZI attaches to all three Elysian 32" models is drawn for K-AZ3320-4A and gives 32.875" L x 20.75" W x 10" H with a basin depth of 10". As a farmhouse sink, its front apron is designed to extend 3/4" beyond the front of the countertop, and the sink base cabinet needs a front cutout to accommodate a 10" deep sink.
The Elysian 32" comes as three models on ANZZI's listing: K-AZ3320-1AS (single bowl, 16 gauge), K-AZ3320-1A (single bowl-A, 16 gauge) and K-AZ3320-4A (60/40 double bowl, 18 gauge). This model is the 60/40 double bowl in 18 gauge.
Farmhouse Installation
ANZZI's farmhouse kitchen sink installation guide for this sink opens with general recommendations: read the installation and maintenance instructions thoroughly, inspect the sink for any noticeable damage before installation, and check all local plumbing and building codes. Its instructions cover composite or solid surface countertops only; refer a stone, marble, granite or butcher-block countertop to an experienced countertop fabricator. Experienced, professional installers only are recommended, with on-site installation for custom cutting of the countertop and acceptable variances of approximately 1/8". Farmhouse sinks require custom order cabinets, so consult your cabinet dealer. Its tools list runs from a tape measure, jigsaw and framing square to shims, wood braces, denatured alcohol, silicone adhesive sealant and ear and eye protection.
To prepare the sink base cabinet, use a custom order sink base cabinet with a front cutout to accommodate a 10" deep sink, and a plywood platform built on a support frame inside the cabinet that must support the weight of the sink and any attachments such as a garbage disposal. With the sink on the platform, its top must sit evenly flush against the bottom of the countertop, with clearance for the water supply lines, drains or garbage disposal. To set the sink, clean the bottom of the countertop and the top flange of the sink with denatured alcohol, apply a bead of silicone adhesive (not supplied) around the top edge of the sink, place the countertop onto the sink and remove excess sealant. For the countertop, a 1/4" reveal on 3 sides is recommended for undermount installation; for flush mount or built-up installation, cut along the outside line of the sink profile. The front of a farmhouse sink is designed to extend 3/4" beyond the front of the countertop. No template is provided: outline the sink itself in pencil.
Faucet and Plumbing
The K-AZ3320-4A has no faucet holes (0-hole in the product title), so the faucet is deck mounted through the countertop behind the sink. Allow room for the faucet: ensure adequate clearance behind the sink for any faucet and backsplash, and full range of motion for faucet spouts and handles. The spec sheet for this sink lists ANZZI kitchen faucet models KF-AZ034, KF-AZ130, KF-AZ044, KF-AZ041, KF-AZ042, KF-AZ032, KF-AZ108, KF-AZ037, KF-AZ095, KF-AZ040, KF-AZ102, KF-AZ035 and KF-AZ031, offered in polished chrome and brushed nickel, with oil rubbed bronze on several models.
As an ANZZI 32" farmhouse stainless steel kitchen sink in 60/40 double bowl, the K-AZ3320-4A brings a stainless steel apron front sink to a custom farmhouse sink base.
Features
60/40 double bowl Configuration
The K-AZ3320-4A is a 60/40 double bowl model of the 32" Elysian farmhouse sink, in 18 gauge stainless steel.
32.875" L Apron Front
The sink measures 32.875" L x 20.75" W x 10" H on its spec sheet, with a farmhouse apron front.
10" Basin Depth
The basin depth is 10"; the cabinet needs a front cutout that accommodates a 10" deep sink.
Front Extends 3/4"
The farmhouse sink front is designed to extend 3/4" beyond the front of the countertop.
Platform-Supported Install
A plywood platform on a support frame inside the cabinet carries the sink and any disposal.
Kitchen Faucet Matches
The spec sheet for the Elysian 32" lists ANZZI kitchen faucet models, including KF-AZ034, KF-AZ032 and KF-AZ031.
Specifications
-
Model: K-AZ3320-4A
-
Dimensions: 32.875" L x 20.75" W x 10" H
-
Basin Depth: 10"
-
Bowl Configuration: 60/40 double bowl
-
Material: 18 gauge 304 stainless steel
-
Gauge: 18 gauge
-
Mounting: Farmhouse (apron front)
-
Faucet Holes: None (0-hole)
-
Series: Elysian
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- K-AZ3320-4A Elysian farmhouse kitchen sink
Sold separately: Kitchen faucet
Installation & Care
Installation
Farmhouse installation: a custom order sink base cabinet with a front cutout for a 10" deep sink, on a plywood platform that supports the sink and any disposal, flush with the underside of the countertop; clean with denatured alcohol and bond with silicone adhesive (not supplied). 1/4" reveal on 3 sides for undermount style; the front extends 3/4" beyond the countertop; allow clearance for the faucet and backsplash. Experienced, professional installers are recommended, and stone, marble, granite or butcher-block tops go to an experienced fabricator.
Care
Clean regularly with soap and hot water and a non-abrasive cloth or sponge. Test any stronger cleaner on an inconspicuous area first, wipe and rinse completely with water immediately after, rinse and dry overspray on nearby surfaces, and do not allow the cleaner to soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this kitchen sink to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Elysian 32" comes as K-AZ3320-1AS (single bowl, 16 gauge), K-AZ3320-1A (single bowl-A, 16 gauge) and K-AZ3320-4A (60/40 double bowl, 18 gauge).
