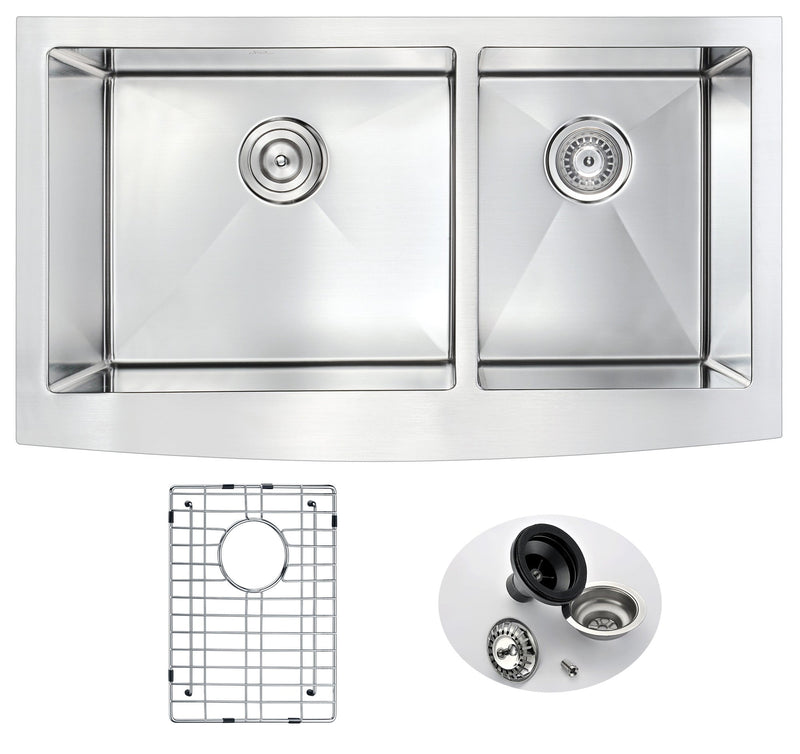

The K-AZ3620-3A Elysian is an ANZZI 36" farmhouse stainless steel kitchen sink, a 60/40 double bowl apron front sink in 18 gauge 304 stainless steel with a lustrous satin finish. The Elysian is hand crafted and hand shaped using RHINO ALLOY certified 304 stainless steel in a traditional European crafting technique.
The sink measures 35.875" L x 20.75" W x 10" H with a basin depth of 10", gives a minimum cabinet space of 36", and lists a 3.5" x 3.5" drain opening. It includes a fitting strainer and drain assembly, an insert strainer basket and the mounting hardware.
The cavernous deep soaking basin comfortably accommodates the largest dish loads, including pots and pans, and fits Echo-STOP sound dampening pads and a layer of protective composite coating to further quiet noise and prevent condensation, with a triple coated underside. Well defined diversion lines ensure quick and total water drainage, and the subtly curved corners allow easier cleaning. The sink is cUPC certified.
Farmhouse Installation
ANZZI's farmhouse kitchen sink installation guide for this sink opens with general recommendations: read the installation and maintenance instructions thoroughly, inspect the sink for any noticeable damage before installation, and check all local plumbing and building codes. Its instructions cover composite or solid surface countertops only; refer a stone, marble, granite or butcher-block countertop to an experienced countertop fabricator. Experienced, professional installers only are recommended, with on-site installation for custom cutting of the countertop and acceptable variances of approximately 1/8". Farmhouse sinks require custom order cabinets, so consult your cabinet dealer. Its tools list runs from a tape measure, jigsaw and framing square to shims, wood braces, denatured alcohol, silicone adhesive sealant and ear and eye protection.
To prepare the sink base cabinet, use a custom order sink base cabinet with a front cutout to accommodate a 10" deep sink, and a plywood platform built on a support frame inside the cabinet that must support the weight of the sink and any attachments such as a garbage disposal. With the sink on the platform, its top must sit evenly flush against the bottom of the countertop, with clearance for the water supply lines, drains or garbage disposal. To set the sink, clean the bottom of the countertop and the top flange of the sink with denatured alcohol, apply a bead of silicone adhesive (not supplied) around the top edge of the sink, place the countertop onto the sink and remove excess sealant. For the countertop, a 1/4" reveal on 3 sides is recommended for undermount installation; for flush mount or built-up installation, cut along the outside line of the sink profile. The front of a farmhouse sink is designed to extend 3/4" beyond the front of the countertop. No template is provided: outline the sink itself in pencil.
Faucet and Plumbing
Allow room for the faucet: ensure adequate clearance behind the sink for any faucet and backsplash, and full range of motion for faucet spouts and handles.
As an ANZZI 36" farmhouse stainless steel kitchen sink in 60/40 double bowl, the K-AZ3620-3A brings a hand crafted apron front sink to a kitchen with a 36" or larger sink base.
Features
60/40 double bowl Configuration
The K-AZ3620-3A is a 60/40 double bowl model of the 36" Elysian farmhouse sink, in 18 gauge stainless steel.
35.875" L Apron Front
The sink measures 35.875" L x 20.75" W x 10" H, with a farmhouse apron front.
10" Basin Depth
The basin depth is 10"; the cabinet needs a front cutout that accommodates a 10" deep sink.
Echo-STOP Sound Dampening
ANZZI fits Echo-STOP sound dampening pads, which it says drastically reduce noise, plus a protective composite coating.
Triple Coated Underside
The triple coated underside shielding prevents condensation, alongside the protective composite coating under the sink.
Diverting Lines and Curved Corners
Laser precise diverting lines give efficient drainage, and subtly curved corners allow easier cleaning.
36" Minimum Cabinet
The K-AZ3620-3A needs a minimum cabinet space of 36", in a custom order sink base cabinet with a front cutout.
Strainer, Drain and Basket Included
ANZZI includes a fitting strainer and drain assembly, an insert strainer basket and mounting hardware for the 3.5" x 3.5" drain opening.
Specifications
-
Model: K-AZ3620-3A
-
Dimensions: 35.875" L x 20.75" W x 10" H
-
Basin Depth: 10"
-
Bowl Configuration: 60/40 double bowl
-
Material: 18 gauge 304 stainless steel (ANZZI RHINO ALLOY certified), hand crafted
-
Gauge: 18 gauge
-
Finish: Lustrous satin
-
Mounting: Farmhouse (apron front)
-
Minimum Cabinet Space: 36"
-
Drain Opening: 3.5" x 3.5"
-
Certifications: cUPC
-
Series: Elysian
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- K-AZ3620-3A Elysian farmhouse kitchen sink
- Strainer and drain assembly
- Insert strainer basket
- Mounting hardware
Sold separately: Kitchen faucet
Installation & Care
Installation
Farmhouse installation: a custom order sink base cabinet with a front cutout for a 10" deep sink, on a plywood platform that supports the sink and any disposal, flush with the underside of the countertop; clean with denatured alcohol and bond with silicone adhesive (not supplied). 1/4" reveal on 3 sides for undermount style; the front extends 3/4" beyond the countertop; allow clearance for the faucet and backsplash. Experienced, professional installers are recommended, and stone, marble, granite or butcher-block tops go to an experienced fabricator.
Care
Clean regularly with soap and hot water and a non-abrasive cloth or sponge. Test any stronger cleaner on an inconspicuous area first, wipe and rinse completely with water immediately after, rinse and dry overspray on nearby surfaces, and do not allow the cleaner to soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this kitchen sink to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Elysian 36" comes as K-AZ3620-1A (single bowl), K-AZ3620-1AS (single bowl-AS), K-AZ3620-3A (60/40 double bowl) and K-AZ3620-3B (40/60 double bowl), and as K36203A-037 with ANZZI's Winston KF-AZ037 faucet.
