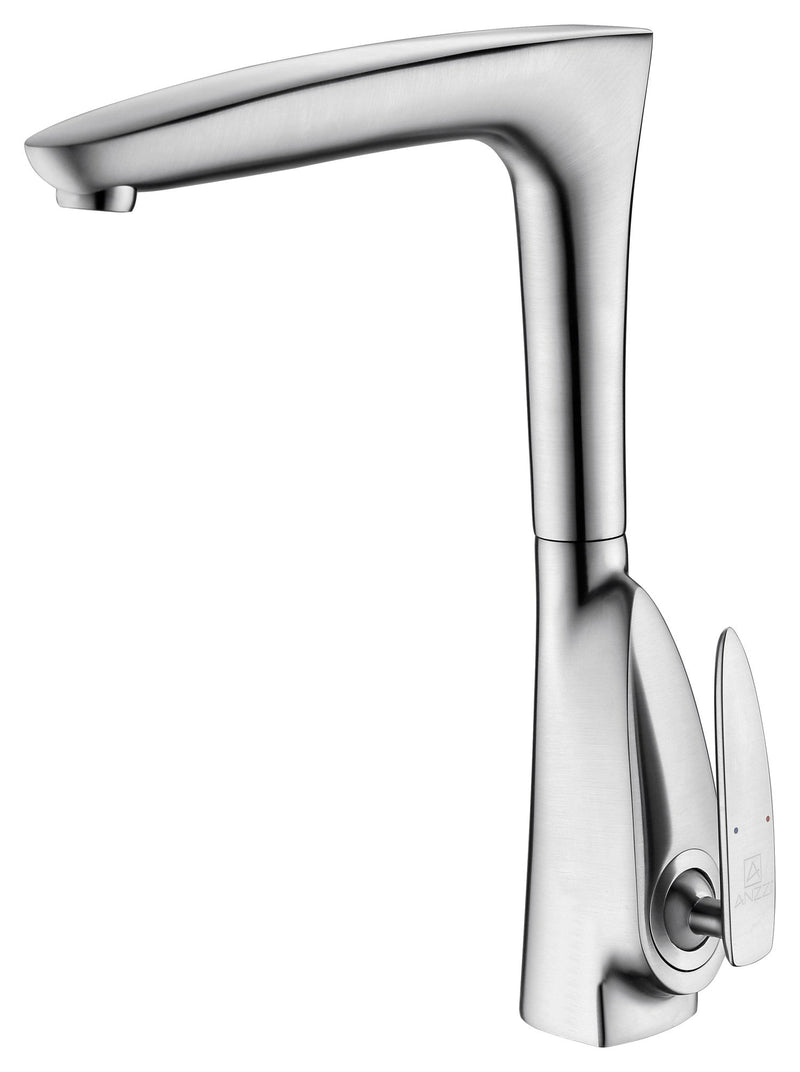

The ANZZI KF-AZ034BN is a Timbre single-handle kitchen faucet in brushed nickel with a tall, angled spout that swivels a full 360°.
Spout Height and Reach
The spout stands 11.5" above the deck and reaches 7.9" into the sink, and the spout swivels 360°. The angled European-style spout gives the faucet a sharp, architectural line on the counter.
One gyroscopic handle sets flow and temperature together. The flow rate is 1.5 GPM.
Valve and Certification
Inside is lead-free RHINO ALLOY certified brass, and a marine grade ceramic disc valve, included with the faucet, controls the water. The Timbre is cUPC, NSF and AB1953 certified for installation in North America, and it is listed to ASME A112.18.1/CSA B125.1. ANZZI pairs the brass with its rust resistant finish and calls it an all-metal combination of materials.
The Timbre's parts list has no pull-down hose or spray head, only the two flexible supply hoses, so nothing has to be routed or weighted under the sink. Its 11.5" spout height and 7.9" reach do the work instead: a pot or pitcher goes straight under the stream, and the 360° swivel sends the water where you need it.
Thread the two flexible hoses into the faucet by hand, set the faucet into the hole with the O-ring on its base, then fit the screw, rubber washer and clamp below the deck and tighten the lock nut with a basin wrench. Connect the hoses to the hot and cold supply valves, which are not included, and do not over tighten. To test, remove the aerator by hand, turn the handle all the way on, open the hot and cold supplies and flush the lines for one minute, then refit the aerator and check every connection for leaks. The recommended tools are channel locks, an adjustable wrench, an Allen key, a basin wrench, goggles and Teflon tape.
The KF-AZ034BN mounts through a single hole in the sink deck or countertop. The Timbre comes in polished chrome (KF-AZ034) and brushed nickel (KF-AZ034BN). ANZZI's other kitchen faucets without a pull-down sprayer include the Opus (KF-AZ035, KF-AZ035BN, KF-AZ035ORB), Patriarch (KF-AZ198BN, KF-AZ198CH, KF-AZ198ORB) and Carriage (KF-AZ211BN, KF-AZ211ORB).
For a kitchen or prep sink that needs height and a simple single handle, the KF-AZ034BN is an ANZZI single-hole kitchen faucet with an 11.5" swivel spout, 1.5 GPM flow and a brushed nickel finish.
Features
Tall 11.5" Spout
The elegantly angled spout, inspired by the latest European styles, has an 11.5" spout height.
7.9" Reach, 360° Swivel
The 7.9" reach puts the stream over the bowl, and the spout swivels a full 360°.
Gyroscopic Single Handle, 1.5 GPM
A single gyroscopic handle controls both water flow and temperature from one lever, and the faucet flows at 1.5 GPM.
Ceramic Disc Valve Included
ANZZI includes the valve, a marine grade quality ceramic disk valve, so there is no separate valve to source for the faucet.
Lead-Free, cUPC and NSF
Lead-free RHINO ALLOY brass is cUPC, NSF and AB1953 certified and listed to ASME A112.18.1/CSA B125.1.
Single-Hole Deck Mount
It installs through one hole with a clamp, rubber washer and lock nut, leaving space on the sink deck for a soap dispenser.
Specifications
-
Model: KF-AZ034BN
-
Spout Height: 11.5"
-
Spout Reach: 7.9"
-
Material: Lead-free RHINO ALLOY certified brass
-
Finish: Brushed Nickel
-
Installation: Deck mount, single hole
-
Handle: Single gyroscopic lever
-
Spout Rotation: 360°
-
Flow Rate: 1.5 GPM
-
Valve: Marine grade ceramic disc, included
-
Certifications: cUPC, NSF, AB1953; ASME A112.18.1/CSA B125.1
-
Series: Timbre
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- KF-AZ034BN kitchen faucet in brushed nickel with ceramic disc valve
- Two flexible hoses
- Mounting screw, clamp, rubber washer and lock nut
- Allen key
Sold separately: Supply valves (not included)
Installation & Care
Installation
Deck mounted through a single hole. Thread the two flexible hoses into the faucet by hand, set the faucet in the hole with its O-ring, then fix it from below with the screw, rubber washer, clamp and lock nut using a basin wrench. Connect the hoses to the hot and cold supply valves (not included), remove the aerator, flush the lines for one minute and check for leaks without over tightening.
Care
ANZZI's manual: clean the brushed nickel finish with water and dry it with a soft cloth, or use a gentle liquid or glass cleaner. Do not use acid cleaners, and do not clean with abrasive material, abrasive paper or a knife. The manual adds that daily cleaning and care keep the faucet shining and properly working.
