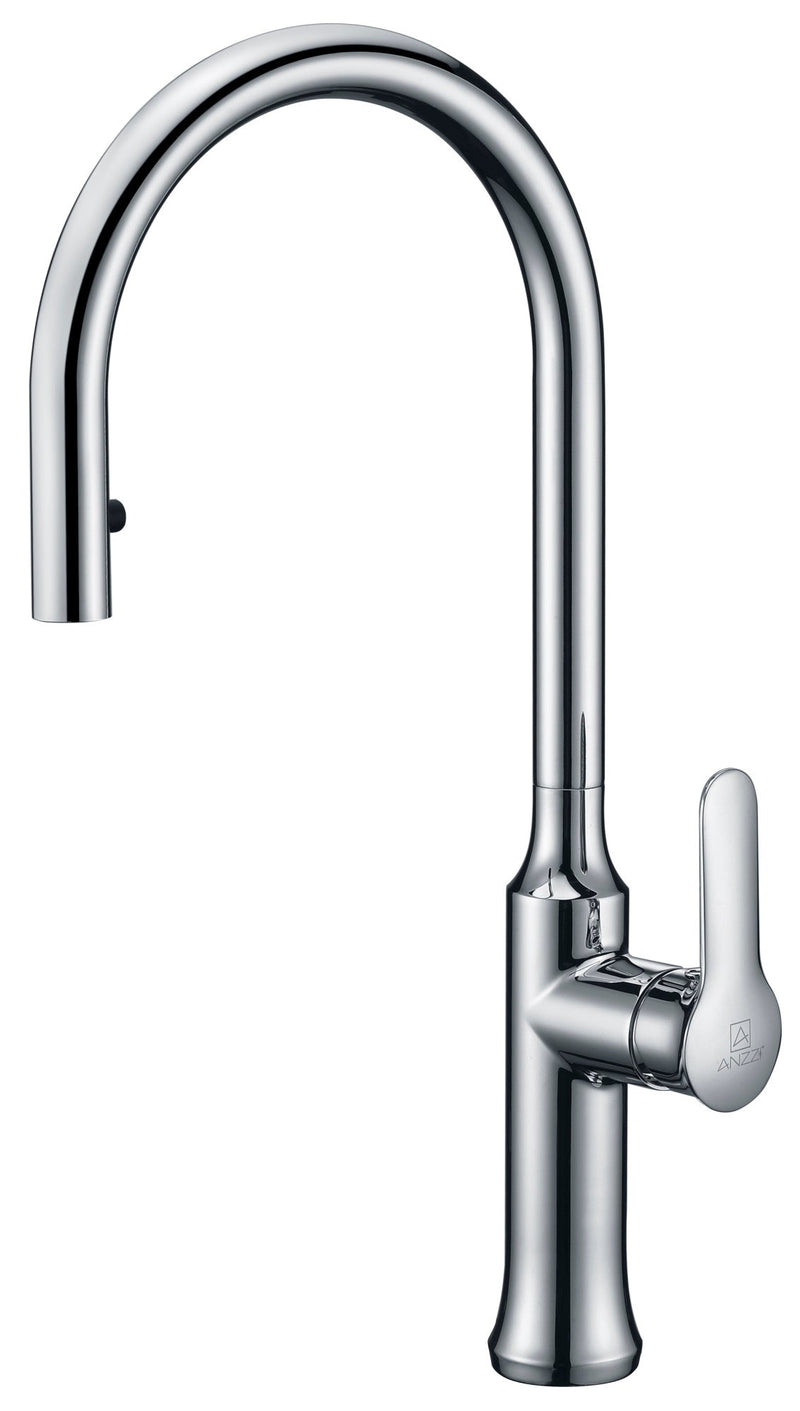

The ANZZI KF-AZ1068CH is a Cresent single-handle pull-down kitchen faucet in polished chrome, a high-arc sink faucet with ANZZI's Euro-Grip pull-down sprayer.
The arched spout stands 10.81" above the deck with a 7.88" reach. Pull the sprayer head down and it travels on its hose for the full range of motion you need for scrubbing pans and rinsing the corners of the sink, then a weight on the hose draws it back into the spout.
A single lever mixes hot and cold and gives complete and easy control of both water flow and temperature. The spray is an aerated, free-flowing stream.
Connects to the Supplies You Already Have
The Cresent connects to the water in three ways: 3/8" O.D. copper tubing with ball-nose risers and coupling nuts, 3/8" copper tubing with the supplied tube head connector, or 1/2" IPS faucet connectors.
A check valve sits in the assembly, and the handle carries a red and blue button to mark hot and cold.
The faucet has Rhino Alloy certified parts, a lead-free solid brass valve and rust and stain resistant exterior plating. It is certified NSF, cUPC and AB1953, and the installation manual cites ASME A112.18.1/CSA B125.1.
Check the Height Behind Your Sink
At 17.83" tall overall, the ANZZI KF-AZ1068CH single-handle pull-down kitchen faucet needs that much clear height behind the sink, so measure to a window sill or open shelf before you order.
For anyone choosing a high-arc kitchen faucet, the KF-AZ1068CH in polished chrome combines a pull-down sprayer, a lead-free brass valve and flexible supply options in a clean single-handle design.
Features
Euro-Grip Pull-Down Sprayer
The sprayer head pulls down on its hose for the reach needed to rinse pans and clean the whole sink, then the hose weight returns it to the spout.
10.81" Spout Height, 7.88" Reach
The spout stands 10.81" above the deck with a 7.88" reach, under a 17.83" overall faucet height.
One-Handed Single Lever
A single handle allows complete and easy control of both water flow and temperature while keeping the minimalist look intact.
Lead-Free Solid Brass Valve
A lead-free solid brass valve is included, and the faucet is NSF, cUPC and AB1953 certified and built with RHINO ALLOY certified parts.
Flexible Supply Hookup
The manual shows three ways to connect: 3/8" OD copper tubing with ball-nose risers, 3/8" copper tubing with the supplied connector, or 1/2" IPS faucet connectors.
Deck Plate in the Box
A deck plate and gasket are part of the parts list, giving a finished base on the counter where the faucet mounts.
Specifications
-
Model: KF-AZ1068CH
-
Overall Height: 17.83"
-
Spout Height: 10.81"
-
Spout Reach: 7.88"
-
Material: Lead-free solid brass valve, Rhino Alloy certified parts
-
Finish: Polished Chrome, rust and stain resistant
-
Installation: Deck mount with deck plate
-
Handles: Single lever
-
Sprayer: Euro-Grip pull-down, aerated spray
-
Supply Connection: 3/8" OD copper tubing or 1/2" IPS faucet connectors
-
Certifications: NSF, cUPC, AB1953, ASME A112.18.1/CSA B125.1
-
Series: Cresent
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- KF-AZ1068CH pull-down kitchen faucet
- Pull-down sprayer wand with hose and weight
- Deck plate and gasket
- Hex wrench and aerator wrench
Sold separately: Supply lines (purchase the proper supply lines for your shut-off valves)
Installation & Care
Installation
Deck mount on a sink or countertop. Set the faucet, deck plate and gasket on the counter, fit the gasket assembly and lock nut from below and tighten the screws. Click the spray hose into the quick connect and hang the weight on it. Connect to the water supply with 3/8" OD copper tubing, 3/8" copper tubing with the supplied connector or 1/2" IPS faucet connectors, then remove the aerator and flush the lines for one minute. Do not overtighten. Recommended tools: basin wrench, adjustable wrench, channel locks and Teflon tape.
Care
Clean the faucet with water and dry it with a soft cloth; a gentle liquid or glass cleaner can also be used. Do not use acid cleaners, and do not clean with abrasive material, abrasive paper or a knife, which scratch the polished chrome plating.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this faucet to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Cresent pull-down kitchen faucet comes in Brushed Nickel (KF-AZ1068BN) and Polished Chrome (KF-AZ1068CH). ANZZI's kitchen range also includes pull-down, pull-out, commercial-style and pot filler faucets.
