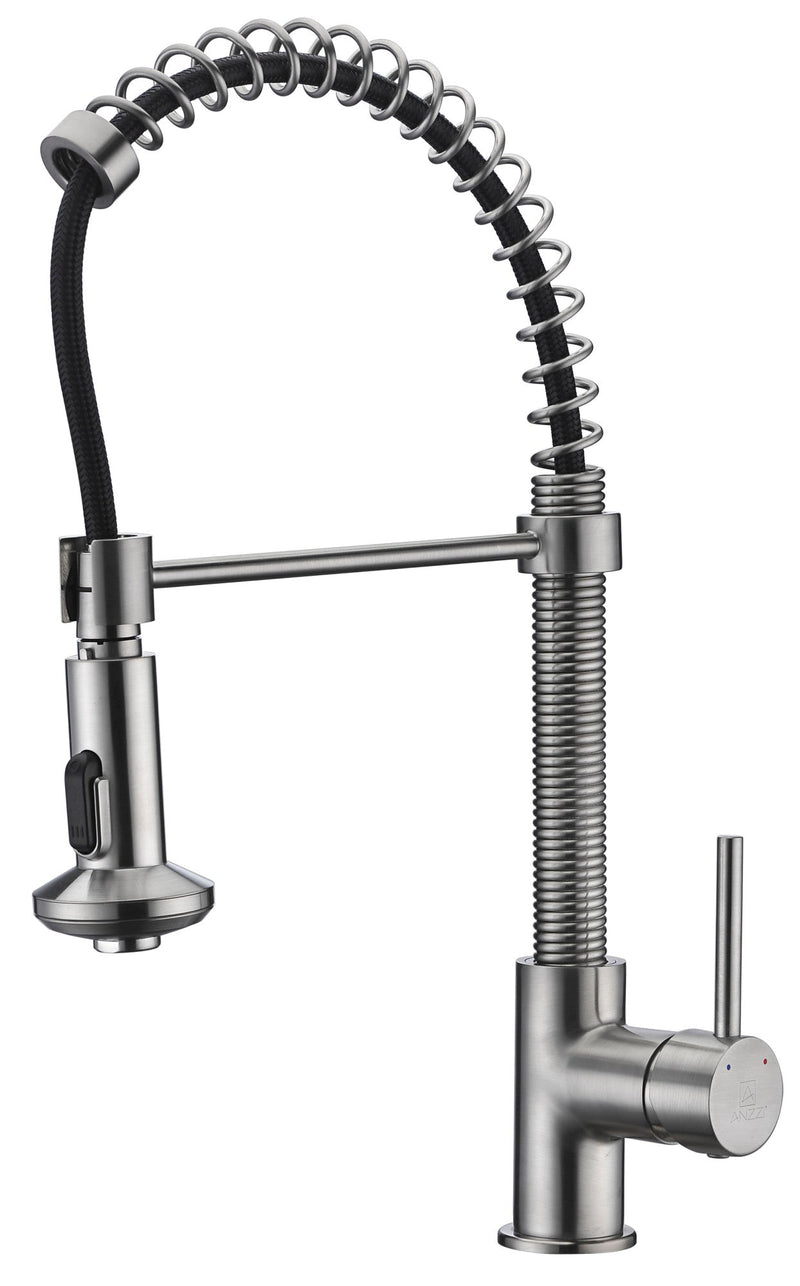

The ANZZI KF-AZ194BN is a Step minimalist pull-down kitchen faucet in brushed nickel, with a single handle and a high-mobility sprayer. The sprayer is a two-mode Euro-Grip design.
Long Reach, Clean Lines
The faucet stands 20.75" tall and the spout reaches 8.5". The Euro-Grip pull-down sprayer offers the full range of motion needed for even the toughest dish washing, and a weight fitted on the hose is part of the kit. The sprayer has dual spray settings.
One handle mixes hot and cold. The lead-free solid brass valve comes with the faucet.
Connection Options Under the Sink
The Step is built with RHINO ALLOY certified parts, a lead-free brass valve and rust and stain resistant exterior plating. It is NSF, cUPC and AB1953 certified, and it is listed to ASME A112.18.1/CSA B125.1.
There are three ways to connect the supply: 3/8" O.D. copper tubing with ball nose risers and coupling nuts, plain 3/8" copper tubing with the supplied tube head and interior connector, or 1/2" IPS faucet connectors. Buy the proper supply lines separately. The deck plate and gasket sit under the faucet on the countertop.
Position the faucet, deck plate and gasket on the counter top with the O-ring in place, assemble the gasket assembly and lock nut on the threaded sleeve by hand and tighten the screws. Connect the shower hose to the quick connect and make sure it is engaged and secured, then fit the weight on the hose. To test, remove the sprayer, turn the handle all the way on, open the hot and cold supplies and flush the lines for one minute before checking every connection for leaks.
The KF-AZ194BN is an ANZZI single-handle pull-down kitchen faucet with an 8.5" reach, a two-mode Euro-Grip sprayer and a brushed nickel finish.
Features
8.5" Spout Reach

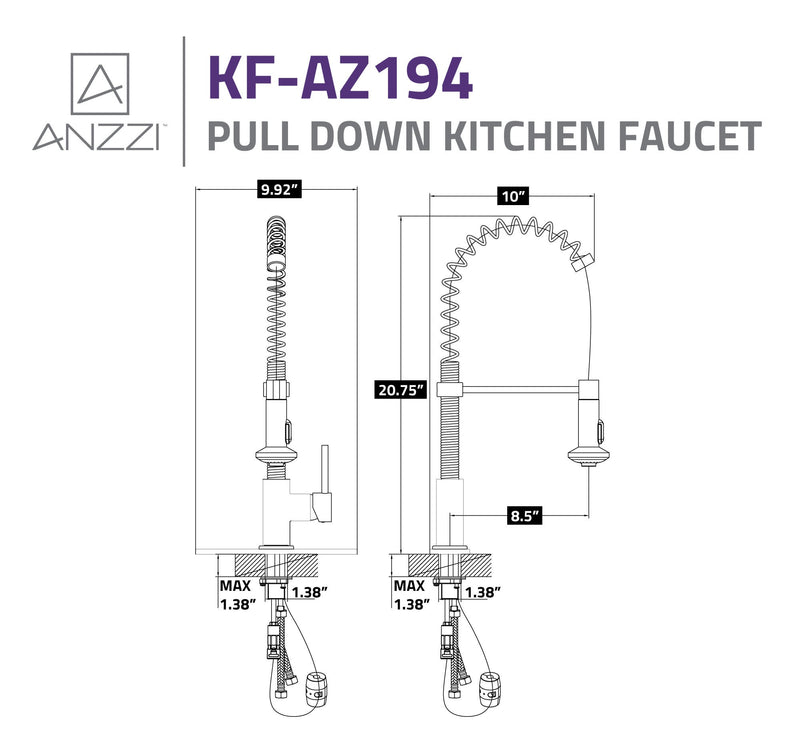

The faucet stands 20.75" tall and the spout has an 8.5" reach, measured from the faucet body to the outlet.
Euro-Grip High-Mobility Sprayer
The pull-down sprayer gives the full range of motion needed for tough dish washing, with a weight fitted on its hose.
Single-Handle Mixer
One handle controls hot, cold and flow, and the pull-down sprayer has dual spray settings.
Lead-Free Brass Valve Included
The lead-free solid brass valve ships with the faucet, and the faucet is NSF, cUPC and AB1953 certified.
Three Supply Options
Connect with 3/8" O.D. copper with ball nose risers, plain 3/8" copper with the supplied tube head, or 1/2" IPS faucet connectors.
Brushed Nickel Finish
The brushed nickel finish is rust resistant exterior plating over RHINO ALLOY certified parts.
Specifications
-
Model: KF-AZ194BN
-
Overall Height: 20.75"
-
Spout Reach: 8.5"
-
Material: Lead-free solid brass valve, RHINO ALLOY certified parts
-
Finish: Brushed Nickel
-
Installation: Deck mount with deck plate and gasket
-
Handle: Single lever hot and cold mixer
-
Sprayer: Euro-Grip pull-down, 2 spray settings
-
Supply Connection: 3/8" O.D. copper tubing or 1/2" IPS faucet connectors
-
Certifications: NSF, cUPC, AB1953; ASME A112.18.1/CSA B125.1
-
Series: Step
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- KF-AZ194BN pull-down kitchen faucet in brushed nickel with lead-free brass valve
- Pull-down sprayer, shower hose, weight and quick connect
- Deck plate, gasket, threaded shank, lock nut and screws
- Allen key
Sold separately: Supply lines
Installation & Care
Installation
Deck mounted: set the faucet, deck plate and gasket on the countertop with the O-ring in place, then fit the gasket assembly and lock nut on the threaded sleeve under the counter and tighten the screws. Connect the supplies with 3/8" O.D. copper tubing or 1/2" IPS connectors, click the shower hose into the quick connect, fit the weight, then flush the lines for one minute and check for leaks without over tightening.
Care
Clean the brushed nickel finish with water and dry it with a soft cloth, or use a gentle liquid or glass cleaner. Do not use acid cleaners, and do not clean with abrasive material, abrasive paper or a knife.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this faucet to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Step kitchen faucet comes in brushed nickel (KF-AZ194BN) and polished chrome (KF-AZ194CH). ANZZI's other kitchen faucets include the Singer, Accent, Cresent, Luna and Sunset.
