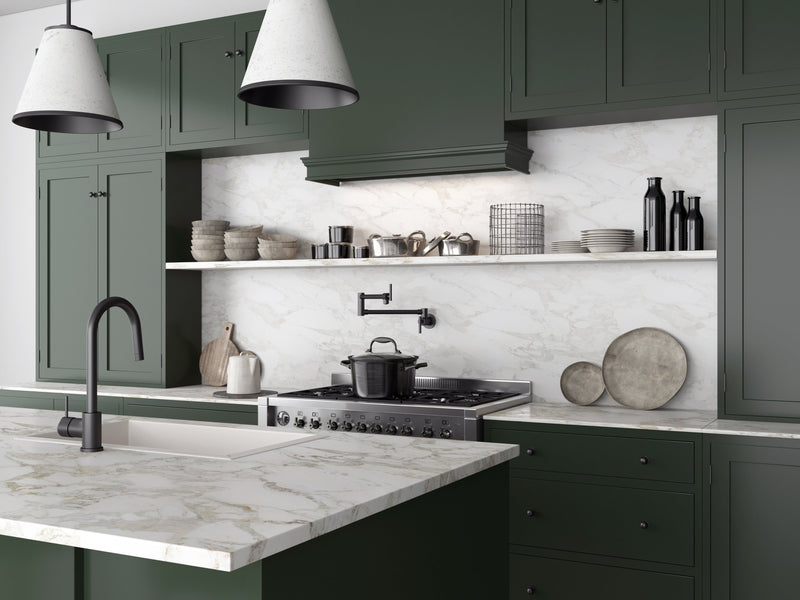

The ANZZI KF-AZ258GB is a Braccia series articulated wall-mounted pot filler in gunmetal black, installed above the range.
Fill the Pot Where You Cook

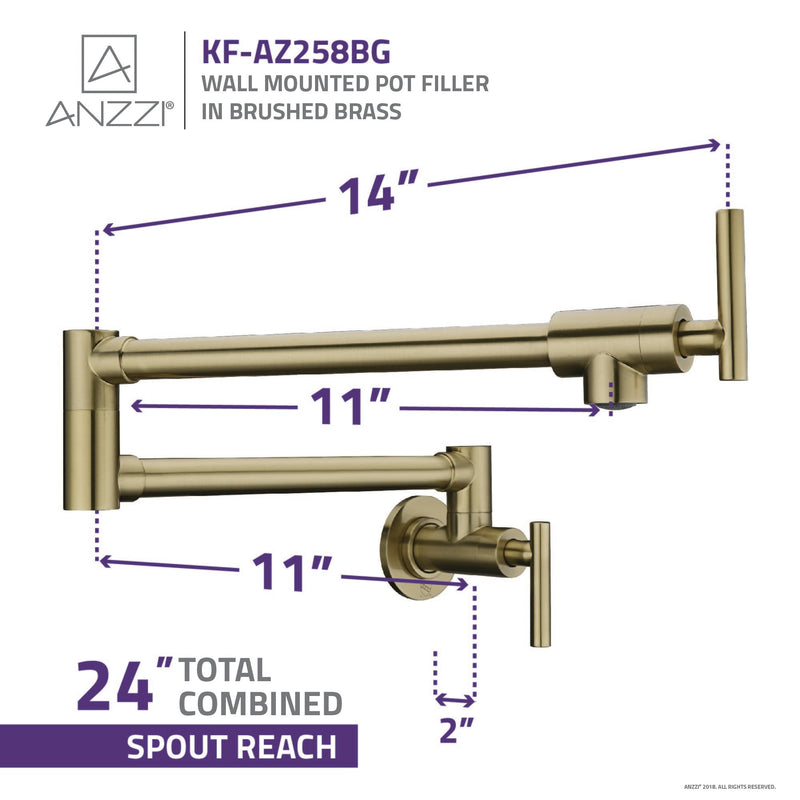

The arm has two pivot joints, each with a 360° swivel range, giving a total spout reach of 24". The dual pivot joint allows for maximum reach and positional flexibility. The spout delivers 4 GPM.
Water is controlled at two points. A shut-off valve at the wall base turns the supply on, and a second valve on the spout gives water flow control on the spout itself. Each valve uses a brass cartridge for independent flow control. The Braccia is cold water only, with no thermostatic water mixing.
Solid Brass, Eight Finishes
The Braccia has a solid brass interior and RHINO ALLOY certified steel and brass components, finished in gunmetal black. ANZZI's manual lists it as certified to NSF/ANSI 61 and NSF/ANSI 372.
It installs through a single wall connection to a 1/2" IPS cold water supply line.
The KF-AZ258GB is an ANZZI wall-mounted pot filler in gunmetal black with a 24" articulated reach, two 360° joints, dual shut-off valves and a 4 GPM cold water flow on a 1/2" NPT connection.
Features
24" Double-Jointed Reach
Two pivot joints give a total spout reach of 24", allowing maximum reach and positional flexibility for the 4 GPM spout.
360° Swivel at Each Joint
Both joints swivel a full 360°, for maximum maneuverability and complete positional control of the spout.
4 GPM High Flow
The spout has a 4 GPM high flow rate and sits at the end of the arm's 24" maximum reach.
Dual Shut-Off Valves
A valve at the base and a second on the spout give independent water flow control.
Brass Cartridges, Solid Brass Interior
Brass cartridges and a solid brass interior with RHINO ALLOY certified components give superior strength and reliability.
Cold Water Only, 1/2" IPS
The pot filler connects to a single 1/2" IPS cold water line, with no thermostatic water mixing.
Gunmetal Black Finish
The gunmetal black finish covers a pot filler that ANZZI builds from RHINO ALLOY certified steel and brass.
Specifications
-
Model: KF-AZ258GB
-
Material: Solid brass interior, RHINO ALLOY certified steel and brass
-
Finish: Gunmetal Black
-
Installation: Wall mount, single hole
-
Handles: Two (dual shut-off valves: base and spout)
-
Spout Reach: 24" maximum
-
Joints: 2 pivot joints, 360° swivel each
-
Flow Rate: 4 GPM
-
Water Supply: Cold water only
-
Supply Connection: 1/2" IPS (1/2 NPT)
-
Cartridge: Brass
-
Certifications: NSF/ANSI 61, NSF/ANSI 372
-
Series: Braccia
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- KF-AZ258GB articulated pot filler
- Wall flange and anchor
- Screws, plugs and connector
- Hex screw and Allen wrench
Installation & Care
Installation
Wall mounted above the range to a 1/2" IPS cold water supply line only. The pipe should extend 1/2" past the finished wall surface (use the included connector if needed). Wrap plumber's tape on the threads, drill 15/64" (6 mm) holes where marked, install the plugs and fix the anchor with the 4 screws, thread the faucet onto the pipe with the flange in place and tighten without over-tightening, then lock the hex screw. Remove the aerator, open both handles and flush the line for one minute, then check for leaks. Shut off both handles when not in use.
Care
To preserve the gunmetal black finish, apply a non-abrasive wax such as car wax, and rinse off any cleaner immediately. Clean the aerator regularly to clear calcium build-up that reduces flow. Use only a non-abrasive cloth or sponge.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Braccia pot filler is offered in eight finishes: brushed gold (KF-AZ258BG), matte black (KF-AZ258BKM), brushed nickel (KF-AZ258BN), champagne bronze (KF-AZ258CB), polished chrome (KF-AZ258CH), gunmetal black (KF-AZ258GB), oil rubbed bronze (KF-AZ258ORB) and rose gold (KF-AZ258RG).
