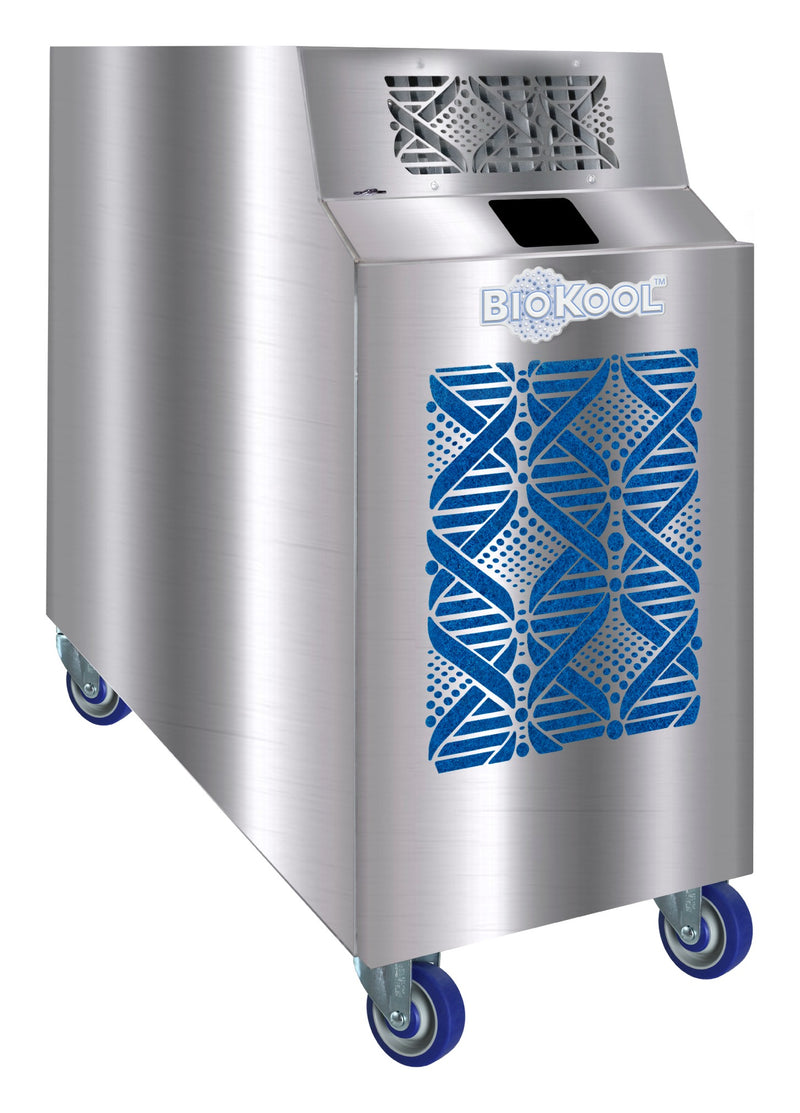

The KwiKool BioKool is a 1-ton spot cooler that also cleans the air it cools. It delivers 13,800 BTU/hr at 95°F and 60% RH, pulls room air through a pre-filter and a HEPA filter, and treats the air chamber with UVC lamps, all inside a 304 stainless steel cabinet.
It is meant for clinics, labs, offices and equipment rooms where cooling and clean air are both on the list. Choose the KBIO1411-3 with HEPA and UVC, or the KBIX1411-3, which adds needle-point bipolar ionization. Both run on a 115V, 20 A circuit.
Features
HEPA Plus UVC
A HEPA filter and UVC germicidal lamps clean the air on its way through the coil, so the BioKool cools and filters at the same time.
Ionization on the KBIX1411-3
The KBIX1411-3 adds needle-point bipolar ionization to the HEPA and UVC stages.
304 Stainless Cabinet
The stainless steel cabinet wipes clean, which suits healthcare and lab spaces.
I/O Integral Condenser
Both condenser openings can be ducted, so the unit does not pull the cooled room into negative pressure.
External Condensate Tank
A 5-gallon tank with a float switch and alarm comes standard, or the condensate can run to a drain.
Microprocessor Control
An LCD control with self-diagnostics, filter and lamp timers and alarm contacts for building systems.
Built in Texas
KwiKool builds the BioKool in the Houston and Stafford area of Texas.
Specifications
-
Models: KBIO1411-3 (HEPA, UVC) and KBIX1411-3 (HEPA, UVC, ionization)
-
Cooling Capacity: 13,800 BTU/hr (1-ton) at 95°F, 60% RH
-
Power Supply: 115V, single-phase
-
Current Draw: 15.8 A
-
Power Consumption: 1.55 kW
-
Breaker: 20 A
-
Plug: NEMA 5-20, 12 AWG cord, 6'
-
Evaporator Airflow: 460 CFM, single speed
-
Condenser Airflow: 700 CFM, I/O integral condenser
-
Condenser Ducts (optional): 2 x 12" dia. x 8'
-
Supply Air: Adjustable vent; optional 2 x 5" dia. x 16" chutes
-

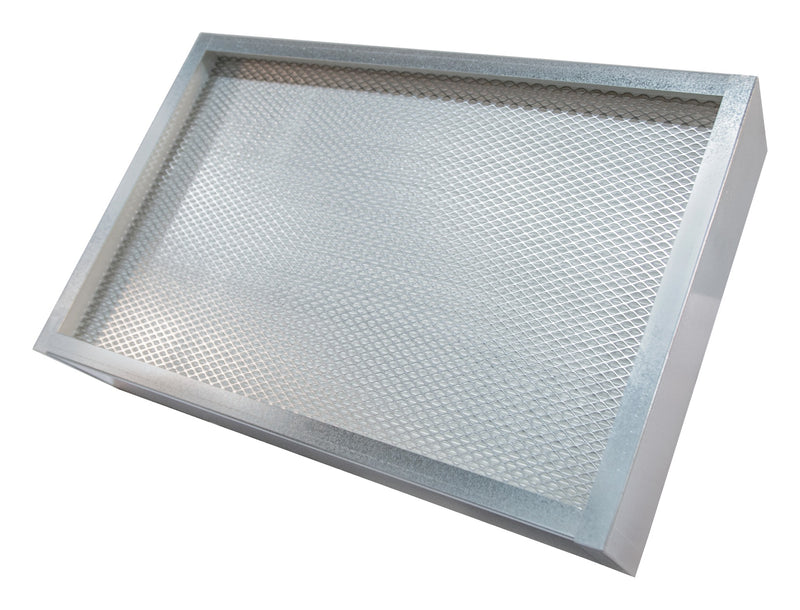

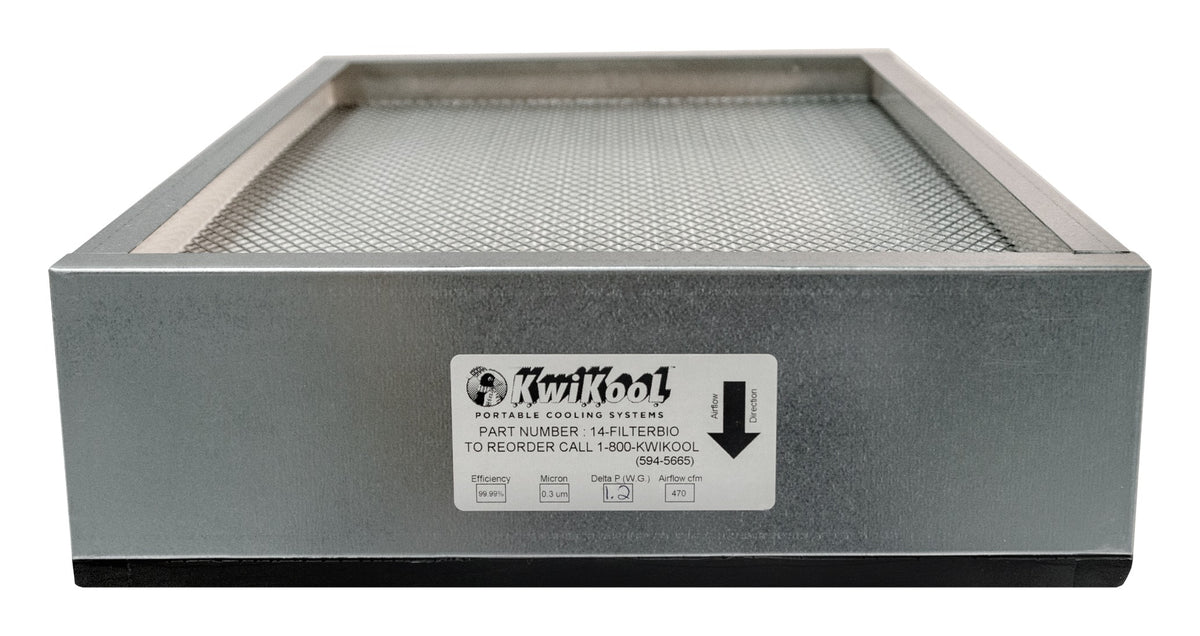

HEPA Filter: 21" x 13.5" x 4", steel-cased, 99.9% at 0.3 µm
-

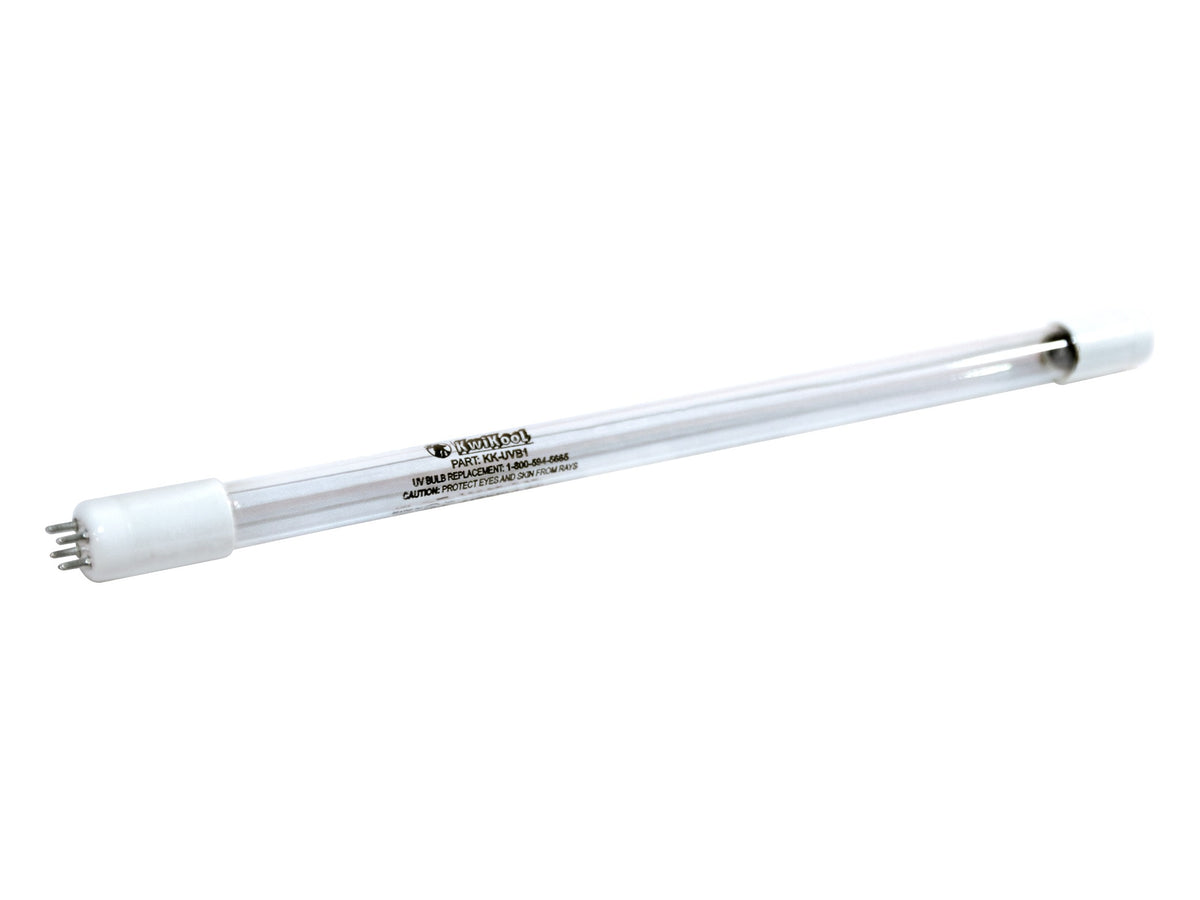

UVC: UVC 17 W lamps
-
Operating Range: 65°F to 105°F at 50% RH
-
Refrigerant: R-454B
-
Condensate: External 5-gallon tank with float shutoff and alarm
-
Cabinet: 304 stainless steel
-
Dimensions (W x L x H): 16" x 43" x 38"
-
Weight: 230 lbs (265 lbs shipping)
What's Included
- KwiKool BioKool spot cooler (KBIO1411-3 or KBIX1411-3)
- Pre-filter and HEPA filter, factory installed
- UVC lamps, factory installed
- External 5-gallon condensate tank
- Owner's manual
Setup & Placement

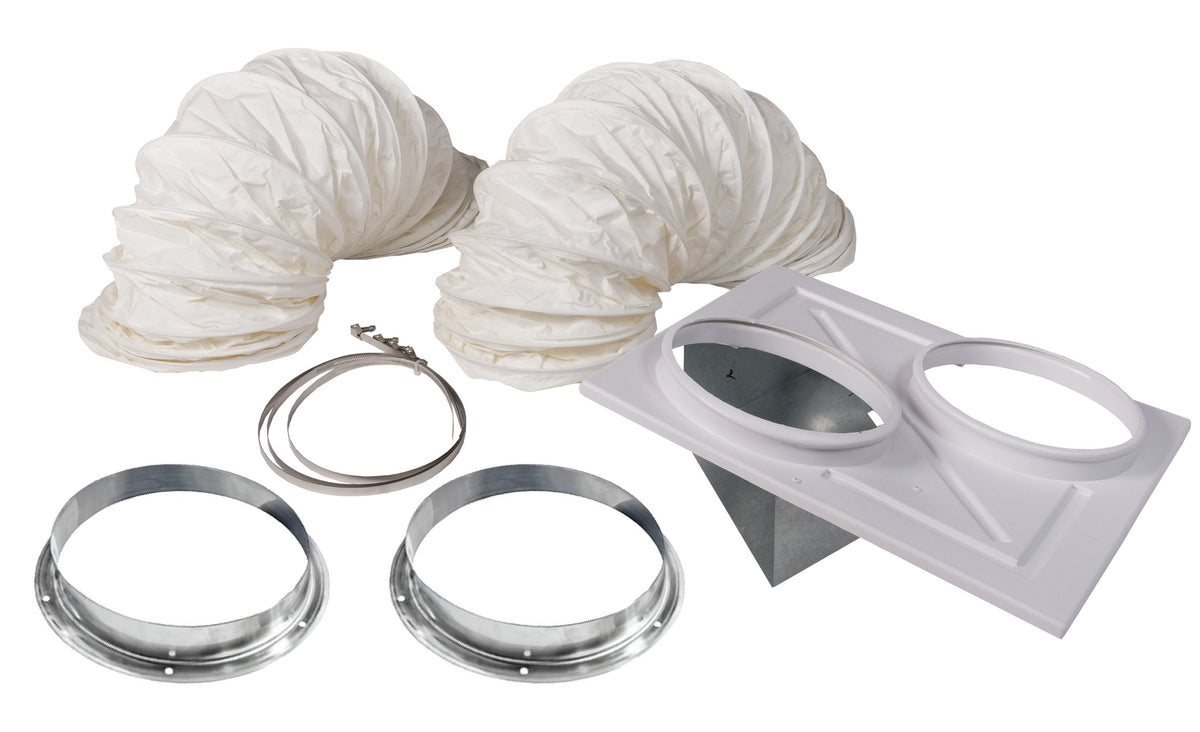

Roll the BioKool into place and lock the casters. Connect the condenser make-up and discharge openings to the two-duct ceiling kit or to ducts that run to another ventilated space, then connect the external condensate tank or a drain line.

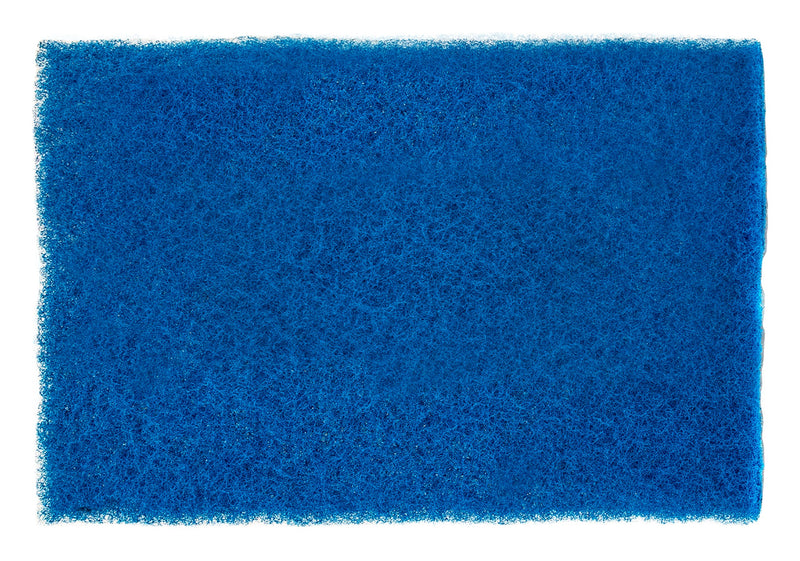

Plug the unit into a dedicated 115V, 20 A circuit with a NEMA 5-20 receptacle. Check that the pre-filter and HEPA filter are seated with the airflow arrows pointing into the unit before the first start.
Resources
Shipping, Returns & Warranty
Shipping is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
KwiKool only takes back current, unused units, and every return needs a return authorization issued in advance, so contact us before you ship. Returns must arrive within 21 days of delivery in the original packaging, and you prepay the return freight. Any damage found when the unit arrives back is charged for repair, and a restocking fee of up to 20% may be deducted along with payment processing fees. Used or contaminated units and special-order items can't be returned.
KwiKool warrants its products against defects in material and workmanship for one year from the date of purchase, with defective equipment repaired or replaced at KwiKool's option. The warranty start date is the ship date, or a documented installation date, but no later than 18 months from the ship date. Units used for rental purposes carry a 90-day parts and labor warranty, and shipping charges apply to warranty returns after the first 90 days. The warranty extends to purchasers who buy for commercial or industrial use and excludes filters and other maintenance items, misuse, improper installation, freight damage and operation outside the published ambient temperature range.
Warranty claims. Call KwiKool Technical Support at 1-800-594-5665 with the model and serial number. KwiKool decides between an authorized on-site repair and a return to its repair facility. The owner pays the freight to the repair facility and carries the risk of freight damage. KwiKool's warranty covers units bought for commercial or industrial use.
About KwiKool
KwiKool Portable Cooling Systems is a manufacturer of commercial and industrial portable cooling equipment, building its spot coolers, heat pumps and BioAir air scrubbers in the Houston and Stafford area of Texas. Its range runs from 1-ton plug-in spot coolers to large indoor and outdoor systems, and KwiKool designs it for commercial and industrial applications rather than homes.
The BioKool sits beside the KPAC II spot coolers for buyers who need filtered air as well as cooling. For filtration without cooling, the BioAir Plus and BioAir Max air scrubbers use the same HEPA and UVC approach in 600, 1000 and 1800 CFM sizes.
