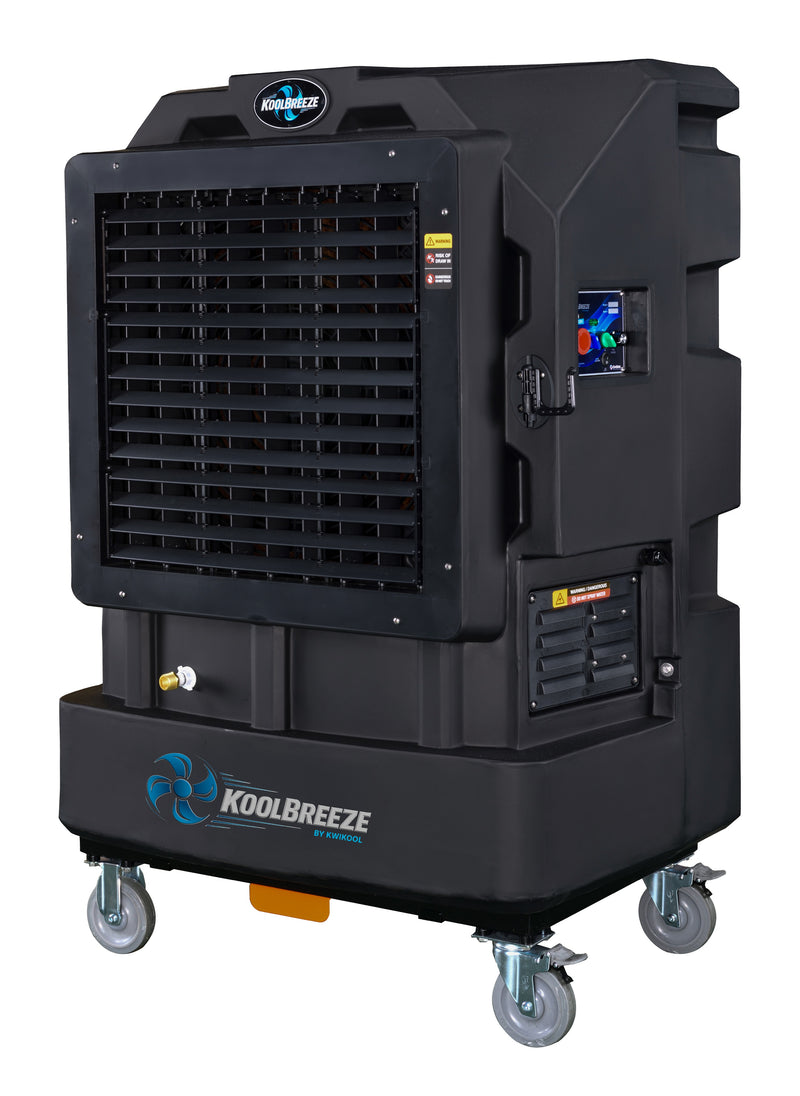

The KwiKool KoolBreeze KB105L1 is a mid-size evaporative cooler that moves 7,250 CFM through a wet cooling pad, with a 24" fan and automatic oscillating louvers. KwiKool rates it for up to 2,800ft² with an air throw of up to 49.2'.
It suits workshops, loading areas, gyms and tents that need a steady breeze of cooler air across a wider area. The 32-gallon tank runs for hours or fills continuously from a hose, and it plugs into a standard 110V outlet at 8.5 A.
Features

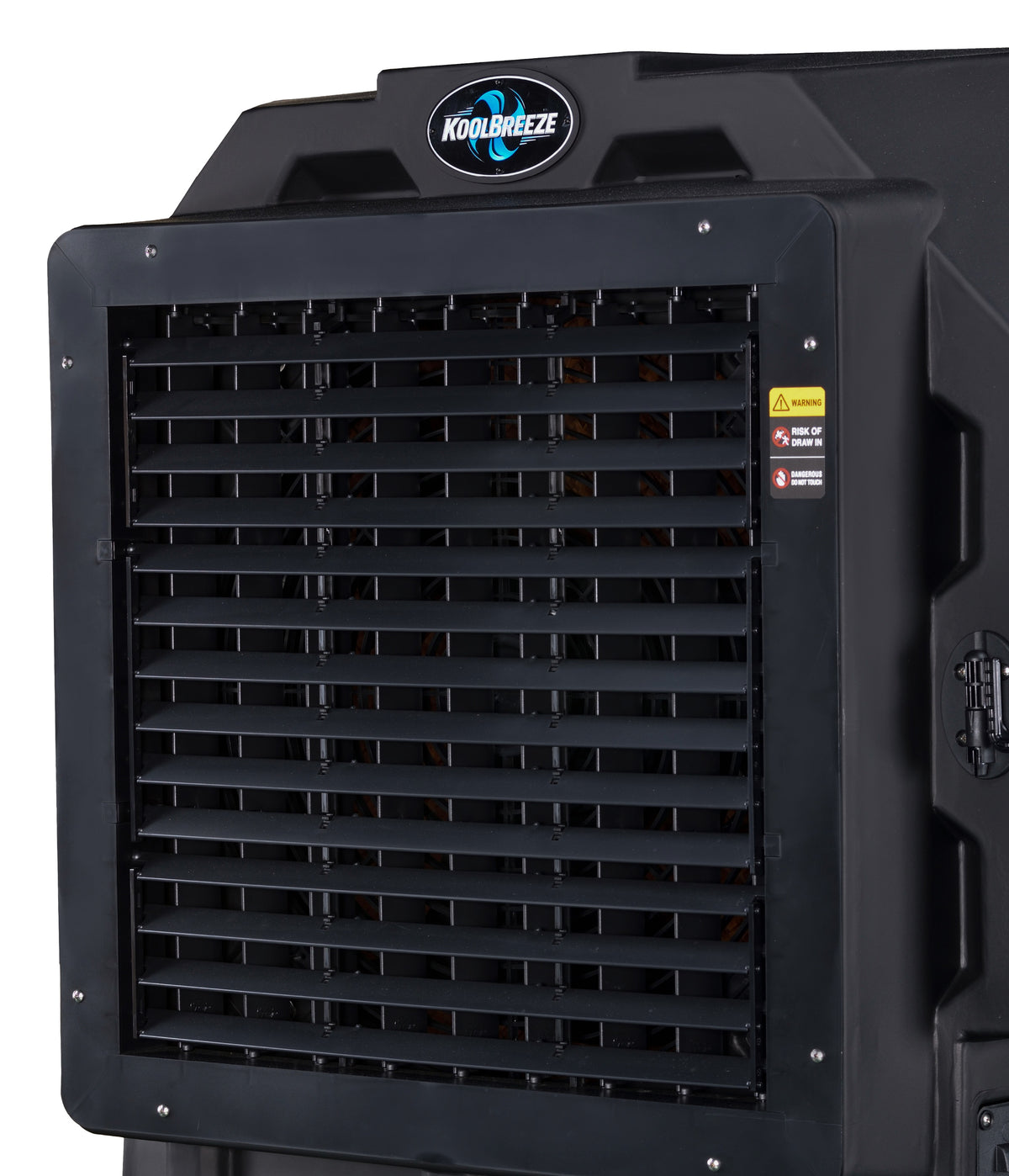

High Airflow
Moves 7,250 CFM through a wet cooling pad with no compressor and no exhaust duct.

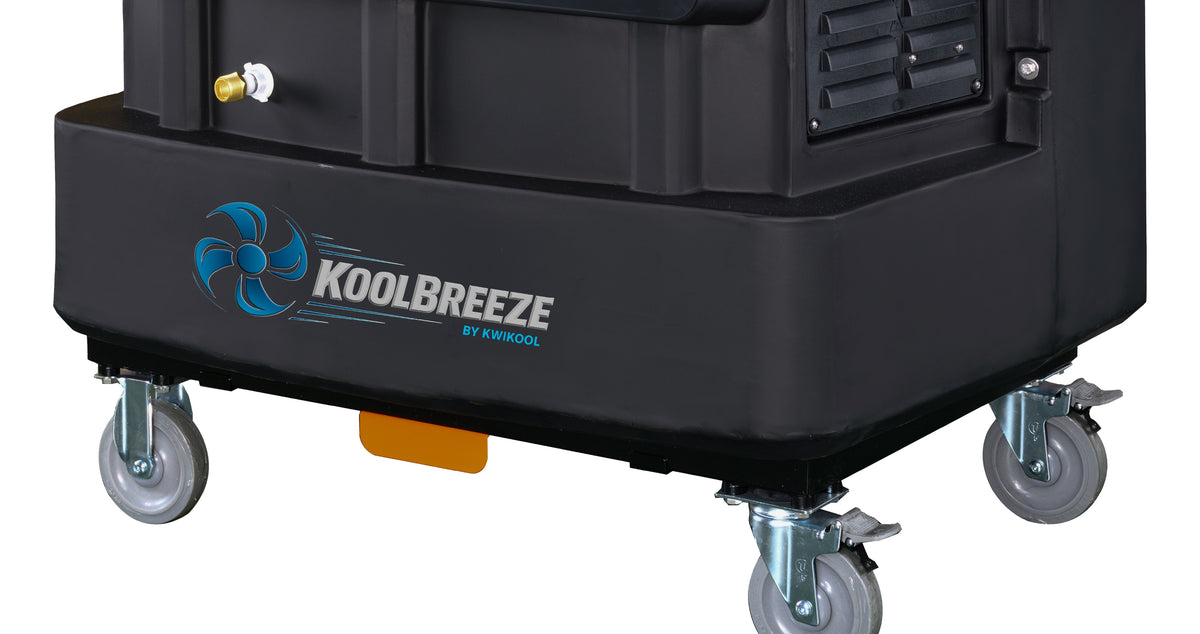

Large Water Tank
The 32-gallon tank supports up to 6 hours of operation, and the auto water inlet connects a hose for continuous use.

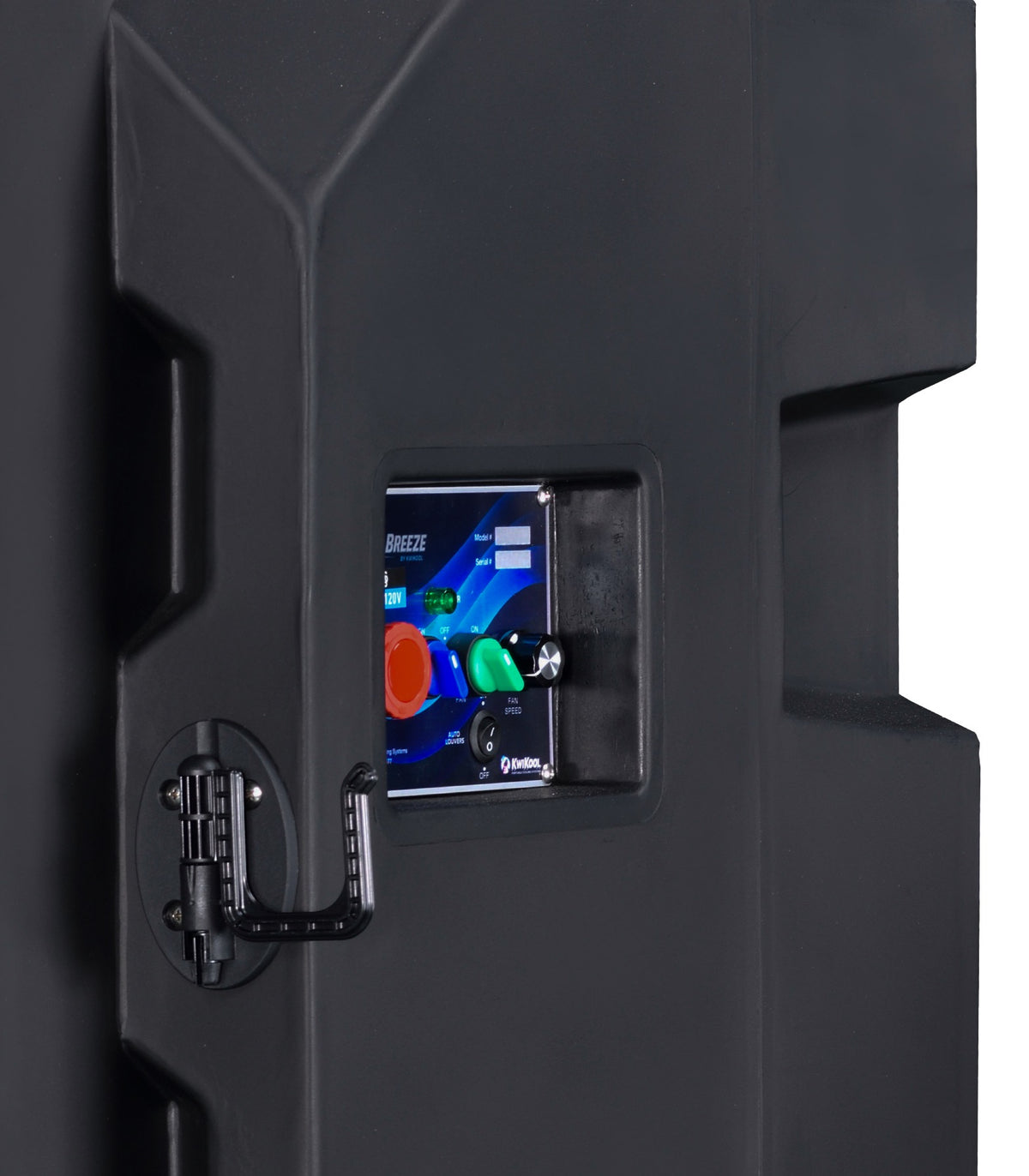

Fan-Only Mode
Switch the pump off to run as a fan or to dry the cooling pad before storage.
Low-Water Safety
The pump will not start when the water is too low, which protects it from running dry.
Ice Door
Add ice through the ice door for extra cooling on the hottest days.
Oscillating Louvers
Automatic louvers sweep the air side to side to widen coverage; vertical angle is set by hand.
Rugged and Mobile
A high-strength polyethylene body on casters with brakes, and a canvas cover comes with it.
Specifications
-
Model: KB105L1
-
Airflow: 7,250 CFM
-
Coverage: Up to 2,800ft²
-
Max. Air Distance: Up to 49.2'
-
Max. Fan Speed: 1100 RPM
-
Blades: 24", 3 blades, nylon and fiberglass
-
Motor: 0.5 HP
-
Voltage: 110V, single-phase, 50/60 Hz
-
Max. Current: 8.5 A
-
Water Tank: 32 gal
-
Louvers: Automatic horizontal oscillation, manual vertical
-
Frame: Polyethylene
-
Dimensions (W x H x D): 39" x 56" x 28"
-
Weight: 165 lbs empty, 430 lbs full
What's Included
- KwiKool KoolBreeze KB105L1 evaporative cooler
- Canvas protective cover
- Owner's manual
